CHD 1412
12G-SDI HDMI to SDI Converter with Frame Synchronizer
The CHD 1412 is a versatile and compact HDMI to SDI converter with integrated frame synchronizer. It is an ideal solution for any application which requires a fully synchronized SDI input from an external asynchronous HDMI source.
The flexible reference sync input will accept any analog video sync format including SD bi-level sync, black burst, colorbars and tri-level sync. The sync input is auto detecting and fully cross lock compatible. For example: An SDTV reference can be used to frequency lock an HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion. It can also lock to the HDMI input. A pair of stereo analog inputs can be embedded into any AES channel. Audio inputs can be either professional balanced audio with selectable full scale level, or unbalanced consumer line level audio. By default any PCM audio present in the HDMI stream will be embedded into the SDI output [encoded audio such as AC3 / DD+ etc. is not supported] or it can be replaced with the external audio signals.
The module is also compatible with LynxCentraal and yelloGUI software packages, which provide access to a host of additional internal settings including adjustable video delay for timing purposes.
An SDI fiber output is also provided with a variety of plug in SFP options available.
Note: For legal reasons, HDMI capture devices from LYNX Technik AG are designed not to capture, convert or transmit video or audio from HDCP copy-protected sources (e.g. Satellite receivers, Cable receivers, etc.).
No more pages to load
Key Features
- Supports 12G / 6G / 3G / 1.5G / SD-SDI Signals
- 4:2:2 / 4:4:4 8,10 and 12 bit support
- 3G-SDI Level A And Level B Support
- Integrated Frame Synchronizer
- Multi-Format Sync Reference Input – Cross Lock Compatible
- 2 x SDI Outputs with Optional SDI Fiber Output
- Pass through PCM, Dolby E, D, DD+ and Atmos JOC
- Balanced Analog Audio, Unbalanced Line Level Audio, Or AES Input
- Selectable AES Channel for Embedding External Audio
- HDMI, Reference and Audio Present LED Indication
- LynxCentraal & yelloGUI Compatible for Additional Internal Settings
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479328112 | CHD 1412 | 12G HDMI to SDI Converter |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| Fiber Options | ||

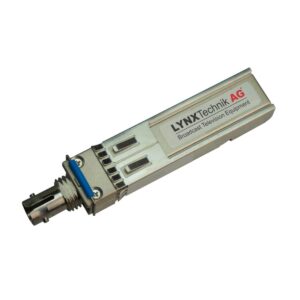

| 4250479325036 | OH-TX-12G-LC | 12G SDI Fiber Transmitter (LC) |
| 4250479327528 | OH-TX-12G-ST | 12G SDI Fiber Transmitter (ST) |
| CWDM Fiber (TX) | ||

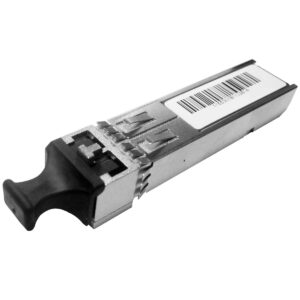

| 4250479325630 | OH-TX-12-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479325647 | OH-TX-12-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479325654 | OH-TX-12-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479325661 | OH-TX-12-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479327979 | OH-TX-12-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479327986 | OH-TX-12-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479327993 | OH-TX-12-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479328006 | OH-TX-12-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479328013 | OH-TX-12-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479328020 | OH-TX-12-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479328037 | OH-TX-12-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479328044 | OH-TX-12-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479328051 | OH-TX-12-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479328068 | OH-TX-12-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479325685 | OH-TX-12-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479325692 | OH-TX-12-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479325708 | OH-TX-12-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479325715 | OH-TX-12-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
Supported Video Formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
HDMI Input
- Type A 2.0b connector for up to 2160p60
- Up to 8 channels embedded audio in HDMI are passed transparently or replaced with external analog audio input
- HDCP encrypted sources WILL NOT be converted.
SDI Video Output
- 2x 12G-SDI outputs, 75 Ohm BNC (12G/6G/3G/1.5G/SD-SDI)
- SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
- 3G-SDI Level A or B Dual Link
- Return Loss
- To 1.5GHz > 15dB
- To 3GHz > 10dB
- To 6GHz > 7dB
- To 12GHz > 4dB
- Automatic Cable EQ
- 270 Mbit/s = 340m (Belden 1694A)
- 5Gbit/s = 200m (Belden 1694A)
- 3Gbit/s = 150m (Belden 1694A)
- 6Gbit/s = 100m (Belden 4794R)
- 12Gbit/s = 100m (Belden 4794R)
Color Precision
- YCbCr 4:2:2 10-bit
- YCbCr/RGB 4:4:4 10/12-bit
Fiber I/O
- Optional plug-in SFP for optical SDI output
- 12G or 3G-SDI options available
- Simplex Transmitter
Reference Input
- SDTV:
- Analog 525 or 625 bi-level sync, black burst or color bars
- HDTV, 3G, 12G:
- All tri-level sync standards (exceptions 1080p 50/59.94/60Hz)
- Cross lock compatible
Frame Synchronizer
- Defaults to free-run (asynchronous) mode when no valid reference signal is present
- External audio and HDMI input are frequently locked to external reference
- (fully cross lock compatible across standards)
- Adjustable Delay: 15 Frames (300ms) for all SD/HD/3G and 12G signals
- Audio Input Delay: max. 682.65ms
- HDMI Audio Delay: max. 682.65ms
Supported Audio formats (pass through)
- PCM
- Dolby Digital (AC3)
- Dolby Digital Plus (E-AC-3) Including DD+ Atmos (JOC)
Compressed audio is passed transparently in HDMI self-lock mode.
Audio Inputs
- Left and right analog audio using mono 3.5mm jack plugs
- 10k Ohm differential balanced input mode with 24,22,20,18,15,12 dBu and user definable full scale level (selectable)
- Unbalanced mode with (line level) at -10 dBV
- (3.5mm Jack Plug to RCA connection adapters supplied
- Selectable AES channel for audio embedding (1 through 8)
- Overwrites any HDMI embedded audio present in selected channel
- Frequency response: <+/- 0.1dB 20Hz to 20KHz
- 48kHz A/D sample rate (frequency locked to SDI output)
Power
- +12V DC @ 10W nominal – (supports 8 – 24V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:126mm x 90mm x 22mm
- Inches: 4.96” x 3.54” x 0.86”
Weight:
- 270g (7.05oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
