RFR 1200

yellobrik 19″ 1RU Rack Frame

Documentation

Product Documentation

Features

  • Compact 1 RU Design
  • All yellobriks are compatible (large and small)
  • Accommodates up to 14 yellobriks
  • Central power with external 12VDC power inputs
  • Primary and redundant power options
  • Power failure alarm GPO outputs
  • Adjustable 19” mounting brackets to recess frame

Description

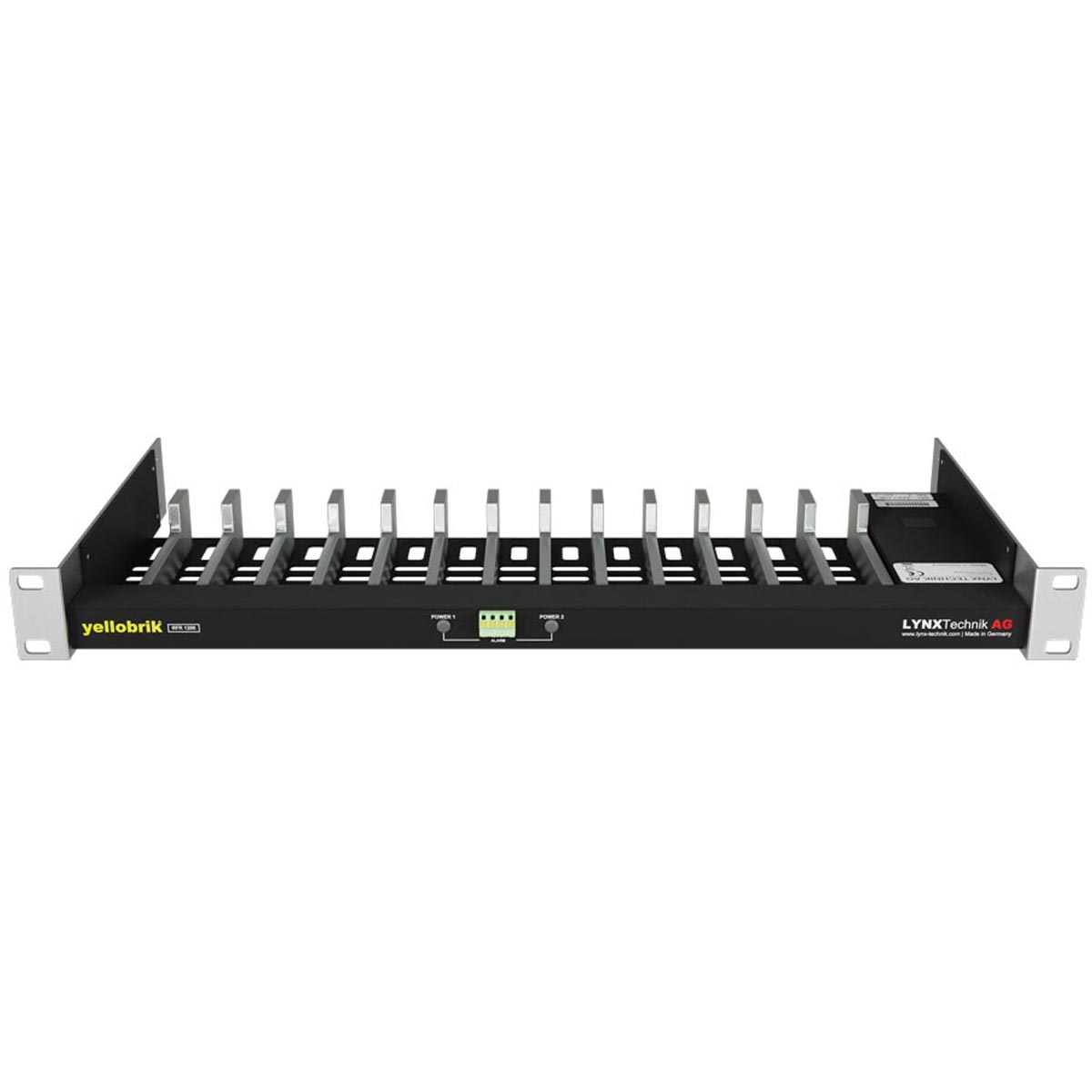

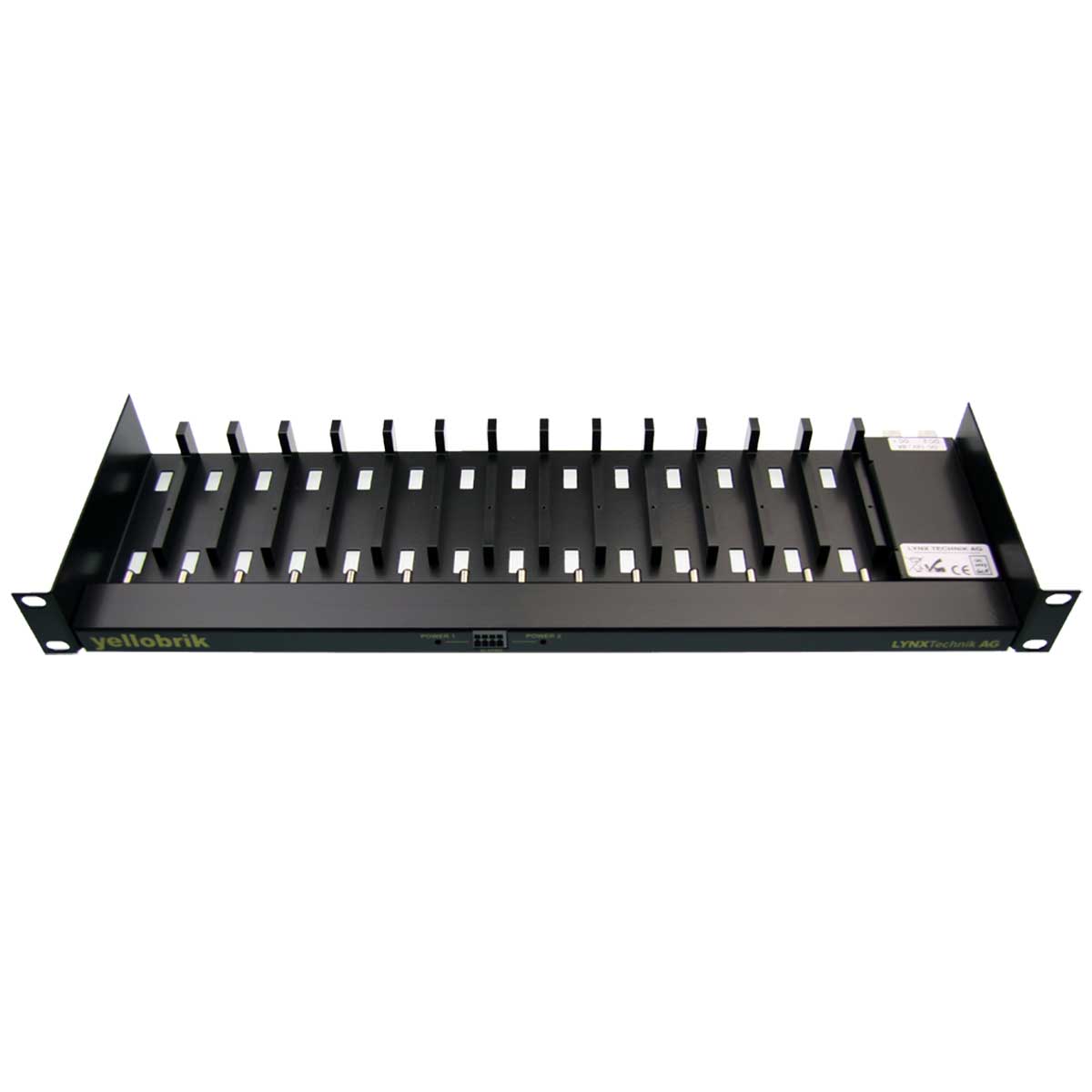

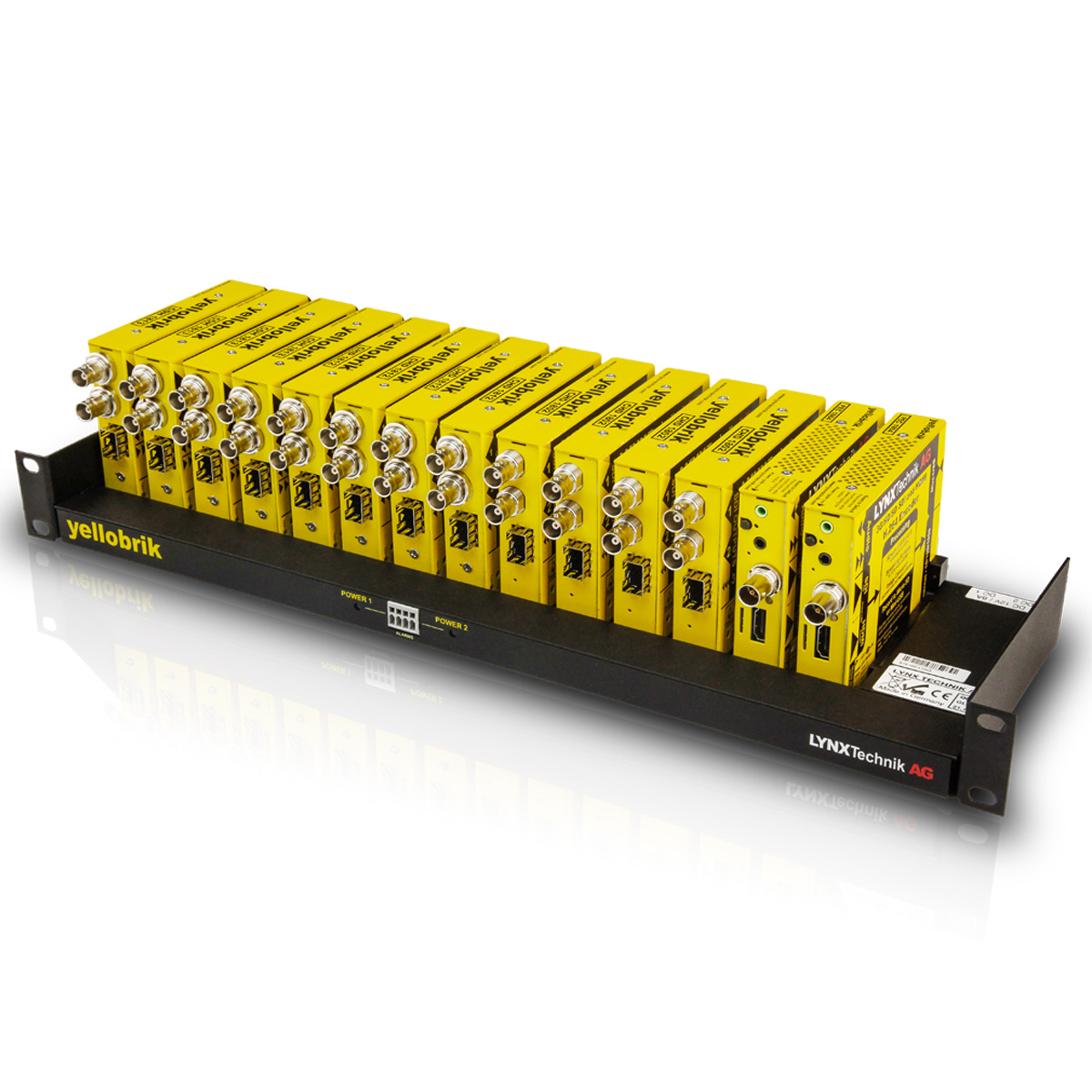

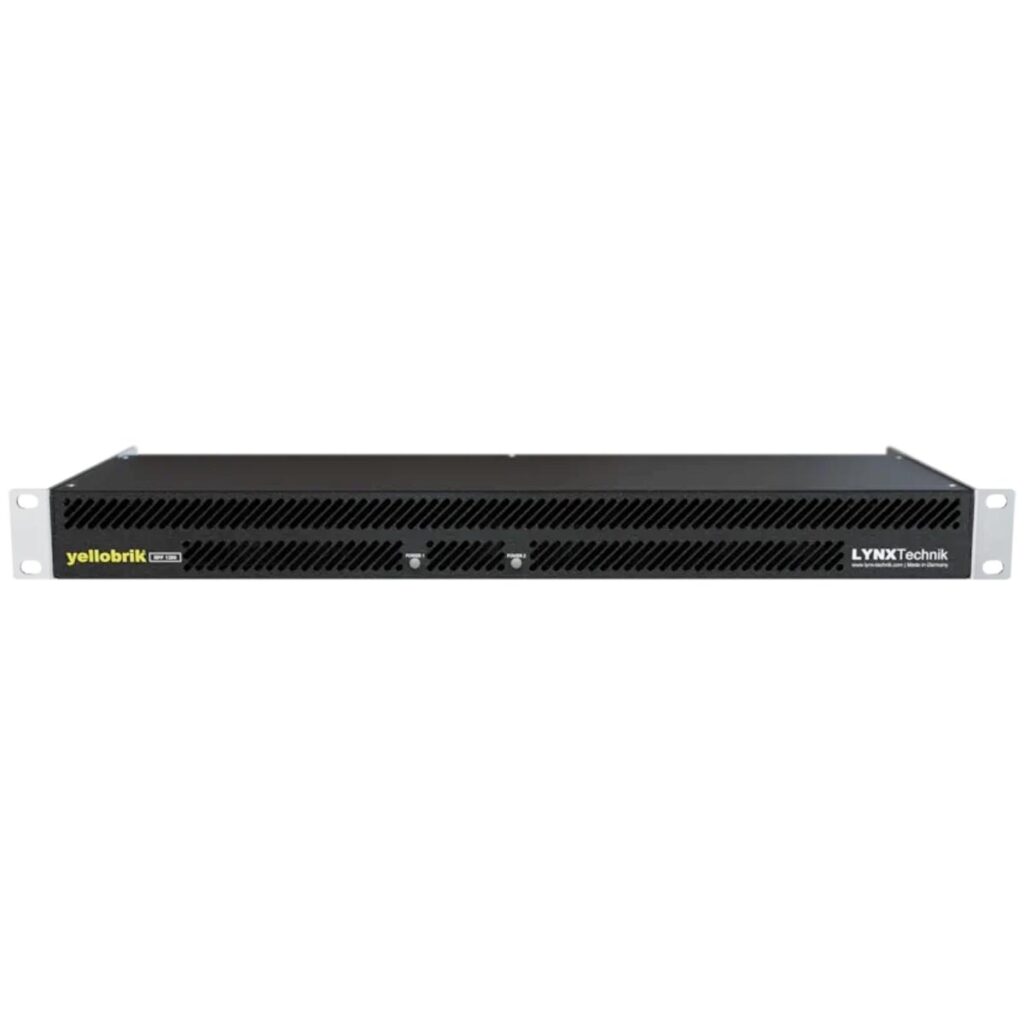

The RFR 1200 is a compact 1 RU high mounting frame designed for yellobriks.

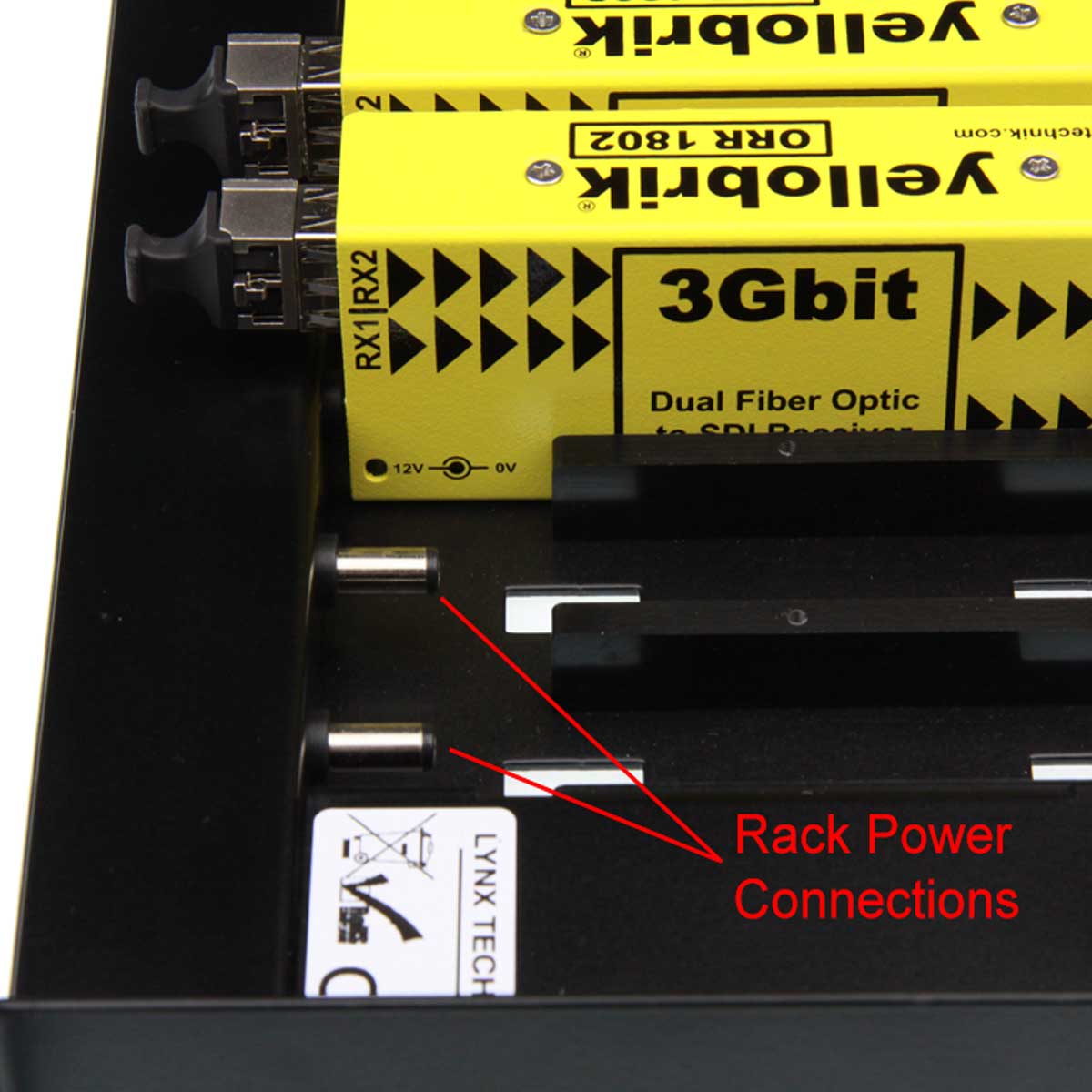

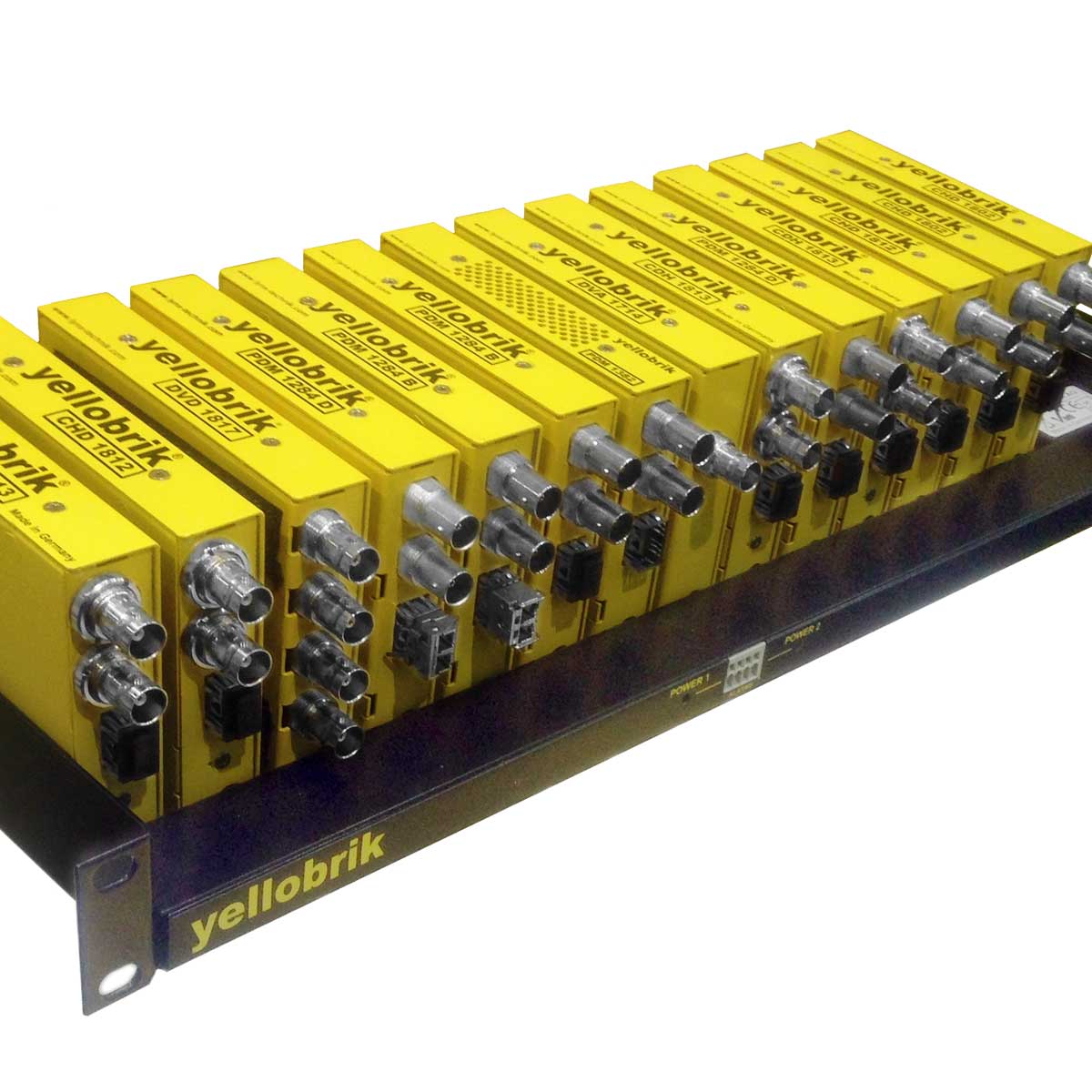

Up to 14 yellobriks can be mounted vertically and mechanically clamped in place. Each slot has its own integrated power connector on a central power bus which can supply up to 200W of power total.The rack has two external 12VDC inputs for power. If the total of all connected devices stays below 100W, “Power 1” will be for primary power, “Power 2” for redundant backup. In high power mode both power supplies are used in parallel to supply a total of 200W power budget to the rack. To indicate status LEDs are located in the front panel as well as GPI connections for the power supply failure alarms.

While the frame will accommodate all yellobriks (exceptions are are OCM, OSP, OTR 1441, OTR 1442, OTR 1A41 and OTR 1A42) It is ideally suited for yellobrik fiber converters, which are typically used in larger numbers.

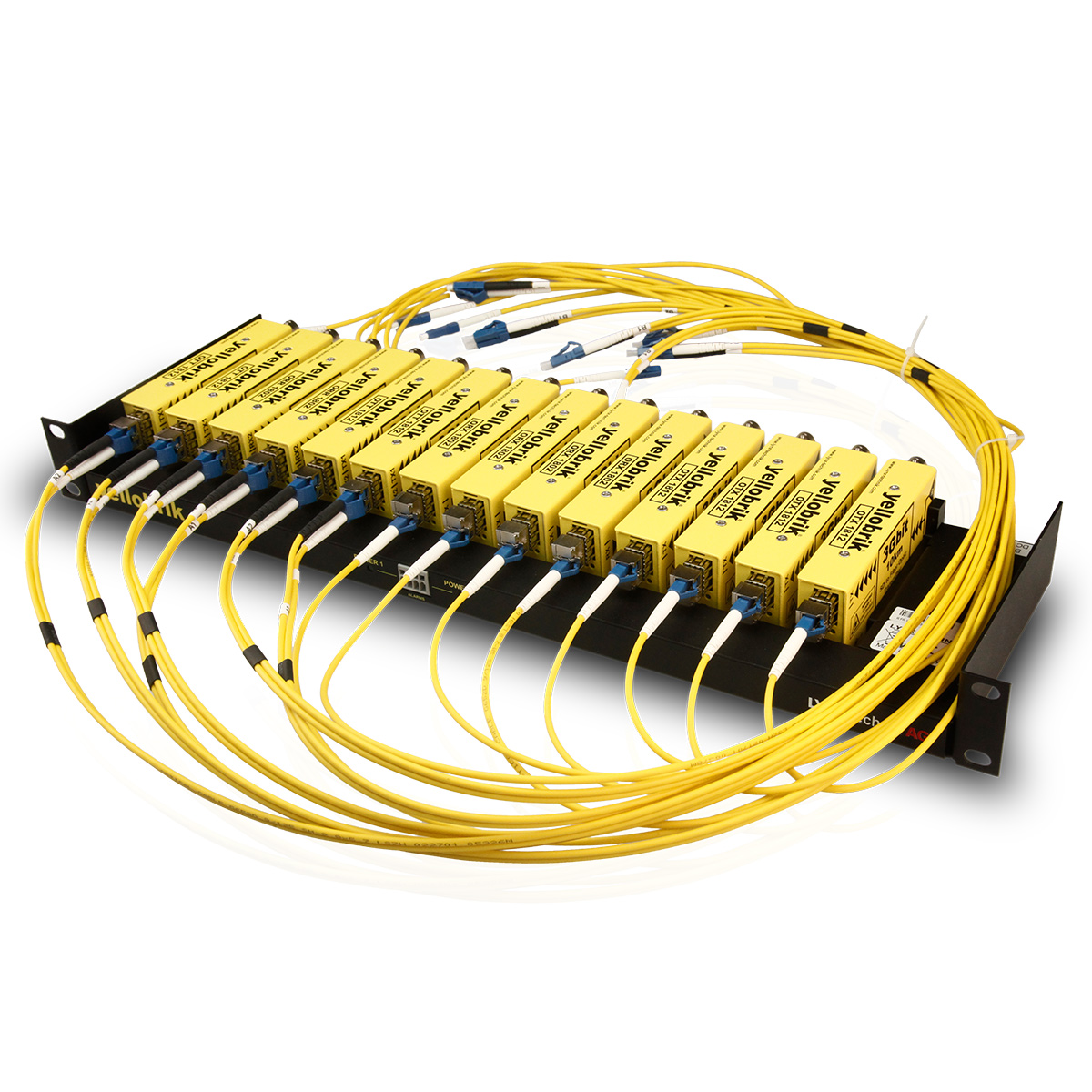

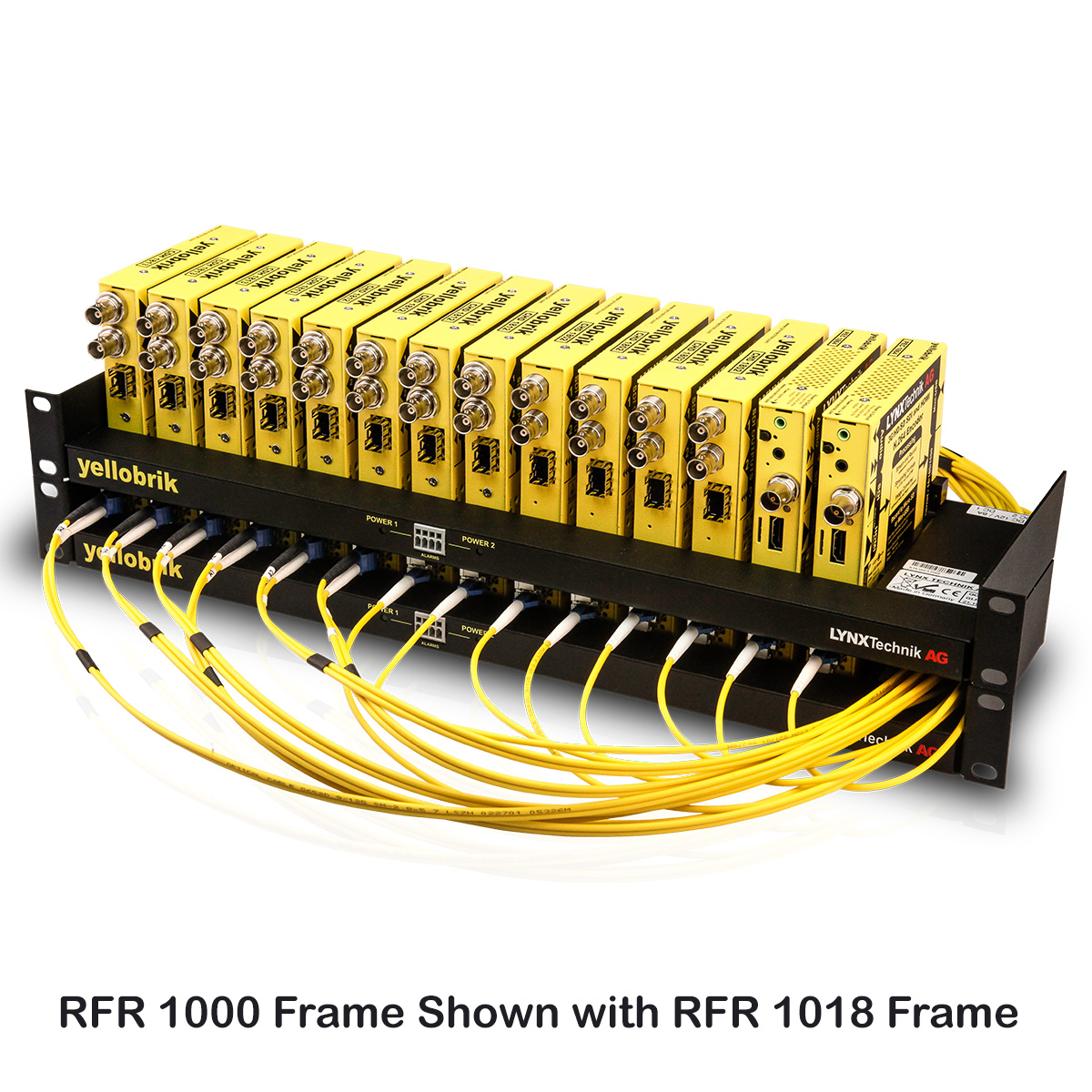

A space is left open on one side to route the fiber loops from front to rear making for a very clean installation. The module fiber RX and TX activity LEDs can be seen from the front with the modules installed. To protect the fiber cables and connections the 19” mounting brackets can be re-positioned to recess the rack frame.

To mount the wider modules (i.e. IDC 1411 ) the spacer brackets can be unscrewed from the bottom to make room to accommodate these types of modules

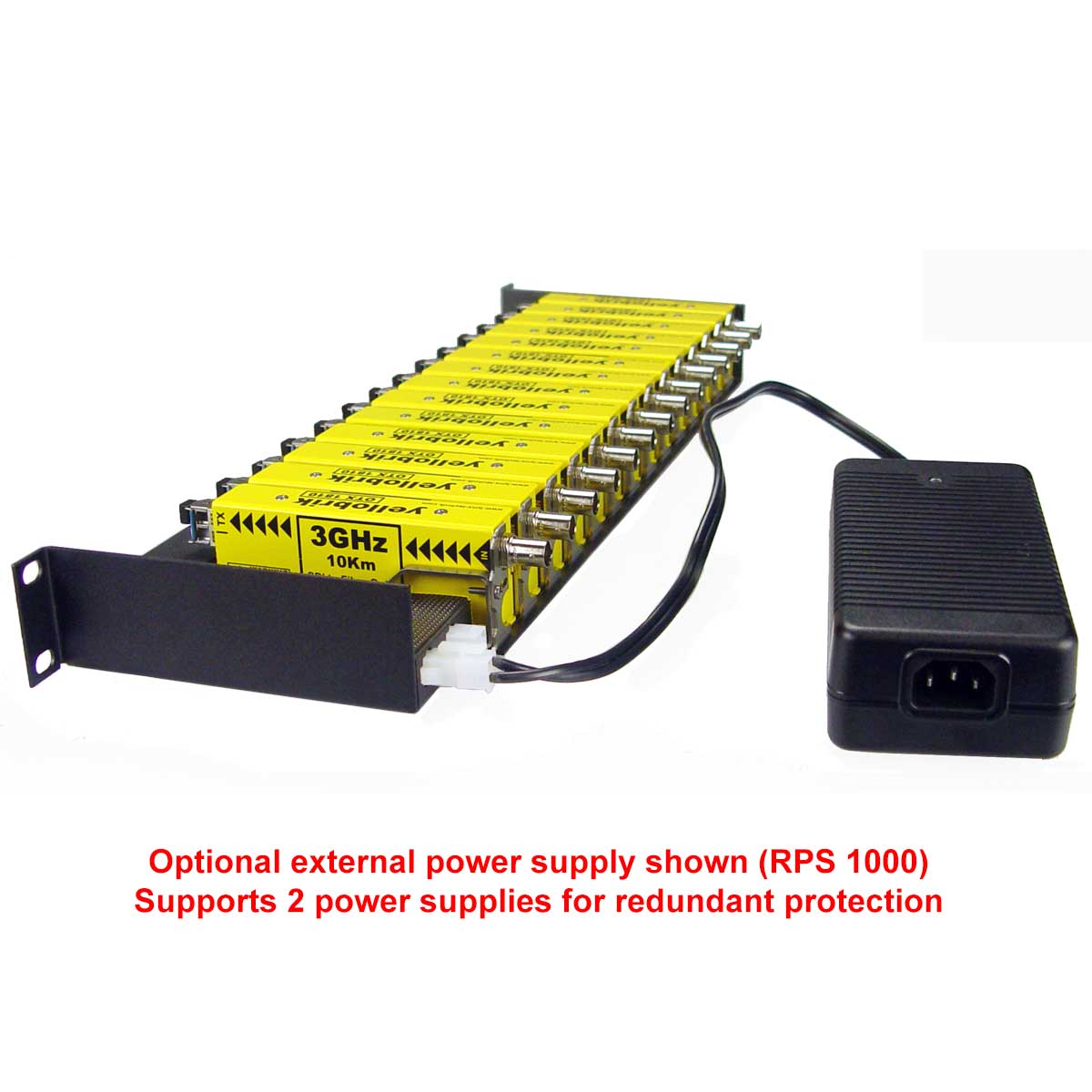

NOTE Does not include power supply. Please order RPS A100 power supply (Order 2 for redundant protection)



CAUTION: If the rack frame is populated with higher power modules please allow at least 0.5 RU of empty space above and below the frame and provide empty slots each side of the modules wherever possible to allow for adequate airflow to prevent the risk of overheating.

High Power Modules

CHD 1412 / CDH 1411 / CHD 1402 / IDC 1411 / PDM 1484-B / CDH 1812 / CDH 1813 / CQS 1462 / CQS 1441 / PDM 1484-D

Accessories

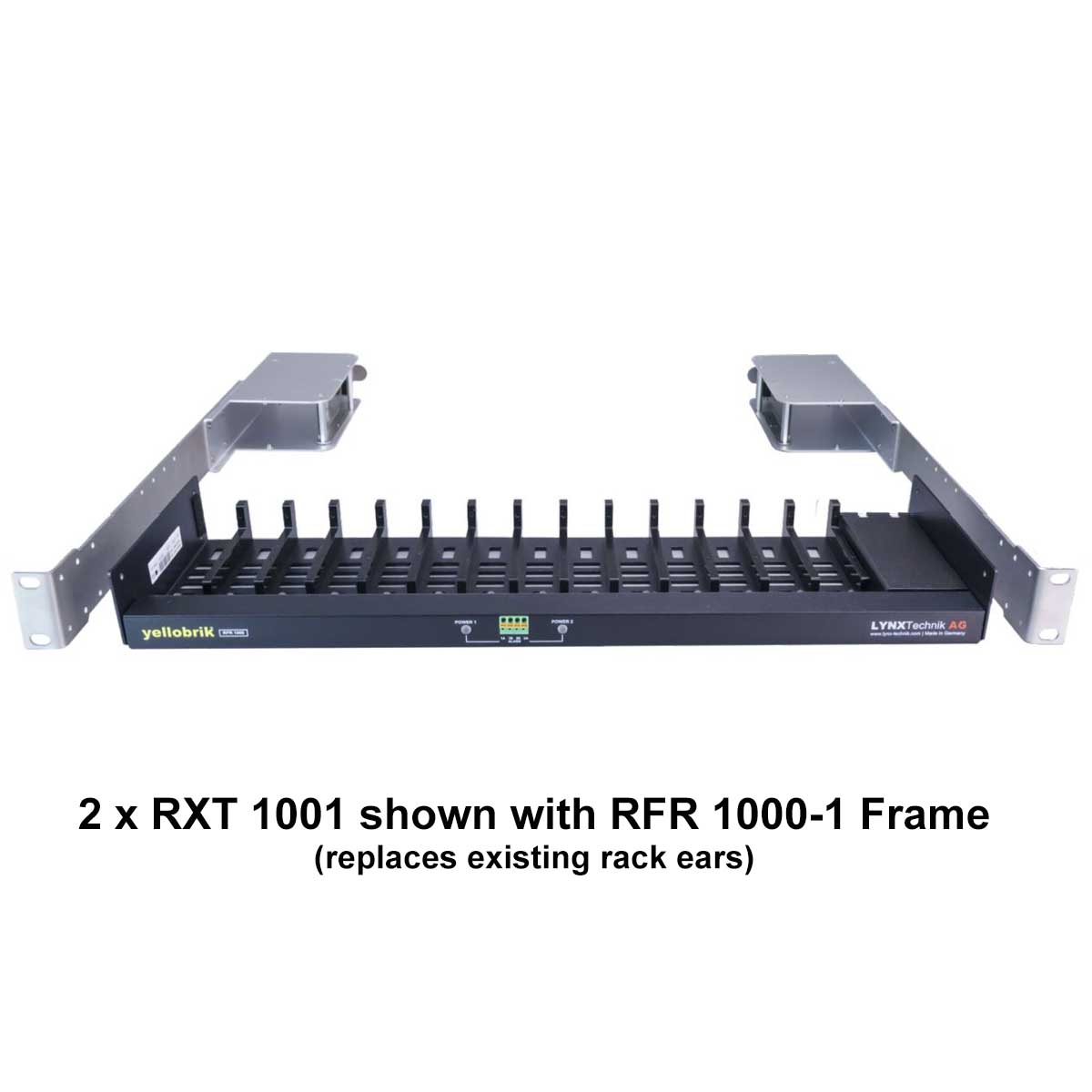

RXT 1001

Power Supply Holder for RFR 1200 Frame

Ordering Information

UPC / EANModelDescription
4250479329041RFR 120019" 1RU Rack Frame for up to 14 yellobriks
Options
4250479327955RPS A100 USExternal Power Supply for RFR 1000 (order 2 for redundant protection)
4250479327962RXT 1001Power Supply Support Bracket
