PEC 1464
12G-SDI / HDMI H.264/H265 Streamer and Recorder

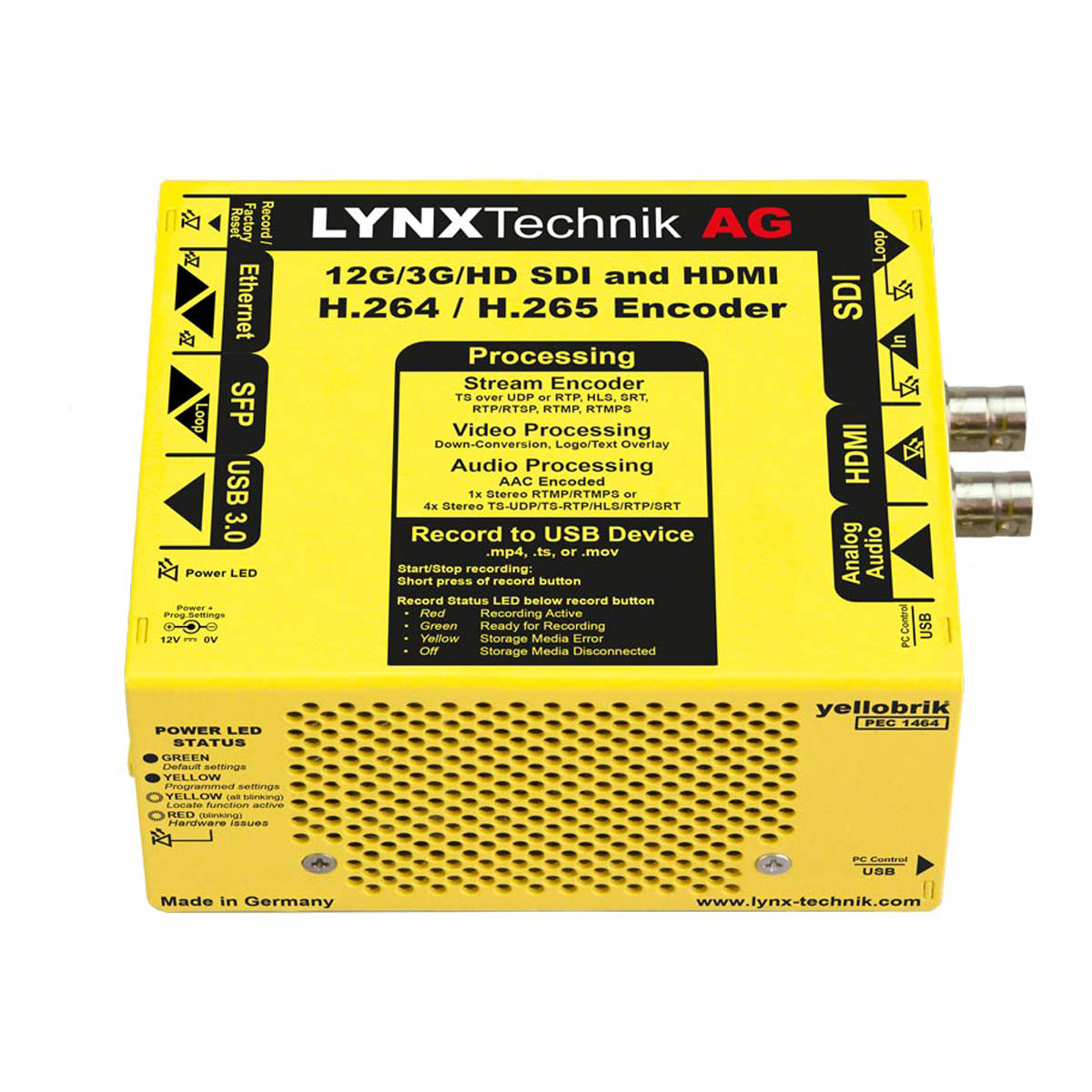

The PEC 1464 is a versatile, compact SDI/HDMI H.264/H.265 streamer and recorder designed for a wide range of applications in the broadcast, film and pro AV industry. The module can be configured to stream, record or to do both simultaneously.
Two channels of audio are deembedded from the video input. In addition, the PEC 1464 has a line audio input and either one of these audio sources can be used for the streamer and/or recorder.
Users can insert a logo into the video signal stream, which can be positioned freely. Also a custom image can be shown if the input is missing. It supports resizable and adjustable position text overlays.
The PEC 1464 supports a wide range of streaming standards as well as unicast and multicast operations. Whether you are streaming live to a Content Delivery Network using RTMPS, viewing the stream on one or more computers using RTP/RTSP unicast or multicast, or streaming to a dedicated decoder or multicast address using TS over UDP or RTP, the PEC 1464 is a powerful device ideal for a diverse set of applications.
The PEC 1464 is suitable for live event streaming, webcasts, corporate or enterprise streaming, presentation and conferencing, AV system monitoring, house of worship proceedings streaming and many more.
A mobile device friendly Web UI allows for a simple configuration from a PC, Mac, tablet or smartphone.
Note: For legal reasons, HDMI capture devices from LYNX Technik AG are designed not to capture, convert or transmit video or audio from HDCP copy-protected sources (e.g. Satellite receivers, Cable receivers, etc.)

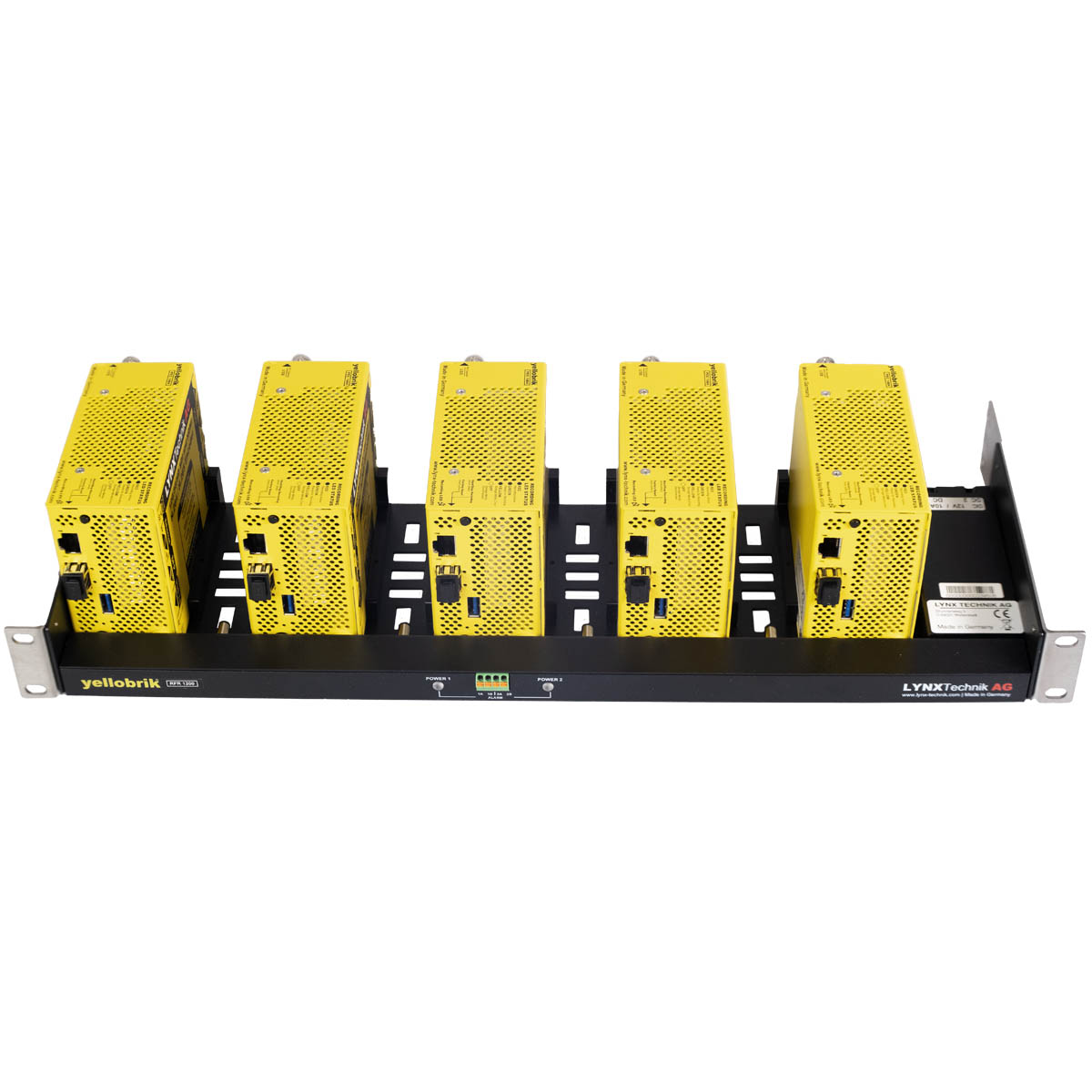

Note: This is a high power module. If mounting the module in the RFR 1200 rack frame please leave an empty slot each side of the module to allow for adequate airflow to prevent the risk of overheating.ot use with RFF 1200 fan tray option
Note: MicroSD or USB storage media is not included
