PDM 1284D yellobrik AES Audio Embedder / De-embedder

PDM 1284 D

AES Audio Embedder / De-embedder (balanced AES)

Specialty

De-embedder, Digital Audio, embedder, Fiber, SDI 1.5G, SDI 270MBit, SDI 3G

Documentation

Product Documentation

Features

  • Multi-function
  • 4 x AES embedder or 4 x AES de-embedder
  • Simultaneous embedding and de-embedding also possible
  • SDI video formats up to 3Gbit (1080p60)
  • Level A and Level B (DL) support
  • 4 x AES inputs or outputs
  • Selectable audio groups
  • Optional Fiber I/O
  • Integrated 1 kHz test tone generator
  • Automatic PCM / encoded audio detection
  • Auto black if no video present
  • Selectable SDTV 24 bit mode
  • Video present and audio status LEDs

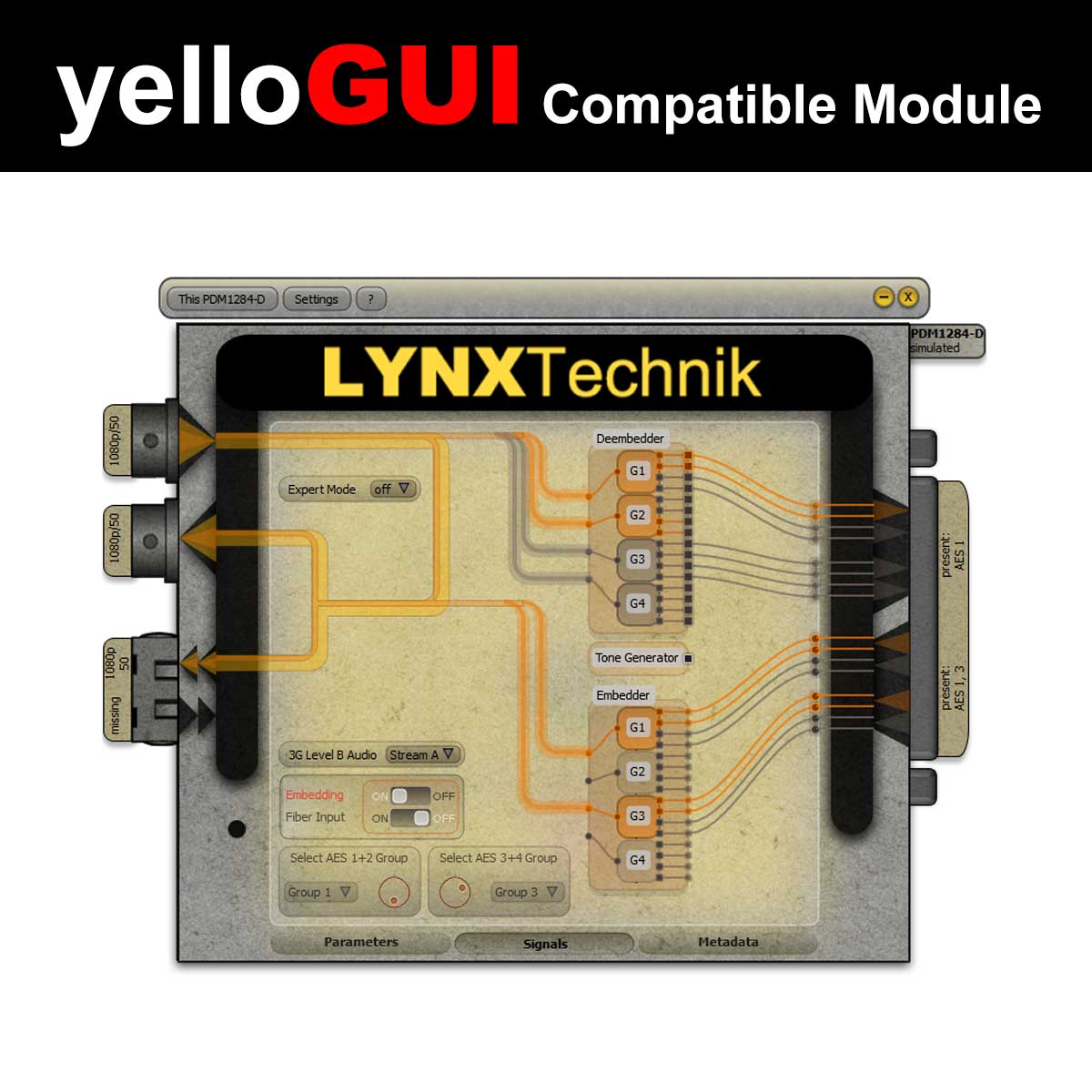

  • Internal full mono audio shuffling via yelloGUI

Description

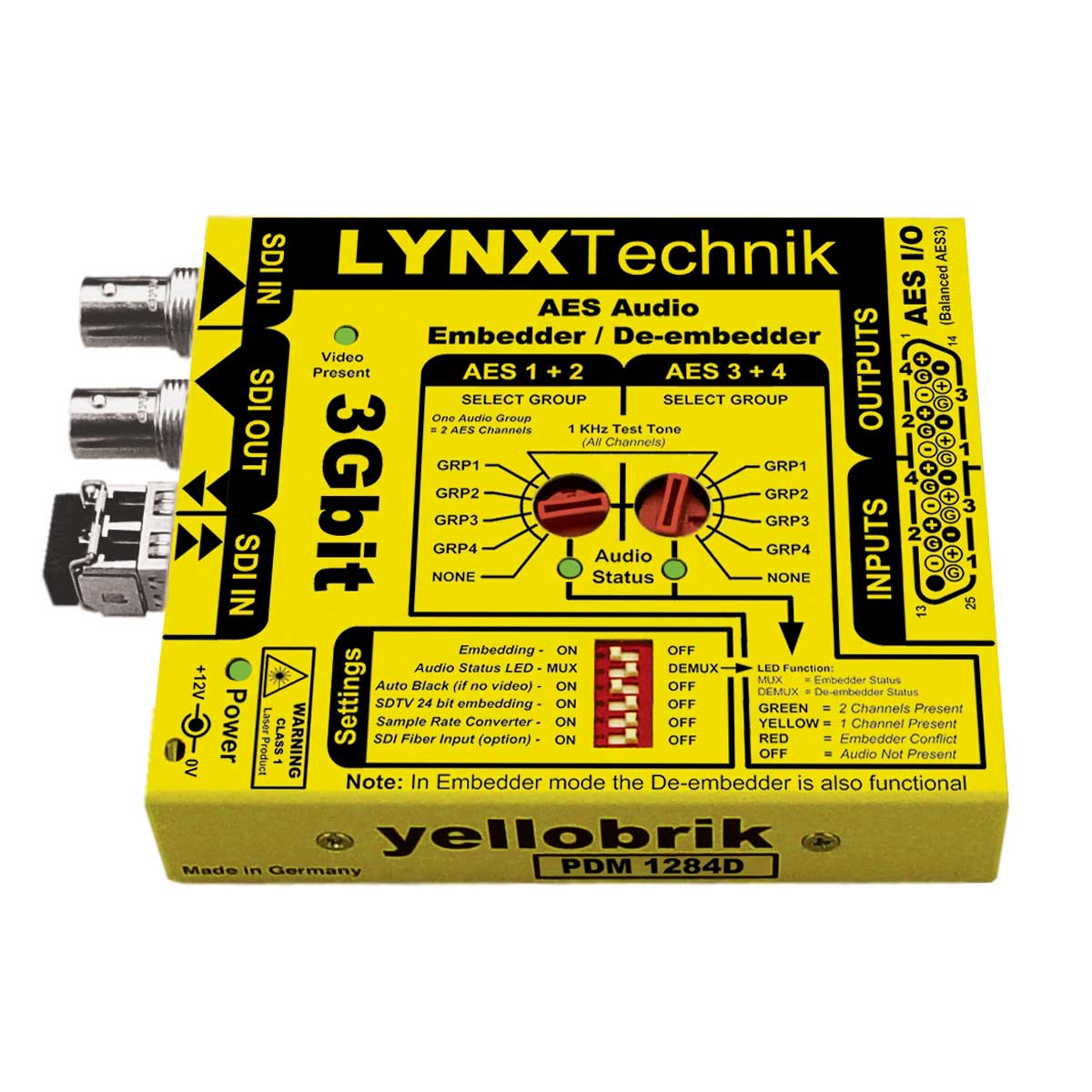

The PDM 1284 D is a versatile AES audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. It supports balanced AES3 audio I/O using a 25 pin SubD connector. (screw terminal adapter PCB supplied)

Audio groups are selected using the rotary switches, and its possible to embed and de-embed additional audio groups by cascading modules together. Simultaneous embedding and de-embedding means the module will de-embed and output the audio from the selected audio group before overwriting with new audio (if required). The module automatically detects audio formats and will deactivate the sample rate converters to preserve encoded bit streams such as DolbyE.

The “auto black” mode uses a black video frame if no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful if the module is being used in an “audio only” application. A 1 kHz test tone generator is included for audio testing purposes.

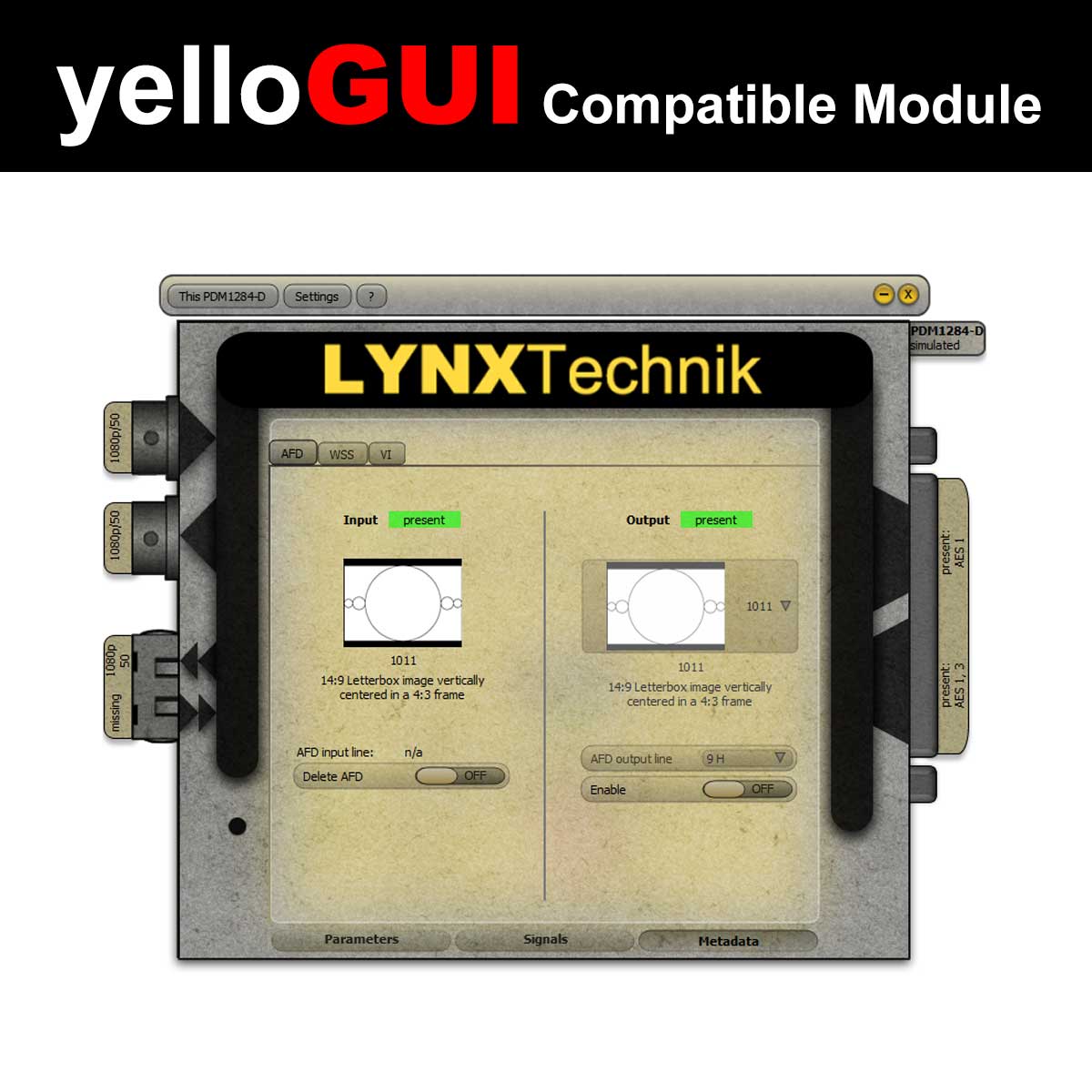

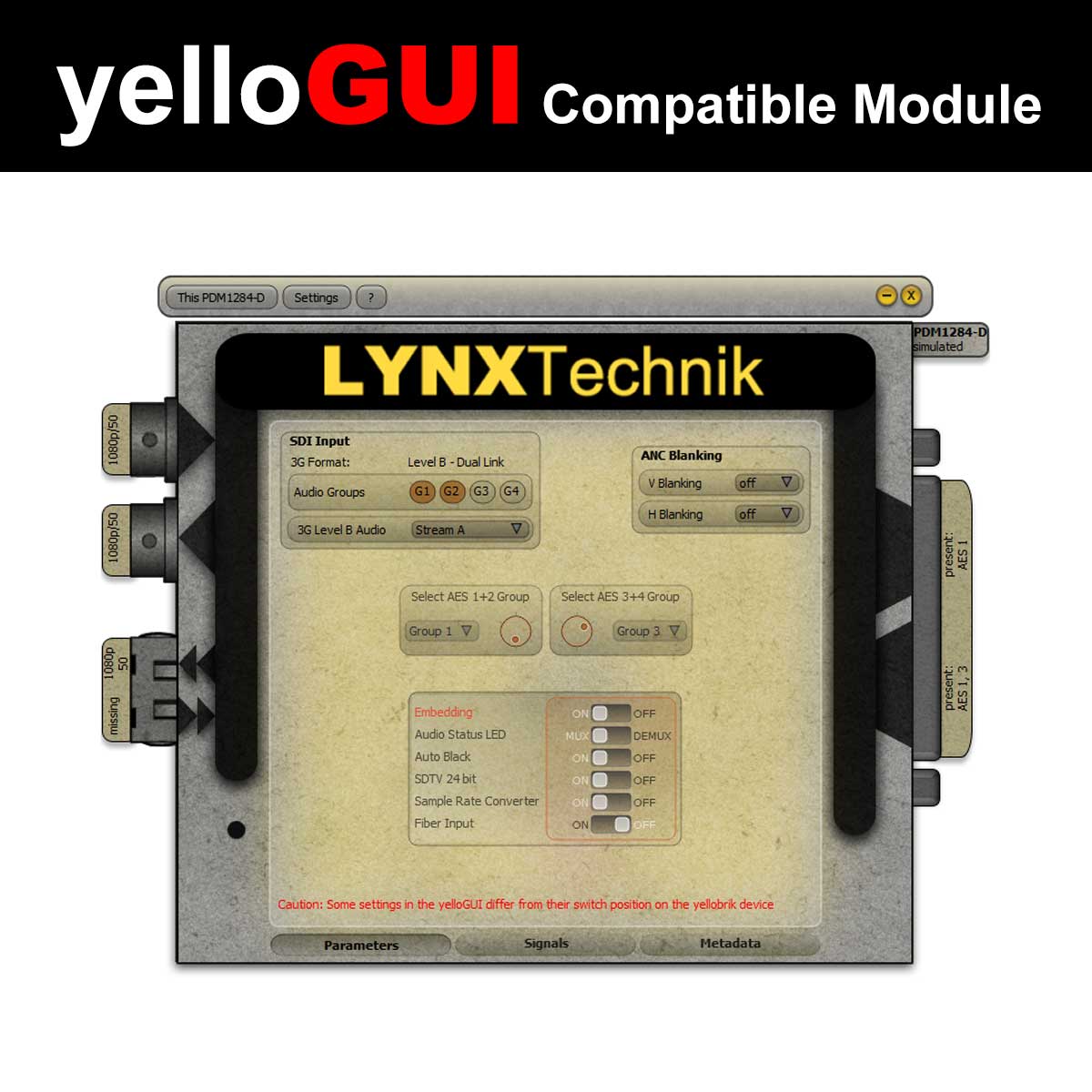

The module is also compatible with the yelloGUI software package, which provides access to a host of additional internal settings which includes manual insertion of metadata (AFD,WSS,VI)

An SDI fiber input and output is also provided with a variety of plug in SFP options available.

.

Accessories

OH-RX-0-MM

3Gbit SDI Multimode Fiber Optic Receiver

OH-RX-1

3Gbit SDI Fiber Optic Transmitter

OH-TR-1

3Gbit SDI Fiber Optic Transceiver

OH-TR-4-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (40km)

OH-TR-8-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (80km)

OH-TX-1

3Gbit SDI Fiber Optic Transmitter

OH-TX-4-XXXX

3Gbit SDI Fiber Optic Transmitter – CWDM (40km)

OH-TX-8-XXXX

3Gbit SDI Fiber Optic Transmitter – CWDM (80km)

RFR 1000 yellobrik central power connectors

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 yellobrik XLR power adapter cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

Ordering Information

UPC / EANModelDescription
4250479312852PDM 1284DAES Audio Embedder / De-embedder (balanced AES)
Options
4250479329041RFR 1200RFR 1000 • 19" Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-1000 4 Pin XLR Battery Power Adapter Cable
Fiber Options
4250479320321OH-TX-1-LCSDI TX Fiber SFP LC Connection (1310nm)
4250479320215OH-TX-1-SCSDI TX Fiber SFP SC Connection (1310nm)
4250479320222OH-TX-1-STSDI TX Fiber SFP ST connection (1310nm)
4250479318236OH-TX-0-850-MM SDI TX SFP Multimode (850nm) LC
4250479318243OH-RX-1-LC Fiber SDI Receiver SFP LC Connection
4250479320253OH-RX-1-Y-SC Fiber SDI Receiver SFP SC Connection
4250479320260OH-RX-1-Y-ST Fiber SDI Receiver SFP ST Connection
4250479318274OH-RX-0-MM Fiber SDI Receiver SFP Multimode LC
4250479318137OH-TR-1 Fiber SDI Transceiver SFP (RX/TX) 1310nm
CWDM Fiber (40km)
4250479312715OH-TX-4-1270 SDI TX Fiber SFP (CWDM) 1270nm
4250479312913OH-TX-4-1290 SDI TX Fiber SFP (CWDM) 1290nm
4250479313118OH-TX-4-1310 SDI TX Fiber SFP (CWDM) 1310nm
4250479313316OH-TX-4-1330 SDI TX Fiber SFP (CWDM) 1330nm
4250479313514OH-TX-4-1350 SDI TX Fiber SFP (CWDM) 1350nm
4250479313712OH-TX-4-1370 SDI TX Fiber SFP (CWDM) 1370nm
4250479313910OH-TX-4-1390 SDI TX Fiber SFP (CWDM) 1390nm
4250479314115OH-TX-4-1410 SDI TX Fiber SFP (CWDM) 1410nm
4250479314313OH-TX-4-1430 SDI TX Fiber SFP (CWDM) 1430nm
4250479314511OH-TX-4-1450 SDI TX Fiber SFP (CWDM) 1450nm
4250479314719OH-TX-4-1470 SDI TX Fiber SFP (CWDM) 1470nm
4250479314917OH-TX-4-1490 SDI TX Fiber SFP (CWDM) 1490nm
4250479315112OH-TX-4-1510 SDI TX Fiber SFP (CWDM) 1510nm
4250479315310OH-TX-4-1530 SDI TX Fiber SFP (CWDM) 1530nm
4250479315518OH-TX-4-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479315716OH-TX-4-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479315914OH-TX-4-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479316119OH-TX-4-1610 SDI TX Fiber SFP (CWDM) 1610nm
4250479312708OH-TR-4-1270 SDI Transceiver SFP (CWDM) 1270nm
4250479312906OH-TR-4-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479313101OH-TR-4-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479313309OH-TR-4-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479313507OH-TR-4-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479313705OH-TR-4-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479313903OH-TR-4-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479314108OH-TR-4-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479314306OH-TR-4-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479314504OH-TR-4-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479314702OH-TR-4-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479314900OH-TR-4-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479315105OH-TR-4-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479315303OH-TR-4-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479315501OH-TR-4-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479315709OH-TR-4-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479315907OH-TR-4-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479316102OH-TR-4-1610 SDI Transceiver SFP (CWDM) 11610nm
CWDM Fiber (80km)
4250479320567OH-TX-8-1470SDI TX Fiber SFP (CWDM) 1470nm
4250479320574OH-TX-8-1490SDI TX Fiber SFP (CWDM) 1490nm
4250479320581OH-TX-8-1510SDI TX Fiber SFP (CWDM) 1510nm
4250479320598OH-TX-8-1530SDI TX Fiber SFP (CWDM) 1530nm
4250479320604OH-TX-8-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479320611OH-TX-8-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479320628OH-TX-8-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479320635OH-TX-8-1610SDI TX Fiber SFP (CWDM) 1610nm
4250479320864OH-TR-8-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479320871OH-TR-8-1470SDI Transceiver SFP (CWDM) 1470nm
4250479320888OH-TR-8-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479320895OH-TR-8-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479320901OH-TR-8-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479320918OH-TR-8-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479320925OH-TR-8-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479320932OH-TR-8-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479320949OH-TR-8-1610 SDI Transceiver SFP (CWDM) 1610nm
