OTT 1442

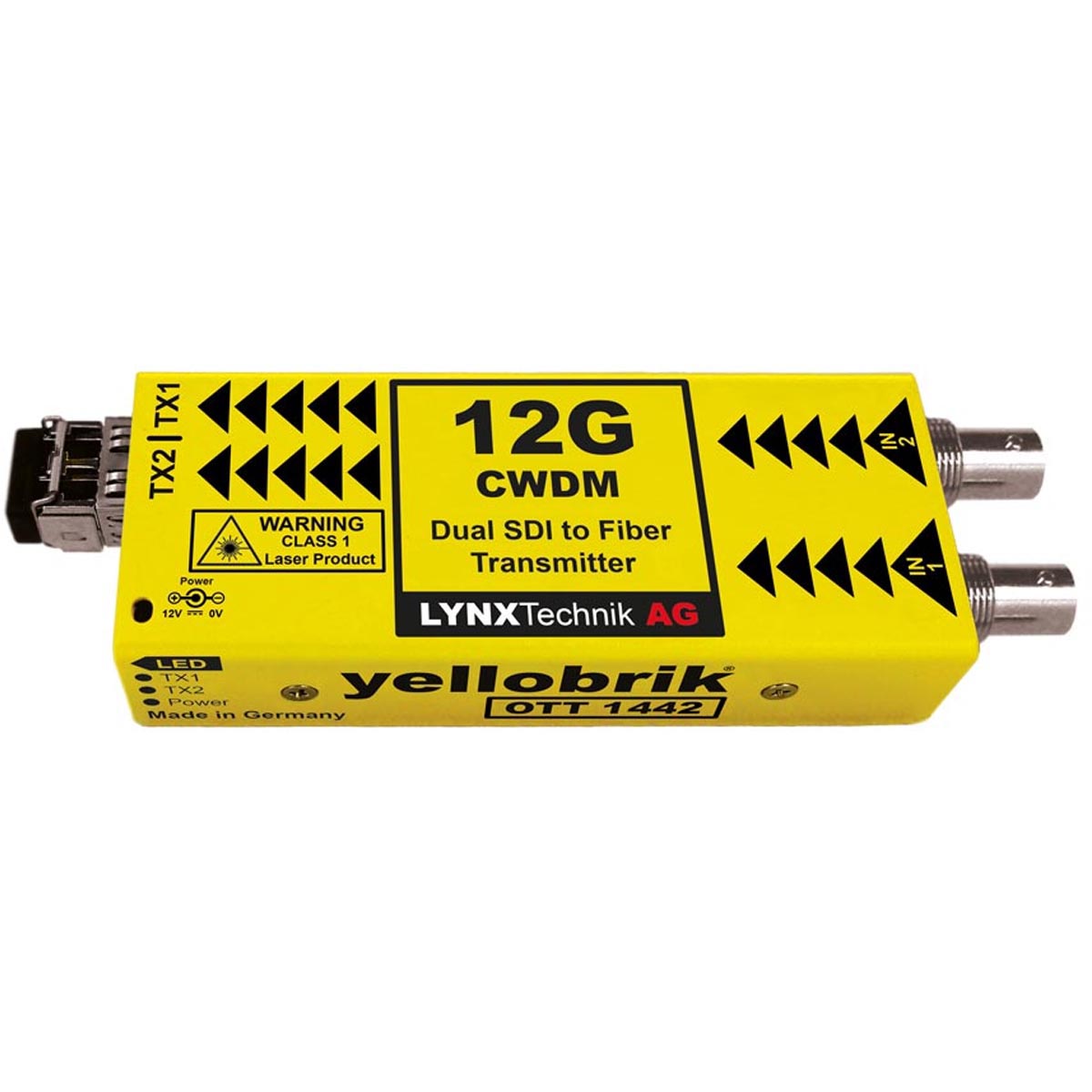

Dual Channel 12G SDI Fiber Transmitter (CWDM)
The OTT 1442 is a compact CWDM dual channel SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. Nine pairs of wavelength choices are provided.
When paired with a dual channel 12Gbit fiber optic to SDI receiver (e.g yellobrik ORR 1402) you have a very cost-effective optical transmission / receiver system for two independent signals up to 12Gbit/s (4096×2160 @ 60Hz), while preserving full uncompressed quality.
The OTT 1442 has two completely independent channels and each will auto-detect and re-clock any 270Mbit / 1.5Gbit / 3Gbit / 6Gbit /12Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.
Note: The module does not include the fiber SFP, When ordering please specify an SFP option in the wavelengths required
No more pages to load
Key Features
- Dual Channel (CWDM)
- Support for all 18 CWDM wavelengths (in pairs)
- Supports SDI video inputs up to 12Gbit/s (2160p60)
- 3Gbit Level A and Level B support (all formats)
- Auto reclocking 270Mbit / 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
- Error free optical transmission
- Up to 10km* (6.2 miles*) @ 12Gbit/s
- Duplex LC/PC single mode optical connections
- Supports hot swapping and hot plugging
** Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479327238 | OTT 1442 | Dual 12G SDI Fiber Transmitter (CWDM) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479318168 | LC/ST DUP | LC to ST Adapter Cable 0.5m |
| 4250479318267 | LC/SC DUP | LC to SC Adapter Cable 0.5m |
| 4250479323384 | LC/FC DUP | LC to FC Adapter Cable 0.5m |
| CWDM Fiber SFPs | ||
| 4250479327337 | OH-TT-12G-1270-1290 | Dual Channel SDI Transmitter [1270nm + 1290nm] (CWDM) |
| 4250479327344 | OH-TT-12G-1310-1330 | Dual Channel SDI Transmitter [1310nm + 1330nm] (CWDM) |
| 4250479327351 | OH-TT-12G-1350-1370 | Dual Channel SDI Transmitter [1350nm + 1370nm] (CWDM) |
| 4250479327368 | OH-TT-12G-1390-1410 | Dual Channel SDI Transmitter [1390nm + 1410nm] (CWDM) |
| 4250479327375 | OH-TT-12G-1430-1450 | Dual Channel SDI Transmitter [1430nm + 1450nm] (CWDM) |
| 4250479327382 | OH-TT-12G-1470-1490 | Dual Channel SDI Transmitter [1470nm + 1490nm] (CWDM) |
| 4250479327399 | OH-TT-12G-1510-1530 | Dual Channel SDI Transmitter [1510nm + 1510nm] (CWDM) |
| 4250479327405 | OH-TT-12G-1550-1570 | Dual Channel SDI Transmitter [1550nm + 1570nm] (CWDM) |
| 4250479327412 | OH-TT-12G-1590-1610 | Dual Channel SDI Transmitter [1590nm + 1610nm] (CWDM) |
SDI Video Inputs:
- 2 x SDI inputs on 75 Ohm BNC connectors
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE 259M
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8, 10, 12-bit
- Multi-standard operation from 270Mbit/s to 12Gbit/s
- 270M/1.5G/3G/6G/12G format Agnostic
- Transparent: Transports entire SDI payload including all embedded audio and any ancillary / metadata.
Electrical Return Loss:
- 5GHz: >15dB
- 3GHz: >10dB
- 6GHz: >7dB
- 12GHz: >4dB
Automatic cable EQ:
- 270Mbit/s = 250m (Belden 1694A cable)
- 5Gbit/s = 190m (Belden 1694A cable)
- 3Gbit/s = 140m (Belden 1694A cable)
- 6Gbit/s = 90m (Belden 4794R cable)
- 12Gbit/s = 80m (Belden 4794R cable)
Optical Output:
2 x fiber optic output (mandatory SFP selection for wavelength):
- Duplex (Singlemode) LC/PC
- SMPTE 297M – 2006
Wavelength:
- Select from 18 available CWDM wavelengths from 1270nm-1610nm (Singlemode)
- ITU-T G.694.2
Optical power:
- -2 to +3dBm (Singlemode)
- 2 x TX active LEDs on side of module
Max. distance*
- 40km* (24.8 miles*) @ 12Gbit/s (Singlemode)
Power
- +12V DC @ 2.4W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
