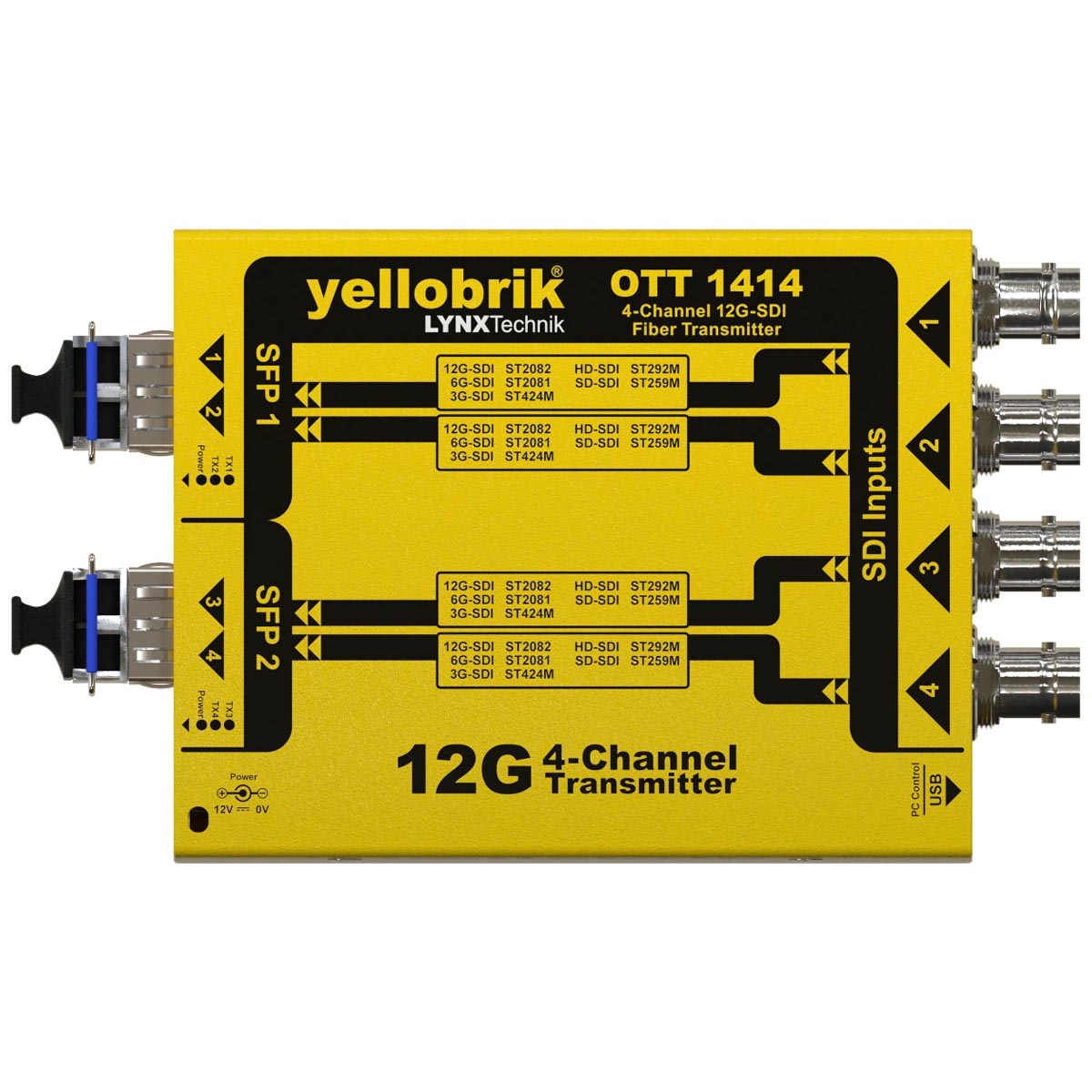

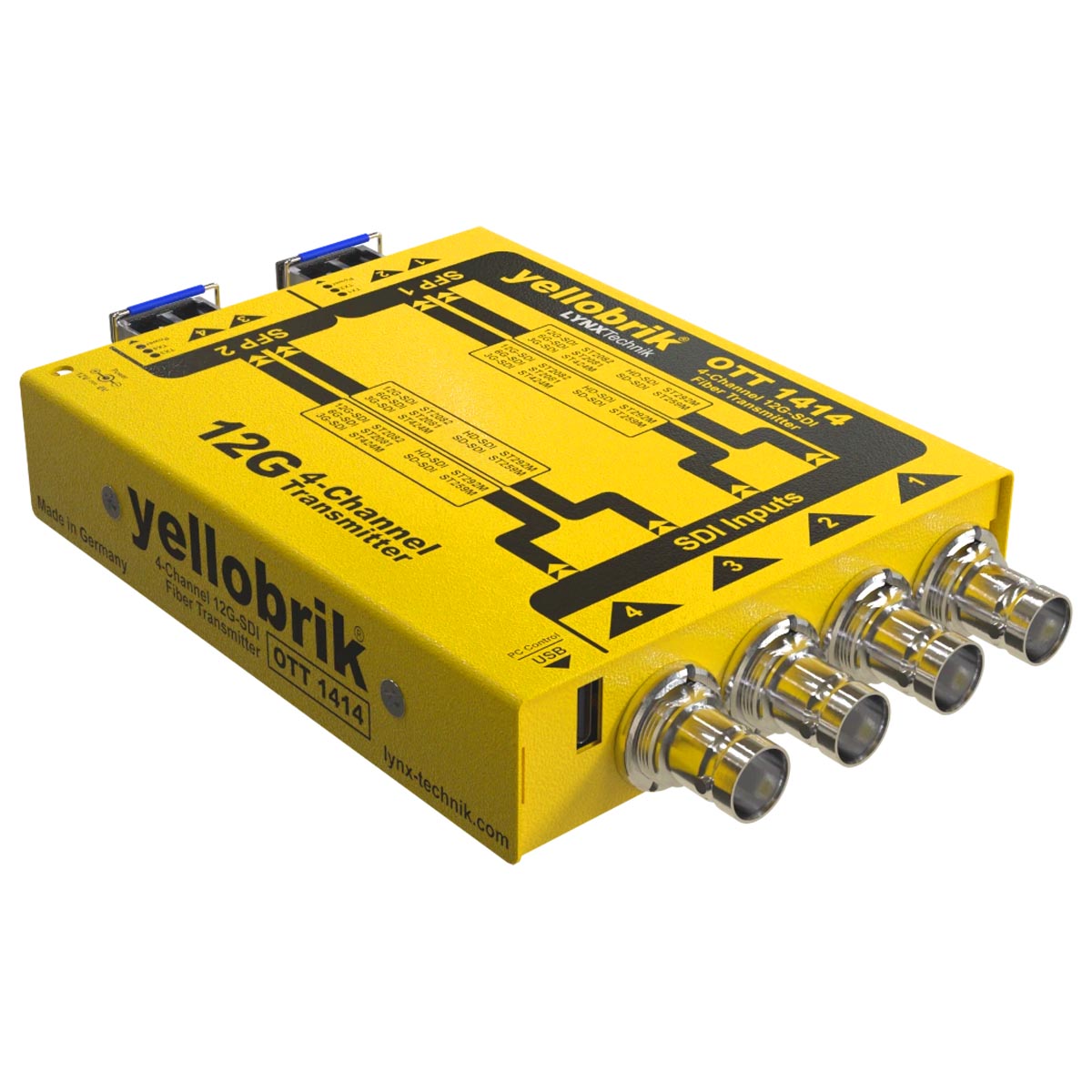

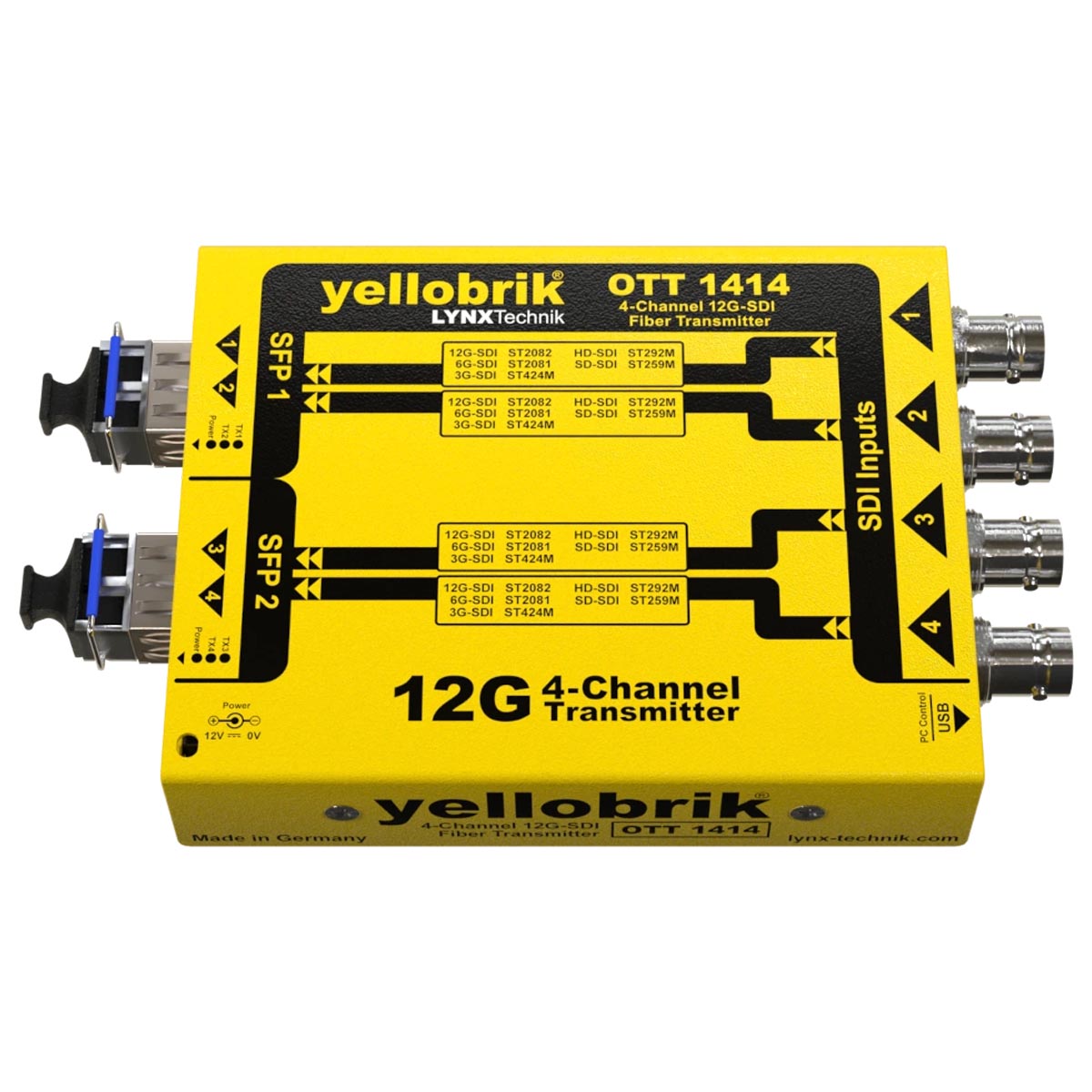

OTT 1414
12G-SDI Four Channel Fiber Transmitter
The OTT 1414 is a compact four channel SDI to fiber transmitter designed to optimize the distribution of uncompressed broadcast quality video signals over long distances.
When paired with the 4-channel fiber to SDI receiver (e.g. yellobrik ORR 1404) it creates a very cost-effective 4-channel optical transmission system for signals up to 12G-SDI (4096×2160 @ 60Hz)) preserving full uncompressed quality. (each channel requires dedicated fiber connection)
The OTT 1414 has four fully independent channels and each will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s and 12Gbit/s SDI source before optical transmission. The module is fully compatible with 3G Level A and Level B formats.
Like all yellobriks, the OTT 1414 is fully compatible with the RFR 1200 rack frame which accommodates up to 14 modules. This allows up to 56 channels in 2RU of rack space for system installations.
Key Features
- Four fully independent channels
- Supports SDI video signals up to 12G (4096×2160 @ 60Hz)
- 3G-SDI Level A and Level B support (all formats)
- Auto reclocking 270M, 1.5G, 3G, 6G, 12G
- Up to 10km* (6.2 miles) @ 12Gbit/s
- Duplex LC/PC connections
- For SMF (singlemoide) fiber
- Error free optical transmission
- Supports hot swapping and hot plugging
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329669 | OTT 1414 | Quad 12G SDI Fiber Transmitter |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479318168 | LC/ST DUP | LC to ST Adapter Cable 0.5m |
| 4250479318267 | LC/SC DUP | LC to SC Adapter Cable 0.5m |
| 4250479323384 | LC/FC DUP | LC to FC Adapter Cable 0.5m |
SDI Video I/O

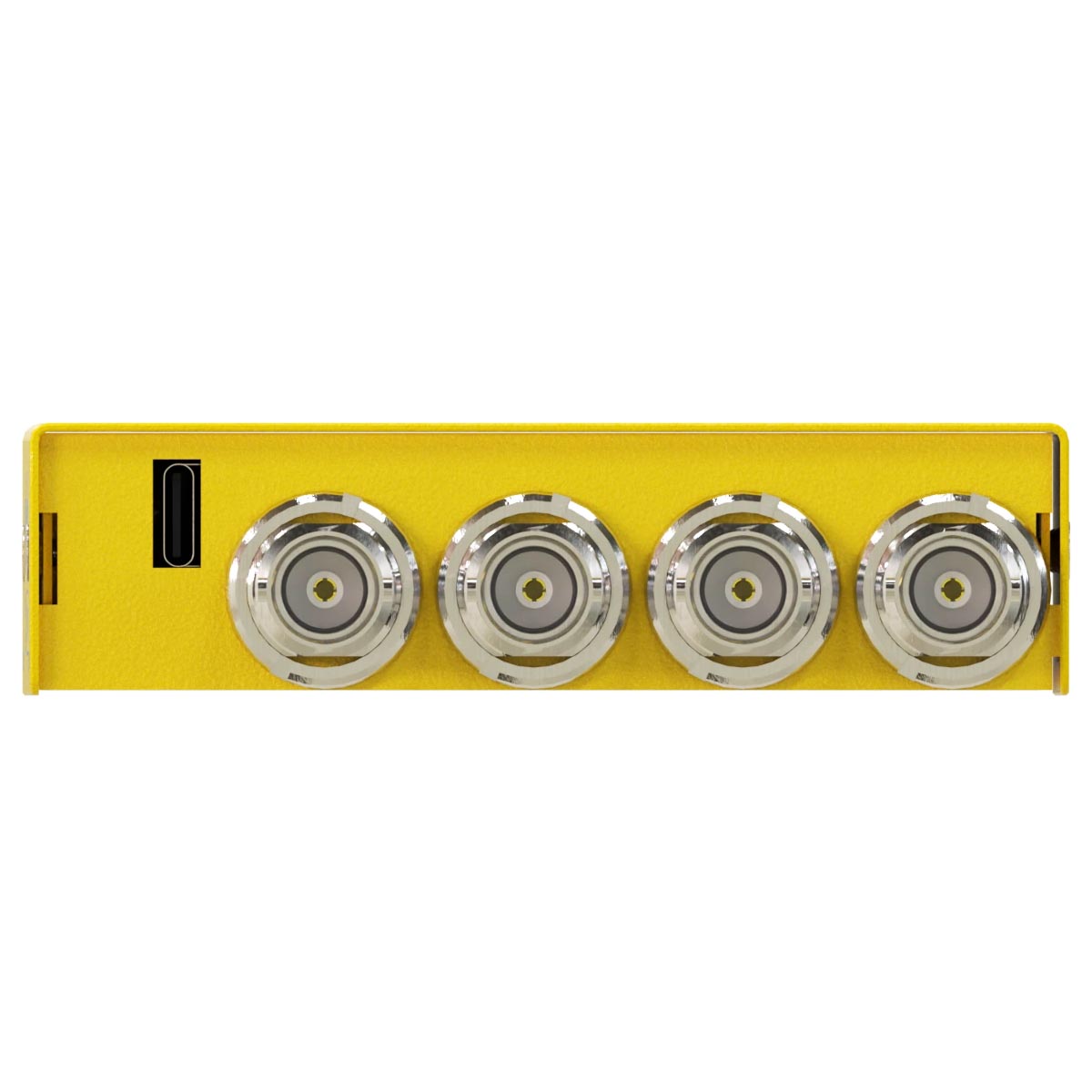

- 4 x 12G-SDI inputs on 75 Ohm BNC connector
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE 259M
- Multi-standard operation from 270Mbit/s to 12Gbit/s
- Multi-rate reclocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s – 6Gbit/s – 12Gbit/s
- Format agnostic
- Y,Cb,Cr 4:2:0, 4:2:2, 4:4:4
- 8, 10, 12 -bit
- 3G-SDI Level A or B Dual Link
- Electrical Return Loss:
- to 1.5Ghz>15dB (with Belden 1694A cable)
- to 3GHz >10dB (with Belden 1694A cable)
- to 6GHz >7dB (with Belden 4794R cable)
- to 12GHz >4dB (with Belden 4794R cable)
- Automatic cable EQ:
- 5Gbit/s 190m (with Belden 1694A cable)
- 3Gbit/s 140m (with Belden 1694A cable)
- 6Gbit/s 90m (with Belden 4794R cable)
- 12Gbit/s 80m (with Belden 4794R cable)
Fiber Optic I/O

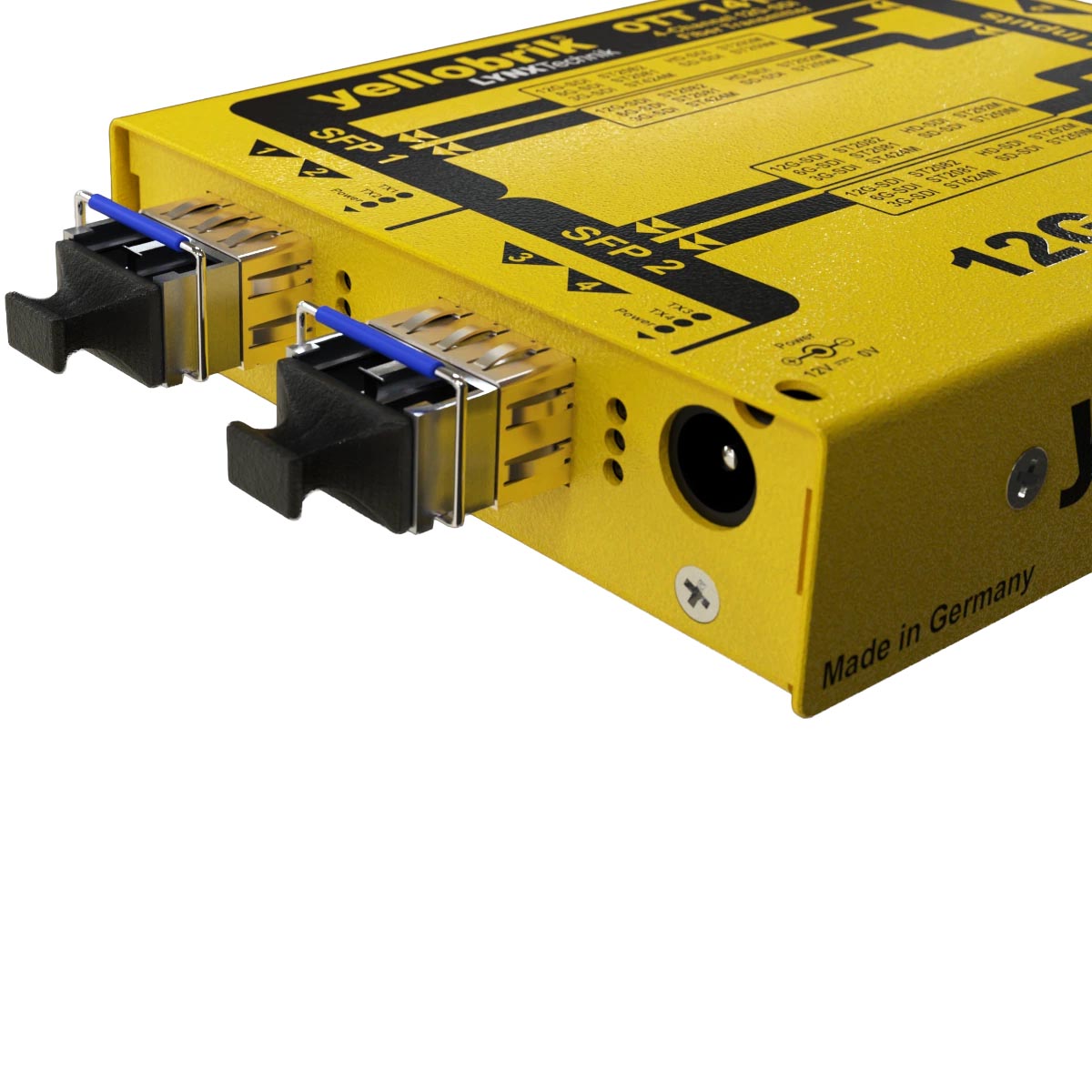

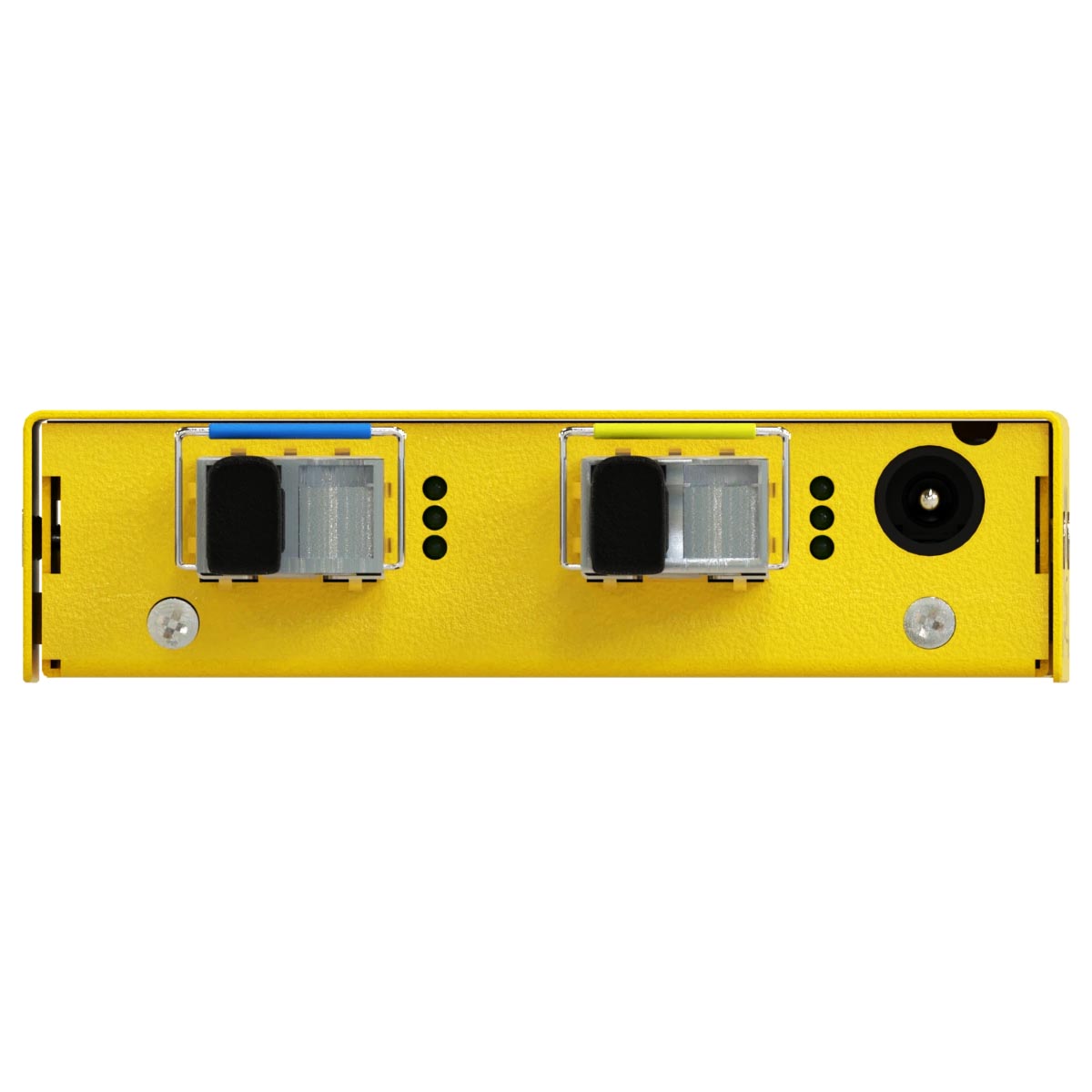

- 4 x Fiber Outputs ( 2 x Duplex Connections)
- LC/PC Connections – SMF (single-mode fiber)
- SMPTE 2082, SMPTE 2081, SMPTE 424M, SMPTE 292M, SMPTE 259M
- Wavelength:
- 1310nm (each channel)
- Optical power:
- -5.5dBm to +0.5dBm (each channel)
- TX & RX active LED on side of module
- distance* 10km (6.2 miles) @ 12Gbit/s
Power
- +12V DC @ 2.4W excl. SFPs – (supports 7 – 24V DC input range)
- Power LED on side of module
Physical Size (per module)
- 140mm x 83.8mm x 22mm (5.51” x 3.29” x 0.86”)
Weight
- 168g/6oz excl. SFPs, 268g/9.5oz incl. SFPs
Ambient
- Temperature 5 – 40ºC (41 – 104ºF)
- 90% Humidity (non-condensing)
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
