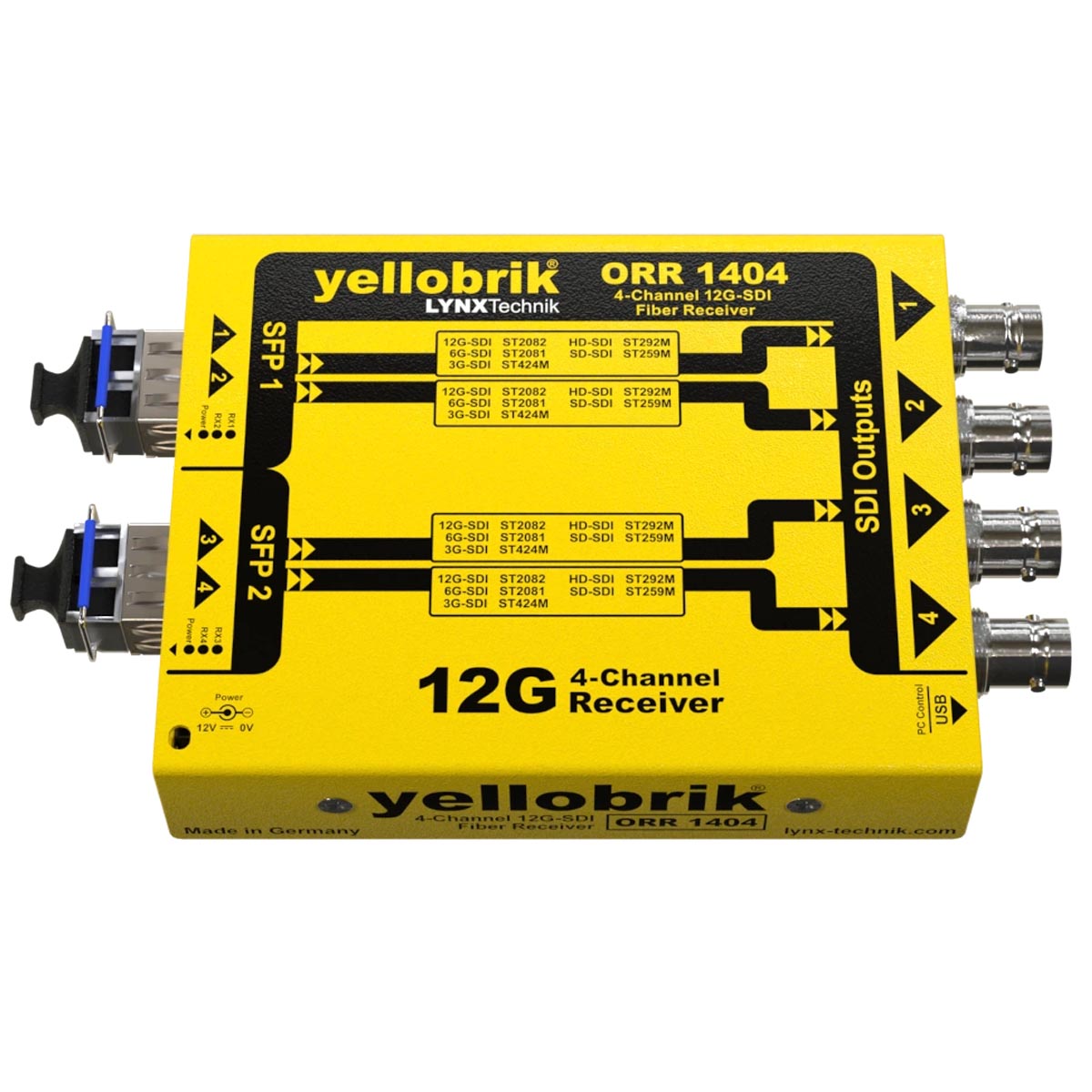

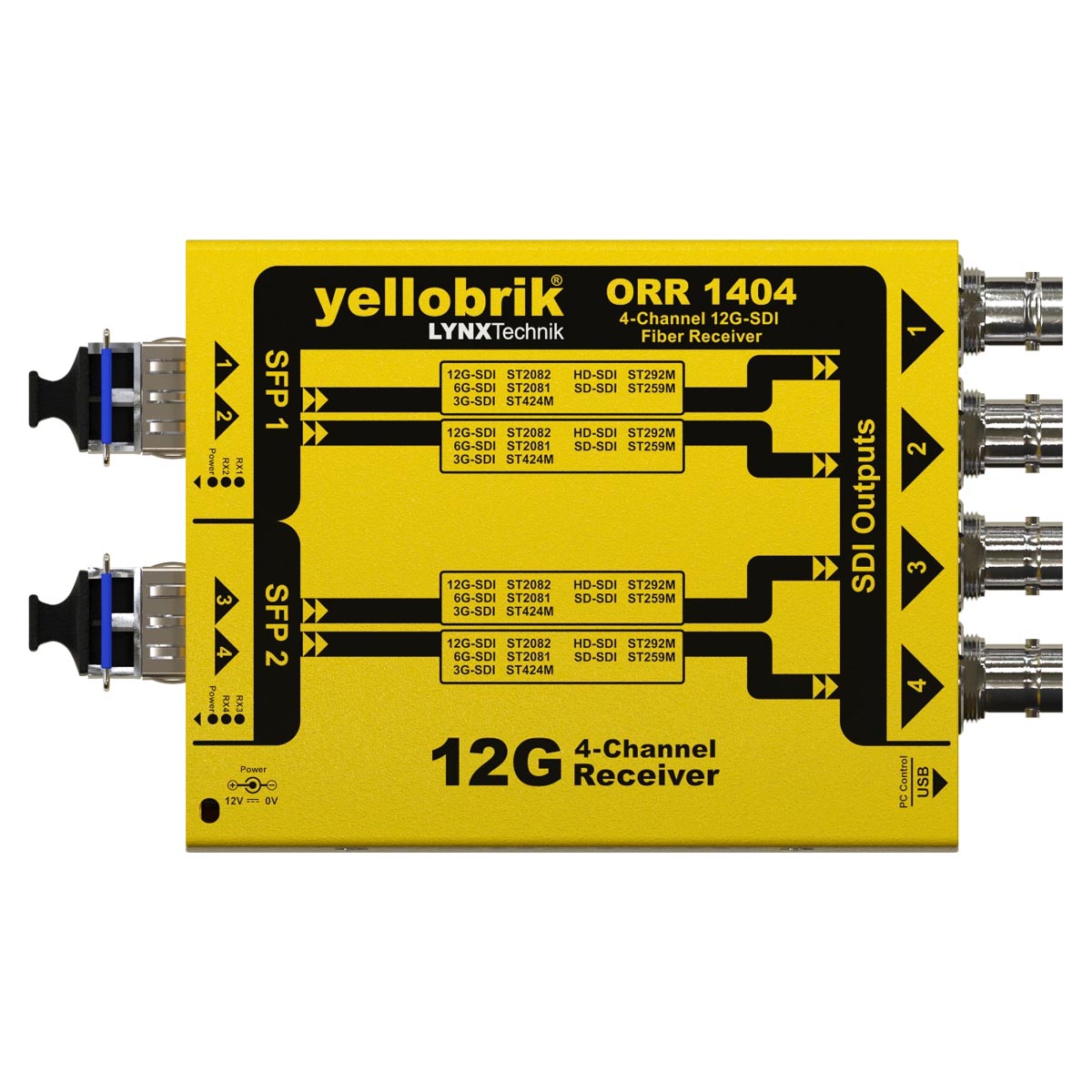

ORR 1404
12G-SDI 4 Channel Fiber Optic Receiver
The ORR 1404 is a compact 4-Channel Fiber to 12G-SDI receiver designed to overcome the limitations of distributing uncompressed, broadcast-quality video signals over long distances.When used with the RFR 1200 rack frame It fits within 2RU rack height and does not require additional cooling.
When paired with a 12G-SDI optical transmitter (e.g. yellobrik OTT 1414, OTT 1412, OTX 1410), it becomes a cost-effective optical transmission/ receiver system for 12G-SDI signals preserving full uncompressed quality.
The ORR 1404 has four completely independent 12G-SDI channels. Each will auto-detect and re-clock any SDI fiber source prior to electrical conversion. The module is fully compatible with 3G Level A and Level B formats.
As with all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy if needed.
Key Features
- 4-Channel 12G-SDI Receiver
- Support for 12G / 6G / 3G / 1.5G / 270Mbit Standards
- Auto Reclocking
- Error free optical reception
- 1260nm to 1620nm wavelength input range
- 2 x Duplex LC Single-mode fiber connections
- Supports hot swapping and hot plugging
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479529731 | ORR 1804 | Quad 3G Fiber to SDI Receiver SMF (LC Connectors) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323384 | LC/FC DUP | Duplex LC/FC Fiber Adapter |
| 4250479318267 | LC/SC DUP | Duplex LC/SC Fiber Adapter |
| 4250479318168 | LC/ST DUP | Duplex LC/ST Fiber Adapter |

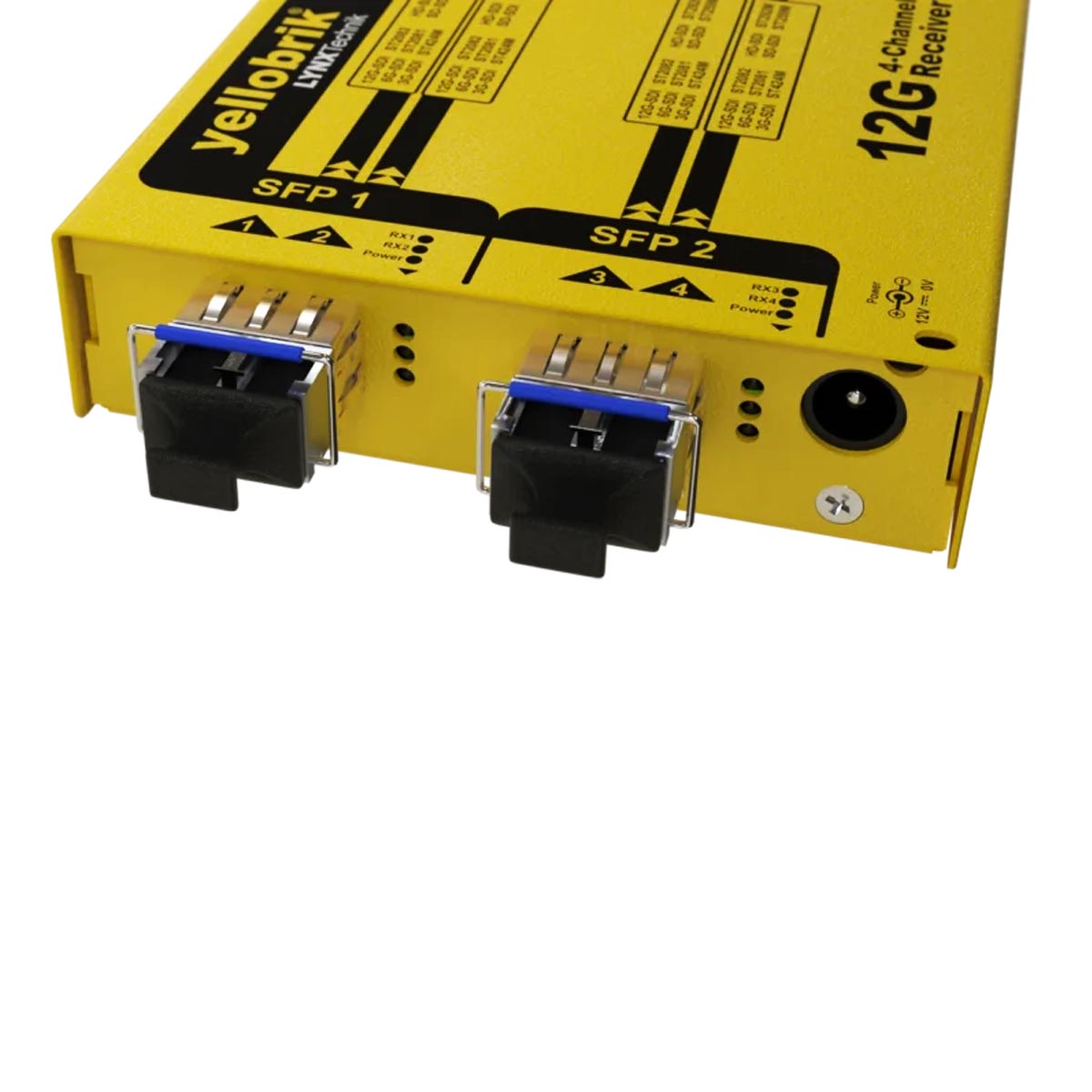

Optical Inputs
- 4x fiber inputs
- 2 x Duplex (singlemode) using LC/PC Connections
- SMPTE 297M – 2006
- Wavelength: 1260 to 1620nm (each channel)
- RX Sensitivity: -9dBm up to 12Gbit/s
- 4 x RX active LED on side of module

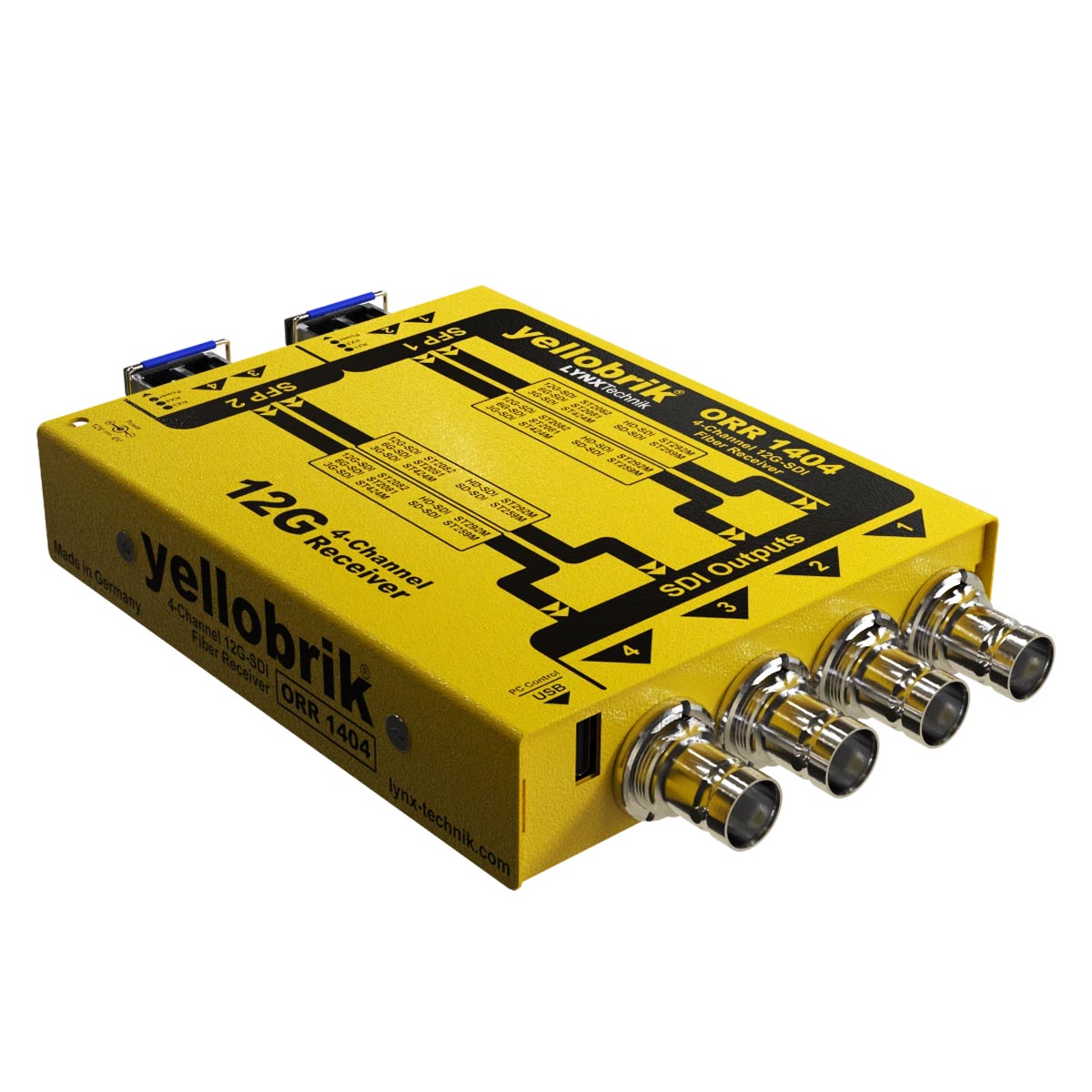

SDI Outputs
- 4x 12G-SDI outputs on 75 Ohm BNC connector
- Four fully independent channels
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE 259M
- Multi-standard operation from 270Mbit/s to 12Gbit/s
- Multi-rate reclocking: 270Mbit/s to 12Gbit/s
- Electrical Return Loss:
- to 1.5GHz: >15dB
- to 3GHz: >10dB
- to 6GHz >7dB
- to 12GHz > 4dB
- Automatic cable EQ:
- 1.5Gbit/s = 190m (Belden 1694A cable)
- 3Gbit/s = 140m (Belden 1694A cable)
- 6Gbits/s = 90m (Belden 4794R cable)
- 12Gbit/s = 80m (Belden 4794R cable)
Power
- +12V DC @ 1.8W excl. SFP – ( supports 7 – 24V DC input range )
- Power LED on side of module
Physical Size (incl.connectors)
- 140mm x 83.8mm x 22mm (5.51” x 3.29” x 0.86”)
Weight
- 168g/6oz excl. SFPs, 268g/9.5oz incl. SFPs
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
