OTT 1414 CW

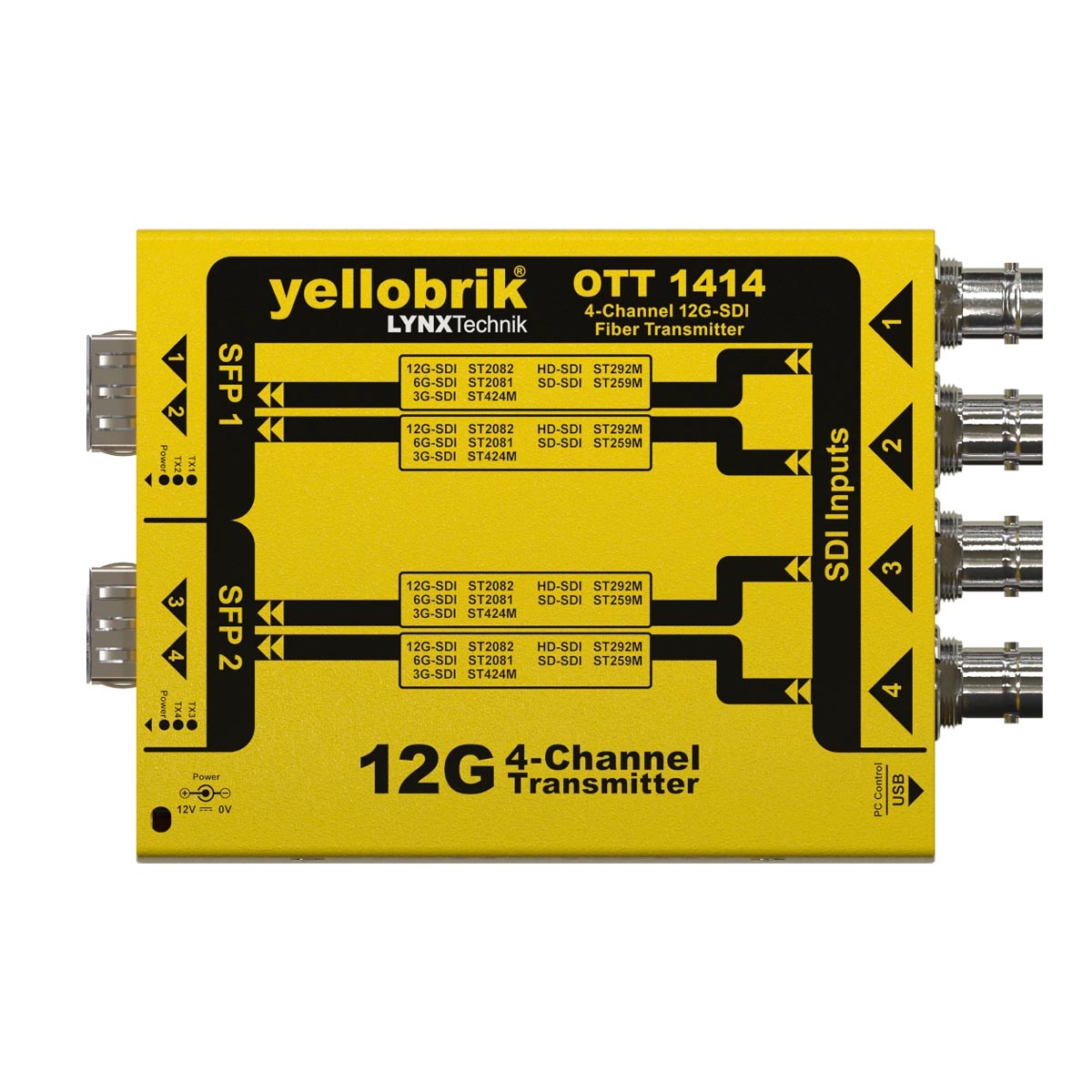

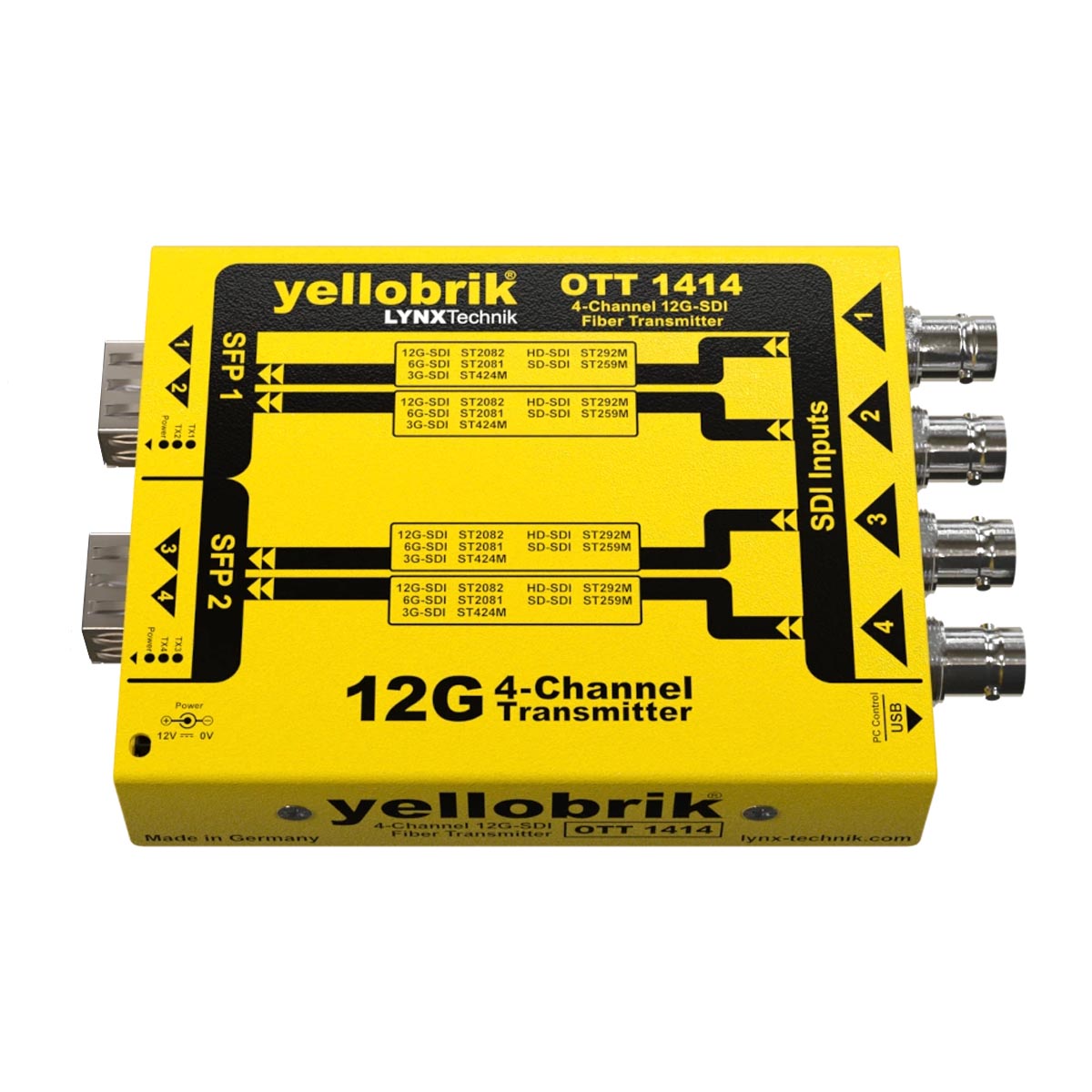

12G-SDI Four Channel Fiber Transmitter (CWDM)
The OTT 1414 CW is a compact four channel CWDM 12G-SDI to fiber transmitter designed for integration into a multiplexed CWDM fiber optic systems.
When paired with a compatible 12G-SDI receiver (e.g. yellobrik ORR 1404, ORR 1402, ORX 1400 ) it creates a very cost-effective 4-channel CWDM optical transmission system for signals up to 12G-SDI (4096×2160 @ 60Hz)) preserving full uncompressed quality.
The OTT 1414 CW has four fully independent channels and each will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s and 12Gbit/s SDI source before optical transmission. The module is fully compatible with 3G Level A and Level B formats.
There are 18 CWDM wavelength selections in 9 wavelength pairings, please refer to the SFP datasheet OH-TT-12G-XXXX-XXXX or the ordering information table below for available options.
Like all yellobriks, the OTT 1414 CW is fully compatible with the RFR 1200 rack frame which accommodates up to 14 modules. This allows up to 56 channels in 2RU of rack space for system installations.
Note: The purchase of 2 x OH-TT-12G-XXXX-XXXX SFP options is mandatory with this module
No more pages to load
Key Features
- Four fully independent channels
- Supports SDI video signals up to 12G (4096×2160 @ 60Hz)
- 3G-SDI Level A and Level B support (all formats)
- Auto reclocking 270M, 1.5G, 3G, 6G, 12G
- 18 CWDM Wavelength selections (in 9 pairs)
- Duplex LC/PC connections
- For SMF (singlemoide) fiber
- Error free optical transmission
- Supports hot swapping and hot plugging
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250480929902 | OTT 1414 CW | Quad 12G SDI Fiber Transmitter (CWDM) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479318168 | LC/ST DUP | LC to ST Adapter Cable 0.5m |
| 4250479318267 | LC/SC DUP | LC to SC Adapter Cable 0.5m |
| 4250479323384 | LC/FC DUP | LC to FC Adapter Cable 0.5m |
| CWDM Fiber SFPs | ||
| 4250479327337 | OH-TT-12G-1270-1290 | Dual Channel SDI Transmitter [1270nm + 1290nm] (CWDM) |
| 4250479327344 | OH-TT-12G-1310-1330 | Dual Channel SDI Transmitter [1310nm + 1330nm] (CWDM) |
| 4250479327351 | OH-TT-12G-1350-1370 | Dual Channel SDI Transmitter [1350nm + 1370nm] (CWDM) |
| 4250479327368 | OH-TT-12G-1390-1410 | Dual Channel SDI Transmitter [1390nm + 1410nm] (CWDM) |
| 4250479327375 | OH-TT-12G-1430-1450 | Dual Channel SDI Transmitter [1430nm + 1450nm] (CWDM) |
| 4250479327382 | OH-TT-12G-1470-1490 | Dual Channel SDI Transmitter [1470nm + 1490nm] (CWDM) |
| 4250479327399 | OH-TT-12G-1510-1530 | Dual Channel SDI Transmitter [1510nm + 1510nm] (CWDM) |
| 4250479327405 | OH-TT-12G-1550-1570 | Dual Channel SDI Transmitter [1550nm + 1570nm] (CWDM) |
| 4250479327412 | OH-TT-12G-1590-1610 | Dual Channel SDI Transmitter [1590nm + 1610nm] (CWDM) |
SDI Video I/O
- 4 x 12G-SDI inputs on 75 Ohm BNC connector
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE 259M
- Multi-standard operation from 270Mbit/s to 12Gbit/s
- Multi-rate reclocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s – 6Gbit/s – 12Gbit/s
- Format agnostic
- Y,Cb,Cr 4:2:0, 4:2:2, 4:4:4
- 8, 10, 12 -bit
- 3G-SDI Level A or B Dual Link
- Electrical Return Loss:
- to 1.5Ghz>15dB (with Belden 1694A cable)
- to 3GHz >10dB (with Belden 1694A cable)
- to 6GHz >7dB (with Belden 4794R cable)
- to 12GHz >4dB (with Belden 4794R cable)
- Automatic cable EQ:
- 5Gbit/s 190m (with Belden 1694A cable)
- 3Gbit/s 140m (with Belden 1694A cable)
- 6Gbit/s 90m (with Belden 4794R cable)
- 12Gbit/s 80m (with Belden 4794R cable)
Optical Outputs:
4 x fiber optic outputs (mandatory SFP selection for wavelengths):
- 2 x Duplex Connectors (Singlemode) LC/PC
- SMPTE 297M – 2006
Wavelength:
- Select from 18 available CWDM wavelengths from 1270nm-1610nm (Singlemode)
- 9 wavelength pair selections for each SFP (OH-TT-12G-XXXX-XXXX)
- Wavelengths according to ITU-T G.694.2
Optical power:
- -2 to +3dBm (Singlemode)
- TX active LEDs on side of module
Power
- +12V DC @ 2.4W excl. SFPs – (supports 7 – 24V DC input range)
- Power LED on side of module
Physical Size (per module)
- 140mm x 83.8mm x 22mm (5.51” x 3.29” x 0.86”)
Weight
- 168g/6oz excl. SFPs, 268g/9.5oz incl. SFPs
Ambient
- Temperature 5 – 40ºC (41 – 104ºF)
- 90% Humidity (non-condensing)
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
