OTR 5444
12G-SDI 4-Channel Bi-Directional Fiber Converter
The OTR 5444 is a 4-Channel bi-directional 12G-SDI to Fiber suitable for video signals up to 4096x2160p 60Hz. It has four independent channels with automatic input clock rate and signal presence detection.

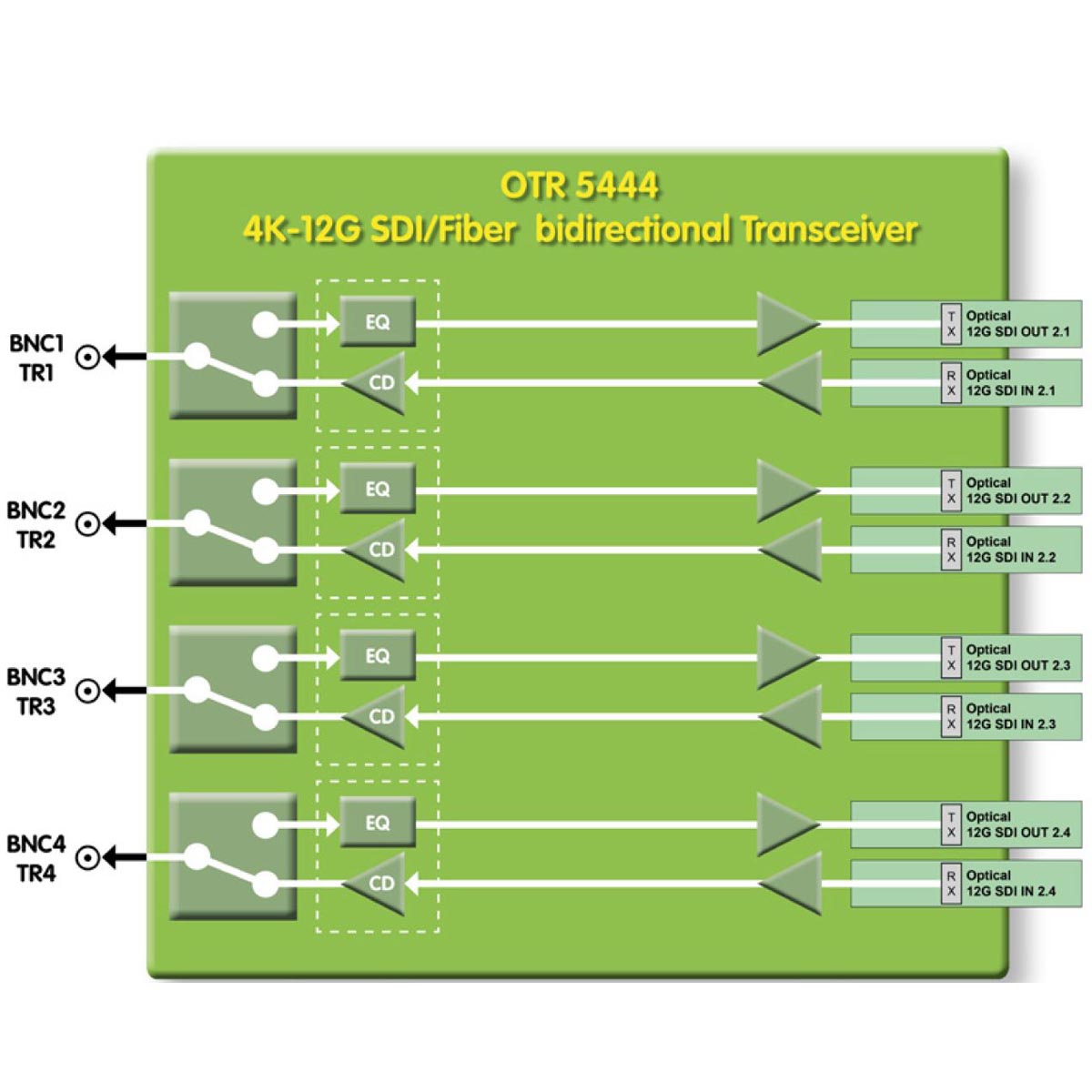

It consists of four bi-directional 12G-SDI high-density micro BNC interfaces and four 12G-SDI fiber inputs and four 12G-SDI fiber outputs arranged in the optical TR slots.
This module is ideally suited for demanding high-quality broadcast video applications.

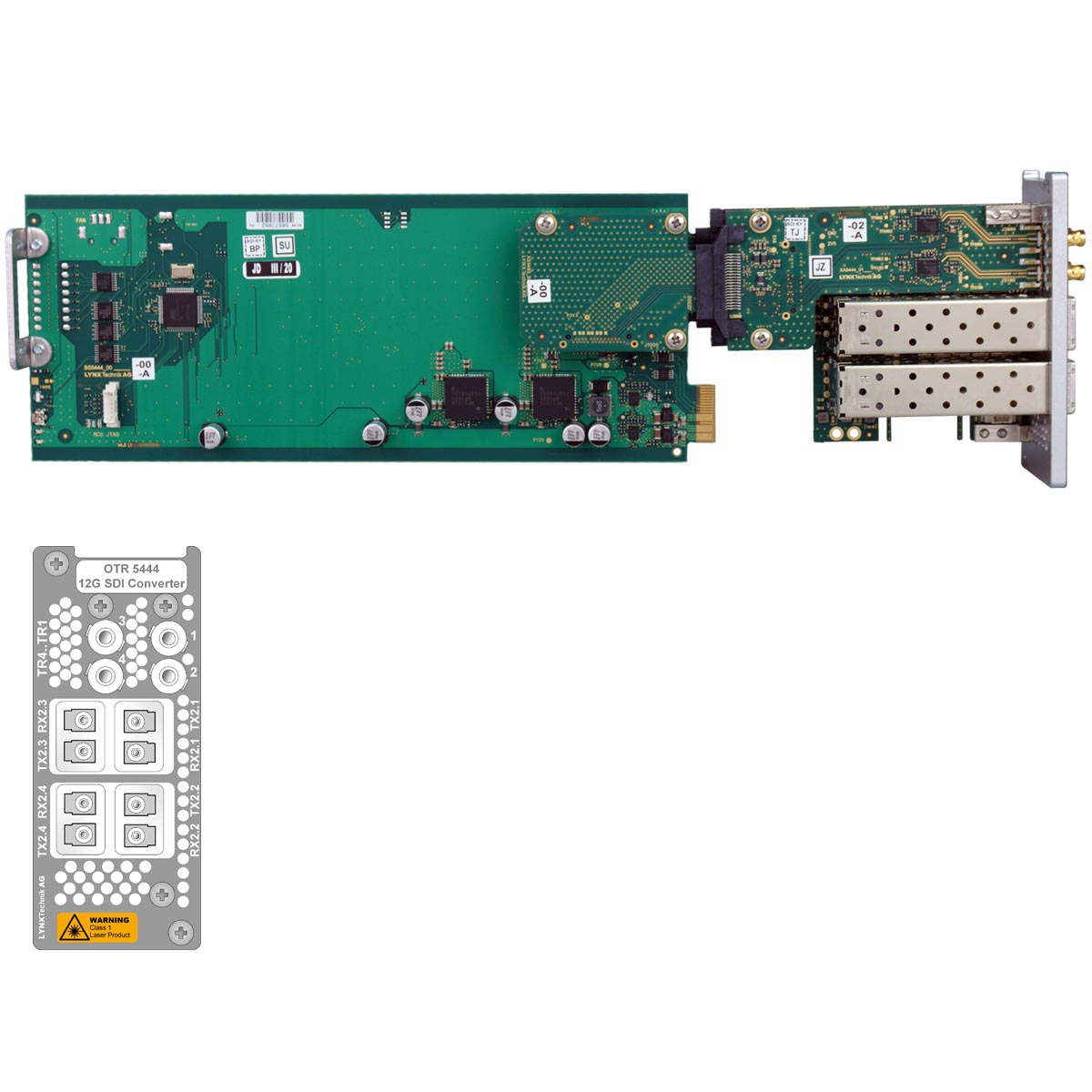

The OTR 5444 is a card module that offers high quality, modularity and flexibility in a small form factor ideal for space constraint applications. Like other 5000 series card modules, it is fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
Note: A maximum of 8 OTR 5444 cards can be installed on an RFR 5018 rack frame. It should not be fitted into slot 1 or 2 as it would block the RFR internal cross flow fan at the rear.
No more pages to load
Key Features
- Supports 12G/6G/3G/1.5G-SDI
- Bi-Directional 12G-SDI to Fiber converter
- Can be used to Send/Receive 8K Quad
- 4x Optical Transceivers (TR)
- 4x High-density BNCs (TR)
- Reclocking mode for each 12G-SDI signals
- Input Status LED
- Remote control, status monitoring and error reporting when used with the LynxCentraal Control System
- Hot Swappable
Note. Does not include SFPs please select from available options
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479327801 | OTR 5844 | Quad 12G SDI Transceiver |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
| 12G Basic Fiber Option | ||
| 4250479325029 | OH-TR-12-LC | 12G SDI TR Fiber SFP |
| 12G SDI CWDM Options | ||
| 4250479326552 | OH-TR-12-1270 | 12G SDI TR Fiber SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12-1290 | 12G SDI TR Fiber SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12-1310 | 12G SDI TR Fiber SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12-1330 | 12G SDI TR Fiber SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12-1350 | 12G SDI TR Fiber SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12-1370 | 12G SDI TR Fiber SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12-1390 | 12G SDI TR Fiber SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12-1410 | 12G SDI TR Fiber SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12-1430 | 12G SDI TR Fiber SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12-1450 | 12G SDI TR Fiber SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12-1470 | 12G SDI TR Fiber SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12-1490 | 12G SDI TR Fiber SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12-1510 | 12G SDI TR Fiber SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12-1530 | 12G SDI TR Fiber SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12-1550 | 12G SDI TR Fiber SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12-1570 | 12G SDI TR Fiber SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12-1590 | 12G SDI TR Fiber SFP (CWDM) 1590nm |
Supported Video Formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080i 50, 59.94, 60
- RGB 4:4:4
- YCbCr 4:4:4 / 4:2:2
- 8, 10, 12-bit
Video Input (Fiber)
- Signal type SMPTE 297M-2006
- SMPTE 292M, 424M, 2082-1
- Supported formats SDI formats up to 12Gbit/s
- No.of inputs 4 x Receiver (Optional: OH-TR-12G-LC or OH-RX-12G-LC)
- Connector LC/PC (single mode)
- Wavelength 1260nm – 1620nm (-14dBm sensitivity)
Video Input (microBNC)
- Signal Type SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
- No.of inputs 4 x bi-directional micro BNC port
- Return Loss
- >4dB up to 12 Gbit/s
- >10dB up to 3 Gbit/s
Video Outputs (Fiber)
- Signal Type SMPTE 297M-2006
- SMPTE 292M, 424M, 259M, 2082-1
- No.of outputs 4 x Transmitter (Optional: OH-TR-12G-LC or OH-TX-12G-LC)
- Connector LC/PC (single mode transmit/receive – duplex connection)
- Wavelength Standard: 1310nm (non-CWDM)
- Transmission power Standard: 1310nm (non-CWDM): -5dBm typ.
Video Outputs (MicroBNC)
- Signal Type
- SMPTE 2082-1, SMPTE 2081-1 SMPTE 424M, SMPTE 297M-2006, SMPTE 292MSMPTE 259M
- No.of outputs 4 x bi-directional microBNC port
- Return Loss
- >4dB up to 12 Gbit/s
- >10dB up to 3 Gbit/s
Performance
- Cable equalization
- Up to 150m using Belden 1694A (1.485Gbit)
- Up to 120m using Belden 1694A (2.97Gbit)
- Up to 50m using Belden 4794R (11.88Gbit)
Electrical Specifications
- Operating voltage +12 VDC
- Power consumption 17W including optional Fiber SFPs
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 100g
Ambient
- Temperature 5°C to 40°C (41°F – 104°F) maintaining specifications
- Humidity 90% maximum, non-condensing
