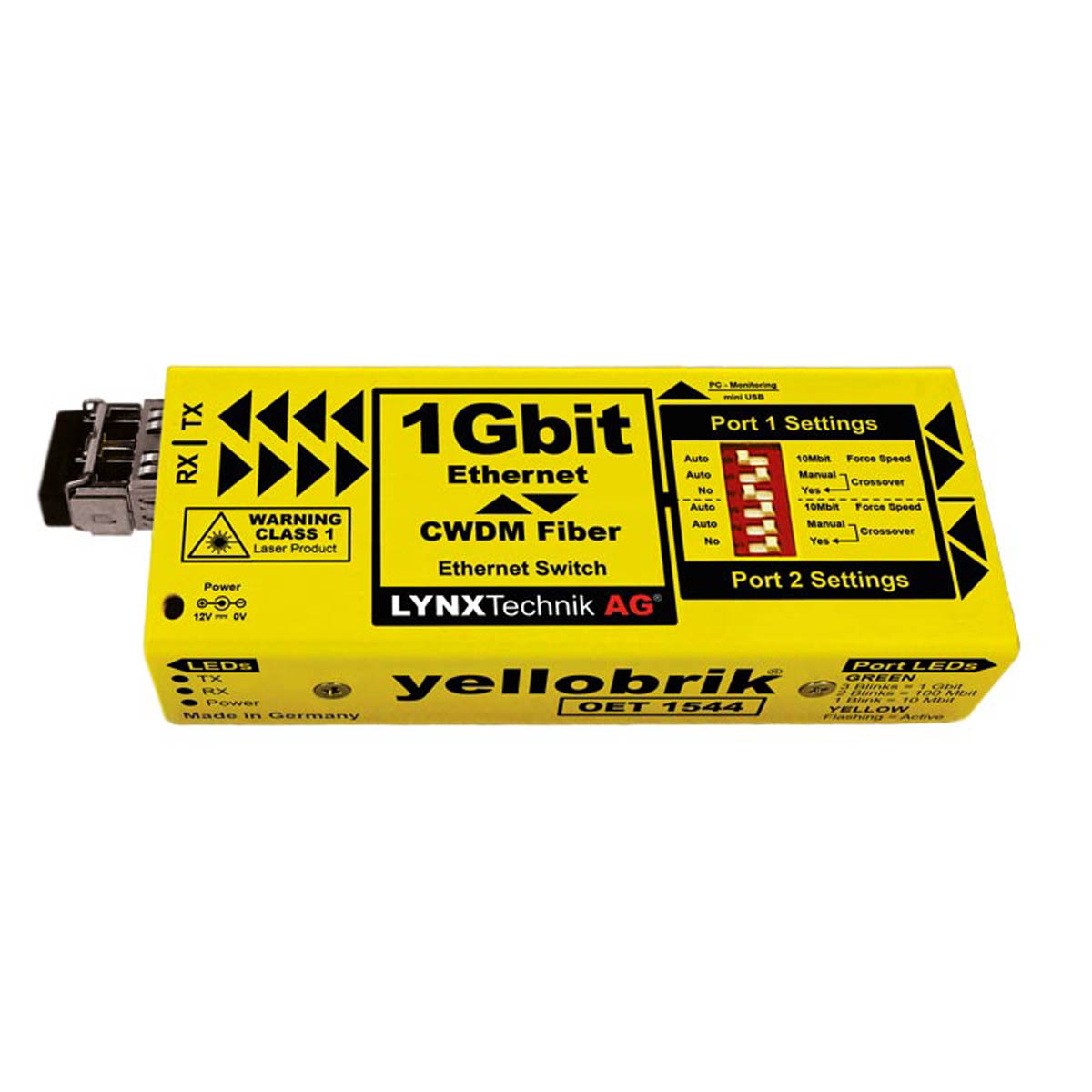

OET 1544
1GbE Ethernet Fiber Optic Transceiver (CWDM)
The OET 1544 is a compact CWDM compatible unmanaged Ethernet 3 port switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s fiber optic transceiver speed.
18 selectable CWDM wavelengths are provided to enable the module to be used in a multiplexed CWDM environment. When paired with another OET 1544 at the receiving end (using two fiber links) you have a cost-effective Ethernet extender system for distances up to 80km* – providing a stable, high speed 1Gbit/s error free optical connection between locations.
The OET 1544 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use; each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10 Mbit/s, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.
Note: The module does not include the fiber SFP, When ordering please specify an SFP option in the wavelength required
No more pages to load
Key Features
- Supports standard ethernet inputs up to 1 Gbit/s
- 3 port ethernet switch (1 fiber, 2 electrical)
- Auto (10/100/1000) port speed detection
- Manually force 10Mbit/s electrical speed (if needed)
- Fiber transceiver speed always 1 Gbit/s
- Auto or manual electrical crossover selection
- Distances up to 80km(49.7 miles)* over fiber
- 18 CWDM wavelength selections (ITU-T G.694.2)
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329454 | OET 1544 | Ethernet Fiber Transceiver (CWDM) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323278 | LC/FC SIM | Simplex LC/FC Fiber Adapter |
| 4250479318250 | LC/SC SIM | Simplex LC/SC Fiber Adapter |
| 4250479318151 | LC/ST SIM | Simplex LC/ST Fiber Adapter |
| Fiber CWDM (40km) | ||
| 4250479312753 | OH-TR-54-1270 | Data Transceiver SFP 1270nm (CWDM) |
| 4250479312951 | OH-TR-54-1290 | Data Transceiver SFP 1290nm (CWDM) |
| 4250479313156 | OH-TR-54-1310 | Data Transceiver SFP 1310nm (CWDM) |
| 4250479313354 | OH-TR-54-1330 | Data Transceiver SFP 1330nm (CWDM) |
| 4250479313552 | OH-TR-54-1350 | Data Transceiver SFP 1350nm (CWDM) |
| 4250479313750 | OH-TR-54-1370 | Data Transceiver SFP 1370nm (CWDM) |
| 4250479313958 | OH-TR-54-1390 | Data Transceiver SFP 1390nm (CWDM) |
| 4250479314153 | OH-TR-54-1410 | Data Transceiver SFP 1410nm (CWDM) |
| 4250479314351 | OH-TR-54-1430 | Data Transceiver SFP 1430nm (CWDM) |
| 4250479314559 | OH-TR-54-1450 | Data Transceiver SFP 1450nm (CWDM) |
| 4250479314757 | OH-TR-54-1470 | Data Transceiver SFP 1470nm (CWDM) |
| 4250479314955 | OH-TR-54-1490 | Data Transceiver SFP 1490nm (CWDM) |
| 4250479315150 | OH-TR-54-1510 | Data Transceiver SFP 1510nm (CWDM) |
| 4250479315358 | OH-TR-54-1530 | Data Transceiver SFP 1530nm (CWDM) |
| 4250479315556 | OH-TR-54-1550 | Data Transceiver SFP 1550nm (CWDM) |
| 4250479315754 | OH-TR-54-1570 | Data Transceiver SFP 1570nm (CWDM) |
| 4250479315952 | OH-TR-54-1590 | Data Transceiver SFP 1590nm (CWDM) |
| 4250479316157 | OH-TR-54-1610 | Data Transceiver SFP 1610nm (CWDM) |
| Fiber CWDM (80km) | ||
| 4250479320956 | OH-TR-58-1270 | Data Transceiver SFP 1270nm (CWDM) |
| 4250479320963 | OH-TR-58-1290 | Data Transceiver SFP 1290nm (CWDM) |
| 4250479320970 | OH-TR-58-1310 | Data Transceiver SFP 1310nm (CWDM) |
| 4250479320987 | OH-TR-58-1330 | Data Transceiver SFP 1330nm (CWDM) |
| 4250479320994 | OH-TR-58-1350 | Data Transceiver SFP 1350nm (CWDM) |
| 4250479321007 | OH-TR-58-1370 | Data Transceiver SFP 1370nm (CWDM) |
| 4250479321014 | OH-TR-58-1390 | Data Transceiver SFP 1390nm (CWDM) |
| 4250479321021 | OH-TR-58-1410 | Data Transceiver SFP 1410nm (CWDM) |
| 4250479321038 | OH-TR-58-1430 | Data Transceiver SFP 1430nm (CWDM) |
| 4250479321045 | OH-TR-58-1450 | Data Transceiver SFP 1450nm (CWDM) |
| 4250479321052 | OH-TR-58-1470 | Data Transceiver SFP 1470nm (CWDM) |
| 4250479321069 | OH-TR-58-1490 | Data Transceiver SFP 1490nm (CWDM) |
| 4250479321076 | OH-TR-58-1510 | Data Transceiver SFP 1510nm (CWDM) |
| 4250479321083 | OH-TR-58-1530 | Data Transceiver SFP 1530nm (CWDM) |
| 4250479321090 | OH-TR-58-1550 | Data Transceiver SFP 1550nm (CWDM) |
| 4250479321106 | OH-TR-58-1570 | Data Transceiver SFP 1570nm (CWDM) |
| 4250479321113 | OH-TR-58-1590 | Data Transceiver SFP 1590nm (CWDM) |
| 4250479321120 | OH-TR-58-1610 | Data Transceiver SFP 1610nm (CWDM) |
Ethernet (electrical):
- 2 x Ethernet ports, RJ 45 Connectors.
- 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
- 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
- 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs
- Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
- Automatic crossover detection or force manually for each port (selectable)
- Port speed / activity LED indication (next to Ethernet port)
Ethernet Optical I/O:
- EEE 802.3z
- (1000BASE-X Gbit/s Ethernet over Fiber at 1Gbit/s (125 MB/s
Optical Output:
1 x fiber optic output (mandatory SFP selection for wavelength):
- Simplex (Singlemode) LC/PC
TX Wavelength:
- Select from 18 available CWDM wavelengths from 1270nm-1610nm (Singlemode)
- ITU-T G.694.2
TX Optical power:
- For OH-TR-54-XXXX SFP = -5dBm to 0dBm (Singlemode)
- For OH-TR-58-XXXX SFP = 0dBm to 5dBm (Singlemode)
- TX active LED on side of module
RX Optical Sensitivity
- For OH-TR-54-XXXX SFP = -23dBm (Singlemode)
- For OH-TR-58-XXXX SFP = -23dBm (Singlemode)
- RX active LED on side of module
RX Optical Wavelength
- 1260nm – 1620nm (Singlemode)
Max. distance*
- With OH-TR-54-XXXX SFP = 40km* (24.8 miles*) Singlemode
- With OH-TR-58-XXXX SFP = 80km* (49.7 miles*) Singlemode
Power (each module)
- +12V DC @ 1.7W nominal – (supports 7 – 22V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
