1 x 12G or 4 x 3G SDI Up/Down/Cross Converter + Frame Synchronizer

Specialty

Analog Audio, Digital Audio, Fiber, HDMI, SDI 1.5G, SDI 12Gbit, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • Broadcast quality up/down/cross converter supporting formats up to 4k UHD (3840×2169)
  • 12G SDI (Single Link or 2SI Quad link) or 4 x 3G modes of operation
  • 2SI Quad-Link<>Single-Link Conversion
  • Versatile Region of Interest (ROI) selection
  • Support for one MADI input and output and four external audio
  • Two Dolby E® decoders, Dolby E® synchronization, full audio processing
  • Multiple adjustable user delays for audio and video
  • Basic test pattern generator
  • Multiple additional processing features allows for adjustments of the video content, e.g. gain, hue etc.

Optional RFR 6000 Rack Frame and RPS A100 US Redundant Power supply now included in package.

Description

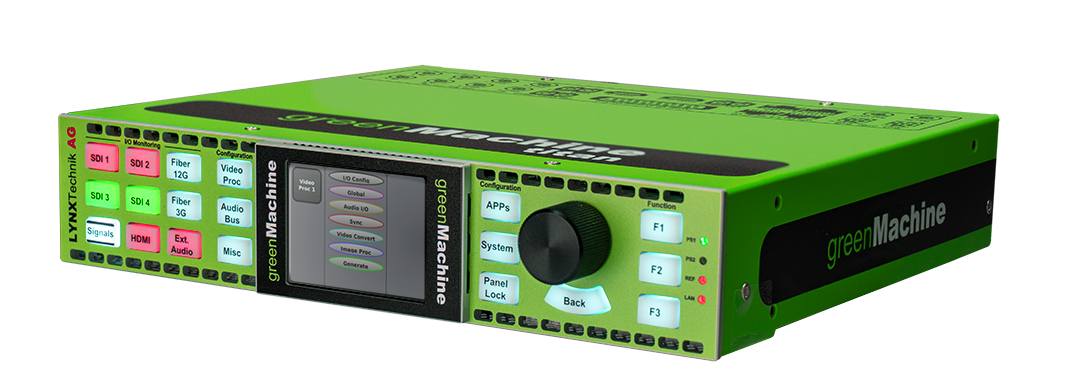

The greenMachine UPXD package is a broadcast-quality video processing unit that has a single channel up/down/cross converter with a frame synchronizer supporting a single channel up to 4K UHD (3840 x 2160) or four independent channels up to 3G.

It includes full audio processing capabilities, scalars for the spatial conversion of the video signals including versatile region of interest (ROI) selection, and high-performance deinterlacer. It also supports 4x3G (2SI Quad link) or 12G SDI (single link) inputs and outputs for 4K UHD signals. With 2SI quad-link <> single link conversion, signals can be interchanged in between the single link and 2SI quad links.

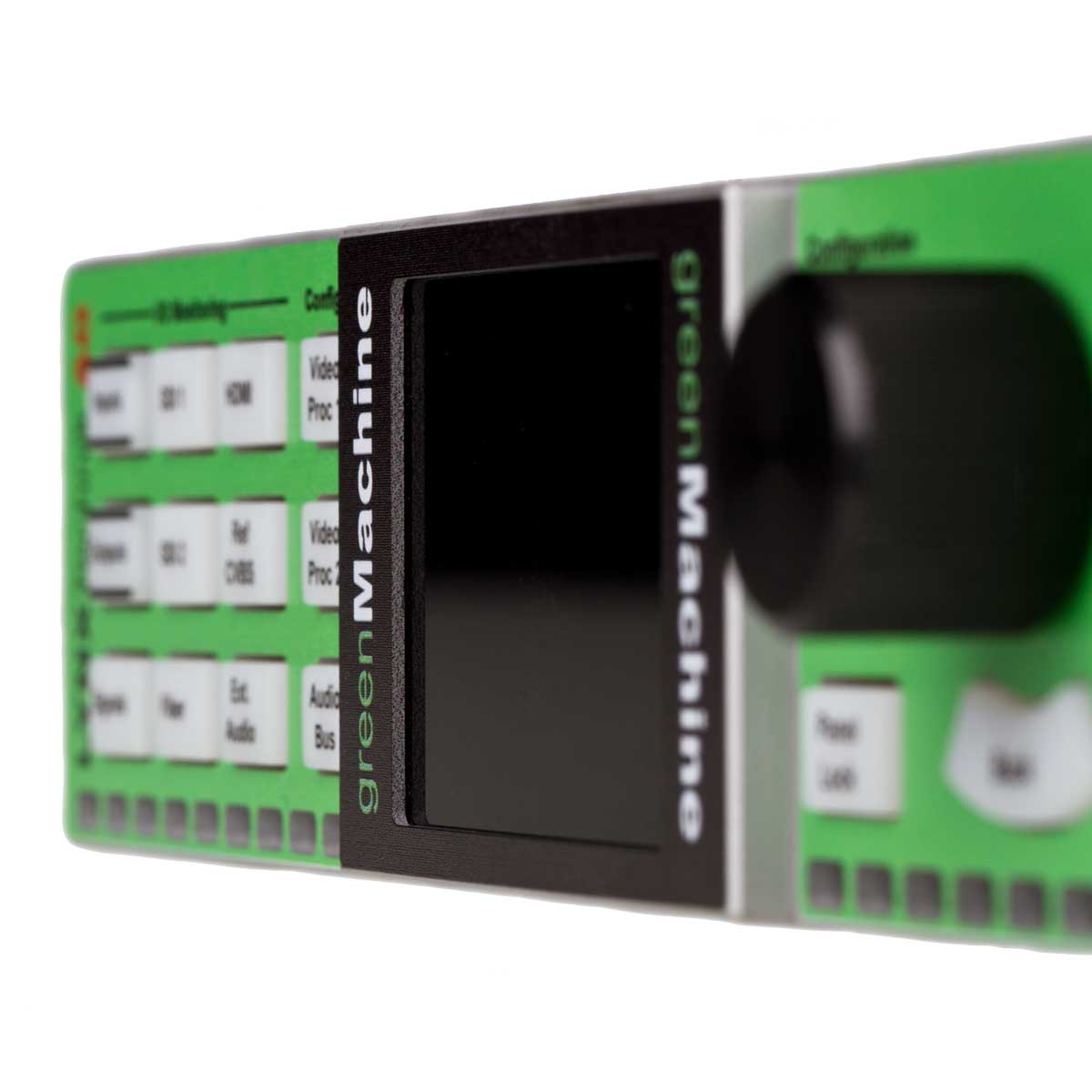

The greenMachine UPXD package comes with a fully-featured local control interface with LCD which displays image previews and audio level meters of the processed video paths in addition to the graphical user interface called LynxCentraal. It is also supported by the Nova controller which enables the module to be remotely controlled and monitored via third party master control software.

This greenMachine 4k UPXD package is also supported by the Nova controller which enables the module to be remotely controlled and monitored via third party master control software.

Each greenMachine is preloaded with all the available constellations (configurations). This package has the GMC 4KUPXD constellation installed and licensed. (Also included is the GMC 3GUPXD license for quad 3G operation). You can freely load any of the available constellations (configurations) for testing and evaluation at any time, the video and audio will be watermarked until licensed. You can have multiple constellations licensed for the same machine and switching between configurations takes only a few seconds. Constellations can also be shared if you have more than one greenMachine on the network.

To learn more about the unique capability of the greenMachine “constellations” concept, please click here

This package includes:

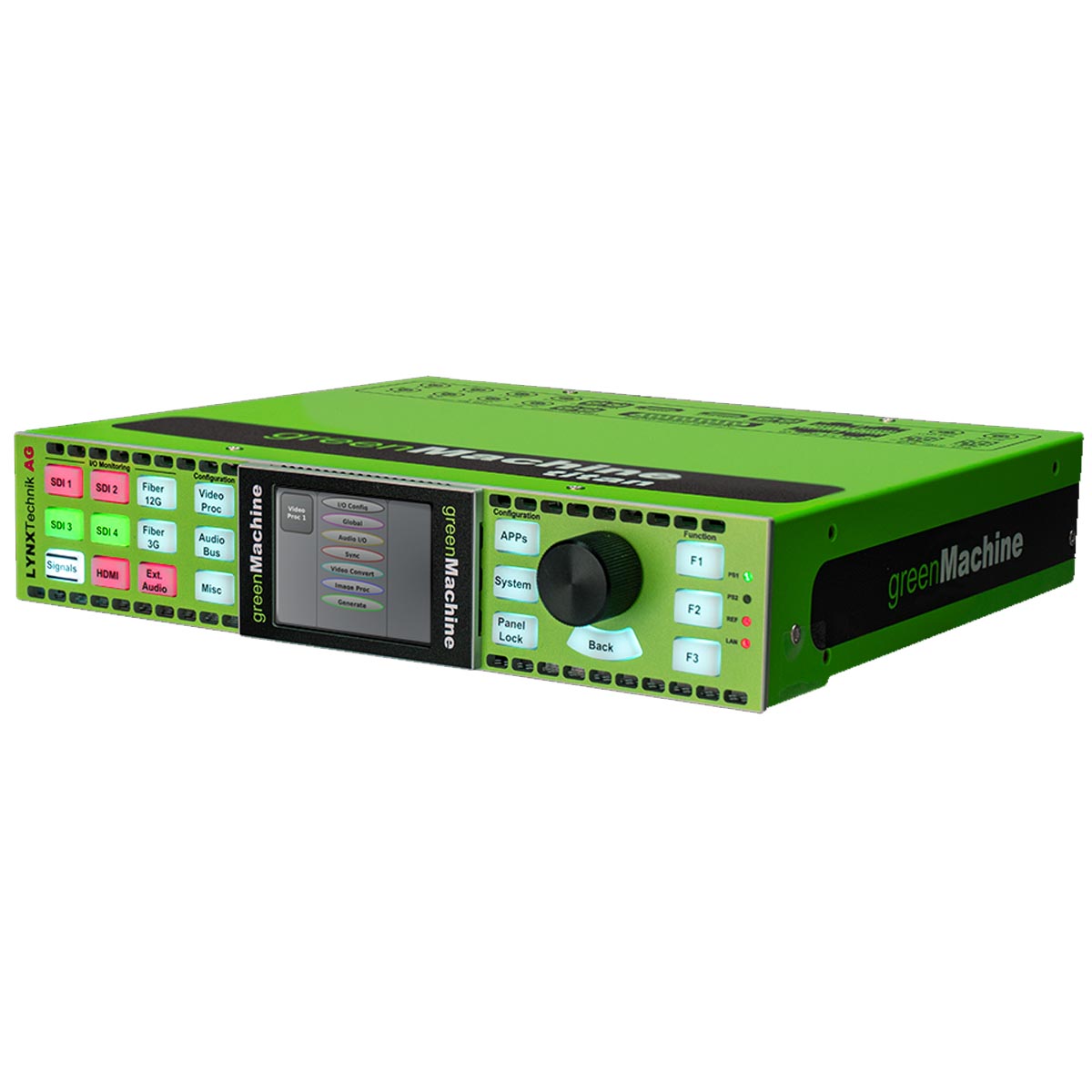

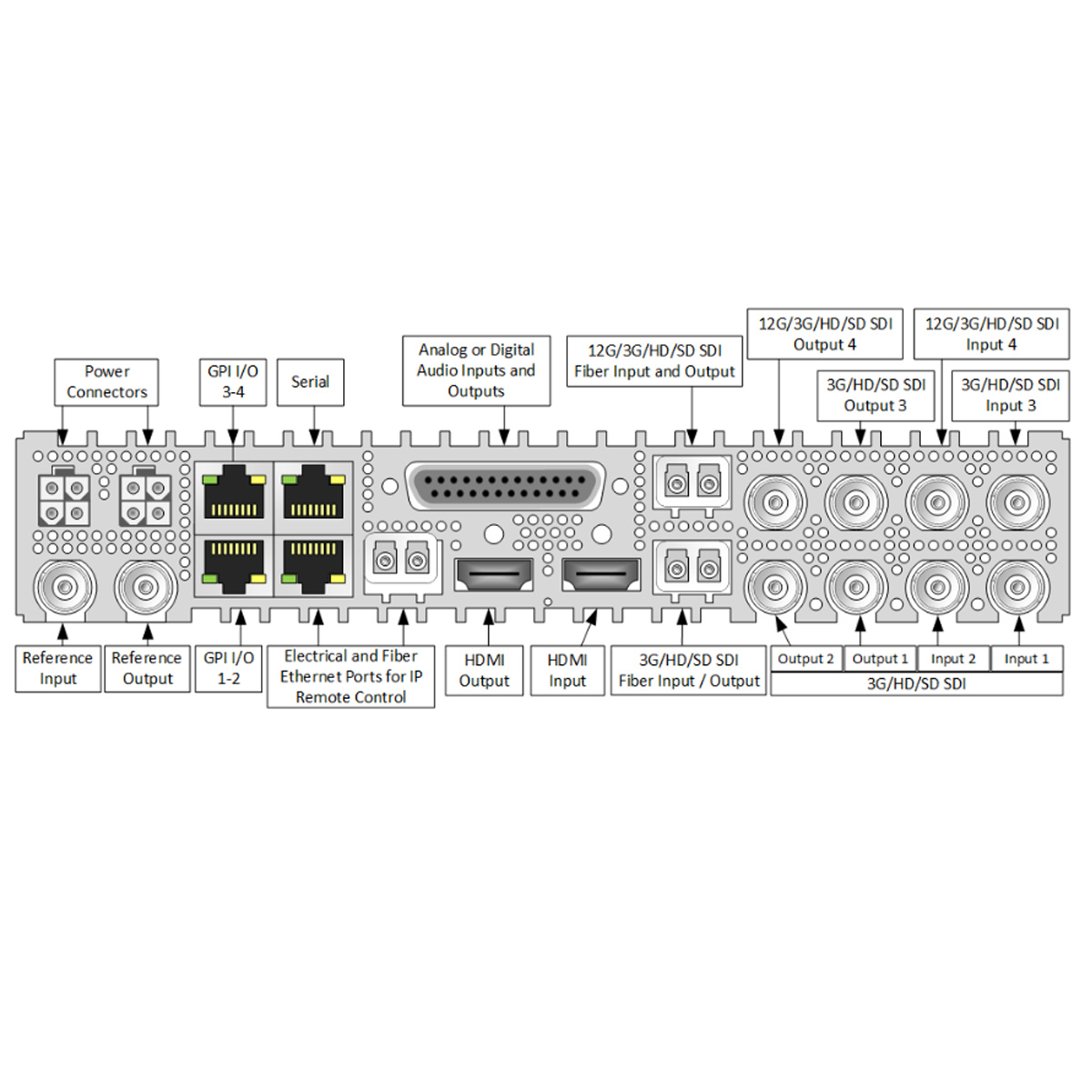

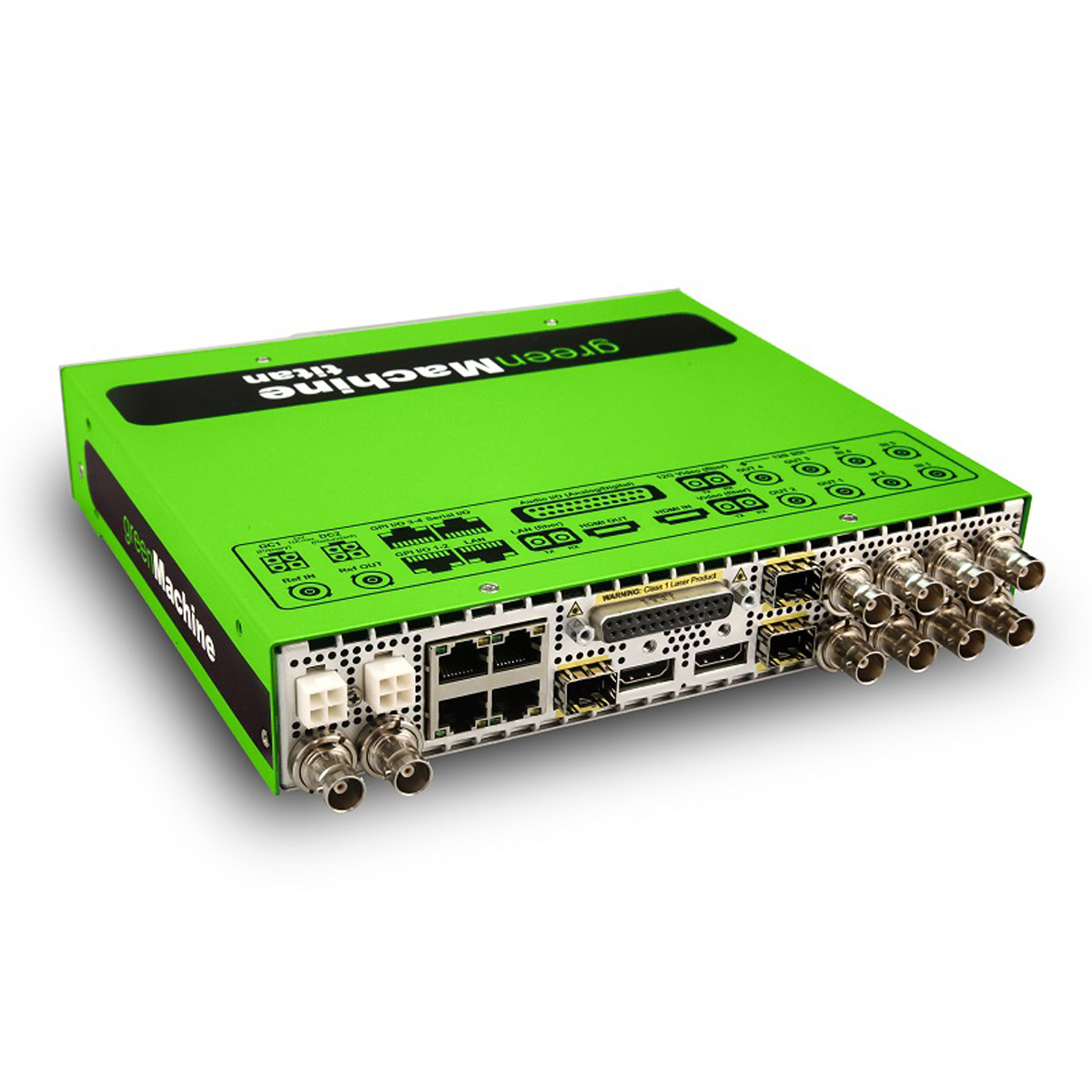

  • 1 x GM 6840 greenMachine Titan Hardware Platform
  • 1 x GMC-4KUPXD Constellation (licensed and installed)

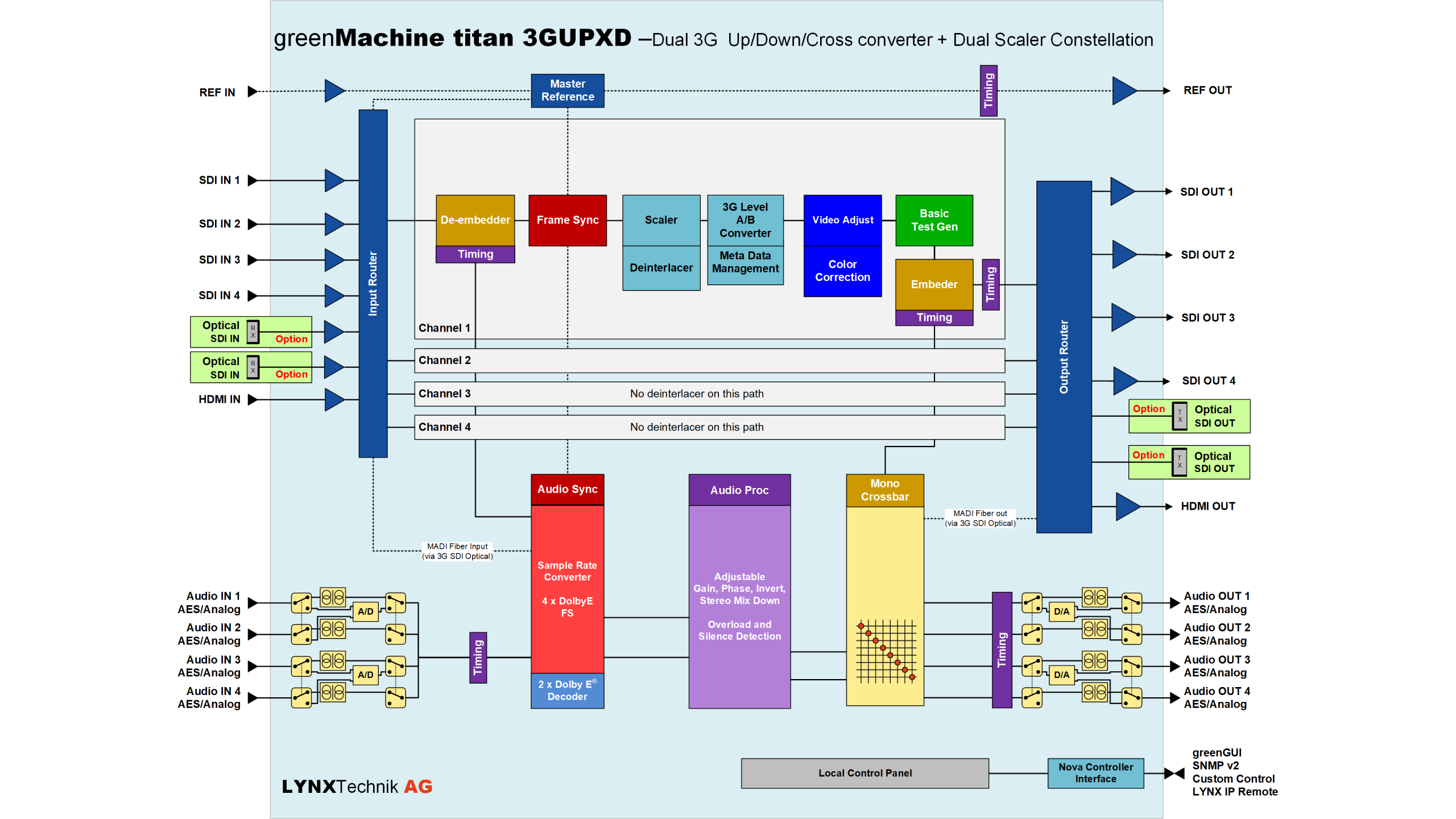

  • 1 x GMC-3GUPXD Constellation (licensed)
  • 2 x RPS A100 US (Primary and Redundant) Power Supplies
  • RFR 6000 19″ Rack Mount kit



Accessories

OH-BD-1-1310

3Gbit SDI Bidirectional transceiver (single fiber)

OH-BD-1-1550

3Gbit SDI Bidirectional transceiver (single fiber)

OH-RX-1

3Gbit SDI Fiber Optic Receiver

OH-TR-1

3Gbit SDI Fiber Optic Transceiver

OH-TR-4-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (40km)

OH-TR-8-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (80km)

OH-TX-1

3Gbit SDI Fiber Optic Transmitter

RFR 6000

19″ 1RU Rack Frame for Green Machine

RXT 6001

19″ Rack Frame Extension for RFR 6000

Ordering Information

UPC / EAN Model Description
4250479929333 GMPT UPXD US 4K Up/Down/Cross Converter Package
Options
4250479324466 RFR 6000 1RU 19" Chassis for 1 or 2 Green Machines

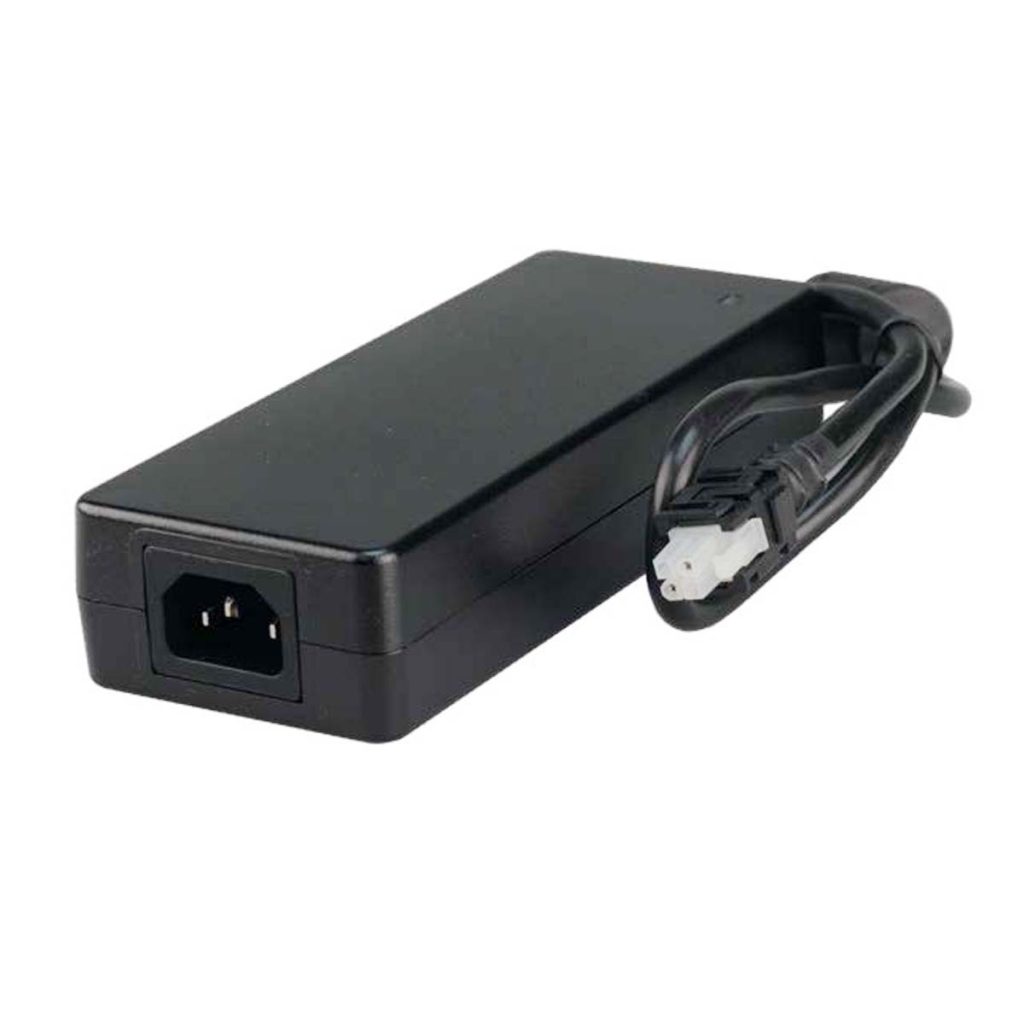

4250479327955 RPS A100 US Redundant power Supply

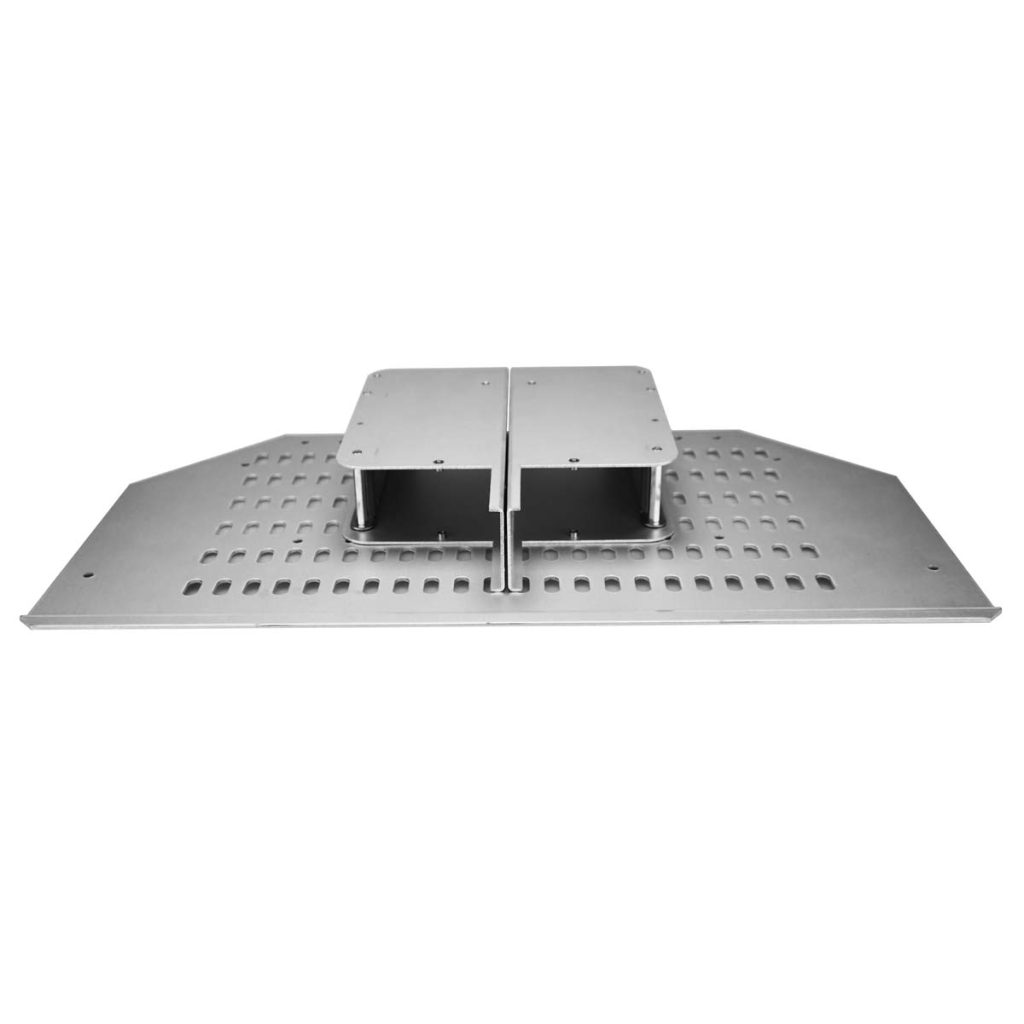

4250479326507 RXT 6001 PSU Extension Chassis

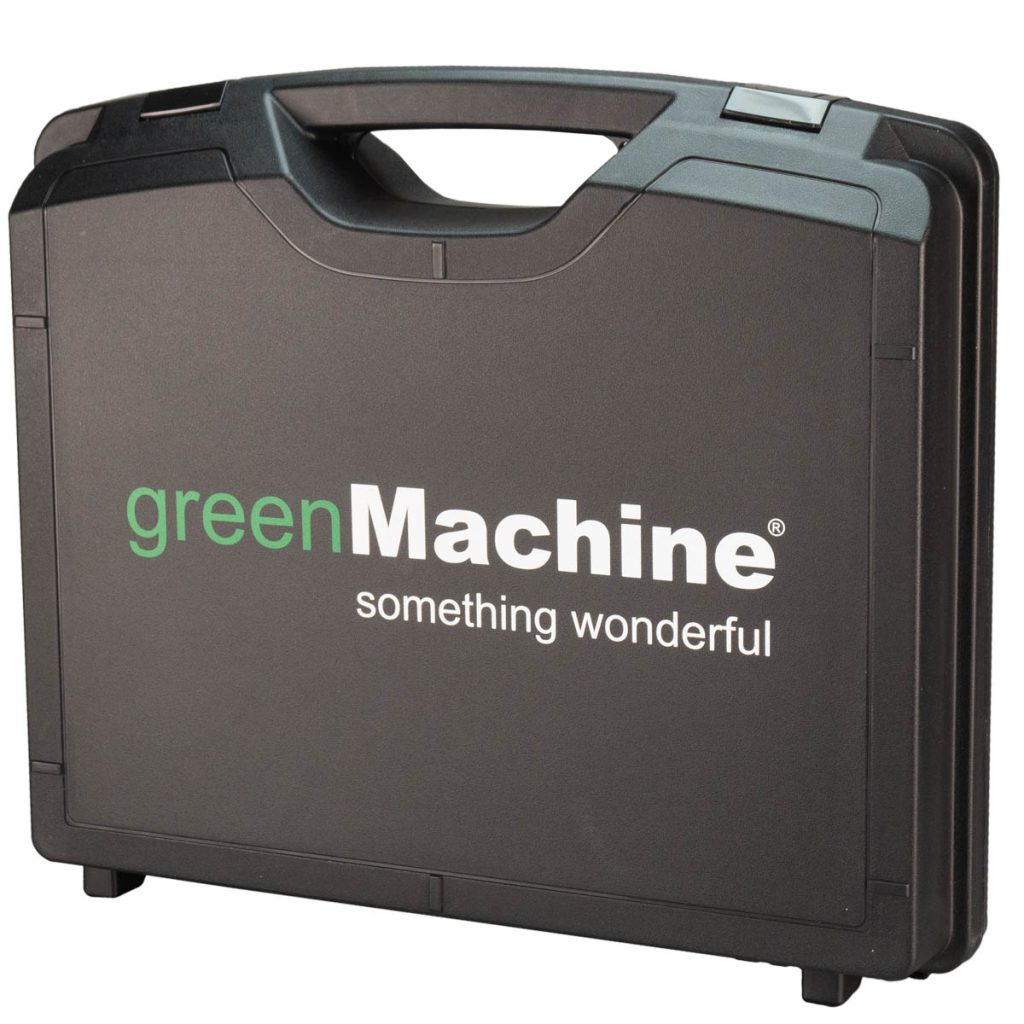

4250479327573 GM HARDCASE ABS Transport case for greenMachine
3G SDI Fiber

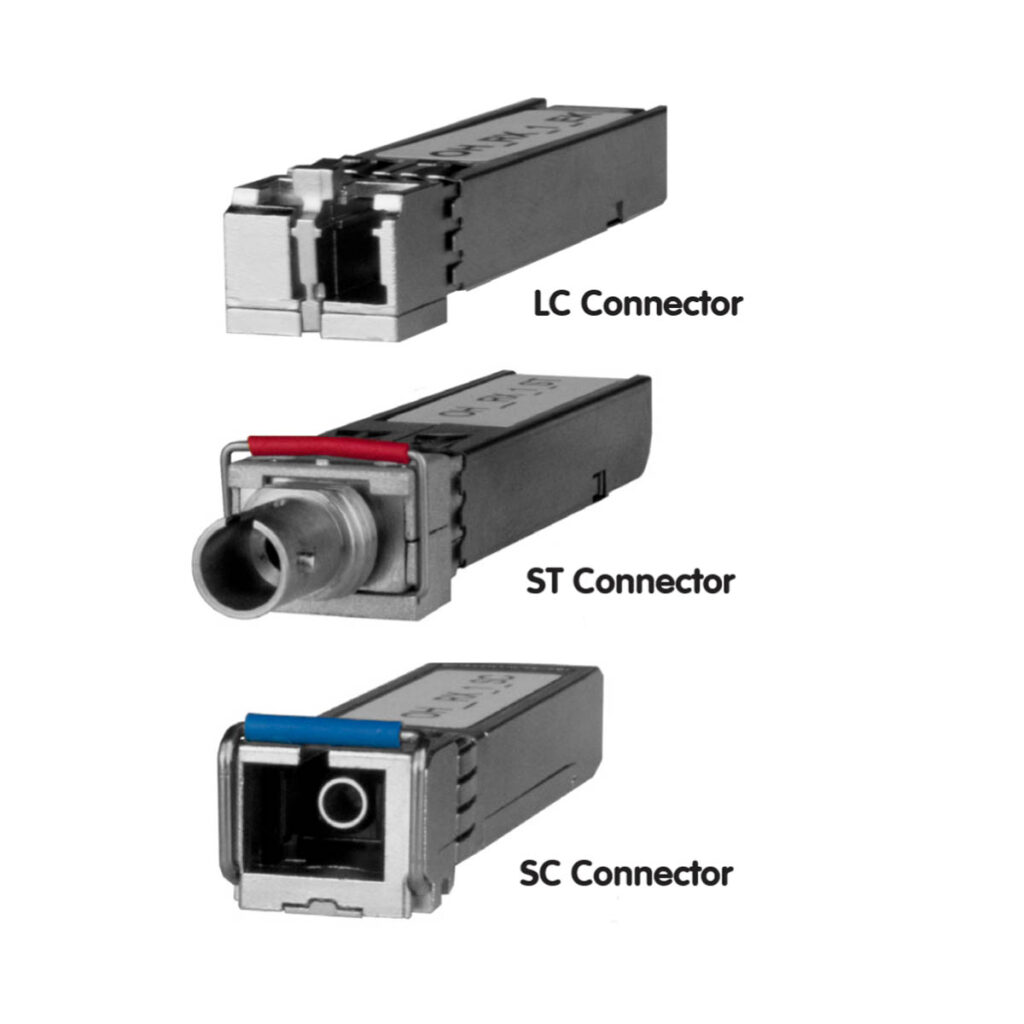

4250479318137 OH-TR-1 3G SDI Transceiver SFP (non CWDM)
