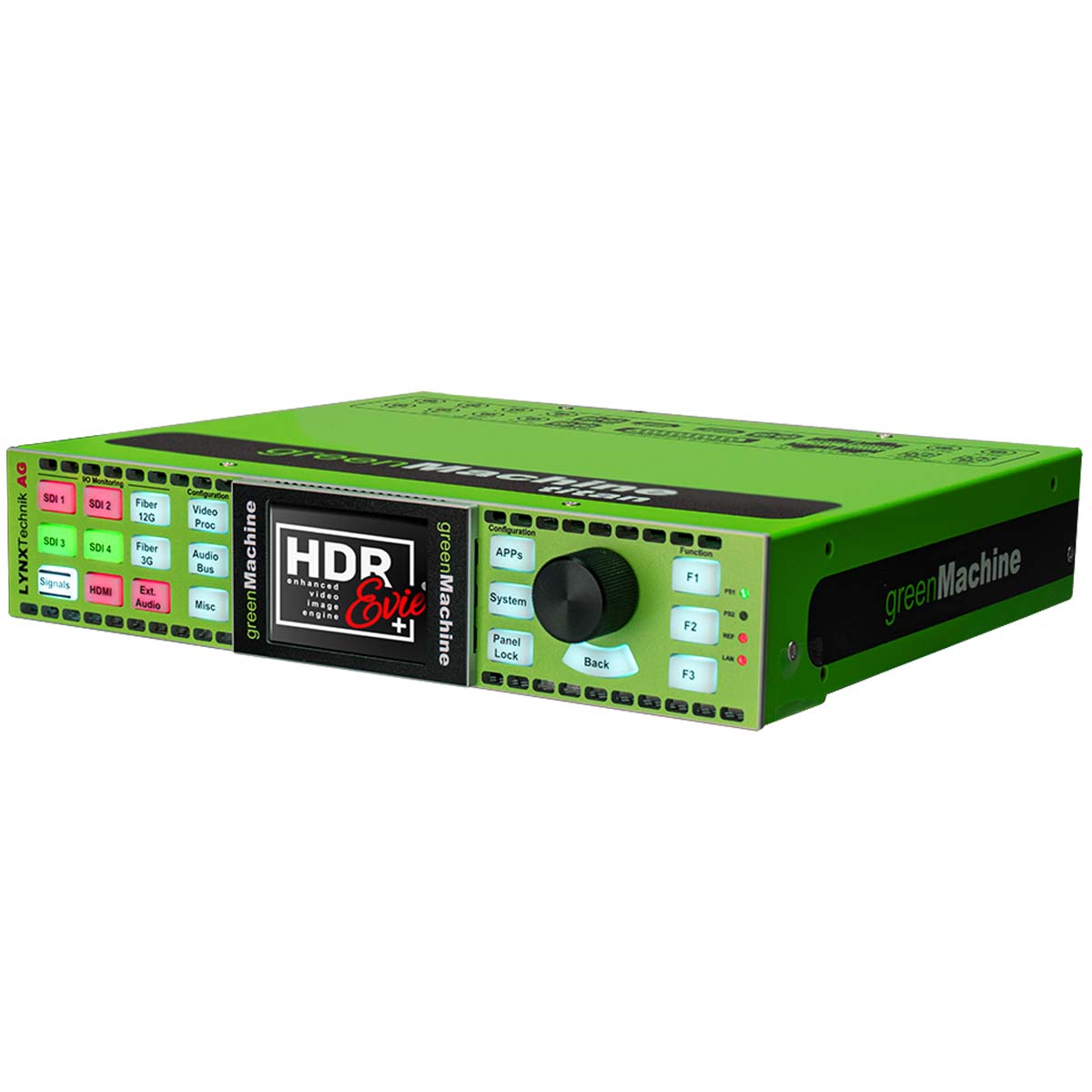

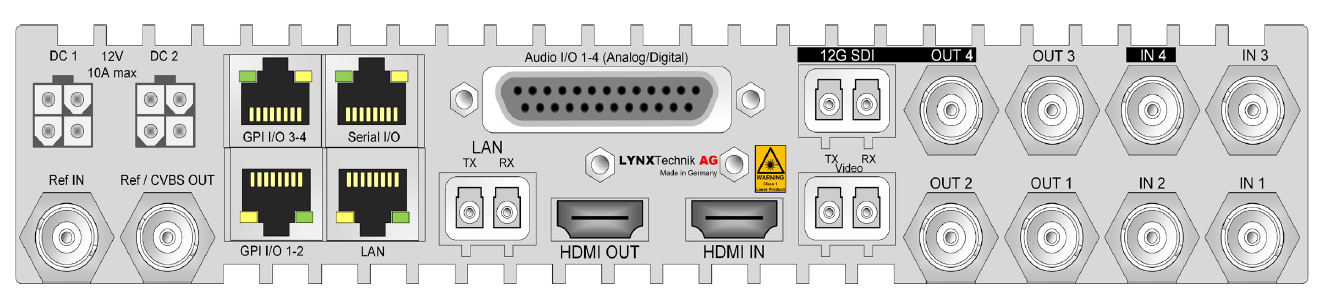

GMPT HDR Evie+

4K Frame Synchronizer plus dynamic segmented frame HDR > SDR Converter

Specialty

Analog Audio, Digital Audio, Fiber, HDMI, HDR, SDI 1.5G, SDI 12Gbit, SDI 3Gbit

Features

  • 4K UHD (12G) SDI single channel or quad (3G) SDI operation
  • Broadcast quality dynamic “Segmented Frame” HDR to SDR Converter
  • Supports Gamma, PQ,HLG and Slog3
  • Supports Rec. 601, Rec. 709 and Rec. 2020 color spaces
  • Frame sync supporting formats up to 4K UHD (3840×2169)
  • Multiple adjustable user delays for audio and video
  • Basic test pattern generator
  • RGB Color Corrector (Gain / Gamma / Lift and Offset Controls)
  • Multiple additional processing features allows for adjustments of the video content, e.g. gain, hue etc.

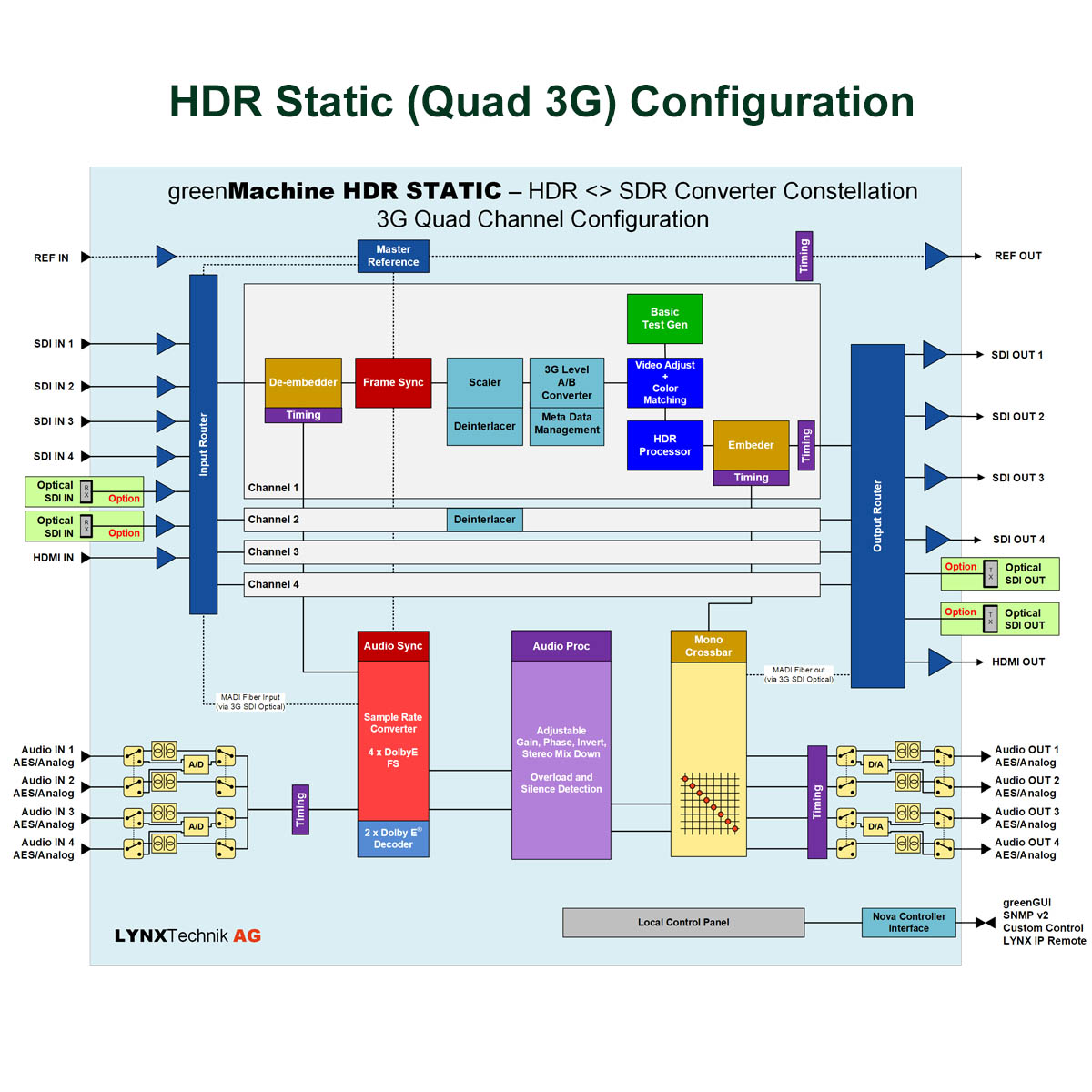

Package includes HDR Static*

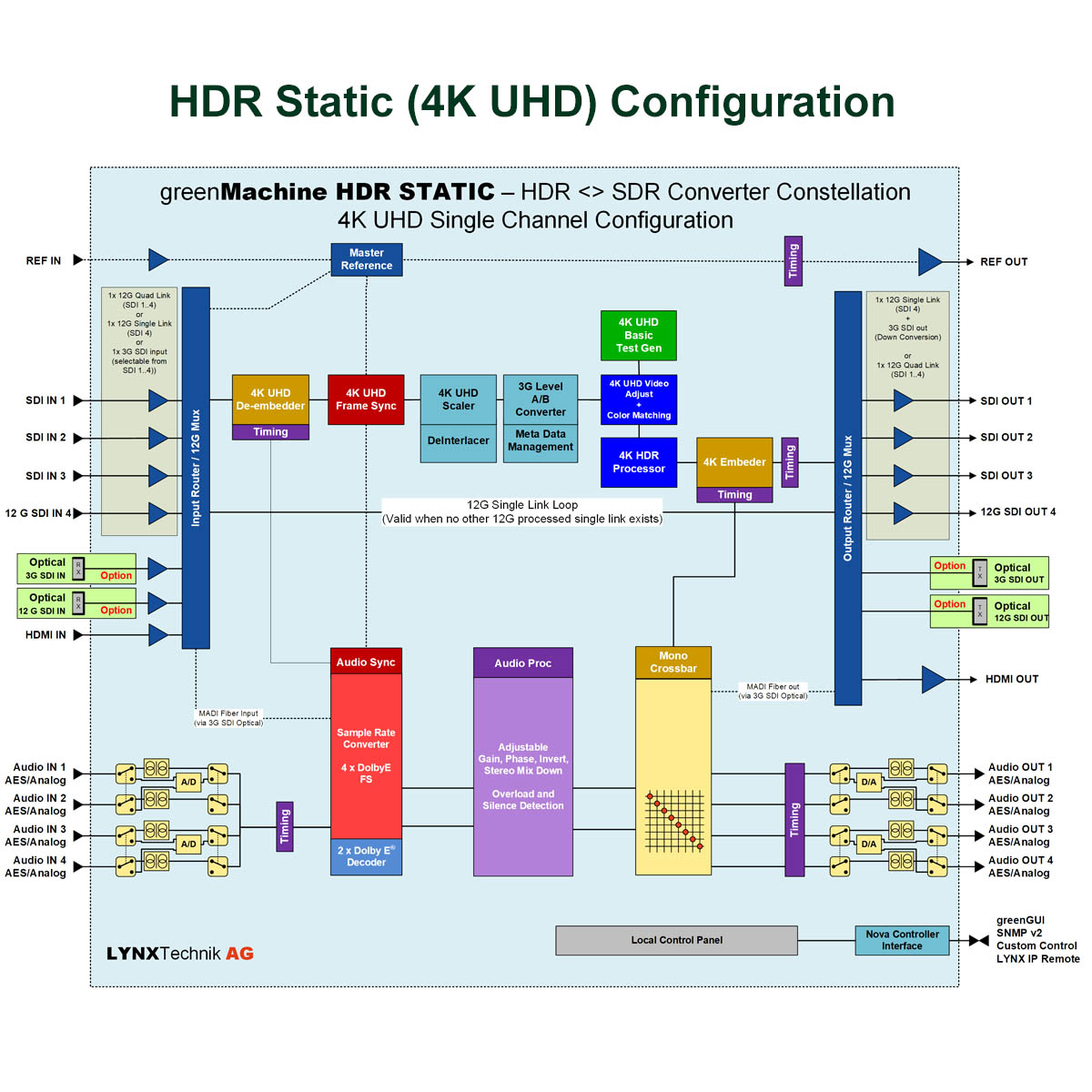

  • Static HDR <> SDR Conversion – This provides the best “Round Trip” conversions (HDR>SDR>HDR or SDR>HDR>SDR)

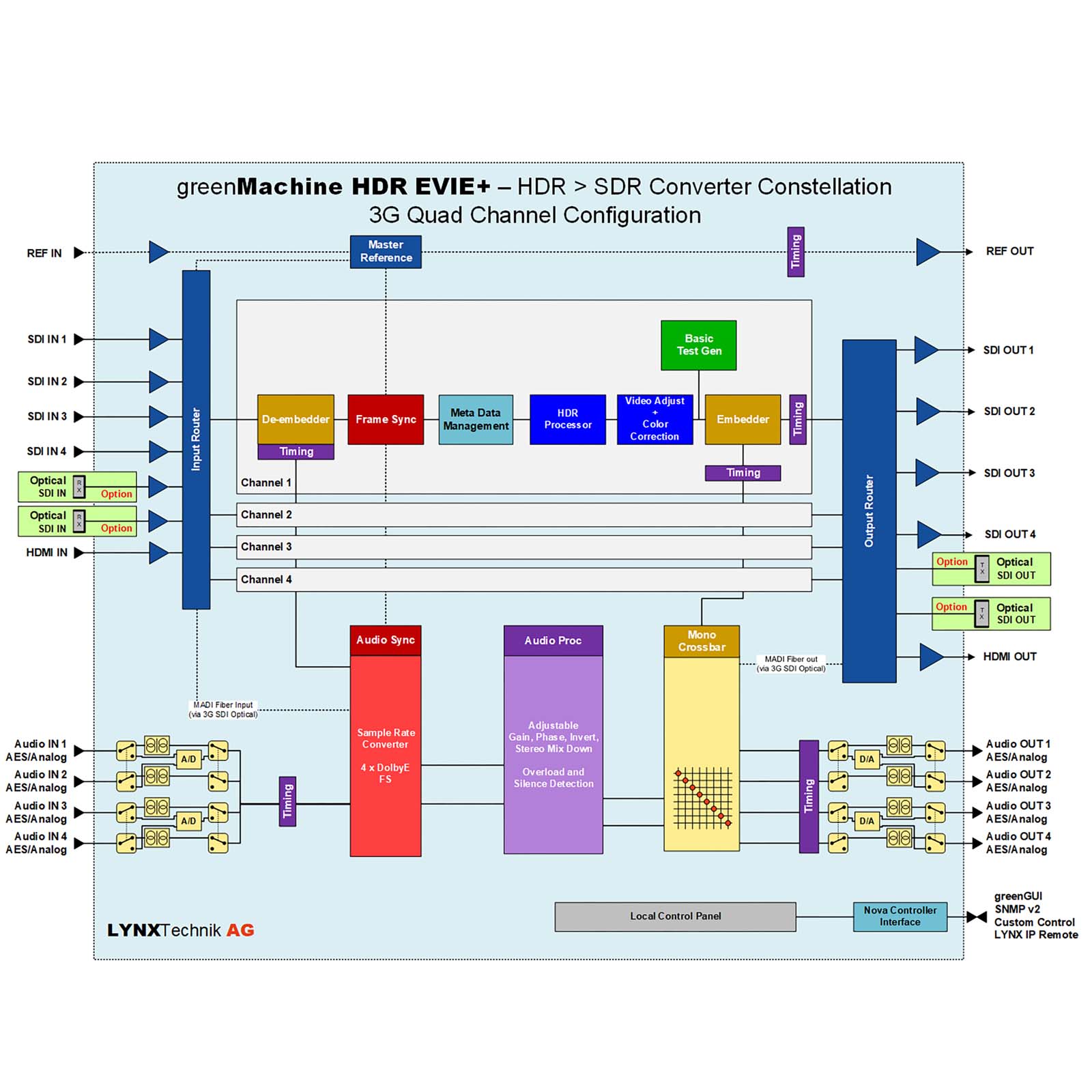

  • 3G Quad channel or 4K UHD single channel configuration
  • Custom (user) LUT support
  • MADI input and output

Optional RFR 6000 Rack Frame and RPS A100 US Redundant Power supply now included in package.

*Licensed HDR Static Constellation. The greenMachine hardware will support only one configuration at a time. It can either be used in “HDR Evie+” configuration or “HDR Static” configuration.

———————————————————————————————————

Split Screen: Static LUT Vs Dynamic HDR

The source clip below was shot in HDR (PQ HLG) with no artificial lights or reflectors



Description

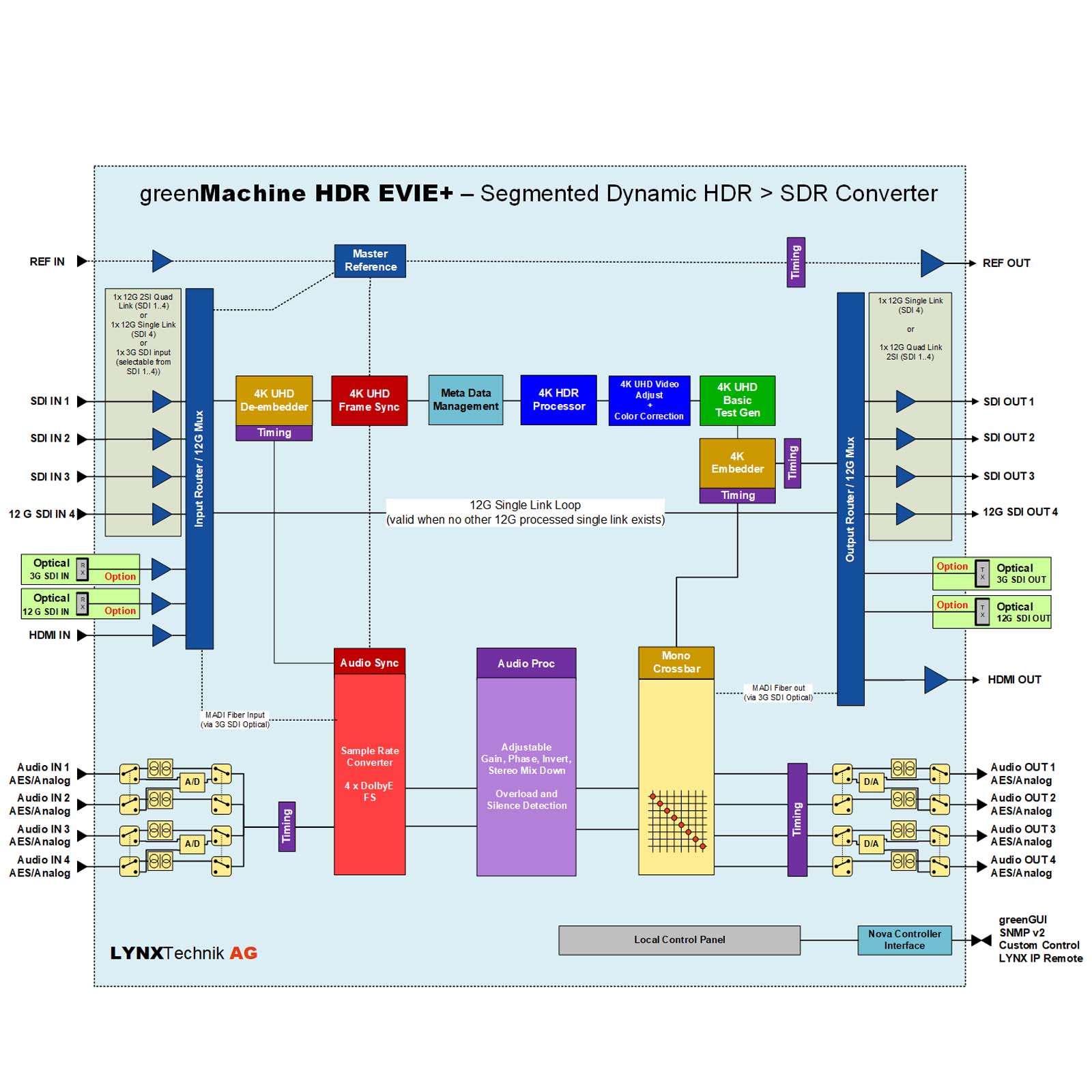

The greenMachine HDR Evie+ (Enhanced Video Image Engine), is a real-time segmented frame-by-frame broadcast-quality HDR to SDR converter and frame synchronizer for SDI formats up to 4K UHD (3840×2160). It is the world’s first system that uses an advanced algorithm for sectional dynamic tone mapping which automatically analyzes different sections of an image in the HDR stream and applies optimal corrections on a frame by frame basis in real-time. This unique capability is unlike any other solution today and is the perfect real-time production tool for sports or any live broadcast event needing high-quality real-time HDR to SDR conversions. HDR EVIE+ is best suited for the single native HDR workflow which can reduce costs on equipment and manual operations.

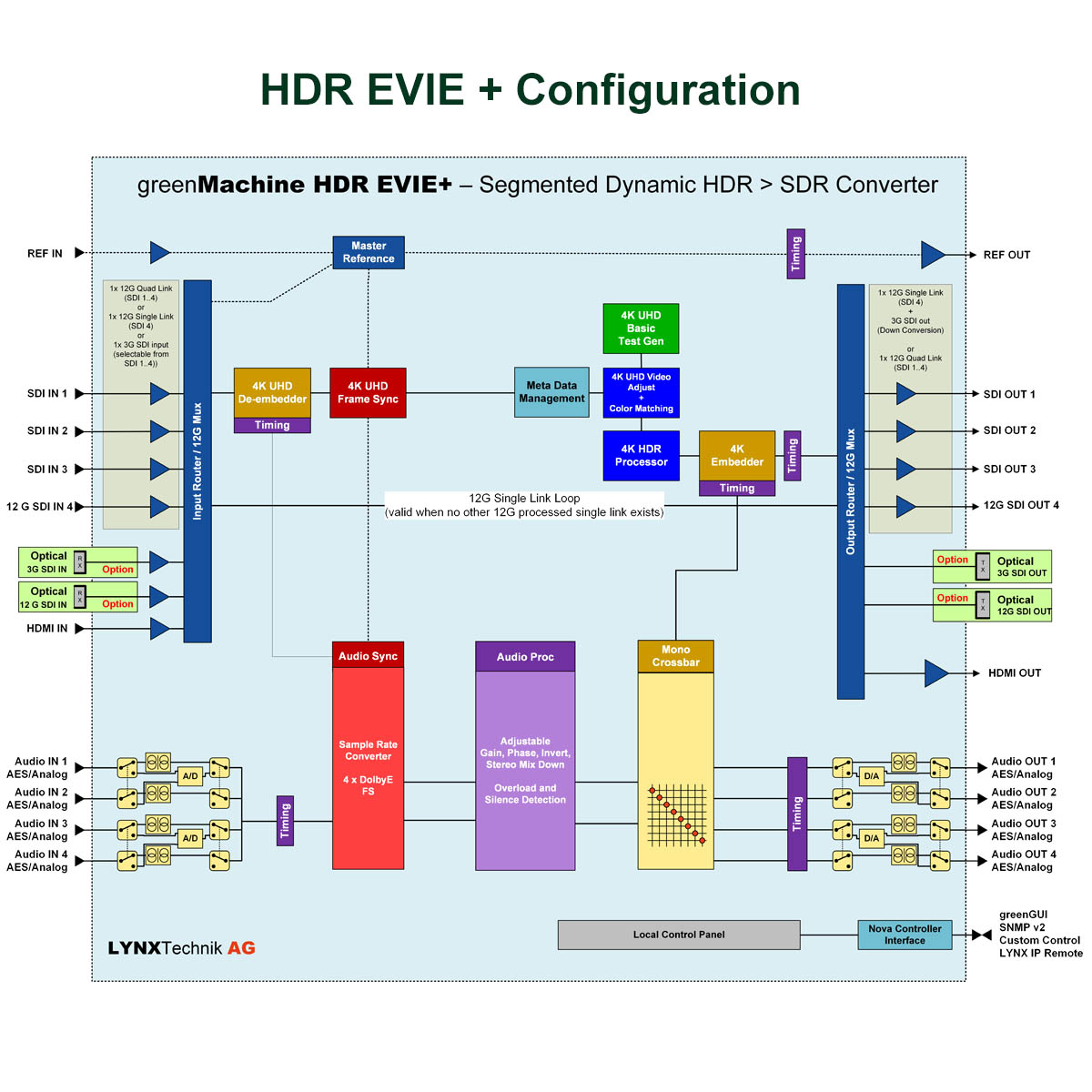

HDR EVIE+ provides 1x 4K/UHD processing channel or 4x 3G SDI channels which supports down-conversion from HDR to SDR through appropriate sectional dynamic tone mapping. It also supports Wide Color Gamut (WCG) to support the needs of broadcast and professional AV live event productions. The HDR Evie+ package also includes the “HDR Static” configuration for Static HDR <> SDR conversions, which performs static tone mapping to realize UP/Down/Cross conversions between HDR and SDR, this is better suited for studio enthronement or where the lighting conditions do not change drastically.

Input / Output Data Range
•  Full range : Video signal representation (10bits) in full range of values from 0 to 1023 decimal (according to ITU BT 2100)
•  Narrow range : Traditional video signal (10 bits)  representation from 64 to 940 decimal values

Dynamic Processing
•  Local Dynamic to Global Dynamic Ratio engine  allows a user to mix sectional tone mapping and global tone mapping proportionally
•  Global Dynamic to Static Ratio engine allows a user to mix dynamic tone mapping and static tone mapping proportionally
•  Dynamic adaptation speed engine (frame-by-frame) allows a user to adjust tone mapping calculation speed to get smooth and consistent viewing impression
•  Automated Scene Detection engine allows a user to adjust the parameter that detects a scene change for automated adjustment of image brightness levels
•  User-adjustable target brightness, contrast, and saturation

Other included features
•  Frame Synchronizer
•  Embedding /De-embedding with DolbyE™ embedding support
•  Basic Audio & Video Test Generator
•  Audio Processing with gain adjustment, mute, inversion, and stereo to mono mix-down
•  MetaData Management
•  Video Adjustments include saturation, gain, black and hue adjustment
•  RGB Color Corrector (Gain / Gamma / Lift and Offset)
•  Timing with available video and audio delay per channels is 30 frames and 1.3 seconds respectively
•  Nova controller with full SNMP v2 support and custom control

Each greenMachine is preloaded with all the available constellations (configurations). This package has the GMC-HDR-EVIE+ constellation installed and licensed. It also includes the HDR STATIC constellation which can be easily selected and the machine reconfigured. Yiu can also freely load any of the available constellations (configurations) for testing and evaluation at any time, the video and audio will be watermarked until licensed. You can have multiple constellations licensed for the same machine and switching between configurations takes only a few seconds. Constellations can also be shared if you have more than one greenMachine on the network.

To learn more about the unique capability of the greenMachine “constellations” concept, please click here

This package includes:

  • 1 x GM 6840 greenMachine Titan Hardware Platform
  • 1 x GMC-HDR-EVIE+(Plus) Constellation (licensed and installed)
  • 1x GMC-HDR STATIC Constellation (licensed)
  • 2 x RPS A100 US (Primary and Redundant) Power Supplies
  • 1 x RFR 6000 19″ Rack Frame Kit



Accessories

OH-BD-1-1310

3Gbit SDI Bidirectional transceiver (single fiber)

OH-BD-1-1550

3Gbit SDI Bidirectional transceiver (single fiber)

OH-RX-1

3Gbit SDI Fiber Optic Receiver

OH-TR-1

3Gbit SDI Fiber Optic Transceiver

OH-TR-4-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (40km)

OH-TR-8-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (80km)

OH-TX-1

3Gbit SDI Fiber Optic Transmitter

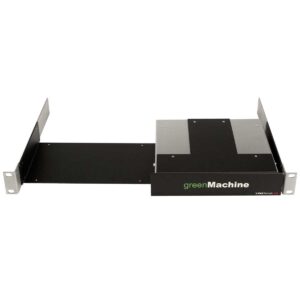

RFR 6000

19″ 1RU Rack Frame for Green Machine

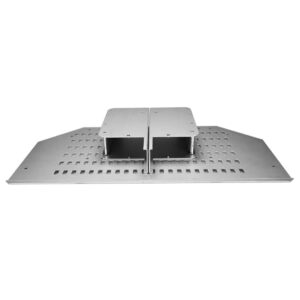

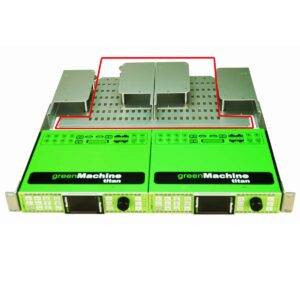

RXT 6001

19″ Rack Frame Extension for RFR 6000

Ordering Information

UPC / EAN Model Description
4250479327283 GMPT HDREVIE+ US 4K UHD HDR Dynamic Processor
Options
4250479324466 RFR 6000 1RU 19" Chassis for 1 or 2 Green Machines

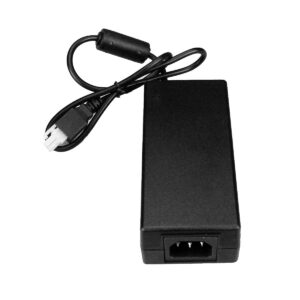

4250479324367 RPS 6120 US Redundant power Supply
4250479326507 RXT 6001 PSU Extension Chassis
4250479327573 GM HARDCASE ABS Transport case for greenMachine
3G SDI Fiber
4250479318137 OH-TR-1 3G SDI Transceiver SFP (non CWDM)
4250479318205 OH-TX-1 3G SDI Transmitter SFP (non CWDM)
4250479318243 OH-RX-1 3G SDI Receiver SFP (non CWDM)
4250479318281 OH-TR-0-850 MM 3G SDI Transceiver SFP (Multimode)
12G SDI Fiber
4250479325029 OH-TR-12 12G SDI Tranceiver SFP (non CWDM)
4250479325036 OH-TX-12 12G SDI Transmitter SFP (non CWDM)
4250479325043 OH-RX-12 12G SDI Receiver SFP (non CWDM)
Ethernet Fiber
4250479324190 OH-TR-51 Ethernet / Data SFP (non CWDM)
4250479324206 OH-TR-50-850 MM Ethernet / Data SFP (Multimode)
3G SDI WDM Fiber
4250479318298 OH-BD-1-1310 SDI Bidirectional (WDM) SFP 1310nm
4250479318304 OH-BD-1-1550 SDI Bidirectional (WDM) SFP 1550nm
CWDM 12G SDI Fiber
4250479325630 OH-TX-12-1270 SDI TX Fiber SFP (CWDM) 1270nm
4250479325647 OH-TX-12-1290 SDI TX Fiber SFP (CWDM) 1290nm
4250479325654 OH-TX-12-1310 SDI TX Fiber SFP (CWDM) 1310nm
4250479325661 OH-TX-12-1330 SDI TX Fiber SFP (CWDM) 1330nm
4250479325685 OH-TX-12-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479325692 OH-TX-12-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479325708 OH-TX-12-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479325715 OH-TX-12-1610 SDI TX Fiber SFP (CWDM) 1610nm
CWDM 3G SDI Fiber
4250479312906 OH-TR-4-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479313101 OH-TR-4-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479313309 OH-TR-4-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479313507 OH-TR-4-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479313705 OH-TR-4-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479313903 OH-TR-4-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479314108 OH-TR-4-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479314306 OH-TR-4-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479314504 OH-TR-4-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479314702 OH-TR-4-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479314900 OH-TR-4-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479315105 OH-TR-4-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479315303 OH-TR-4-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479315501 OH-TR-4-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479315709 OH-TR-4-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479315907 OH-TR-4-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479316102 OH-TR-4-1610 SDI Transceiver SFP (CWDM) 1610nm
Long Haul CWDM 3G SDI Fiber
4250479320772 OH-TR-8-1270 SDI Transceiver SFP (CWDM) 1270nm
4250479320789 OH-TR-8-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479320796 OH-TR-8-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479320802 OH-TR-8-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479320819 OH-TR-8-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479320826 OH-TR-8-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479320833 OH-TR-8-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479320840 OH-TR-8-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479320857 OH-TR-8-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479320864 OH-TR-8-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479320871 OH-TR-8-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479320888 OH-TR-8-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479320895 OH-TR-8-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479320901 OH-TR-8-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479320918 OH-TR-8-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479320925 OH-TR-8-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479320932 OH-TR-8-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479320949 OH-TR-8-1610 SDI Transceiver SFP (CWDM) 1610nm
CWDM Data Fiber
4250479312753 OH-TR-54-1270 Data Transceiver SFP 1270nm (CWDM)
4250479312951 OH-TR-54-1290 Data Transceiver SFP 1290nm (CWDM)
4250479313156 OH-TR-54-1310 Data Transceiver SFP 1310nm (CWDM)
4250479313354 OH-TR-54-1330 Data Transceiver SFP 1330nm (CWDM)
4250479313552 OH-TR-54-1350 Data Transceiver SFP 1350nm (CWDM)
4250479313750 OH-TR-54-1370 Data Transceiver SFP 1370nm (CWDM)
4250479313958 OH-TR-54-1390 Data Transceiver SFP 1390nm (CWDM)
4250479314153 OH-TR-54-1410 Data Transceiver SFP 1410nm (CWDM)
4250479314351 OH-TR-54-1430 Data Transceiver SFP 1430nm (CWDM)
4250479314559 OH-TR-54-1450 Data Transceiver SFP 1450nm (CWDM)
4250479314757 OH-TR-54-1470 Data Transceiver SFP 1470nm (CWDM)
4250479314955 OH-TR-54-1490 Data Transceiver SFP 1490nm (CWDM)
4250479315150 OH-TR-54-1510 Data Transceiver SFP 1510nm (CWDM)
4250479315358 OH-TR-54-1530 Data Transceiver SFP 1530nm (CWDM)
4250479315556 OH-TR-54-1550 Data Transceiver SFP 1550nm (CWDM)
4250479315754 OH-TR-54-1570 Data Transceiver SFP 1570nm (CWDM)
4250479315952 OH-TR-54-1590 Data Transceiver SFP 1590nm (CWDM)
4250479316157 OH-TR-54-1610 Data Transceiver SFP 1610nm (CWDM)
Long Haul CWDM Data Fiber
4250479320956 OH-TR-58-1270 Data Transceiver SFP 1270nm (CWDM)
4250479320963 OH-TR-58-1290 Data Transceiver SFP 1290nm (CWDM)
4250479320970 OH-TR-58-1310 Data Transceiver SFP 1310nm (CWDM)
4250479320987 OH-TR-58-1330 Data Transceiver SFP 1330nm (CWDM)
4250479320994 OH-TR-58-1350 Data Transceiver SFP 1350nm (CWDM)
4250479321007 OH-TR-58-1370 Data Transceiver SFP 1370nm (CWDM)
4250479321014 OH-TR-58-1390 Data Transceiver SFP 1390nm (CWDM)
4250479321021 OH-TR-58-1410 Data Transceiver SFP 1410nm (CWDM)
4250479321038 OH-TR-58-1430 Data Transceiver SFP 1430nm (CWDM)
4250479321045 OH-TR-58-1450 Data Transceiver SFP 1450nm (CWDM)
4250479321052 OH-TR-58-1470 Data Transceiver SFP 1470nm (CWDM)
4250479321069 OH-TR-58-1490 Data Transceiver SFP 1490nm (CWDM)
4250479321076 OH-TR-58-1510 Data Transceiver SFP 1510nm (CWDM)
4250479321083 OH-TR-58-1530 Data Transceiver SFP 1530nm (CWDM)
4250479321090 OH-TR-58-1550 Data Transceiver SFP 1550nm (CWDM)
4250479321106 OH-TR-58-1570 Data Transceiver SFP 1570nm (CWDM)
4250479321113 OH-TR-58-1590 Data Transceiver SFP 1590nm (CWDM)
4250479321120 OH-TR-58-1610 Data Transceiver SFP 1610nm (CWDM)
