DVD 1417

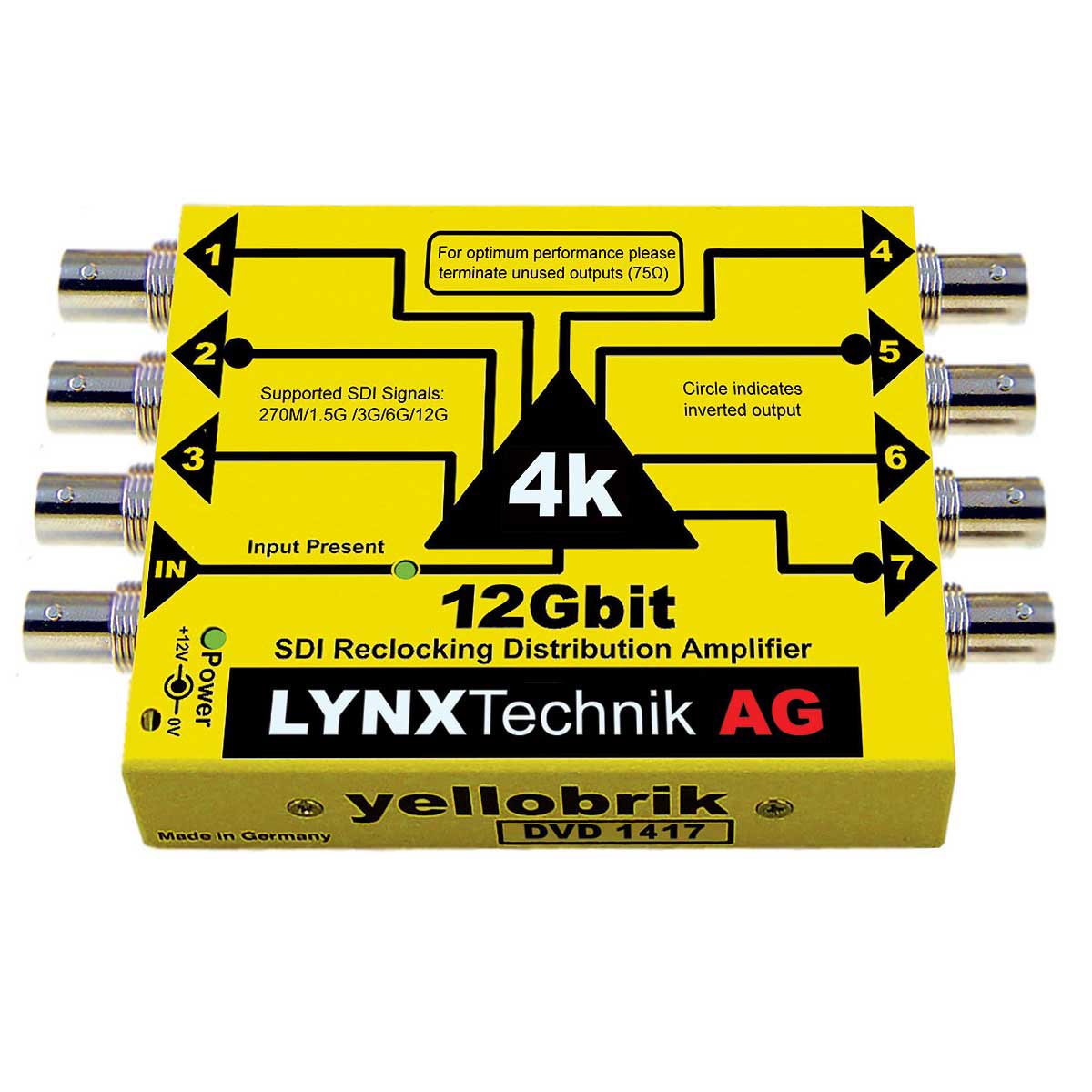

12G SDI Distribution Amplifier (1>7)
The DVD 1417 is a 1>7 SDI Distribution amplifier with support for 270M / 1.5G / 3G / 6G and 12G SDI video standards. A signal present LED is provided which shows a valid input signal is connected..
Operation is fully automatic. The SDI input standard is automatically detected, reclocked and then provided on the 7 x SDI output connectors. No user settings are necessary for this module.
The module supports hot swapping and hot plugging of connections
Key Features
- 1 input and 7 outputs
- Suitable for SDI video from 270Mbit up to 12Gbit/s
- Supports 270M / 1.5G /3G / 6G and 12G SDI video
- Reclocking
- Auto-detect input format
- Input present LED indication
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479325210 | DVD 1417 | 1>7 12G SDI Distribution Amplifier (SD/HD/3G/6G/12G) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
SDI Input
- 1 x SDI input 75 Ohm BNC connection (12G/6G/3G/1.5G/270M)
- SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8 / 10 / 12 bit
- 3G-SDI Level A or B Dual Link
- Multi-standard operation from 270Mbit/s to 12Gbit/s
- Input is reclocked
- Input present LED
Return Loss
- To 1.5GHz = >15dB
- To 3GHz = > 10dB
- To 6GHz = > 7dB
- To 12GHz = > 4dB
Cable EQ
- 270Mbit = 320m (Belden 1694A)
- 5Gbit = 200m (Belden 1694A)
- 3Gbit = 150m (Belden 1694A)
- 6Gbit = 90m (Belden 4794R)
- 12Gbit = 80m (Belden 4794R)
Formats Supported
- 4K 4096x2160p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- UHD 3840x2160p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- 2K 2048x1080p 23,98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- HD 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- HD 1920x1080PsF 23.98 / 24 / 25 / 29.97, / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- SD 720x625i 50
- SD 720x525i 59.94
SDI Video Outputs
- 7 x SDI outputs on 75 Ohm BNC connections (12G/6G/3G/1.5G/270M)
- SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8 / 10 / 12 bit
- 3G-SDI Level A or B Dual Link
- Multi-standard operation from 270Mbit/s to 12Gbit/s
Jitter
| 270M | 1.5G | 3G | 6G | 12G | |
| Alignment Jitter | <0.2 UI | <0.2 UI | <0.3 UI | <0.3 UI | <0.3 UI |
| Timing Jitter | <0.2 UI | <1.0 UI | <2.0 UI | <2.0 UI | <2.0 UI |
Power
- +12V DC @ 2.7W nominal – (supports 7 – 16V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 240g (8.11oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
