CDH 1813 yellobrik SDI to HDMI Converter

CDH 1813

3G SDI to HDMI Converter + 3D Support

Specialty	Analog Audio, De-embedder, Fiber, HDMI, SDI 1.5G, SDI 270MBit, SDI 3G

Documentation

Product Documentation

Features

Support for SDI video inputs up to 3Gbit/s (1080P)
3G SDI Level A and Level B support

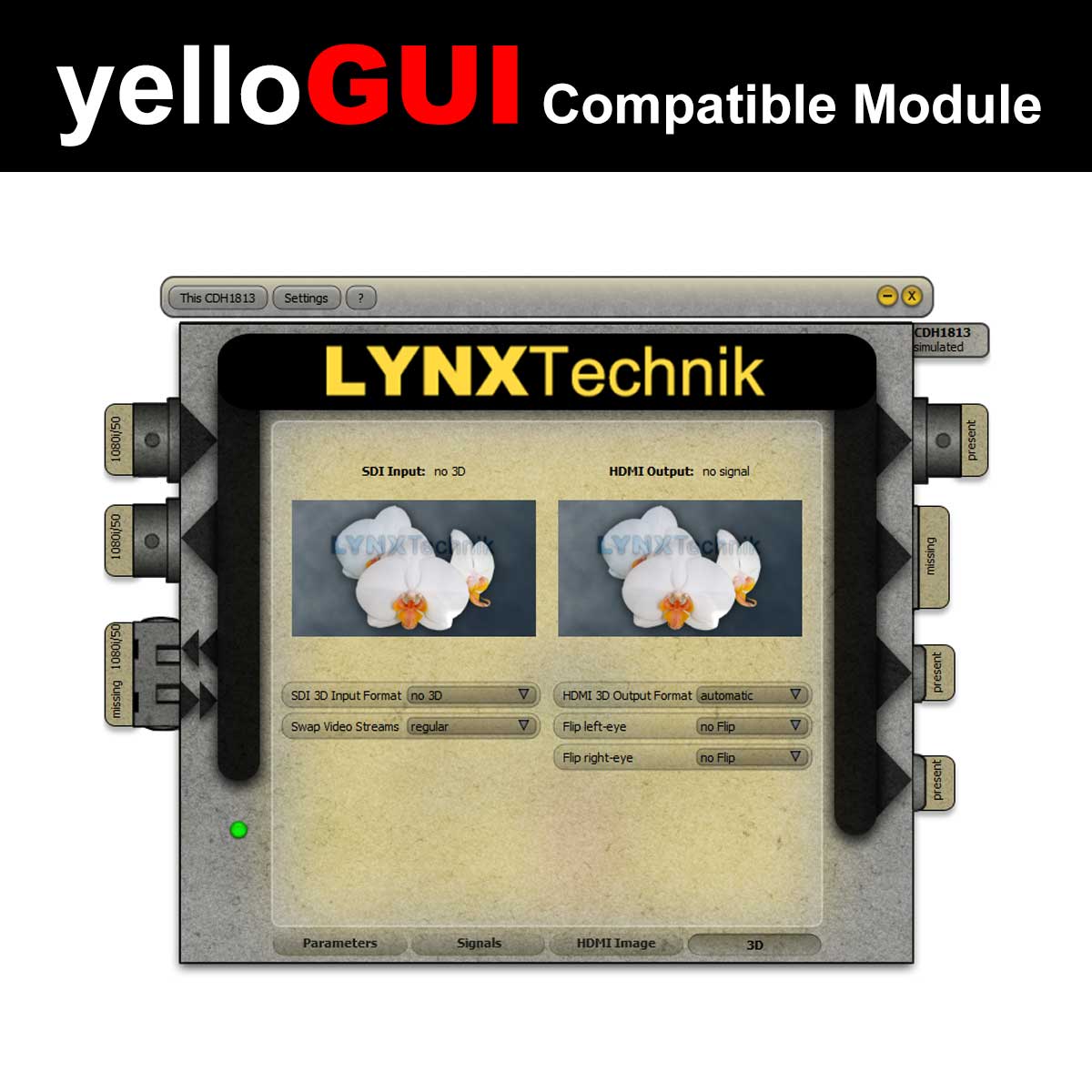

Support for single link 3D formats
Automatic input standard and format detection
Fiber input and output options
HDMI video output with embedded audio
Analog and AES audio outputs
Selectable burn in windows
16 channel on screen audio meters
H/V delay and safe area markers

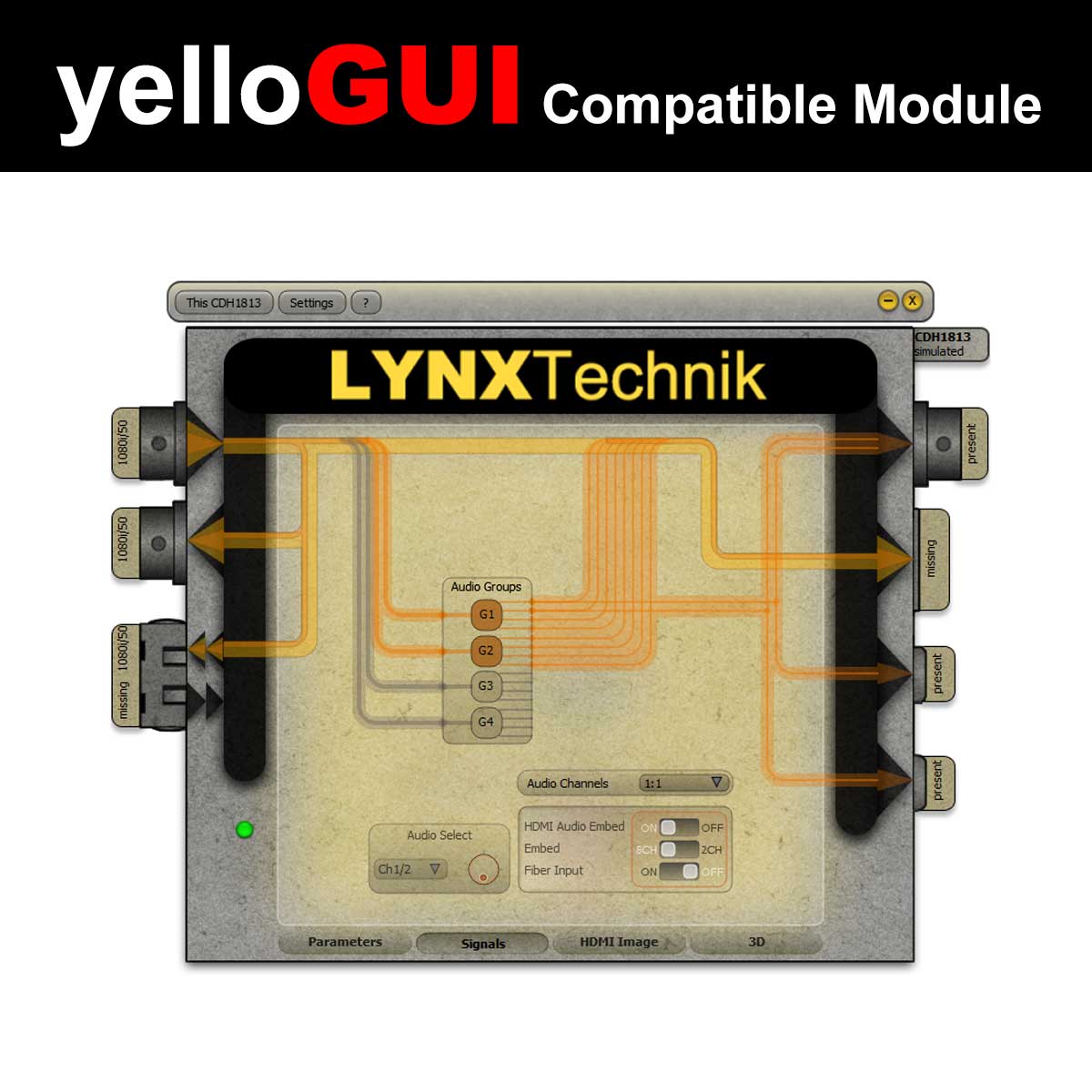

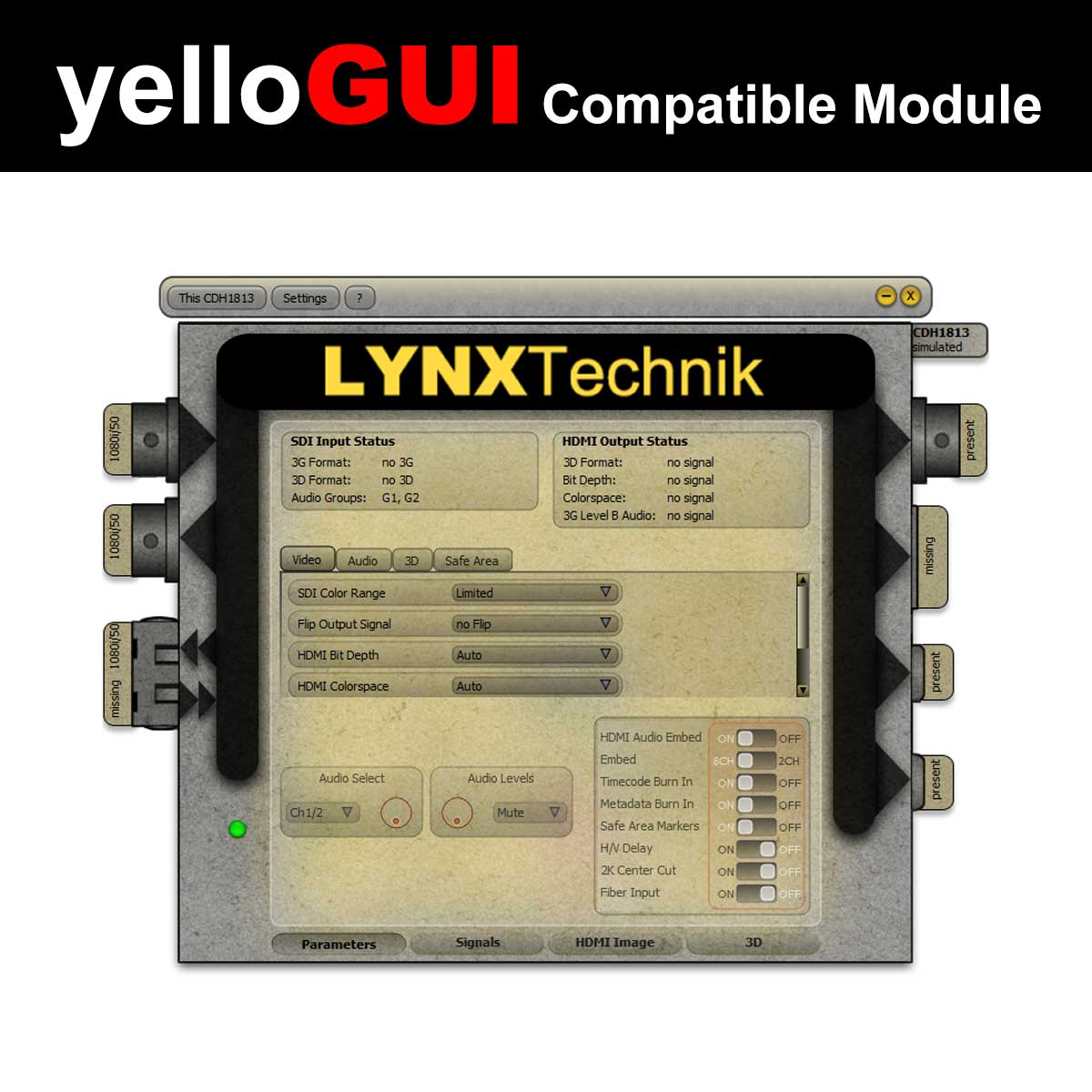

yelloGUI compatible: Gain access to additional features

Description

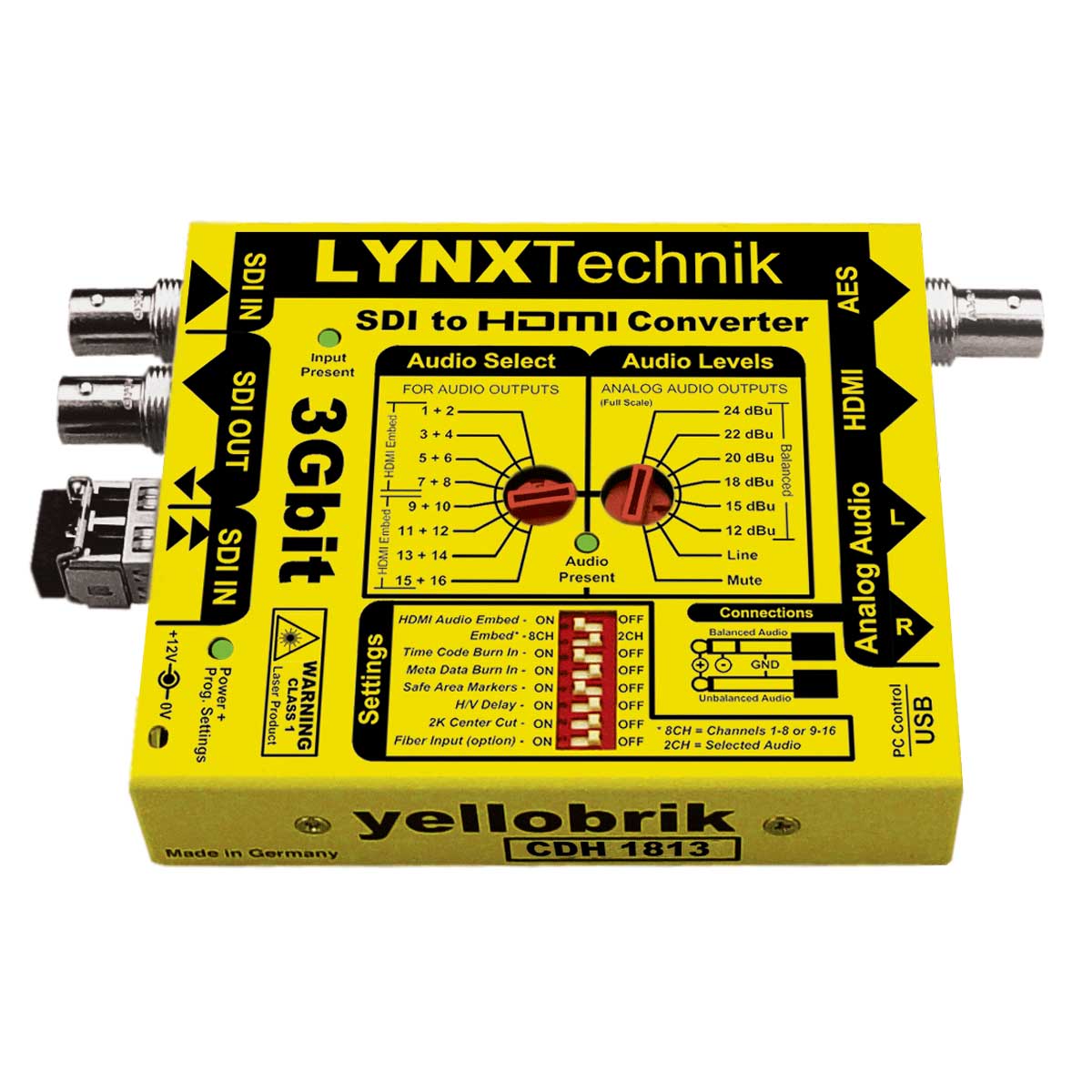

The CDH 1813 is a versatile, compact SDI to HDMI converter designed to combat a host of monitoring and display applications in broadcast, post production and pro A/V markets. Convert any SDI video signal, including 3D formats into an HDMI signal for monitoring and display. Fiber connectivity options add SDI fiber transmission and/or SDI fiber reception using the integrated fiber SFP socket.

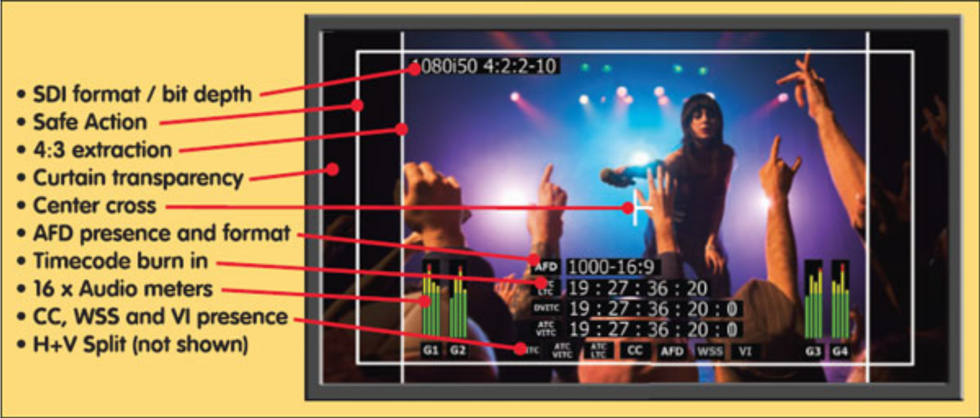

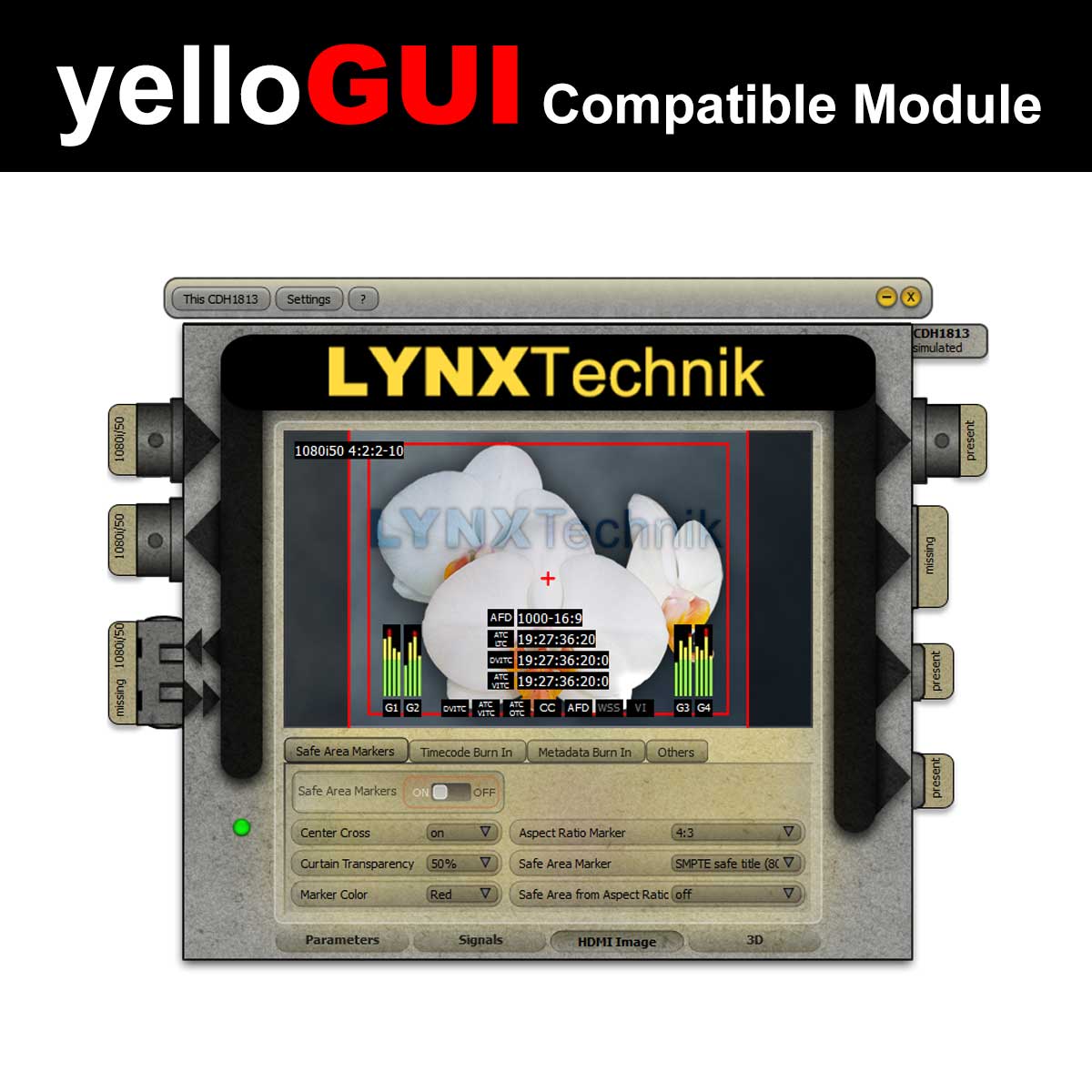

Two channels of audio can be de-embedded providing digital AES and analog audio outputs. Analog audio outputs have selectable full scale range presets. The two selected audio channels can also be embedded into the HDMI output. In addition 8 channels selected from the input signal (channels 1-8 or 9-16) can be embedded into the HDMI output. Various burn in features make the CDH 1813 a true monitoring tool. Timecode burn in, 16 channel audio metering, safe area markers and Metadata display are just a few of the on-screen monitoring features. The yelloGUI software provides support for a host of additional settings and features which are accessed using a PC and the USB port on the module.

Accessories

OH-RX-0-MM

3Gbit SDI Multimode Fiber Optic Receiver

OH-TR-1

3Gbit SDI Fiber Optic Transceiver

OH-TR-4-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (40km)

OH-TR-54-XXXX

Data Fiber Optic Transceiver – CWDM (40km)

OH-TR-58-XXXX

Data Fiber Optic Transceiver – CWDM (80km)

OH-TR-8-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (80km)

OH-TX-0-850-MM

3Gbit SDI Multimode Fiber Optic Transmitter

OH-TX-1

3Gbit SDI Fiber Optic Transmitter

OH-TX-4-XXXX

3Gbit SDI Fiber Optic Transmitter – CWDM

OH-TX-4-XXXX

3Gbit SDI Fiber Optic Transmitter – CWDM (40km)

OH-TX-8-XXXX

3Gbit SDI Fiber Optic Transmitter – CWDM (80km)

P TAP 1000 yellobrik PTAP power adapter cable — P-TAP 1000

P-TAP Battery Adapter Cable

RFR 1001 yellobrik mounting bracket — RFR 1001

yellobrik Mounting Bracket

RFR 1000 yellobrik central power connectors — RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 yellobrik XLR power adapter cable — XLR 1000

4 Pin XLR Camera Battery Adapter Cable

Ordering Information

UPC / EAN	Model	Description
4250479359833	CDH 1813	SDI to HDMI Converter
Options
4250479329041	RFR 1200	RFR 1000 • 19" Chassis for 14 yellobriks
4250479315013	RFR 1001	Single Module Mounting Bracket
4250479314016	P-TAP 1000	P-TAP Battery Power Adapter Cable
4250479314009	XLR-1000	4 Pin XLR Battery Power Adapter Cable
Fiber Options
4250479320321	OH-TX-1-LC	SDI TX Fiber SFP LC Connection (1310nm)
4250479320215	OH-TX-1-SC	SDI TX Fiber SFP SC Connection (1310nm)
4250479320222	OH-TX-1-ST	SDI TX Fiber SFP ST connection (1310nm)
4250479318236	OH-TX-0-850-MM	SDI TX SFP Multimode (850nm) LC
4250479318243	OH-RX-1-LC	Fiber SDI Receiver SFP LC Connection
4250479320253	OH-RX-1-Y-SC	Fiber SDI Receiver SFP SC Connection
4250479320260	OH-RX-1-Y-ST	Fiber SDI Receiver SFP ST Connection
4250479318274	OH-RX-0-MM	Fiber SDI Receiver SFP Multimode LC
4250479318137	OH-TR-1	Fiber SDI Transceiver SFP (RX/TX) 1310nm
CWDM Fiber (40km)
4250479312715	OH-TX-4-1270	SDI TX Fiber SFP (CWDM) 1270nm
4250479312913	OH-TX-4-1290	SDI TX Fiber SFP (CWDM) 1290nm
4250479313118	OH-TX-4-1310	SDI TX Fiber SFP (CWDM) 1310nm
4250479313316	OH-TX-4-1330	SDI TX Fiber SFP (CWDM) 1330nm
4250479313514	OH-TX-4-1350	SDI TX Fiber SFP (CWDM) 1350nm
4250479313712	OH-TX-4-1370	SDI TX Fiber SFP (CWDM) 1370nm
4250479313910	OH-TX-4-1390	SDI TX Fiber SFP (CWDM) 1390nm
4250479314115	OH-TX-4-1410	SDI TX Fiber SFP (CWDM) 1410nm
4250479314313	OH-TX-4-1430	SDI TX Fiber SFP (CWDM) 1430nm
4250479314511	OH-TX-4-1450	SDI TX Fiber SFP (CWDM) 1450nm
4250479314719	OH-TX-4-1470	SDI TX Fiber SFP (CWDM) 1470nm
4250479314917	OH-TX-4-1490	SDI TX Fiber SFP (CWDM) 1490nm
4250479315112	OH-TX-4-1510	SDI TX Fiber SFP (CWDM) 1510nm
4250479315310	OH-TX-4-1530	SDI TX Fiber SFP (CWDM) 1530nm
4250479315518	OH-TX-4-1550	SDI TX Fiber SFP (CWDM) 1550nm
4250479315716	OH-TX-4-1570	SDI TX Fiber SFP (CWDM) 1570nm
4250479315914	OH-TX-4-1590	SDI TX Fiber SFP (CWDM) 1590nm
4250479316119	OH-TX-4-1610	SDI TX Fiber SFP (CWDM) 1610nm
4250479312708	OH-TR-4-1270	SDI Transceiver SFP (CWDM) 1270nm
4250479312906	OH-TR-4-1290	SDI Transceiver SFP (CWDM) 1290nm
4250479313101	OH-TR-4-1310	SDI Transceiver SFP (CWDM) 1310nm
4250479313309	OH-TR-4-1330	SDI Transceiver SFP (CWDM) 1330nm
4250479313507	OH-TR-4-1350	SDI Transceiver SFP (CWDM) 1350nm
4250479313705	OH-TR-4-1370	SDI Transceiver SFP (CWDM) 1370nm
4250479313903	OH-TR-4-1390	SDI Transceiver SFP (CWDM) 1390nm
4250479314108	OH-TR-4-1410	SDI Transceiver SFP (CWDM) 1410nm
4250479314306	OH-TR-4-1430	SDI Transceiver SFP (CWDM) 1430nm
4250479314504	OH-TR-4-1450	SDI Transceiver SFP (CWDM) 1450nm
4250479314702	OH-TR-4-1470	SDI Transceiver SFP (CWDM) 1470nm
4250479314900	OH-TR-4-1490	SDI Transceiver SFP (CWDM) 1490nm
4250479315105	OH-TR-4-1510	SDI Transceiver SFP (CWDM) 1510nm
4250479315303	OH-TR-4-1530	SDI Transceiver SFP (CWDM) 1530nm
4250479315501	OH-TR-4-1550	SDI Transceiver SFP (CWDM) 1550nm
4250479315709	OH-TR-4-1570	SDI Transceiver SFP (CWDM) 1570nm
4250479315907	OH-TR-4-1590	SDI Transceiver SFP (CWDM) 1590nm
4250479316102	OH-TR-4-1610	SDI Transceiver SFP (CWDM) 11610nm
CWDM Fiber (80km)
4250479320567	OH-TX-8-1470	SDI TX Fiber SFP (CWDM) 1470nm
4250479320574	OH-TX-8-1490	SDI TX Fiber SFP (CWDM) 1490nm
4250479320581	OH-TX-8-1510	SDI TX Fiber SFP (CWDM) 1510nm
4250479320598	OH-TX-8-1530	SDI TX Fiber SFP (CWDM) 1530nm
4250479320604	OH-TX-8-1550	SDI TX Fiber SFP (CWDM) 1550nm
4250479320611	OH-TX-8-1570	SDI TX Fiber SFP (CWDM) 1570nm
4250479320628	OH-TX-8-1590	SDI TX Fiber SFP (CWDM) 1590nm
4250479320635	OH-TX-8-1610	SDI TX Fiber SFP (CWDM) 1610nm
4250479320864	OH-TR-8-1450	SDI Transceiver SFP (CWDM) 1450nm
4250479320871	OH-TR-8-1470	SDI Transceiver SFP (CWDM) 1470nm
4250479320888	OH-TR-8-1490	SDI Transceiver SFP (CWDM) 1490nm
4250479320895	OH-TR-8-1510	SDI Transceiver SFP (CWDM) 1510nm
4250479320901	OH-TR-8-1530	SDI Transceiver SFP (CWDM) 1530nm
4250479320918	OH-TR-8-1550	SDI Transceiver SFP (CWDM) 1550nm
4250479320925	OH-TR-8-1570	SDI Transceiver SFP (CWDM) 1570nm
4250479320932	OH-TR-8-1590	SDI Transceiver SFP (CWDM) 1590nm
4250479320949	OH-TR-8-1610	SDI Transceiver SFP (CWDM) 1610nm
