PVD 1800

3G SDI Frame Synchronizer + UP/DOWN/CROSS Converter

Specialty

Fiber, Frame Synchronizer, SDI 1.5G, SDI 270MBit, SDI 3G

Documentation

Product Documentation

Features

  • Support for SDI 3G (level A+B)/HD/SD formats (auto-detect)
  • Up/Down/Cross Converter with selectable fast scale mode
  • Converter can be automated by AFD, WSS or VI metadata
  • Region of Interest scaler
  • Converts between 3G Level A and Level B DL of visa versa
  • Optional fiber I/O
  • Auto changeover or GPI switch between electrical and optical input
  • Robust “flywheel” synchronization for problematic sources
  • “Cross lock” compatible reference input
  • All 16 channels of audio de-embedded from SDI input
  • Audio delayed to match video processing delay and re-embedded
  • Integrated test pattern generator
  • Auto-tracking audio delay
  • No “pops” or “clicks” in audio even when dropping and adding frames
  • Up to 30 frames of programmable delay (for timing)

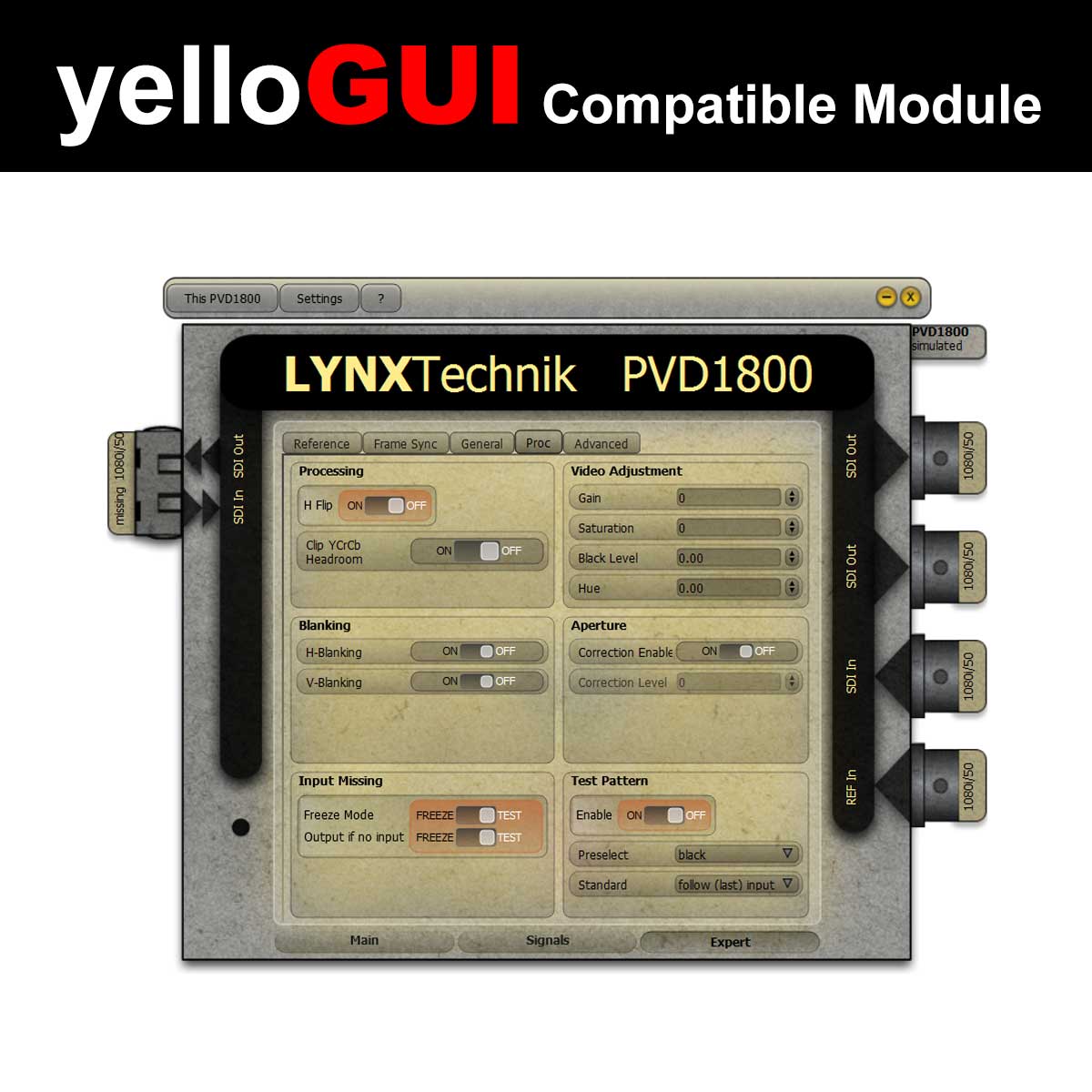

  • yelloGUI compatible to access additional internal settings
    • Aperture Correction
    • Video Processing with Gain, Saturation, Black Level, Hue
    • H and V blanking ON/OFF

Description

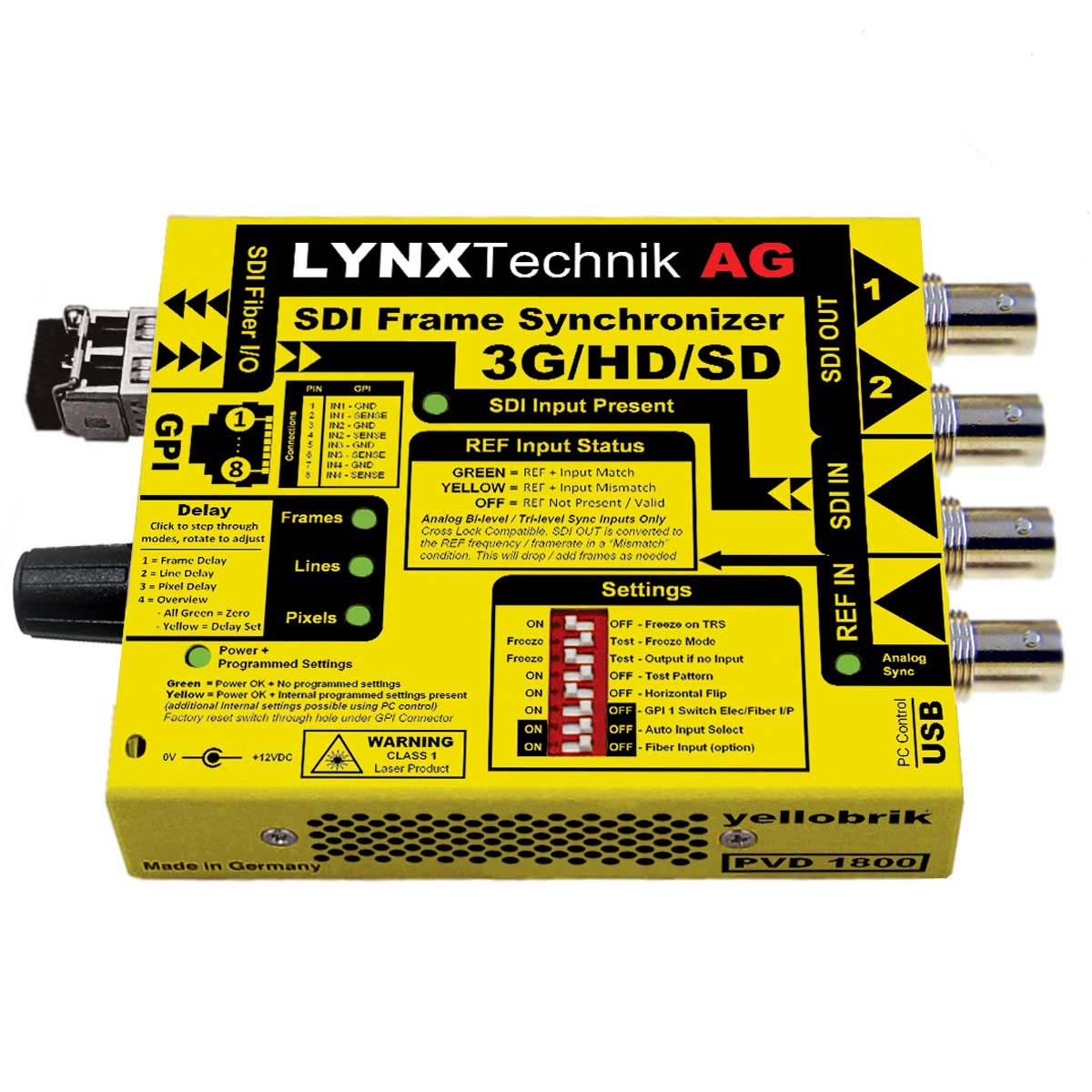

The PVD 1800 is a broadcast quality compact SDI frame synchronizer for professional applications in Broadcast, Post Production and Pro A/V markets.

The PVD 1800 features multiformat support for SDI formats up to 3Gbit/s with optional fiber optic I/O which can be configured to automatically switch between the electrical and optical input if a signal loss is detected.

Video processing utilizes robust “flywheel” synchronization that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. Audio is free from disturbances even when dropping and adding frames. The module also provides up to 30 frames of programmable output delay, adjustable in frames, lines and pixels.

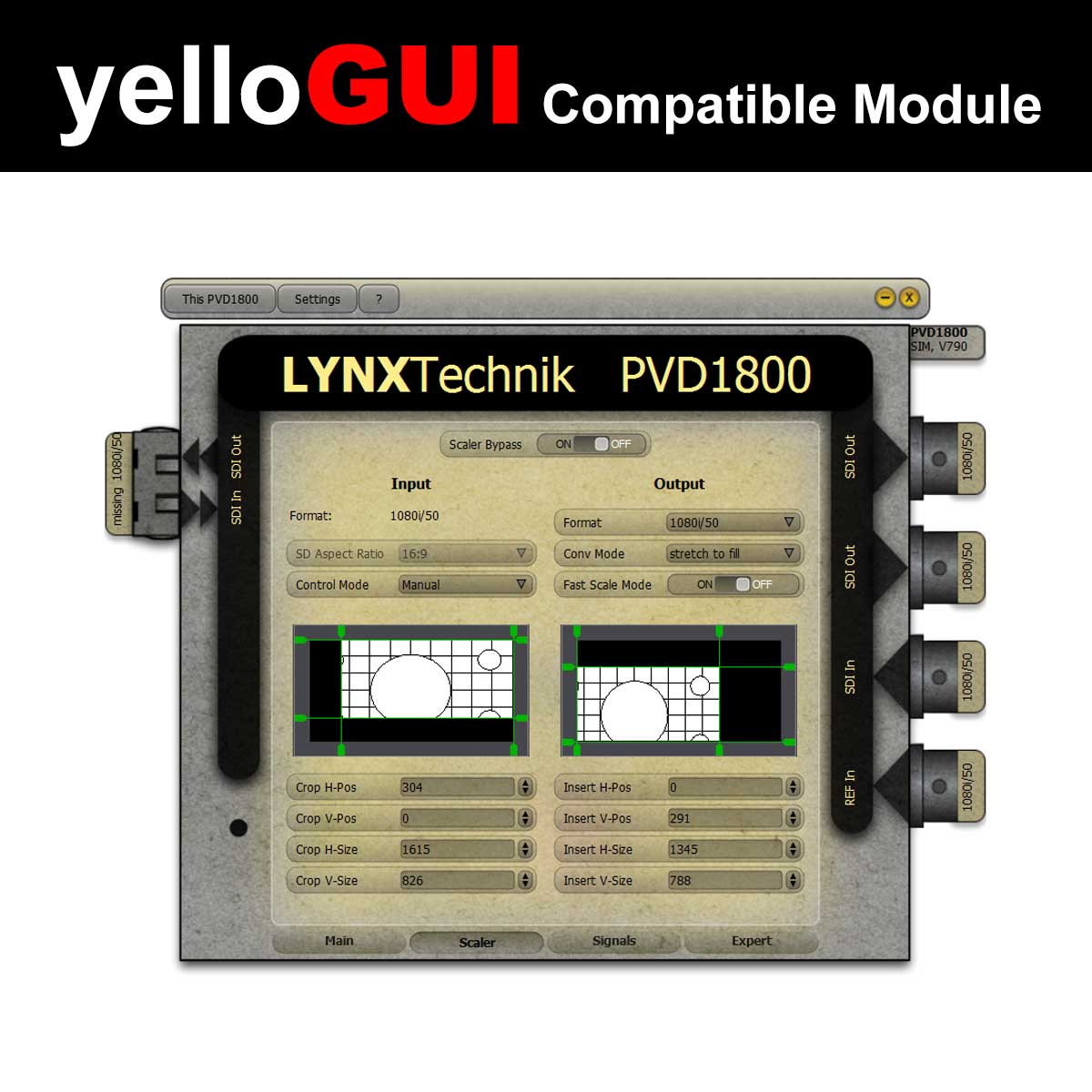

Broadcast Quality Scaler
An integrated scaler can be used for high quality Up/Down/Cross conversion. When using the yelloGUI confrol software, it is also possible to select (extract) a region of interest from the incoming signal and display full frame on the output.

Cross Lock and Frame Rate Conversion
The frame synchronizer is fully cross lock compatible, meaning it can cross lock between different standards. With a specific reference signal connected the synchronizer will drop or add frames to achieve a correctly synchronized (frame rate converted) SDI output. During all conversions precise audio video timing is preserved and no “pops” or ”clicks” or any audio disturbances will be present (even while dropping and adding frames)

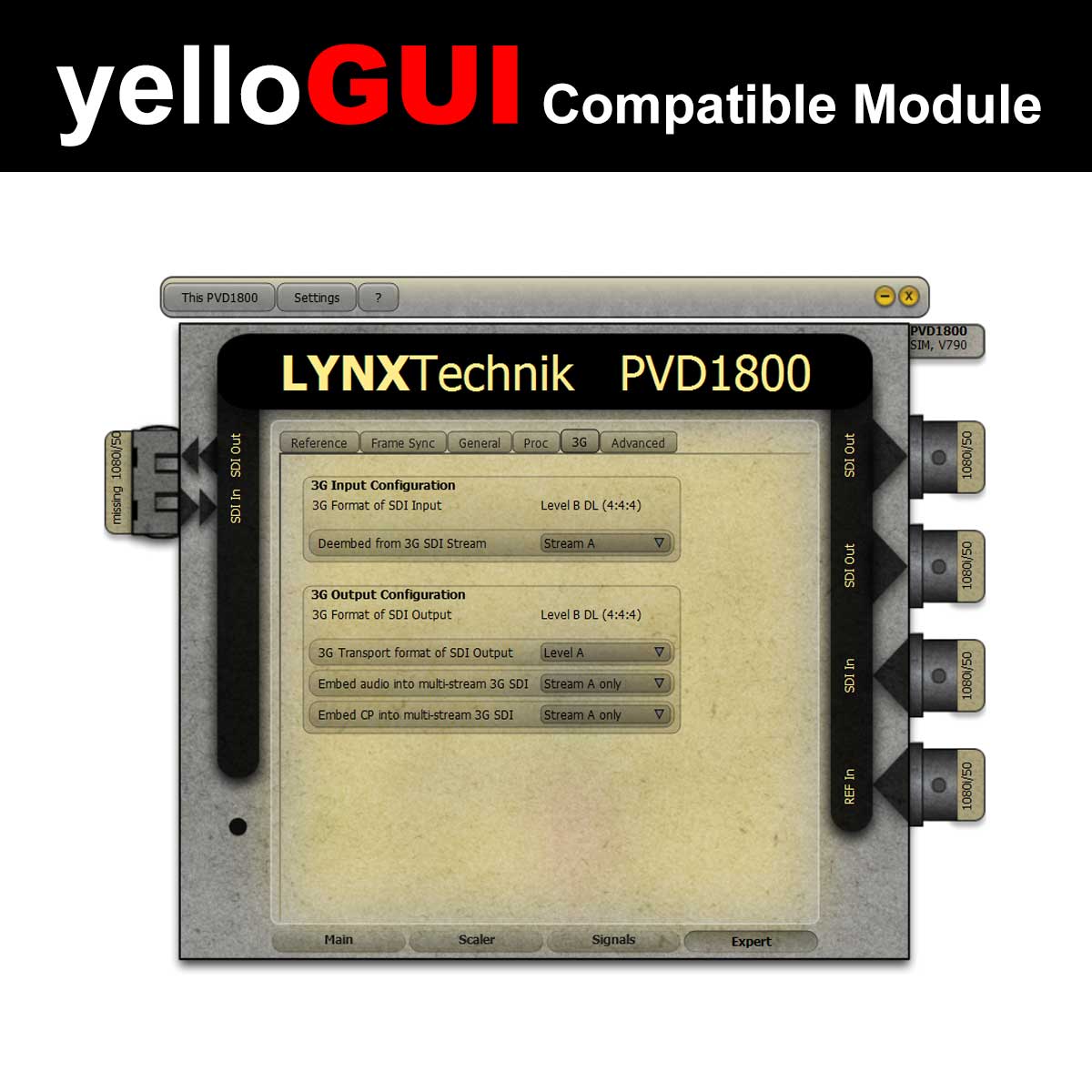

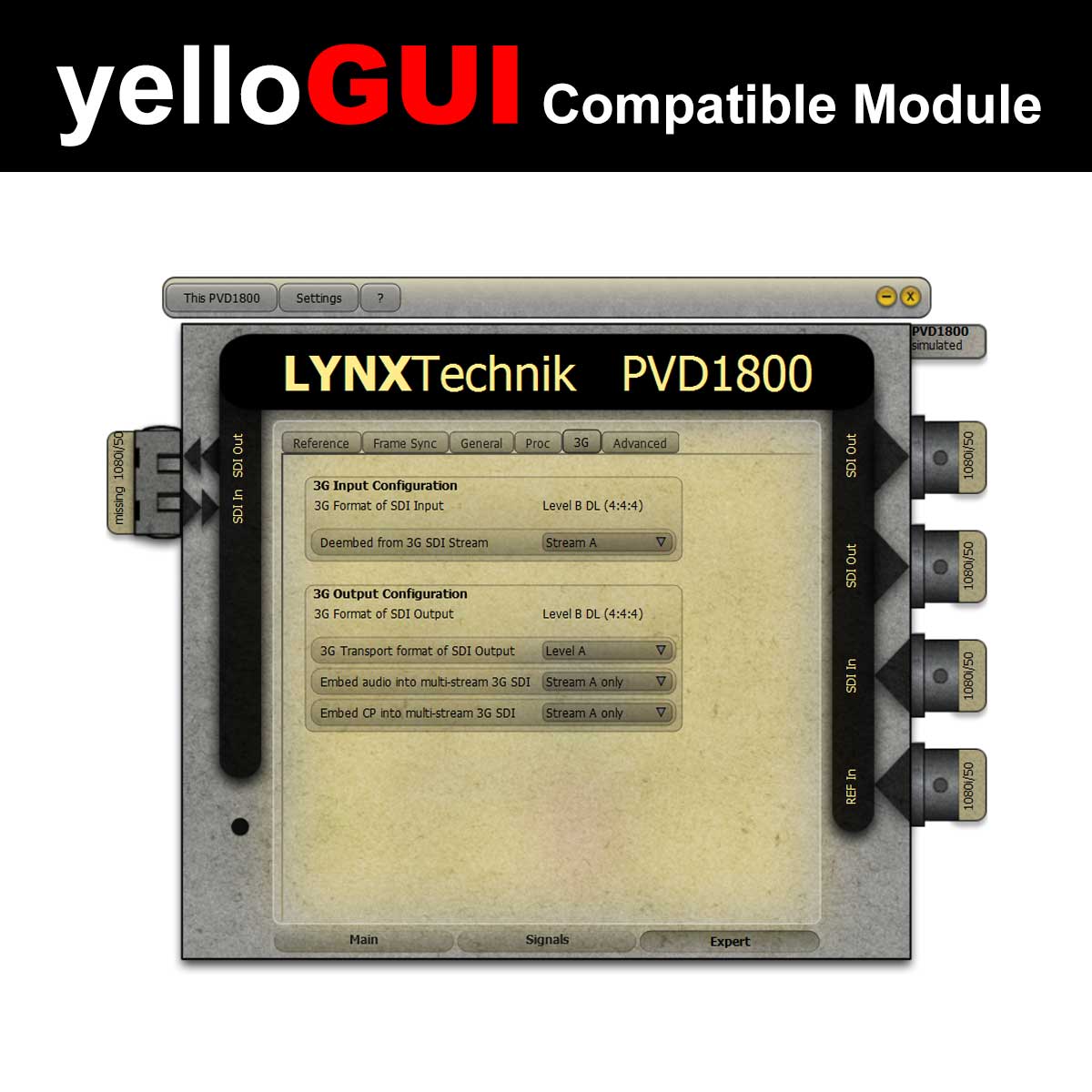

Level A / Level B Conversion
The module supports both Level A and Level 3 3G SDI signals, and can also be used to convert between the two standards. New equipment from other manufacturers sometimes only supports 3G Level B, which is problematic for legacy 3G Equipment which only supports Level A, basically rendering ti obsolete. The PVD 1800 can be used to convert between Level A and Level B (and visa versa) if required to solve these problems.

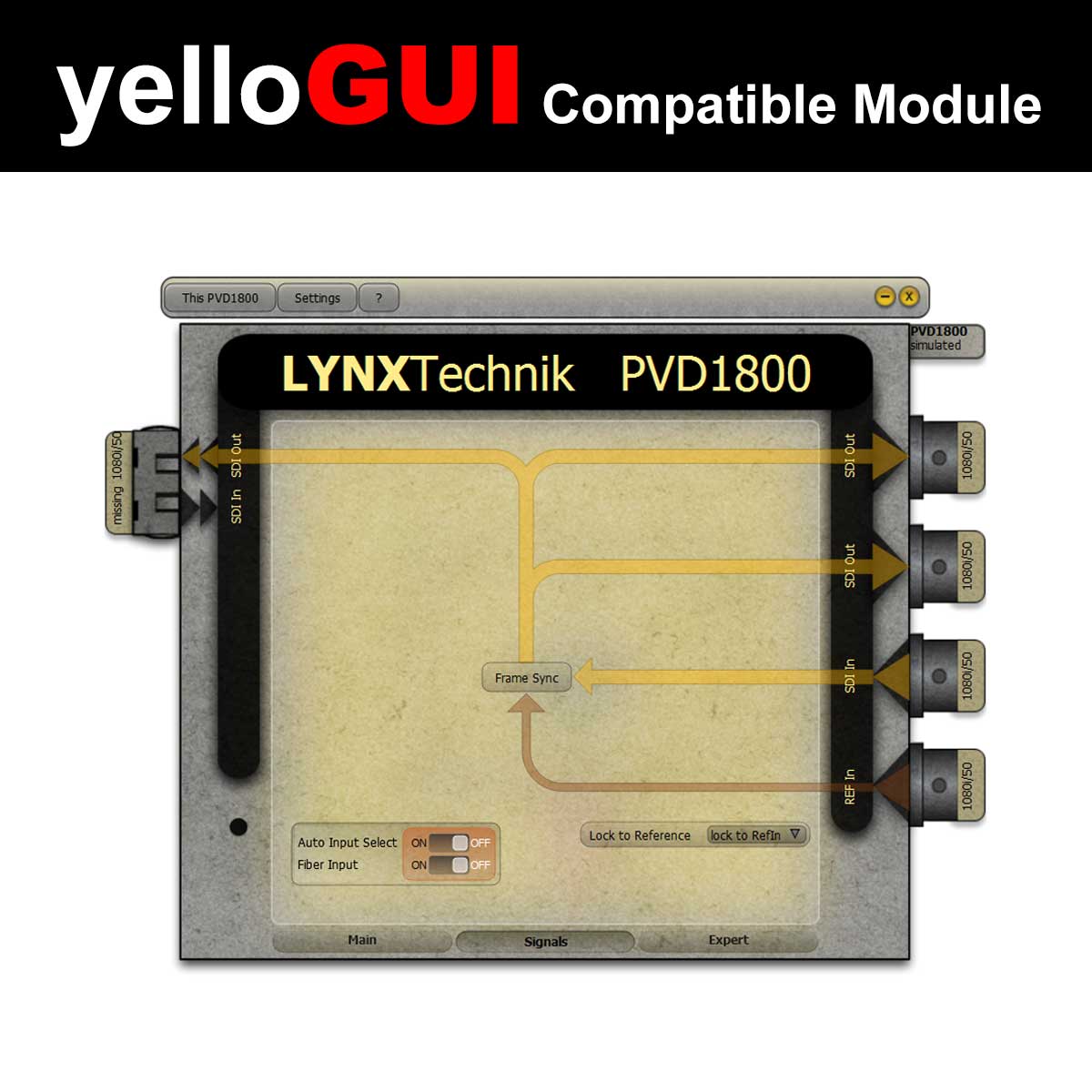

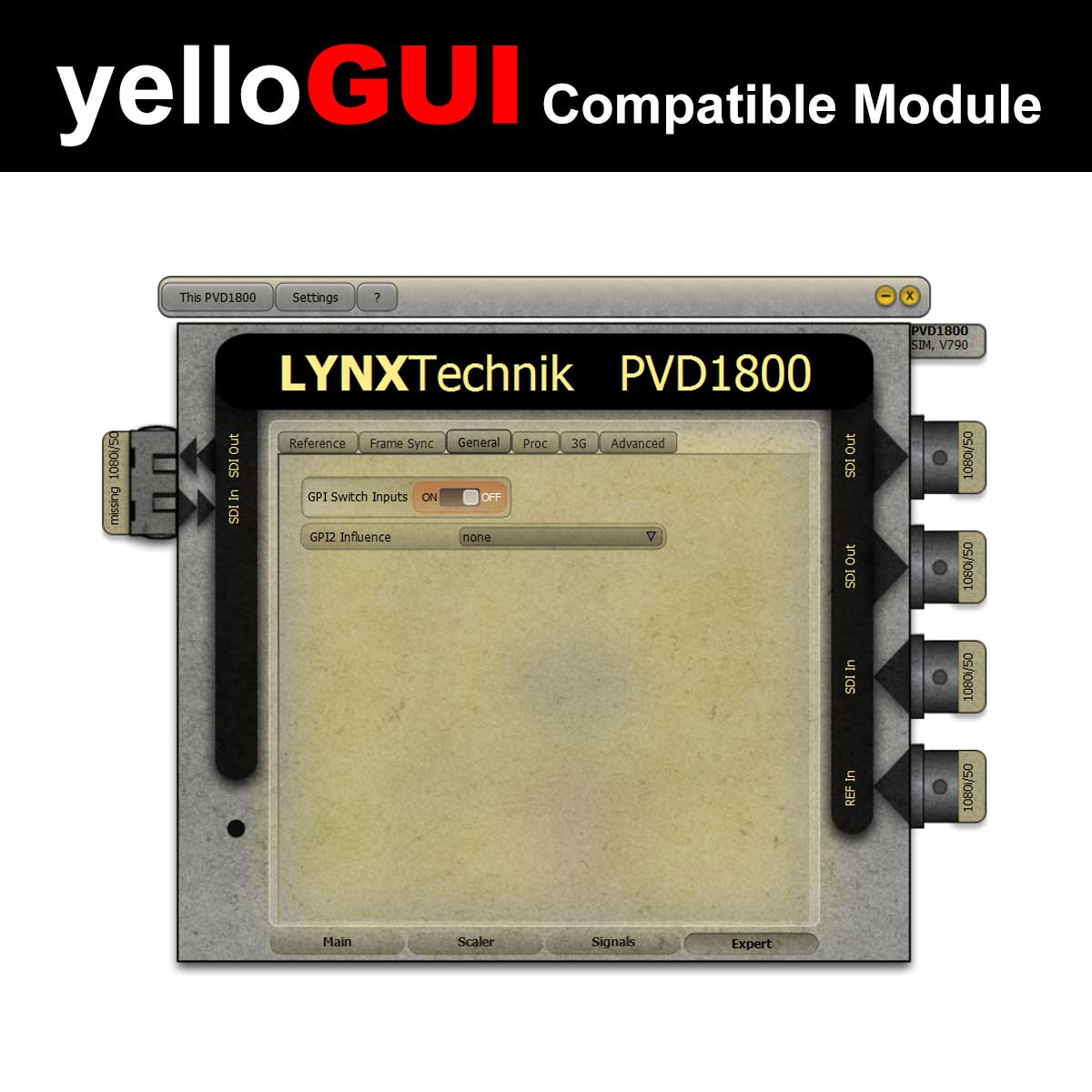

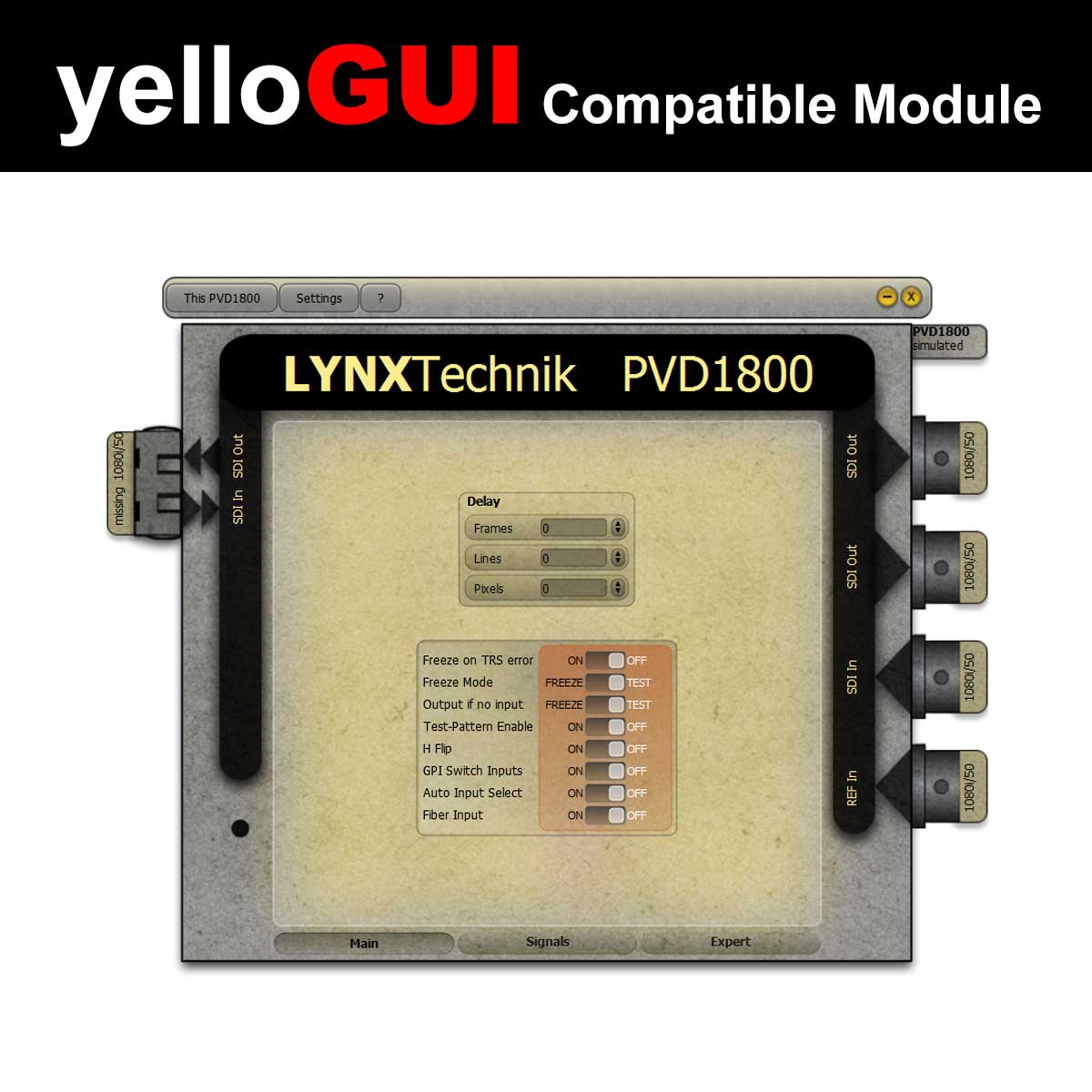

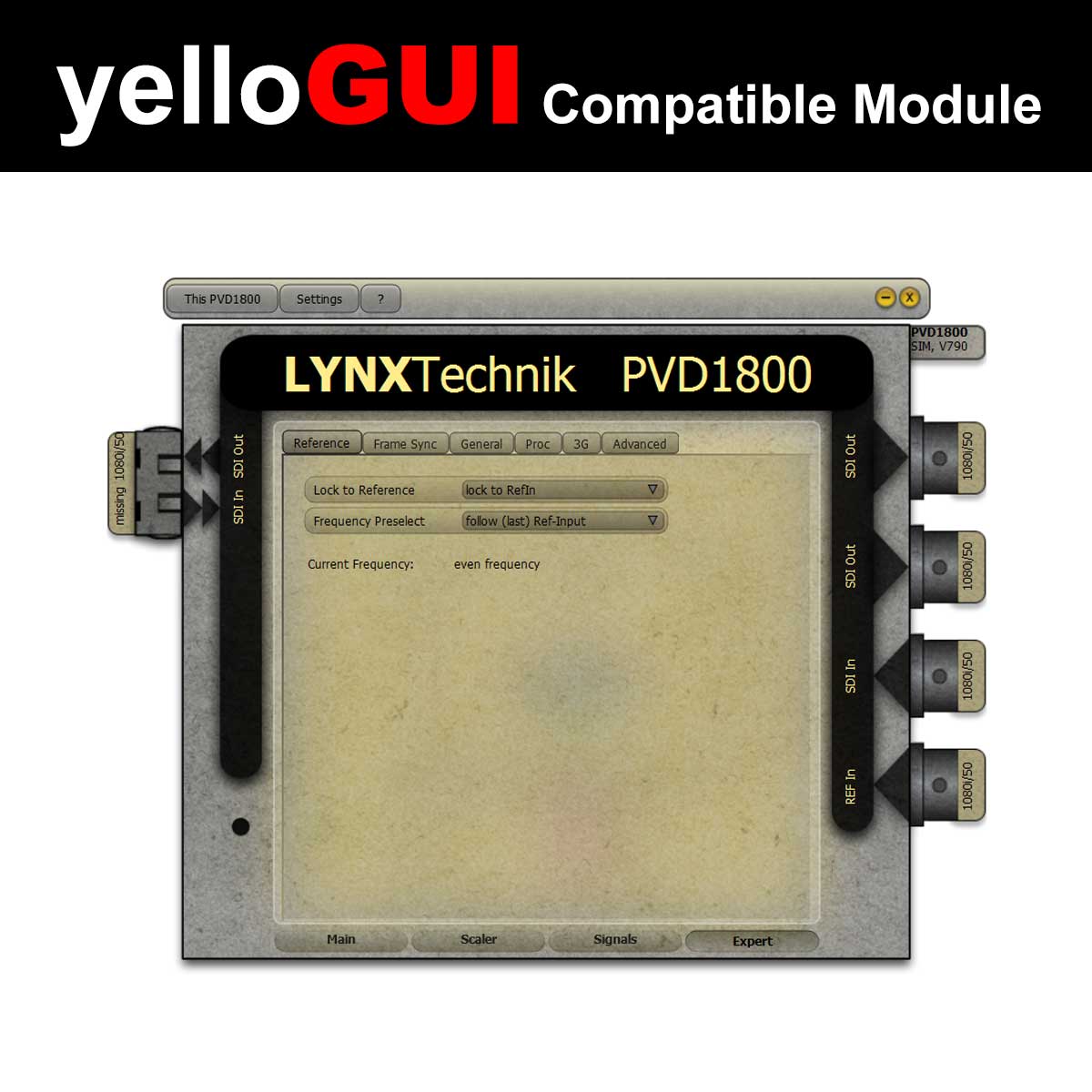

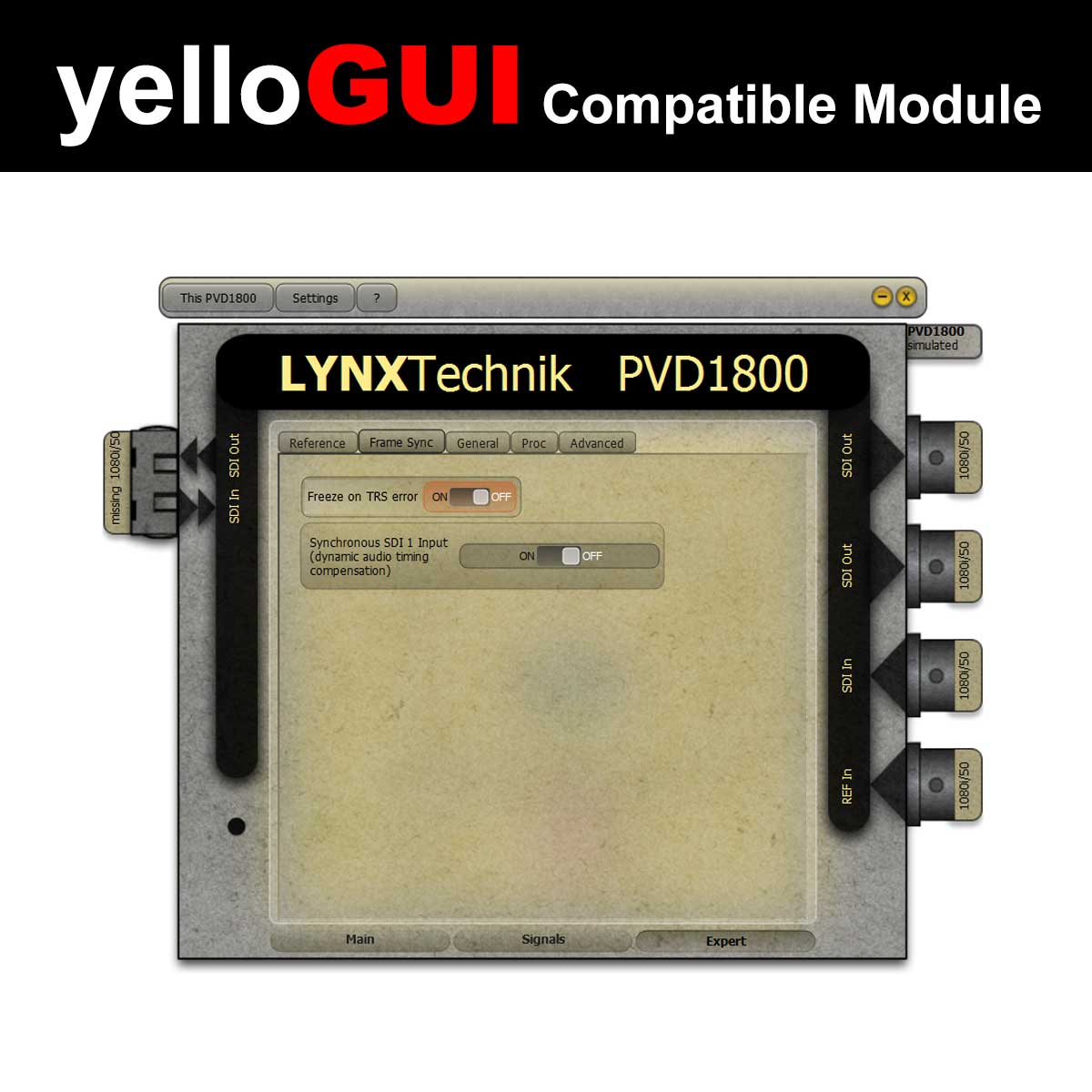

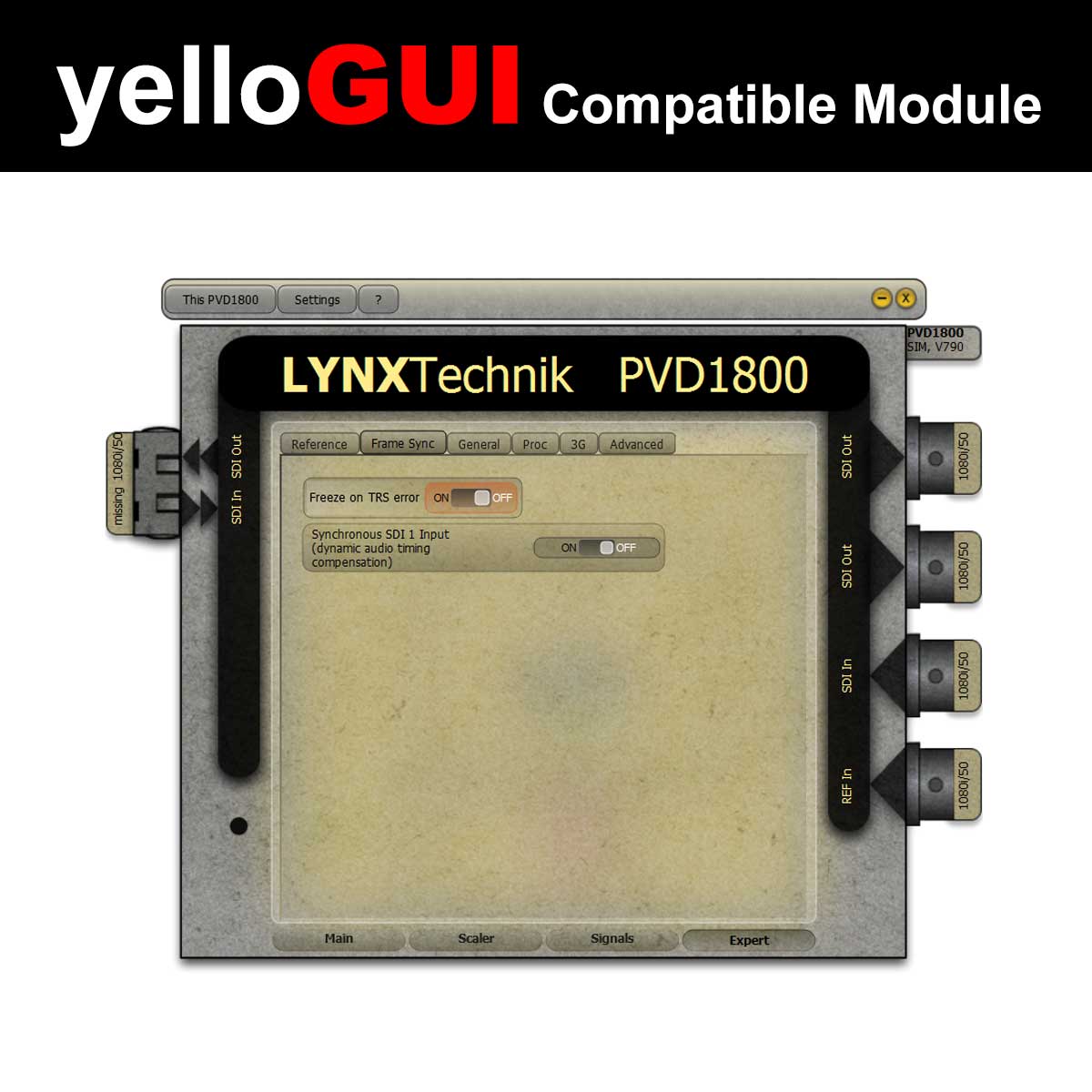

The module is fully compatible with the yelloGUI software package, so the module can be configured / controlled using a PC or MAC

Accessories

OH-RX-0-MM

3Gbit SDI Multimode Fiber Optic Receiver

OH-RX-1

3Gbit SDI Fiber Optic Transmitter

OH-TR-1

3Gbit SDI Fiber Optic Transceiver

OH-TR-4-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (40km)

OH-TR-8-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (80km)

OH-TX-1

3Gbit SDI Fiber Optic Transmitter

OH-TX-4-XXXX

3Gbit SDI Fiber Optic Transmitter – CWDM (40km)

OH-TX-8-XXXX

3Gbit SDI Fiber Optic Transmitter – CWDM (80km)

RFR 1000 yellobrik central power connectors

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 yellobrik XLR power adapter cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

Ordering Information

UPC / EANModelDescription
4250479324596PVD 1800SDI Frame Synchronizer
Options
4250479329041RFR 1200RFR 1000 • 19" Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-1000 4 Pin XLR Battery Power Adapter Cable
Fiber Options
4250479320321OH-TX-1-LCSDI TX Fiber SFP LC Connection (1310nm)
4250479320215OH-TX-1-SCSDI TX Fiber SFP SC Connection (1310nm)
4250479320222OH-TX-1-STSDI TX Fiber SFP ST connection (1310nm)
4250479318243OH-RX-1-LC Fiber SDI Receiver SFP LC Connection
4250479320253OH-RX-1-Y-SC Fiber SDI Receiver SFP SC Connection
4250479320260OH-RX-1-Y-ST Fiber SDI Receiver SFP ST Connection
4250479318137OH-TR-1 Fiber SDI Transceiver SFP (RX/TX) 1310nm
CWDM Fiber (40km)
4250479312715OH-TX-4-1270 SDI TX Fiber SFP (CWDM) 1270nm
4250479312913OH-TX-4-1290 SDI TX Fiber SFP (CWDM) 1290nm
4250479313118OH-TX-4-1310 SDI TX Fiber SFP (CWDM) 1310nm
4250479313316OH-TX-4-1330 SDI TX Fiber SFP (CWDM) 1330nm
4250479313514OH-TX-4-1350 SDI TX Fiber SFP (CWDM) 1350nm
4250479313712OH-TX-4-1370 SDI TX Fiber SFP (CWDM) 1370nm
4250479313910OH-TX-4-1390 SDI TX Fiber SFP (CWDM) 1390nm
4250479314115OH-TX-4-1410 SDI TX Fiber SFP (CWDM) 1410nm
4250479314313OH-TX-4-1430 SDI TX Fiber SFP (CWDM) 1430nm
4250479314511OH-TX-4-1450 SDI TX Fiber SFP (CWDM) 1450nm
4250479314719OH-TX-4-1470 SDI TX Fiber SFP (CWDM) 1470nm
4250479314917OH-TX-4-1490 SDI TX Fiber SFP (CWDM) 1490nm
4250479315112OH-TX-4-1510 SDI TX Fiber SFP (CWDM) 1510nm
4250479315310OH-TX-4-1530 SDI TX Fiber SFP (CWDM) 1530nm
4250479315518OH-TX-4-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479315716OH-TX-4-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479315914OH-TX-4-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479316119OH-TX-4-1610 SDI TX Fiber SFP (CWDM) 1610nm
4250479312708OH-TR-4-1270 SDI Transceiver SFP (CWDM) 1270nm
4250479312906OH-TR-4-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479313101OH-TR-4-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479313309OH-TR-4-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479313507OH-TR-4-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479313705OH-TR-4-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479313903OH-TR-4-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479314108OH-TR-4-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479314306OH-TR-4-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479314504OH-TR-4-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479314702OH-TR-4-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479314900OH-TR-4-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479315105OH-TR-4-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479315303OH-TR-4-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479315501OH-TR-4-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479315709OH-TR-4-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479315907OH-TR-4-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479316102OH-TR-4-1610 SDI Transceiver SFP (CWDM) 11610nm
CWDM Fiber (80km)
4250479320567OH-TX-8-1470SDI TX Fiber SFP (CWDM) 1470nm
4250479320574OH-TX-8-1490SDI TX Fiber SFP (CWDM) 1490nm
4250479320581OH-TX-8-1510SDI TX Fiber SFP (CWDM) 1510nm
4250479320598OH-TX-8-1530SDI TX Fiber SFP (CWDM) 1530nm
4250479320604OH-TX-8-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479320611OH-TX-8-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479320628OH-TX-8-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479320635OH-TX-8-1610SDI TX Fiber SFP (CWDM) 1610nm
4250479320864OH-TR-8-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479320871OH-TR-8-1470SDI Transceiver SFP (CWDM) 1470nm
4250479320888OH-TR-8-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479320895OH-TR-8-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479320901OH-TR-8-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479320918OH-TR-8-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479320925OH-TR-8-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479320932OH-TR-8-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479320949OH-TR-8-1610 SDI Transceiver SFP (CWDM) 1610nm
