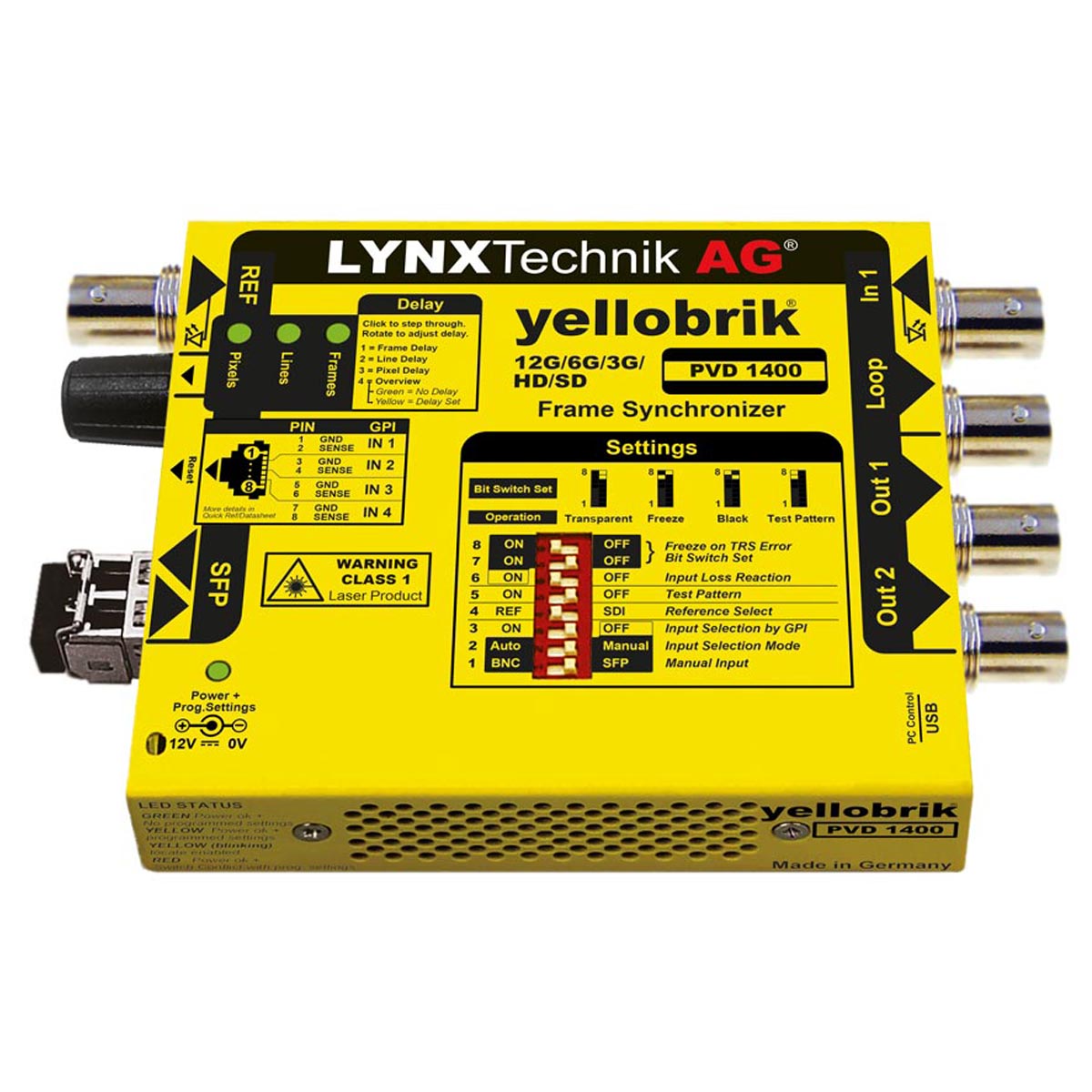

PVD 1400
12G SDI Frame Synchronizer
The PVD 1400 is a broadcast quality compact 12G-SDI frame synchronizer for professional applications in the Broadcast and Post Production industry. It can buffer up to 30 frames and generate Test patterns.
The frame synchronizer utilizes robust “flywheel” algorithms that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. The PVD 1400 provides up to 30 frames of programmable output delay adjustable in frames, lines and pixels.
The module is fully compatible with yelloGUI and LynxCentraal. It can be configured, controlled and updated using Windows or MacOS.
No more pages to load
Key Features
- Supports 12G/6G/3G/1.5G-SDI Standards
- Up to 4K YCbCr/RGB 4:4:4 10/12-Bit
- Robust “flywheel” Synchronization
- “Cross Lock” Compatible Reference Input
- Integrated Test Pattern Generator
- Up to 30 frames of programmable delay
- Optional fiber I/O
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329478 | PVD 1400 | 12G SDI Frame Synchronizer |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| Fiber Options | ||
| 4250479325036 | OH-TX-12G-LC | 12G SDI Fiber Transmitter (LC) |
| 4250479327528 | OH-TX-12G-ST | 12G SDI Fiber Transmitter (ST) |
| 4250479325043 | OH-RX-12G-LC | 12G SDI Fiber Receiver (LC) |
| 4250479327511 | OH-RX-12G-ST | 12G SDI Fiber Receiver (ST) |
| 4250479325029 | OH-TR-12G-LC | 12G SDI Transceiver |
| CWDM Fiber (TX) | ||
| 4250479325630 | OH-TX-12G-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479325647 | OH-TX-12G-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479325654 | OH-TX-12G-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479325661 | OH-TX-12G-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479327979 | OH-TX-12G-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479327986 | OH-TX-12G-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479327993 | OH-TX-12G-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479328006 | OH-TX-12G-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479328013 | OH-TX-12G-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479328020 | OH-TX-12G-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479328037 | OH-TX-12G-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479328044 | OH-TX-12G-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479328051 | OH-TX-12G-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479328068 | OH-TX-12G-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479325685 | OH-TX-12G-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479325692 | OH-TX-12G-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479325708 | OH-TX-12G-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479325715 | OH-TX-12G-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| CWDM Fiber (TR) | ||
| 4250479326552 | OH-TR-12G-1270 | SDI TR Fiber SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12G-1290 | SDI TR Fiber SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12G-1310 | SDI TR Fiber SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12G-1330 | SDI TR Fiber SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12G-1350 | SDI TR Fiber SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12G-1370 | SDI TR Fiber SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12G-1390 | SDI TR Fiber SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12G-1410 | SDI TR Fiber SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12G-1430 | SDI TR Fiber SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12G-1450 | SDI TR Fiber SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12G-1470 | SDI TR Fiber SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12G-1490 | SDI TR Fiber SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12G-1510 | SDI TR Fiber SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12G-1530 | SDI TR Fiber SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12G-1550 | SDI TR Fiber SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12G-1570 | SDI TR Fiber SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12G-1590 | SDI TR Fiber SFP (CWDM) 1590nm |
| 4250479326811 | OH-TR-12-1610 | SDI TR Fiber SFP (CWDM) 1610nm |
SDI Video Input
- 1x SDI input on 75 Ohm BNC connector – with LOOP output
- SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
- Multi-rate re-clocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s – 6Gbit/s-12Gbit/s
Return Loss
- To 1.5GHz = > 15dB
- To 3GHz = > 10dB
- To 6GHz = >7dB
- To 12GHz = >4dB
SDI Video Outputs
- 2 x SDI outputs on 75 Ohm BNC connectors
- SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
Automatic cable EQ:
- 270Mbit/s = 340m (Belden 1694A cable)
- 5Gbit/s = 140m (Belden 1694A cable)
- 3Gbit/s = 130m (Belden 1694A cable)
- 12Gbit/s = 80m (Belden 4794R cable)
SDI Fiber I/O (optional)
- 1x SDI fiber RX input, 1x SDI fiber TX output
- Simplex Receiver (RX), Simplex Transmitter (TX), or Duplex Transceiver (TR)
- CWDM options
- SMPTE 297M – 2006
Color Precision
- YCbCr 4:2:2 10-bit
- YCbCr/RGB 4:4:4 10 / 12-bit
Supported Video Formats:
- 4K 4096x2160p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- UHD 3840x2160p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 2K 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 /50 / 59.94 / 60
- 2K B-DL 1920x1080p 47.95 / 48 /50 / 59.94 / 60
- HD A 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD B-DL 1920x1080p 47.95 / 48 /50 / 59.94 / 60
- HD 1920x1080PsF 23.98 / 24 /25 / 29.97 / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 23.98 / 24 /25 / 29.97 / 30 / 50 / 59.94 / 60
- SD 720x625i 50
- SD 720x525i 59.94
Reference Input
- SDTV: Analog 525/625 Bi-Level Sync / Black Burst
- HDTV: All HD Tri-Level sync standards (exception 1080P 50/59.94/60Hz)
- 75 Ohm BNC Connection
- SMPTE 274M, SMPTE 296M
- Cross lock compatible
- Up to 30 frames of adjustable video delay
GPI Inputs
- Connector = RJ45 with 4 external GPI inputs
- GPI 1 = Switch between Electrical or Fiber SDI input
- GPI 2 = Freeze SDI output
- GPI 3 = Enable “Latch” mode
- GPI 4 = Disable “Latch” mode
Power
- +12V DC @ 10W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 207g (7.3oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
