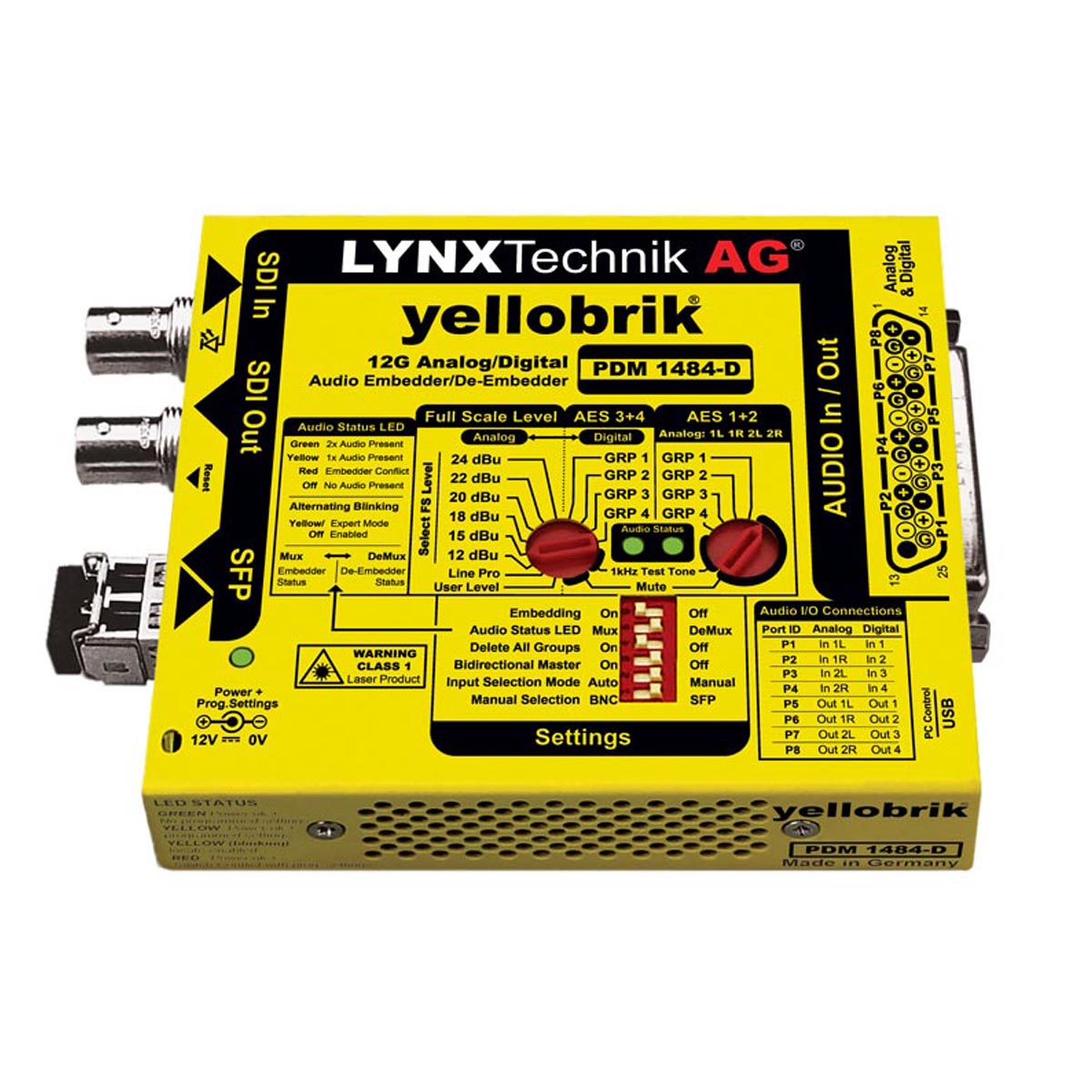

PDM 1484 D
12G-SDI AES and Analog Audio Embedder / De-Embedder
The PDM 1484 D is a versatile AES audio embedder and de-embedder designed for a wide range of SDI video formats up to 12G. It supports balanced AES audio or analog audio I/O using a 25 pin DSub connector.
Audio groups are selected using the rotary switches, and it’s possible to embed and de-embed additional audio groups by cascading modules together. Simultaneous embedding and de-embedding means the module will de-embed and output the audio from the selected audio group before overwriting with new audio (if required). The module automatically detects audio formats and will deactivate the sample rate converters to preserve encoded bit streams such as DolbyE.

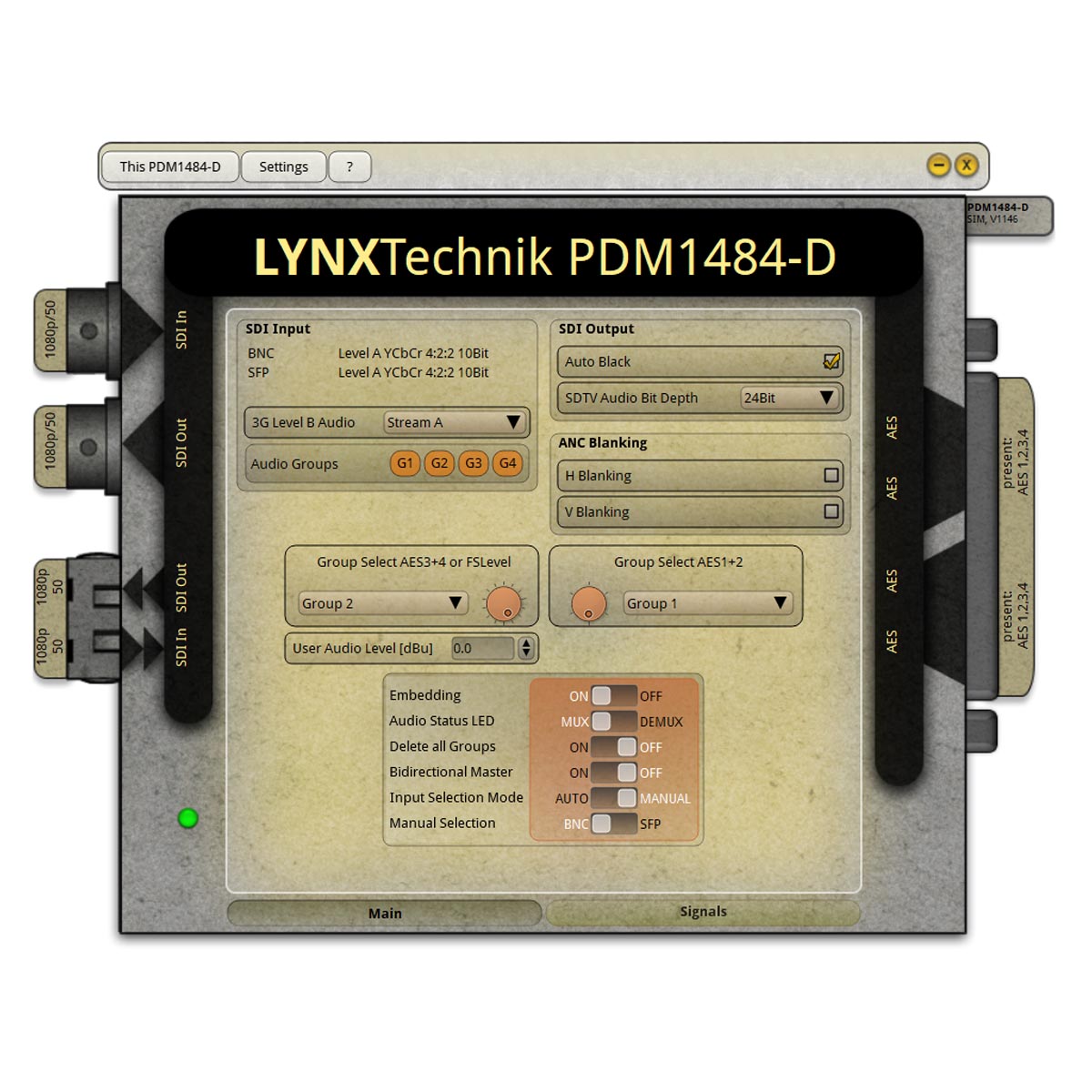

The “auto black” mode uses a black video frame if no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful if the module is being used in an “audio only” application. The module is also compatible with the yelloGUI and LYNX Centraal software applications, which provides access to a host of additional internal settings which includes manual insertion of metadata (AFD,WSS,VI)
A 1 kHz test tone generator is included for audio testing purposes. An SDI fiber input and output is also provided with a variety of plug in SFP options available.
No more pages to load
Key Features
- Supports 12G/6G/3G/1.5G/SD-SDI Video Formats
- Up to 4K YCbCr/RGB 4:4:4
- Simultaneous Embedding and De-Embedding
- Bi-Directional Audio Transport Mode
- 4x AES/Analog I/O with selectable Audio Groups
- Integrated 1 kHz Test Tone Generator
- Automatic PCM/Encoded Audio Detection
- Auto black on missing input feature
- Selectable SDTV 24 bit mod
- Video and Audio Status LED
- LynxCentraal & yelloGUI compatible for additional settings
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329065 | PDM 1484 D | 12G SDI AES/Analog Audio Embedder |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479328860 | RBO A025 | 25 pin SubD Audio Adapter PCB |

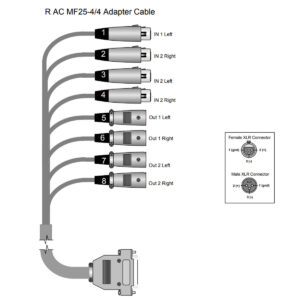

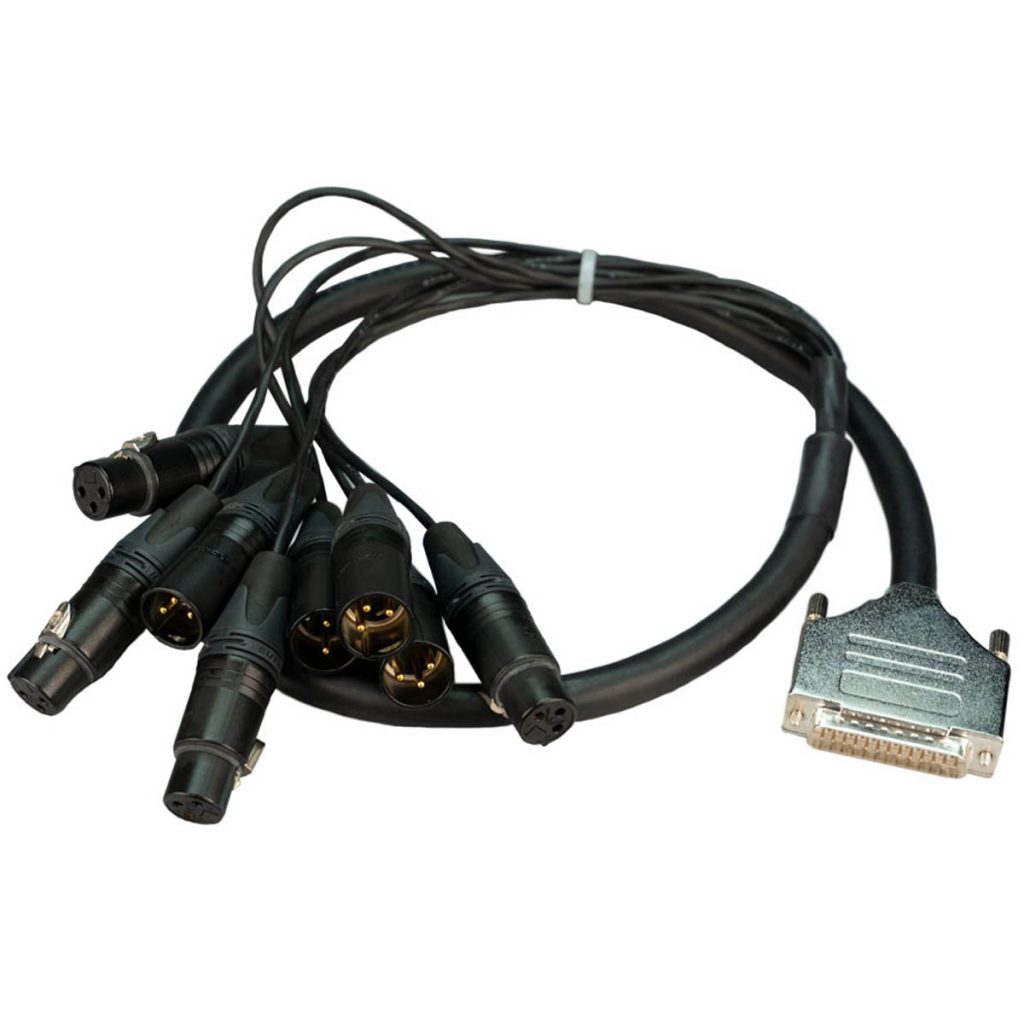

| 4250479322424 | RAC MF25-4/4 | Audio Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| Basic Fiber Options | ||
| 4250479325036 | OH-TX-12G-LC | 12G SDI Transmitter SFP (LC Connector) |
| 4250479327528 | OH-TX-12G-ST | 12G SDI Transmitter SFP (ST Connector) |
| 4250479325043 | OH-RX-12G-LC | 12G SDI Receiver SFP (LC Connector) |
| 4250479327511 | OH-RX-12G-ST | 12G SDI Receiver SFP (ST Connector) |
| 4250479325029 | OH-TR-12G-LC | 12G SDI fiber Transceiver SFP |
| CWDM Fiber Transmitters | ||
| 4250479325630 | OH-TX-12G-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479325647 | OH-TX-12G-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479325654 | OH-TX-12G-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479325661 | OH-TX-12G-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479327979 | OH-TX-12G-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479327986 | OH-TX-12G-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479327993 | OH-TX-12G-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479328006 | OH-TX-12G-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479328013 | OH-TX-12G-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479328020 | OH-TX-12G-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479328037 | OH-TX-12G-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479328044 | OH-TX-12G-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479328051 | OH-TX-12G-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479328068 | OH-TX-12G-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479325685 | OH-TX-12G-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479325692 | OH-TX-12G-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479325708 | OH-TX-12G-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479325715 | OH-TX-12G-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| CWDM Fiber Transceivers | ||
| 4250479326552 | OH-TR-12G-1270 | SDI TR Fiber SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12G-1290 | SDI TR Fiber SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12G-1310 | SDI TR Fiber SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12G-1330 | SDI TR Fiber SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12G-1350 | SDI TR Fiber SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12G-1370 | SDI TR Fiber SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12G-1390 | SDI TR Fiber SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12G-1410 | SDI TR Fiber SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12G-1430 | SDI TR Fiber SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12G-1450 | SDI TR Fiber SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12G-1470 | SDI TR Fiber SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12G-1490 | SDI TR Fiber SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12G-1510 | SDI TR Fiber SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12G-1530 | SDI TR Fiber SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12G-1550 | SDI TR Fiber SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12G-1570 | SDI TR Fiber SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12G-1590 | SDI TR Fiber SFP (CWDM) 1590nm |
| 4250479326811 | OH-TR-12G-1610 | SDI TR Fiber SFP (CWDM) 1610nm |
SDI Video I/O:
- 1x 12G SDI input on 75 Ohm BNC connector
- 1x 12G SDI output on 75 Ohm BNC connector
- SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
- 3G-SDI Level A or B Dual Link
- Multi-rate re-clocking: 1.5Gbit/s – 3Gbit/s – 6Gbits/s -12Gbits/s
Automatic cable EQ:
- 270Mbit/s = 340m (Belden 1694A cable)
- 5Gbit/s = 190m (Belden 1694A cable)
- 3Gbit/s = 150m (Belden 1694A cable)
- 12Gbit/s = 85m (Belden 4794R cable)
Return Loss
- To 1.5GHz = >15dB
- To 3 GHz = >10dB
- To 6GHz = > 7dB
- To 12GHz = >4dB
SDI Fiber I/O (optional)
- 1x SDI fiber RX input, 1x SDI fiber TX output
- Simplex Receiver (RX), Simplex Transmitter (TX), or Duplex Transceiver (TR)
- CWDM options available
- SMPTE 297M – 2006
Color Precision
- YCbCr 4:2:2 10-bit
- YCbCr/RGB 4:4:4 10, 12-bit (SDI)
Supported Video Formats:
- 4K 4096x2160p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- UHD 3840x2160p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 2K 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 /50 / 59.94 / 60
- HD 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080PsF 23.98 / 24 /25 / 29.97 / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 23.98 / 24 /25 / 29.97 / 30 / 50 / 59.94 / 60
- SD 720x625i 50
- SD 720x525i 59 94
AES Audio I/O
- 4 x AES3id balanced connections on 25pin D-Sub connector
- Selectable between inputs (embedder) or outputs (de-embedder)
- AES Group selectable (4 Groups)
- AES 1+2 select from Group 1-4
- AES 2+3 select from Group 1-4
- Audio status LEDs provided
Analog Audio I/O
- 4x Analog audio inputs on 25 pin D-Sub Connector (10k Ohm)
- 4x Analog audio outputs on 25 pin D-Sub Connector (150 Ohm)
- Selectable audio Groups (1 through 4)
- Balanced I/O mode for 24, 22, 20, 18, 15, 12 dBu, professional line level and user selectable full-scale level
Power
- +12V DC @ 12.96W nominal – (supports 8 – 24V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 195g (8.11oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
