PDM 1383
3G SDI Analog Audio Embedder / De-embedder

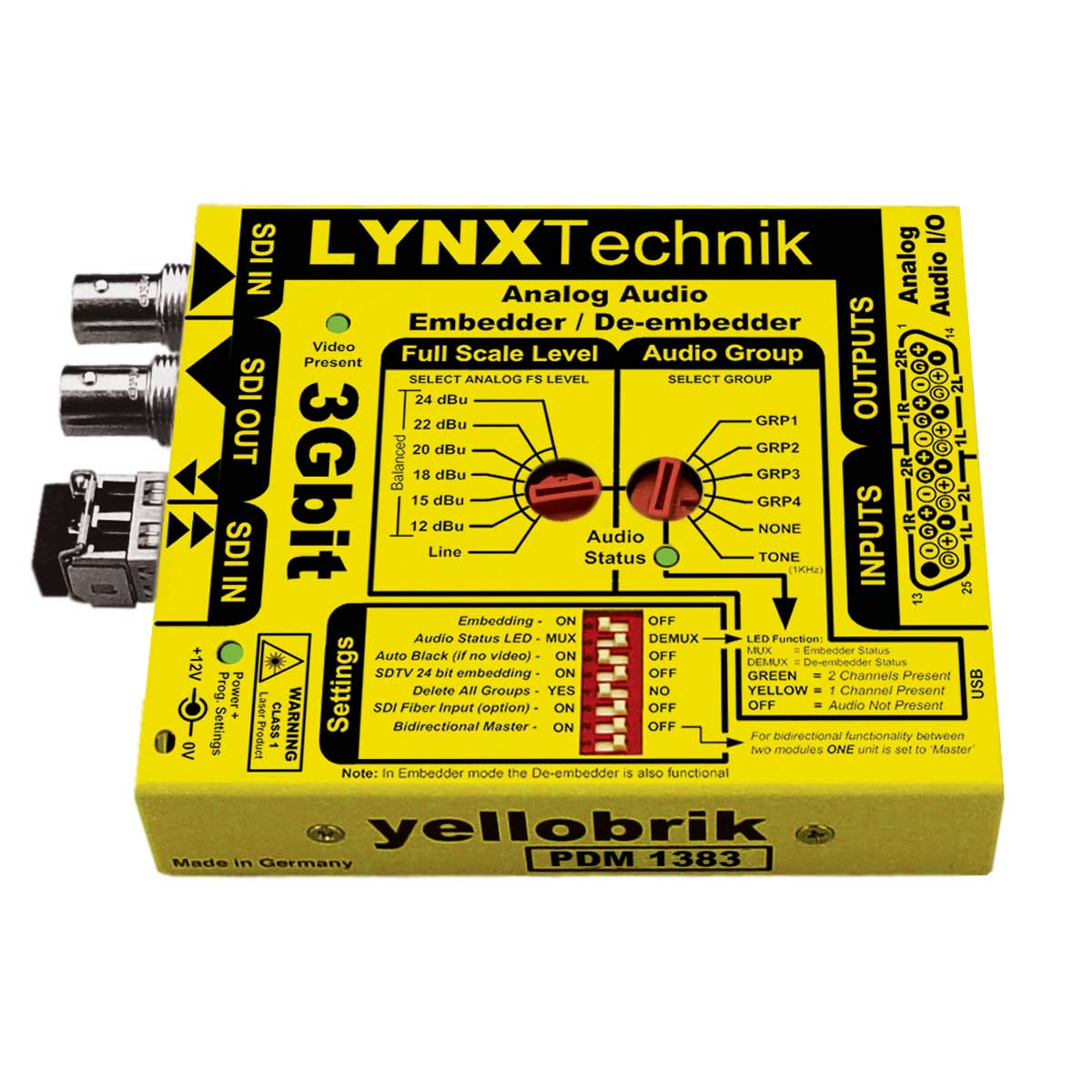

The PDM 1383 is a versatile analog audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. Analog audio I/O is connected using a 25 pin DSub connector.
Audio groups are selected using the rotary switches, and its possible to embed and de-embed additional audio groups by cascading modules together. Simultaneous embedding and de-embedding means the module will de-embed and output the audio from the selected audio group before overwriting with new audio (if required).
The “auto black” mode uses a black video frame if no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful if the module is being used in an “audio only” application.
A 1 kHz test tone generator is included for audio testing purposes.

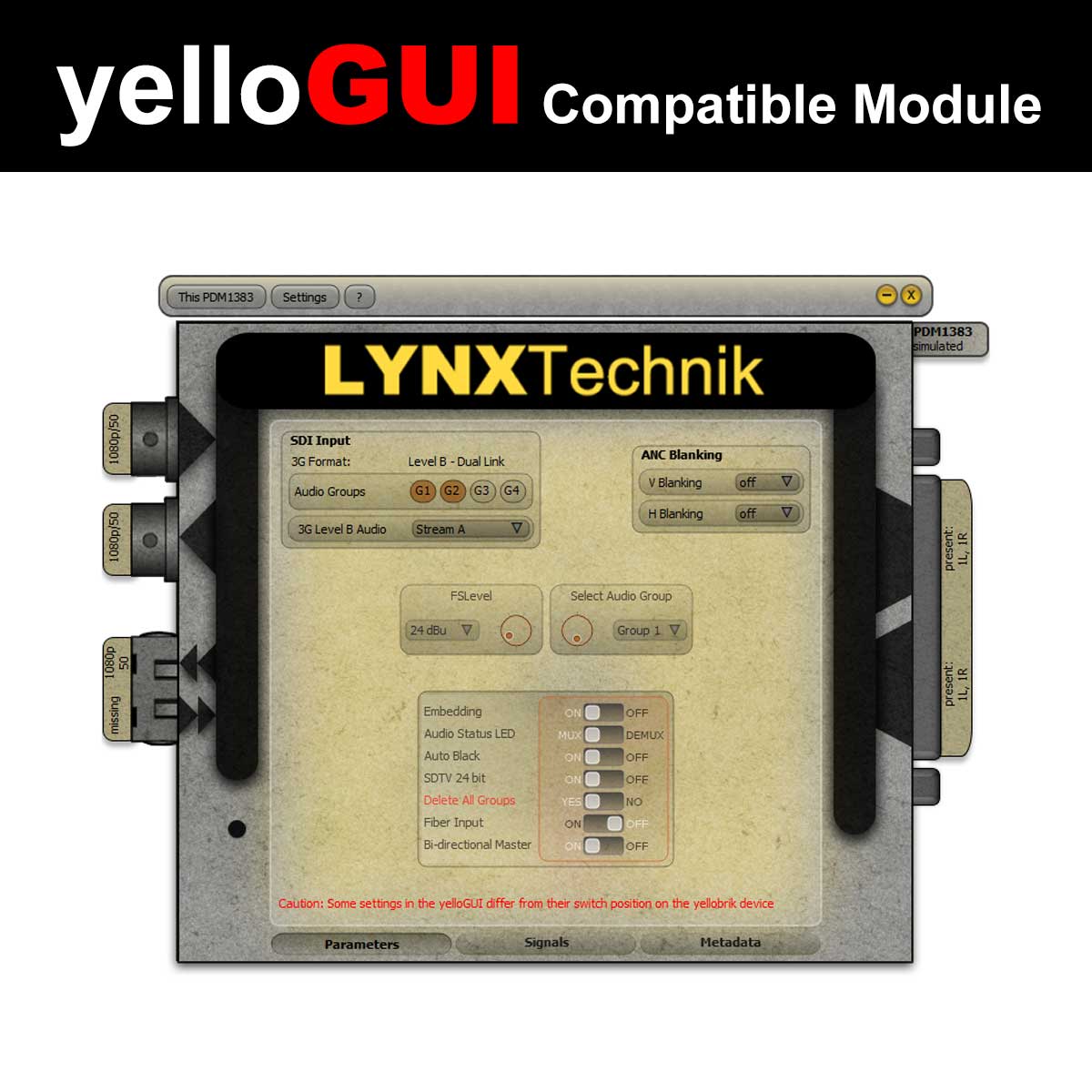

The module is also compatible with the yelloGUI and LYNX Centraal software applications, which provides access to a host of additional internal settings which includes manual insertion of metadata (AFD,WSS,VI)
An SDI fiber input and output is also provided with a variety of plug in SFP options available
No more pages to load
Key Features
- Use as Embedder or de-embedder
- Simultaneous embedding and de-embedding
- 3G SDI Level A and Level B support
- SDI video formats up to 3Gbit (1080p60)
- 4 x Analog audio inputs / outputs with selectable audio groups
- Optional Fiber I/O
- Integrated 1 kHz test tone generator
- Bidirectional audio transport mode possible
- Auto black if no video present
- Selectable SDTV 24 bit mode
- Video and Audio present LED indicators
- Internal full mono audio shuffling via yelloGUI
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479359826 | PDM 1383 | ANALOG Audio Embedder / De-embedder |
| Options | ||
| 4250479329041 | RFR 1200 | RFR 1000 • 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479328860 | RBO A025 | 25 Pin Audio Adapter PCB |
| 4250479322424 | RAC MF25-4/4 | Audio Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| Fiber Options | ||
| 4250479320321 | OH-TX-1-LC | SDI TX Fiber SFP LC Connection (1310nm) |
| 4250479320215 | OH-TX-1-SC | SDI TX Fiber SFP SC Connection (1310nm) |
| 4250479320222 | OH-TX-1-ST | SDI TX Fiber SFP ST connection (1310nm) |
| 4250479318236 | OH-TX-0-850-MM | SDI TX SFP Multimode (850nm) LC |
| 4250479318243 | OH-RX-1-LC | Fiber SDI Receiver SFP LC Connection |
| 4250479320253 | OH-RX-1-Y-SC | Fiber SDI Receiver SFP SC Connection |
| 4250479320260 | OH-RX-1-Y-ST | Fiber SDI Receiver SFP ST Connection |
| 4250479318274 | OH-RX-0-MM | Fiber SDI Receiver SFP Multimode LC |
| 4250479318137 | OH-TR-1 | Fiber SDI Transceiver SFP (RX/TX) 1310nm |
| CWDM Fiber (40km) | ||
| 4250479312715 | OH-TX-4-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479312913 | OH-TX-4-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479313118 | OH-TX-4-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479313316 | OH-TX-4-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479313514 | OH-TX-4-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479313712 | OH-TX-4-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479313910 | OH-TX-4-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479314115 | OH-TX-4-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479314313 | OH-TX-4-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479314511 | OH-TX-4-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479314719 | OH-TX-4-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479314917 | OH-TX-4-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479315112 | OH-TX-4-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479315310 | OH-TX-4-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479315518 | OH-TX-4-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479315716 | OH-TX-4-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479315914 | OH-TX-4-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479316119 | OH-TX-4-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| 4250479312708 | OH-TR-4-1270 | SDI Transceiver SFP (CWDM) 1270nm |
| 4250479312906 | OH-TR-4-1290 | SDI Transceiver SFP (CWDM) 1290nm |
| 4250479313101 | OH-TR-4-1310 | SDI Transceiver SFP (CWDM) 1310nm |
| 4250479313309 | OH-TR-4-1330 | SDI Transceiver SFP (CWDM) 1330nm |
| 4250479313507 | OH-TR-4-1350 | SDI Transceiver SFP (CWDM) 1350nm |
| 4250479313705 | OH-TR-4-1370 | SDI Transceiver SFP (CWDM) 1370nm |
| 4250479313903 | OH-TR-4-1390 | SDI Transceiver SFP (CWDM) 1390nm |
| 4250479314108 | OH-TR-4-1410 | SDI Transceiver SFP (CWDM) 1410nm |
| 4250479314306 | OH-TR-4-1430 | SDI Transceiver SFP (CWDM) 1430nm |
| 4250479314504 | OH-TR-4-1450 | SDI Transceiver SFP (CWDM) 1450nm |
| 4250479314702 | OH-TR-4-1470 | SDI Transceiver SFP (CWDM) 1470nm |
| 4250479314900 | OH-TR-4-1490 | SDI Transceiver SFP (CWDM) 1490nm |
| 4250479315105 | OH-TR-4-1510 | SDI Transceiver SFP (CWDM) 1510nm |
| 4250479315303 | OH-TR-4-1530 | SDI Transceiver SFP (CWDM) 1530nm |
| 4250479315501 | OH-TR-4-1550 | SDI Transceiver SFP (CWDM) 1550nm |
| 4250479315709 | OH-TR-4-1570 | SDI Transceiver SFP (CWDM) 1570nm |
| 4250479315907 | OH-TR-4-1590 | SDI Transceiver SFP (CWDM) 1590nm |
| 4250479316102 | OH-TR-4-1610 | SDI Transceiver SFP (CWDM) 11610nm |
| CWDM Fiber (80km) | ||
| 4250479320567 | OH-TX-8-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479320574 | OH-TX-8-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479320581 | OH-TX-8-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479320598 | OH-TX-8-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479320604 | OH-TX-8-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479320611 | OH-TX-8-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479320628 | OH-TX-8-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479320635 | OH-TX-8-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| 4250479320864 | OH-TR-8-1450 | SDI Transceiver SFP (CWDM) 1450nm |
| 4250479320871 | OH-TR-8-1470 | SDI Transceiver SFP (CWDM) 1470nm |
| 4250479320888 | OH-TR-8-1490 | SDI Transceiver SFP (CWDM) 1490nm |
| 4250479320895 | OH-TR-8-1510 | SDI Transceiver SFP (CWDM) 1510nm |
| 4250479320901 | OH-TR-8-1530 | SDI Transceiver SFP (CWDM) 1530nm |
| 4250479320918 | OH-TR-8-1550 | SDI Transceiver SFP (CWDM) 1550nm |
| 4250479320925 | OH-TR-8-1570 | SDI Transceiver SFP (CWDM) 1570nm |
| 4250479320932 | OH-TR-8-1590 | SDI Transceiver SFP (CWDM) 1590nm |
| 4250479320949 | OH-TR-8-1610 | SDI Transceiver SFP (CWDM) 1610nm |
SDI Video I/O:
- 1x 3G SDI input on 75 Ohm BNC connector
- 1x 3G SDI output on 75 Ohm BNC connector
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) (with image formats 1280 x 720 and 1920 x 1080)
- Multi-rate re-clocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s
Automatic cable EQ: (Belden 1694A cable)
- 270Mbit/s = 340m
- 5Gbit/s = 150m
- 3Gbit/s = 120m
Return Loss
- From 5MHz to 1.5GHz = >15dB
- From 1.5GHz to 3 GHz = >10dB
SDI Fiber I/O (optional)
- 1x SDI fiber RX input, 1x SDI fiber TX output
- Simplex Receiver (RX), Simplex Transmitter (TX), or Duplex Transceiver (TR)
- CWDM options available
- SMPTE 297M – 2006
Color Precision
- YCbCr 4:2:2 10-bit
Supported Video Formats:
- 2K 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080PsF 23.98 / 24 /25 / 29.97 / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 23.98 / 24 /25 / 29.97 / 30 / 50 / 59.94 / 60
- SD 720x625i 50
- SD 720x525i 59.94
Analog Audio I/O
- 4x Analog audio inputs or outputs on 25 pin D-Sub Connector (10k Ohm)
- Selectable audio Groups (1 through 4)
Power
- +12V DC @ 4.8W nominal – (supports 8 – 14V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 200g (7.05oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
