• OTR 1440 - 12G SDI Transceiver (CWDM)

OTR 1440

12G SDI Fiber Optic Transceiver (CWDM)

Datasheet
Quick Reference Guide

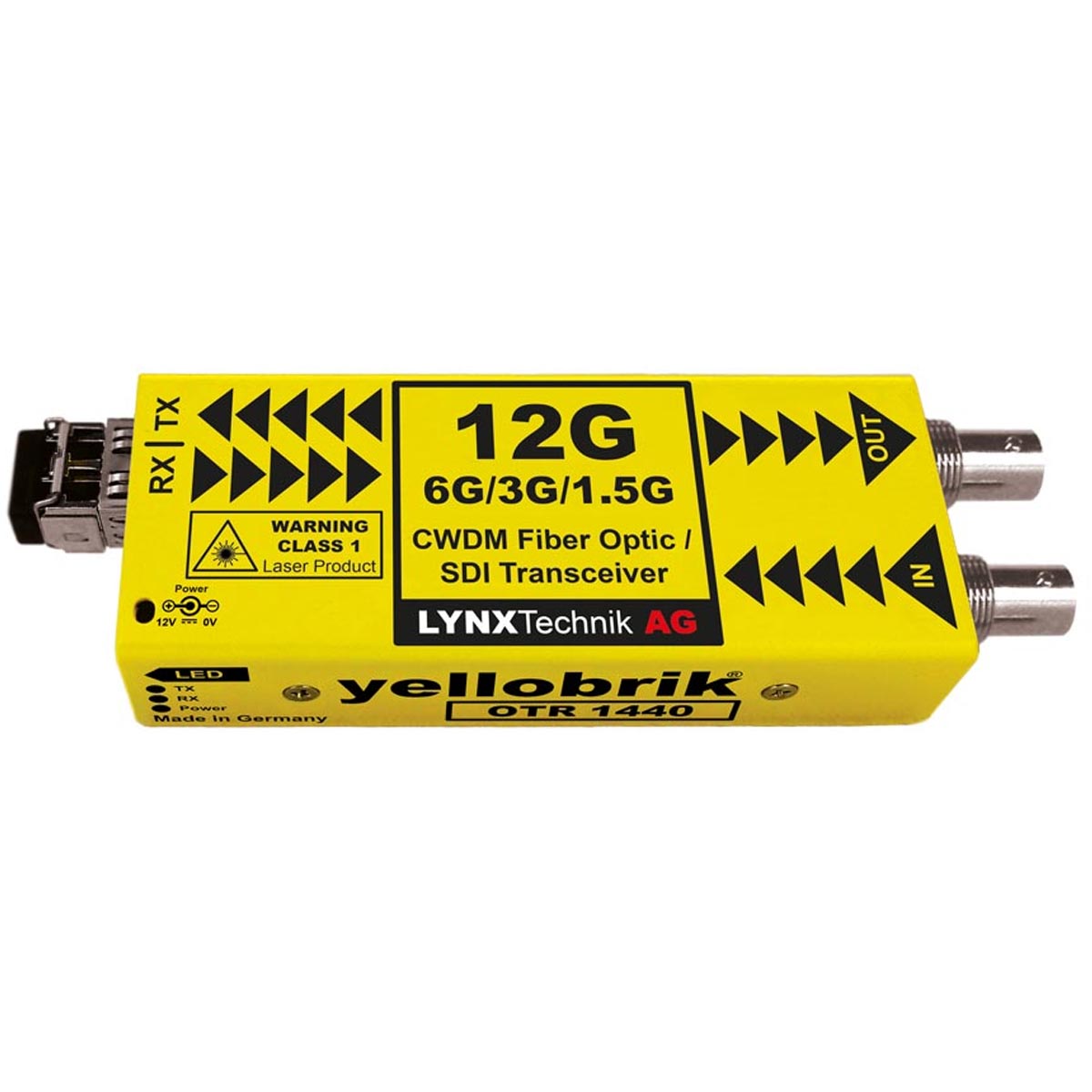

The OTR 1440 is a CWDM Fiber to 12G-SDI transceiver in a compact self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. Each OTR 1440 CWDM transceiver has an independent transmitter and receiver channel, which provides an effective solution for any 12G-SDI signal up to 4096x2160p 60Hz. Select from 18 transmitter wavelengths for full CWDM compatibility (ITU-T G.694.2)

The OTR 1440 will auto-detect and re-clock any 12G / 6G /3G / 1.5G / 270M source prior to conversion. The module is fully compatible with 3G Level A and Level B formats.

Note: The module does not include the fiber SFP, When ordering please specify an SFP option in the wavelength required
Loading...

Accessories

LC/FC Dup

LC to FC Duplex Fiber Adapter Kit

LC/SC Dup

LC to SC Duplex Fiber Adapter Kit

LC/ST Dup

LC to ST Duplex Fiber Adapter Kit

RFR 1200 - 19" 1RU rck frame for up to 14 yellobriks

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 - 4 pin XLR Power Adapter Cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

No more pages to load

Key Features

  • Optical receiver and transmitter in single package
  • Supports SDI video up to 12Gbit/s (4096×2160 @ 60 Hz)
  • 3Gbit Level A and Level B support (all formats)
  • Auto re-clocking 270Mbit / 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
  • CWDM with 18 wavelength selections (1270nm to 1610nm)
  • Error free optical connections
  • Up to 10km* (6.2 miles*) @ 12Gbit/s (singlemode)
  • Duplex LC/PC single mode optical connections
  • Supports hot swapping and hot plugging
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation

Ordering Information

UPC / EANModelDescription
4250479326620OTR 144012G SDI Fiber Optic Transceiver (CWDM)
Options
4250479329041RFR 12001RU 19″ Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-1000 4 Pin XLR Battery Power Adapter Cable
4250479318168LC/ST DUPLC to ST Adapter Cable 0.5m
4250479318267LC/SC DUPLC to SC Adapter Cable 0.5m
4250479323384LC/FC DUPLC to FC Adapter Cable 0.5m
CWDM Fiber SFP
4250479326552OH-TR-12-1270SDI Transceiver SFP (CWDM) 1270nm
4250479326569OH-TR-12-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479326576OH-TR-12-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479326583OH-TR-12-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479326682OH-TR-12-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479326699OH-TR-12-1370SDI Transceiver SFP (CWDM) 1370nm
4250479326705OH-TR-12-1390SDI Transceiver SFP (CWDM) 1390nm
4250479326712OH-TR-12-1410SDI Transceiver SFP (CWDM) 1410nm
4250479326729OH-TR-12-1430SDI Transceiver SFP (CWDM) 1430nm
4250479326736OH-TR-12-1450SDI Transceiver SFP (CWDM) 1450nm
4250479326743OH-TR-12-1470SDI Transceiver SFP (CWDM) 1470nm
4250479326750OH-TR-12-1490SDI Transceiver SFP (CWDM) 1490nm
4250479326767OH-TR-12-1510SDI Transceiver SFP (CWDM) 1510nm
4250479326774OH-TR-12-1530SDI Transceiver SFP (CWDM) 1530nm
4250479326781OH-TR-12-1550SDI Transceiver SFP (CWDM) 1550nm
4250479326798OH-TR-12-1570SDI Transceiver SFP (CWDM) 1570nm
4250479326804OH-TR-12-1590SDI Transceiver SFP (CWDM) 1590nm
4250479326811OH-TR-12-1610SDI Transceiver SFP (CWDM) 1610nm

SDI Video I/O:

  • 1x SDI input on 75 Ohm BNC connector
  • 1x SDI output on 75 Ohm BNC connector
  • SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE 259M
  • RGB 4:4:4
  • YCbCr 4:4:4/4:2:2/4:2:0
  • 8, 10, 12-bit
  • Multi-standard operation from 270Mbit/s to 12Gbit/s/s
  • Multi-rate reclocking: 270Mbit/s / 1.5Gbit/s / 3Gbit/s / 6Gbit/s / 12Gbit/s
  • Transparent: Transports entire SDI payload including all embedded audio and any ancillary / metadata.

Electrical Return Loss:

  • 5GHz: >15dB
  • 3GHz: >10dB
  • 6GHz: >7dB
  • 12GHz: >4dB

Automatic cable EQ: (Belden 1694A cable)

  • 270Mbit/s = 250m (Belden 1694A cable)
  • 5Gbit/s = 190m (Belden 1694A cable)
  • 3Gbit/s = 140m (Belden 1694A cable)
  • 6Gbit/s = 90m (Belden 4794R cable)
  • 12Gbit/s = 80m (Belden 4794R cable)

Optical I/O:

1 x fiber optic output, and 1 x fiber optic Input

  • Duplex LC/PC (Singlemode)
  • SMPTE 297M – 2006

Optical TX Wavelength:

  • Select from 18 available CWDM wavelengths from 1270nm-1610nm (Singlemode)
  • ITU-T G.694.2

Optical TX power:

  • -2dBm to +3dBm (Singlemode)
  • TX active LED on side of module

Optical RX Sensitivity

  • -10dBm (Singlemode)
  • RX active LED on side of module

Optical RX Wavelength

  • 1260nm – 1620nm (Singlemode)

Max. distance*

  • 10km* (6.2 miles*) @ 12Gbit/s (Singlemode)

Power

  • +12V DC @ 1.9W nominal – (supports 7 – 24V DC input range)
  • Power Present LED on side of module

Physical Size: (including connectors)

  • Metric:140mm x 42mm x 22mm
  • Inches: 5.51” x 1.65” x 0.86”

Weight:

  • 125g (4.4oz)

Operational Temperature Range:

  • Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)

—-

*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
