OTR 1414
12G-SDI 4 Channel Fiber Optic Transceiver

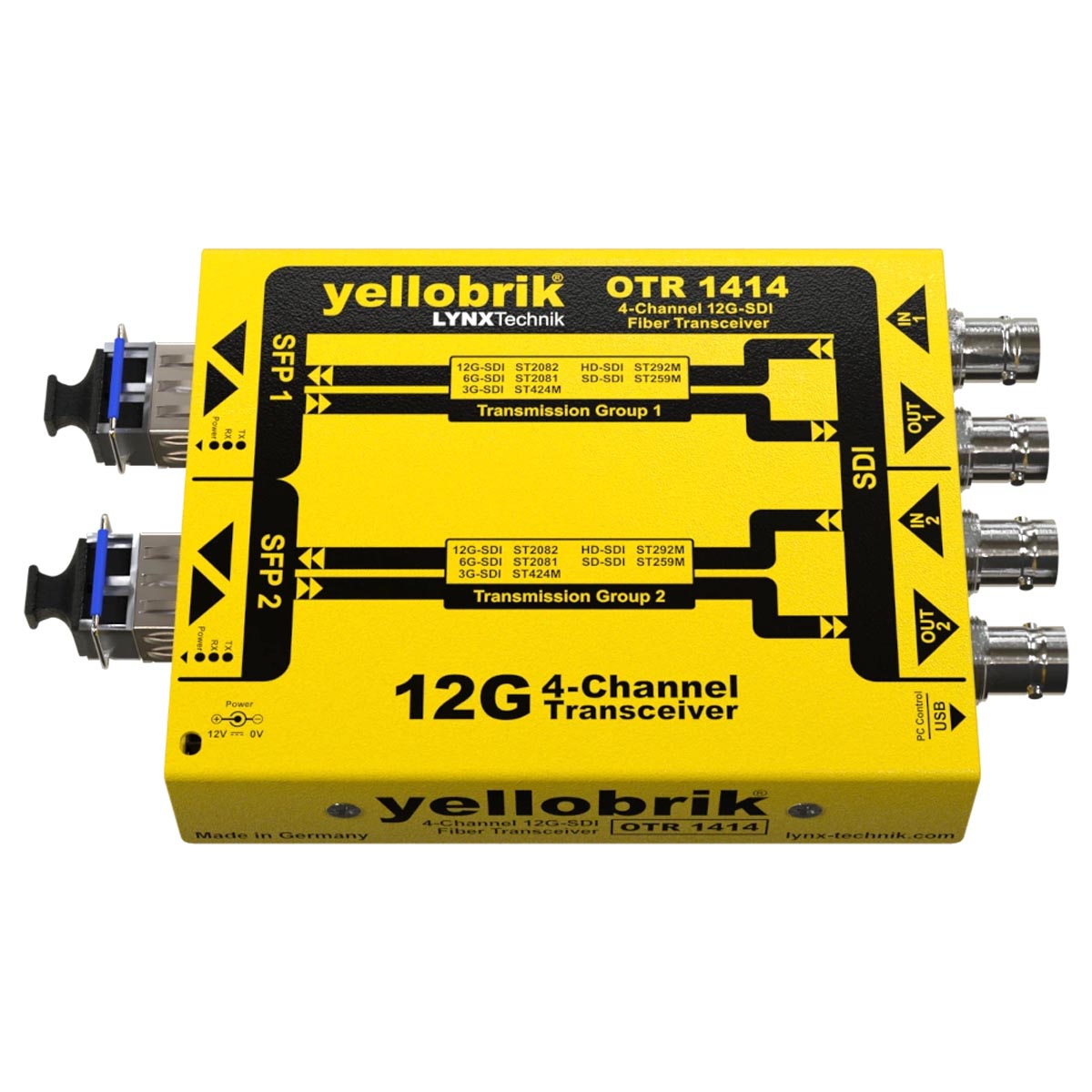

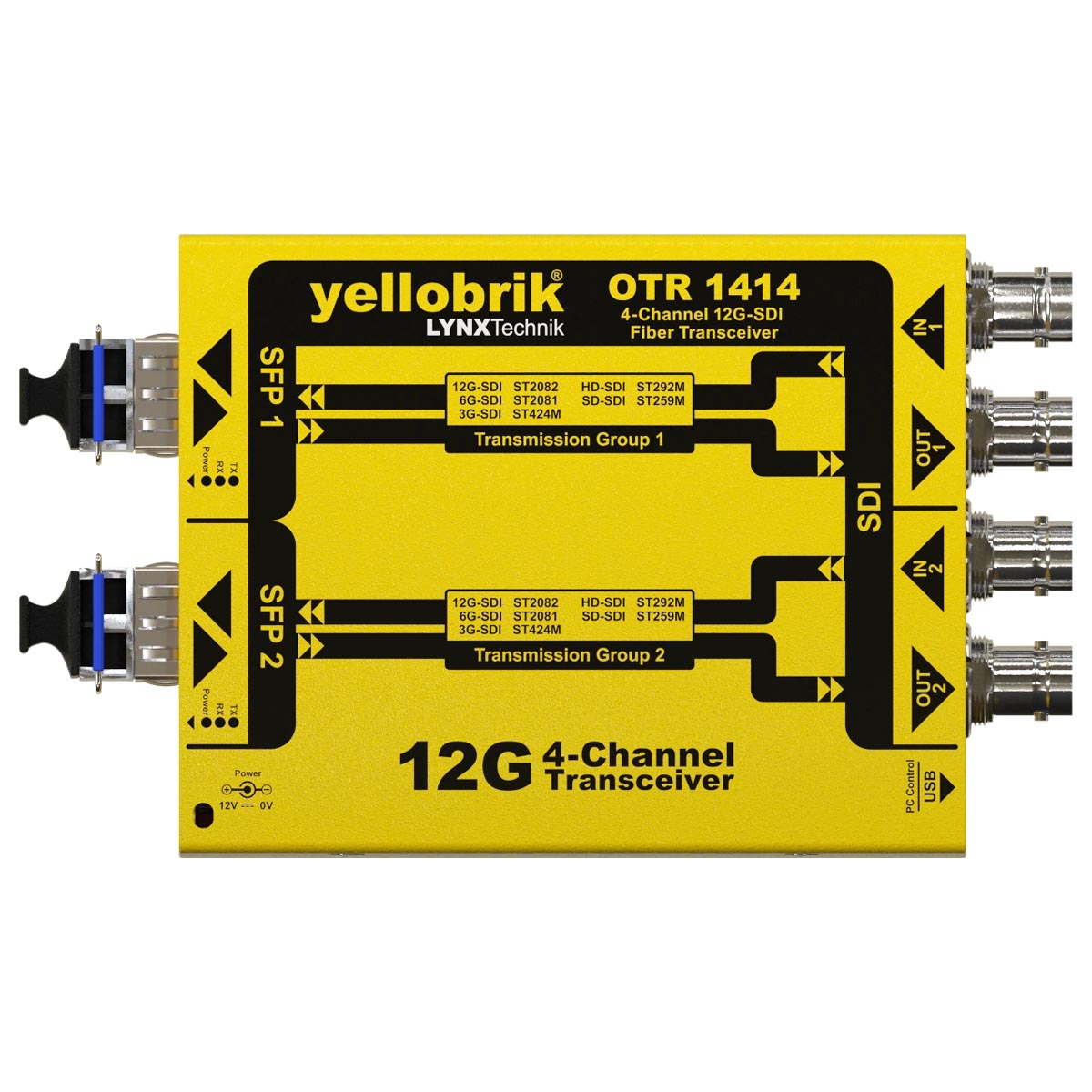

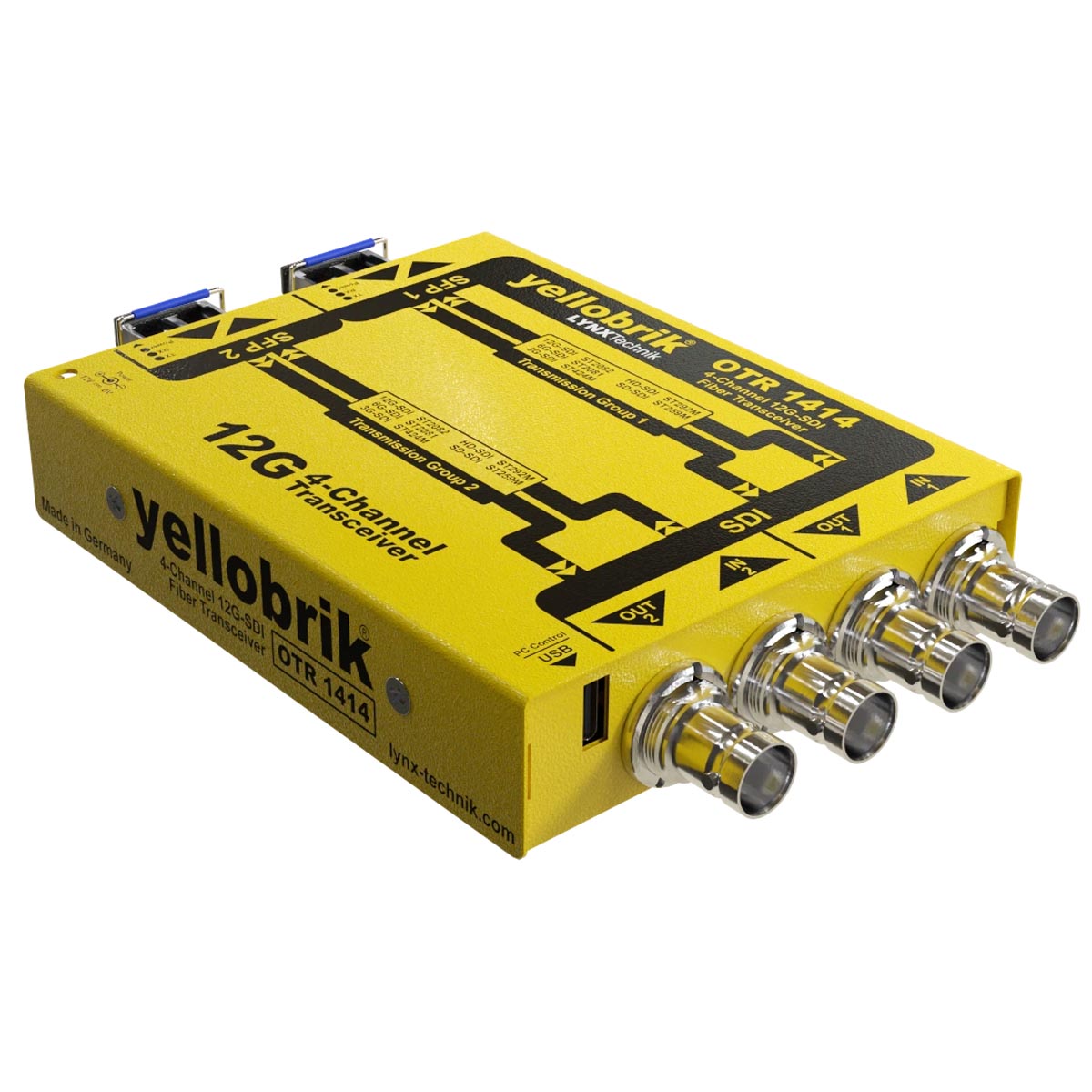

The OTR 1414 is a 4-Channel 12G Fiber Optic / SDI transmitter and receiver combined in a single self contained package. It is a convenient and cost-effective solution to overcome the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. It fits within 2RU height and requires no cooling.
Each OTR 1414 transceiver has two independent SDI transmit channels and two independent SDI receive channels, which provides an effective solution for any 12G-SDI signal up to 4096Ă—2160 60Hz. Operation of the receivers and transmitters are automatic. For transmission, the 12G-SDI video format is automatically detected, reclocked and then transmitted over the fiber TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, reclocked and provided on the 12G-SDI output.
The OTR 1414 supports 12G/6G/3G/1.5G/270Mbit SDI video standards. Like all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
Key Features
• Supports 12G /6G / 3G / 1.5G / 270M SDI Standards
• Auto Reclocking
• Error free optical transmission

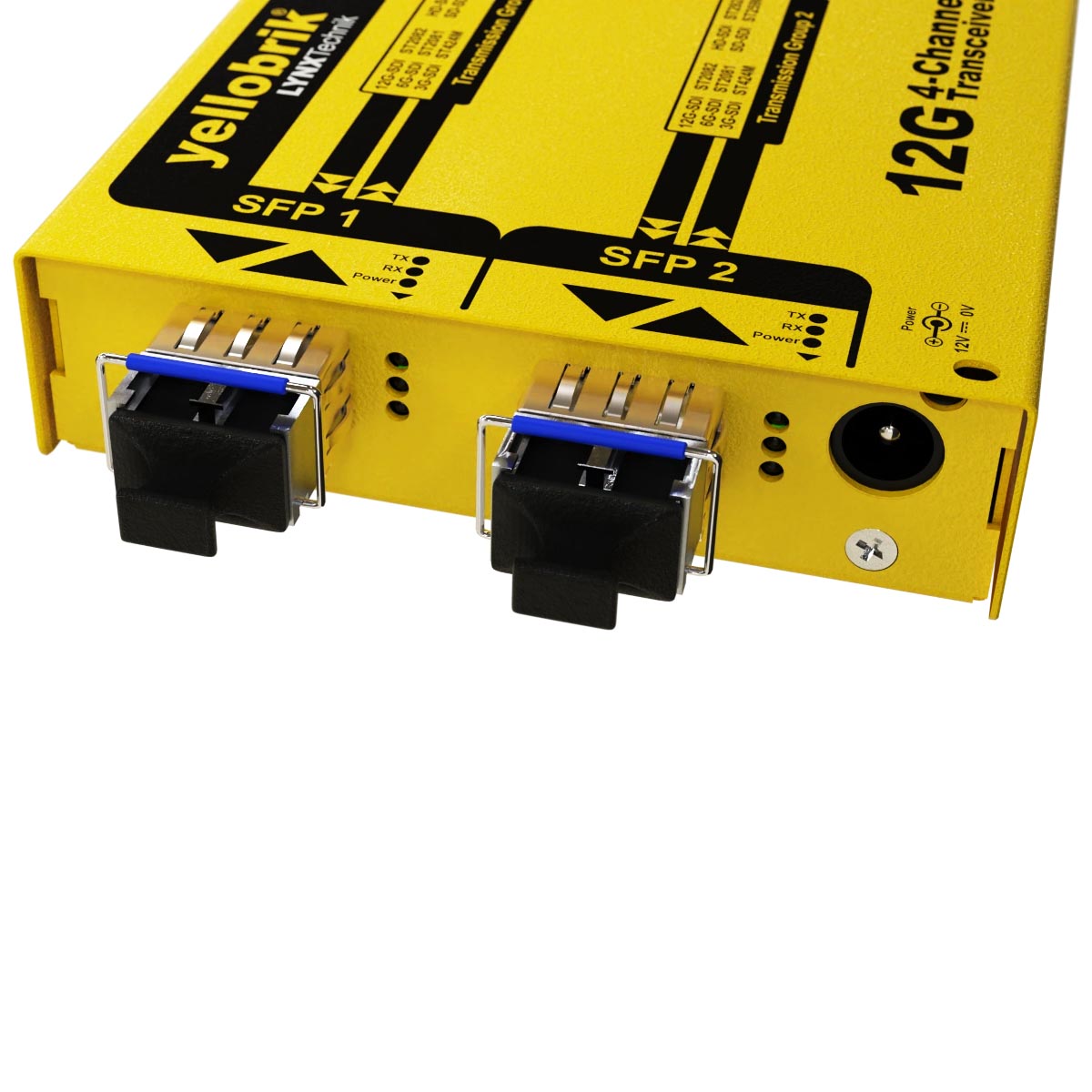

• 2x Duplex LC,PC Single-mode fiber connection
• Up to 10km (6.2 miles) @ 12Gbit/s*
• Supports hot swapping and hot plugging
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329652 | OTR 1414 | Quad 12G SDI Fiber Transceiver |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479318168 | LC/ST DUP | LC to ST Adapter Cable 0.5m |
| 4250479318267 | LC/SC DUP | LC to SC Adapter Cable 0.5m |
| 4250479323384 | LC/FC DUP | LC to FC Adapter Cable 0.5m |
SDI Video
- 2x 12G-SDI inputs on 75 Ohm BNC connectors
- 2x 12G-SDI outputs on 75 Ohm BNC connectors
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M,SMPTE 259M
- Multi-standard operation from 270Mbit/s to 12Gbit/s
- Multirate reclocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s – 6Gbit/s – 12Gbit/s
- Automatic cable EQ
- 270Mbit/s = 250m (Belden 1694A)
- 1.5Gbit/s = 220m (Belden 1694A)
- 3Gbit/s = 150m (Belden 1694A)
- 6Gbit/s = 80m (Belden 4794R)
- 12Gbit/s = 80m (Belden 4794R)
Fiber Optic
- 2x fiber inputs
- 2x fiber outputs
- 2x Duplex (singlemode) transceivers using LC/PC connection
- SMPTE 297M – 2006
- Transmitter
- Wavelength = 1310nm
- Optical power = -3dBm (typical)
- Receiver
- Wavelength = 1260nm – 1620nm
- Sensitivity -2dBm to -10dBm
- distance* 10km (6.2 miles) @ 12Gbit/s
- TX & RX active LEDs on side of module
Power
- +12V DC @ 3.4W excl. SFPs – (supports 7 – 24V DC input range)
- Power LED on side of module
Size (incl. connectors)
- 140mm x 83.8mm x 22mm (5.51” x 3.29” x 0.86”)
Weight:
- 168g/6oz excl. SFPs, 268g/9.5oz incl. SFPs
Ambient Temp Range
- 5 – 40ÂşC (41 – 104ÂşF)
- 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation1.
