OTR 1414 CW

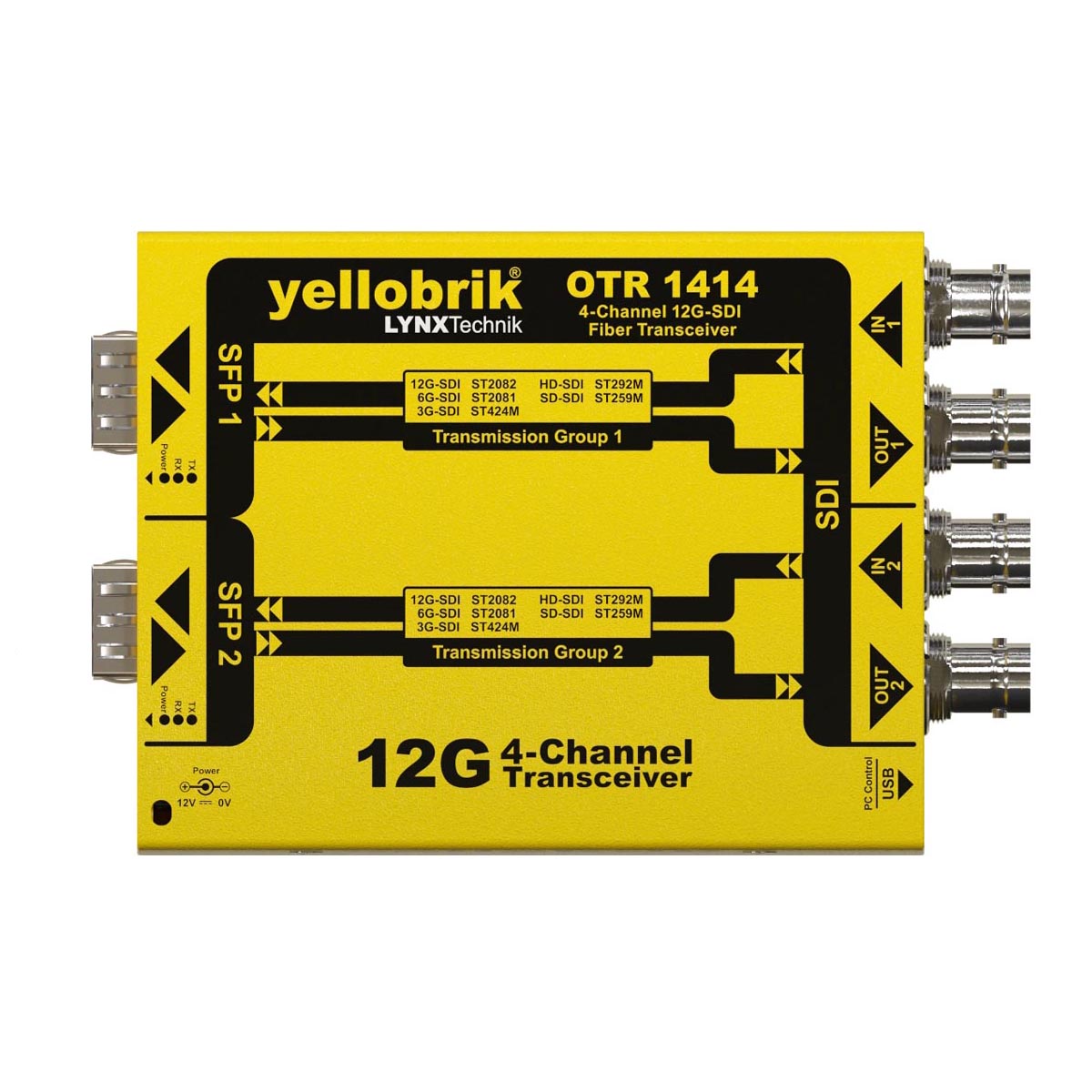

12G-SDI 4 Channel Fiber Optic Transceiver (CWDM)

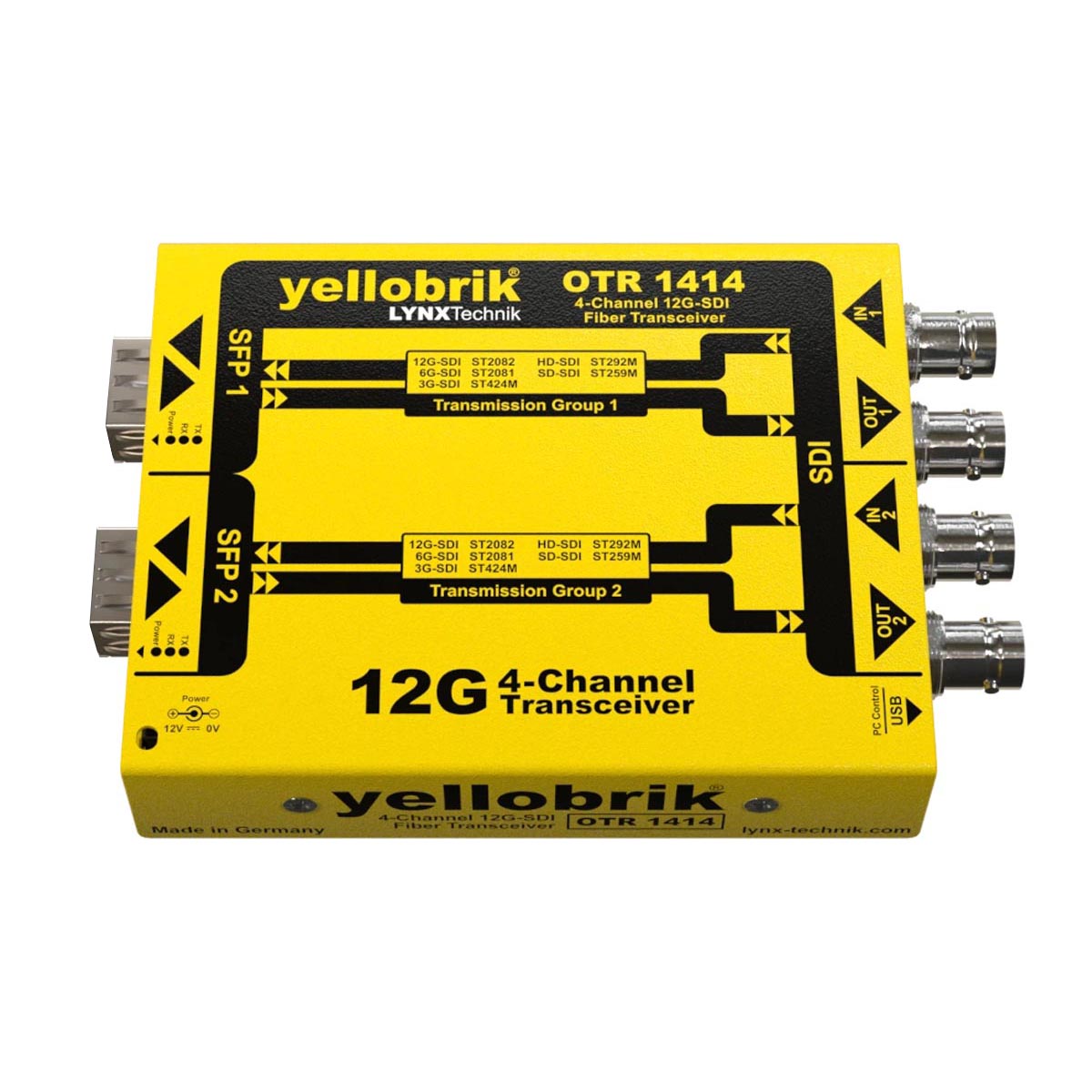

The OTR 1414 CW is a compact four channel CWDM 12G-SDI to fiber transceiver designed for integration into a multiplexed CWDM fiber optic systems.
The OTR 1414 CW has 2 independent transceivers each with an independent TC and RX channel which will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6GBit/s or 12Gbit/s SDI source. The module is fully compatible with 3G Level A and Level B formats.
There are 18 CWDM wavelength selections please refer to the SFP datasheet OH-TR-12G-XXXX-LC or the ordering information table below for available options.
Like all yellobriks, the OTR 1414 CW is fully compatible with the RFR 1200 rack frame which accommodates up to 14 modules. This allows up to 56 channels in 2RU of rack space for system installations.
Note: The purchase of 2 x OH-TR-12G-XXXX-LC SFP options is mandatory with this module
No more pages to load
Key Features
- 2 fully independent 3G SDI Transceivers
- Supports SDI video signals up to 12G
- 3G-SDI Level A and Level B support (all formats)
- Auto reclocking 270M, 1.5G, 3G, 6G, 12G
- 18 CWDM Wavelength selections
- Duplex LC/PC connections / Singlemode
- Error free optical transmission
- Supports hot swapping and hot plugging
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329928 | OTR 1414 CW | Quad 12G SDI Fiber Optic Transceiver (CWDM) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479318168 | LC/ST DUP | LC to ST Adapter Cable 0.5m |
| 4250479318267 | LC/SC DUP | LC to SC Adapter Cable 0.5m |
| 4250479323384 | LC/FC DUP | LC to FC Adapter Cable 0.5m |
| CWDM Fiber SFP | ||
| 4250479326552 | OH-TR-12G-1270 | SDI Transceiver SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12G-1290 | SDI Transceiver SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12G-1310 | SDI Transceiver SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12G-1330 | SDI Transceiver SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12G-1350 | SDI Transceiver SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12G-1370 | SDI Transceiver SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12G-1390 | SDI Transceiver SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12G-1410 | SDI Transceiver SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12G-1430 | SDI Transceiver SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12G-1450 | SDI Transceiver SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12G-1470 | SDI Transceiver SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12G-1490 | SDI Transceiver SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12G-1510 | SDI Transceiver SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12G-1530 | SDI Transceiver SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12G-1550 | SDI Transceiver SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12G-1570 | SDI Transceiver SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12G-1590 | SDI Transceiver SFP (CWDM) 1590nm |
| 4250479326811 | OH-TR-12G-1610 | SDI Transceiver SFP (CWDM) 1610nm |
SDI Video
- 2x 12G-SDI inputs on 75 Ohm BNC connectors
- 2x 12G-SDI outputs on 75 Ohm BNC connectors
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M,SMPTE 259M
- Multi-standard operation from 270Mbit/s to 12Gbit/s
- Multirate reclocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s – 6Gbit/s – 12Gbit/s
- Automatic cable EQ
- 270Mbit/s = 250m (Belden 1694A)
- 1.5Gbit/s = 220m (Belden 1694A)
- 3Gbit/s = 150m (Belden 1694A)
- 6Gbit/s = 80m (Belden 4794R)
- 12Gbit/s = 80m (Belden 4794R)
Fiber Optic
2 x fiber optic output, and 2 x fiber optic Input
- Uses OH-TR-12G-XXXX-LC SFP (2 required)
- Duplex LC/PC (Singlemode)
- SMPTE 297M – 2006
Optical TX Wavelength:
- Select from 18 available CWDM wavelengths from 1270nm-1610nm (Singlemode)
- ITU-T G.694.2
Optical TX power:
- -2dBm to +3dBm (Singlemode)
- TX active LED on side of module
Optical RX Sensitivity
- -10dBm (Singlemode)
- RX active LED on side of module
Optical RX Wavelength
- 1260nm – 1620nm (Singlemode)
Max. distance*
- 10km* (6.2 miles*) @ 12Gbit/s (Singlemode)
Power
- +12V DC @ 3.4W excl. SFPs – (supports 7 – 24V DC input range)
- Power LED on side of module
Size (incl. connectors)
- 140mm x 83.8mm x 22mm (5.51” x 3.29” x 0.86”)
Weight:
- 168g/6oz excl. SFPs, 268g/9.5oz incl. SFPs
Ambient Temp Range
- 5 – 40ÂşC (41 – 104ÂşF)
- 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation1.
