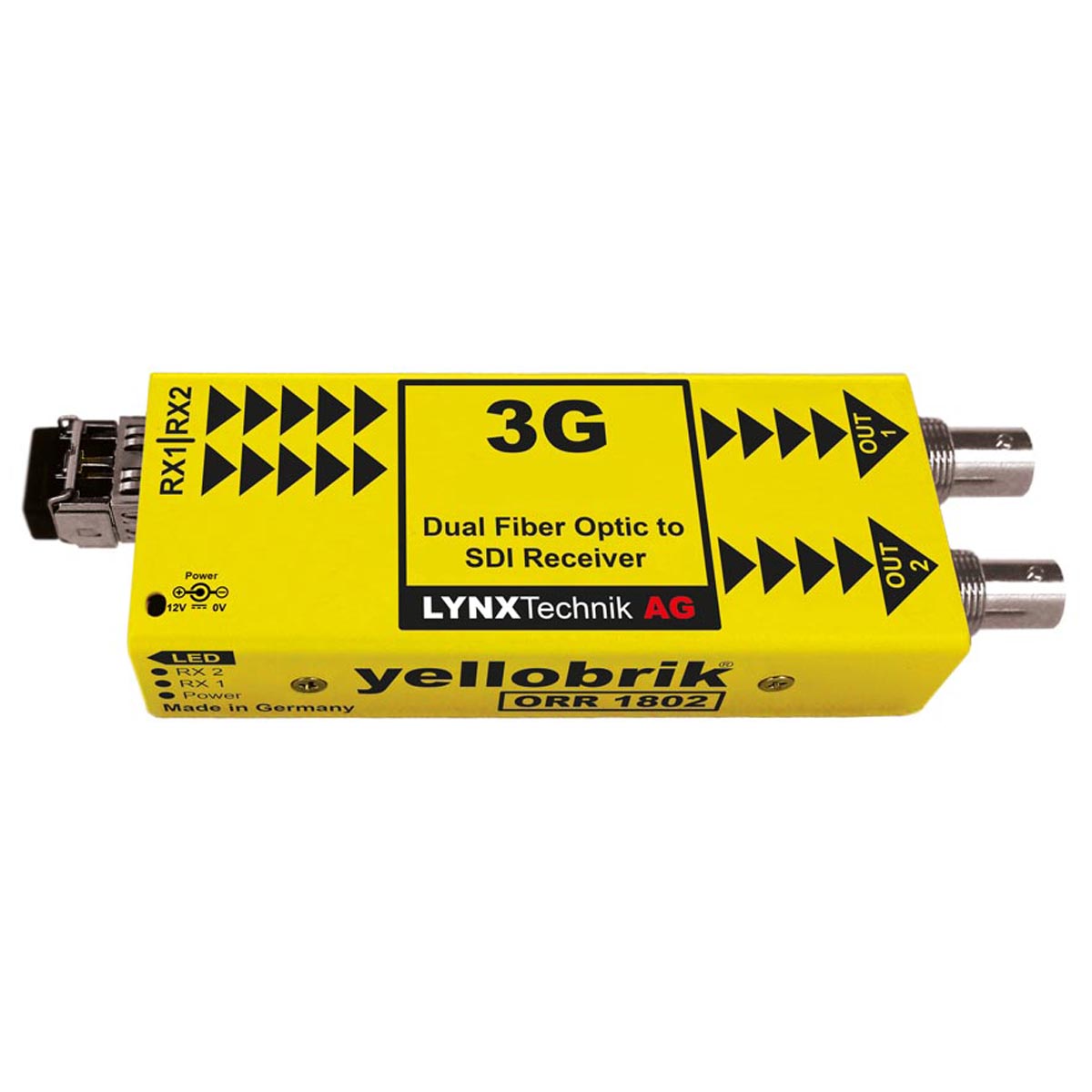

• ORR 1802 - Dual 3G SDI Fiber Optic Receiver

ORR 1802

Dual 3G SDI to Fiber Optic Receiver

Datasheet
Quick Reference

The ORR 1802-2 is a compact 2-Channel Fiber to 3G-SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with a 3G-SDI optical transmitter (e.g. yellobrik OTT 1812-1, OTX 1812, OTX 1842 etc) it becomes a cost effective optical transmission / receiver system for 3G-SDI signals up to 1080p60, while preserving full uncompressed quality.

The ORR 1802-2 has two completely independent 3G-SDI channels. Each will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s and 3Gbit/s SDI fiber source prior to electrical conversion. The module is fully compatible with 3G Level A and Level B formats.

Loading...

Accessories

A yellow fiber optic patch cable with connectors and protective caps.

LC/FC Dup

LC to FC Duplex Fiber Adapter Kit

Yellow fiber optic patch cable with blue connectors and a black adapter.

LC/SC Dup

LC to SC Duplex Fiber Adapter Kit

Yellow fiber optic patch cable with connectors and dust caps.

LC/ST Dup

LC to ST Duplex Fiber Adapter Kit

RFR 1200 - 19" 1RU rck frame for up to 14 yellobriks

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 - 4 pin XLR Power Adapter Cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

No more pages to load

Key Features

  • Dual channel
  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.48Gbit / 2.97Gbit
  • Error free optical reception
  • 1260nm to 1620nm wavelength input range
  • Duplex LC/PC singlemode optical connection
    Supports hot swapping and hot plugging

Ordering Information

UPC / EANModelDescription
4250479318021ORR1802Dual SDI to Fiber Receiver SMF (LC Connector)
Options
4250479329041RFR 12001RU 19″ Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-10004 Pin XLR Battery Power Adapter Cable
4250479323384LC/FC DUPDuplex LC/FC Fiber Adapter
4250479318267LC/SC DUP Duplex LC/SC Fiber Adapter
4250479318168LC/ST DUP Duplex LC/ST Fiber Adapter



Optical Inputs:

2 x fiber optic Inputs:

  • Duplex LC/PC (Singlemode)
  • SMPTE 297M – 2006

RX Wavelength:

  • 1260nm – 1620nm (Singlemode)

RX Sensitivity:

  • – 18dBm (Singlemode)
  • 2 x RX active LEDs on side of module

SDI Video Outputs:

  • 2 x SDI outputs on 75 Ohm BNC connectors
  • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • YCbCr 4:4:4/4:2:2/4:2:0
  • 8, 10, 12-bit
  • 3G-SDI Level A or B Dual Link
  • Multi-standard operation from 270Mbit/s to 3Gbit/s
  • Multi-rate reclocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s
  • Transparent: Supports the entire SDI payload including all embedded audio and any ancillary / metadata.

Electrical Return Loss:

  • 5GHz: >15dB
  • 3GHz: >10dB

Power

  • +12V DC @ 1.9W nominal – (supports 7 – 24V DC input range)
  • Power Present LED on side of module

Physical Size: (including connectors)

  • Metric:140mm x 42mm x 22mm
  • Inches: 5.51” x 1.65” x 0.86”

Weight:

  • 125g (4.4oz)

Operational Temperature Range:

  • Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
