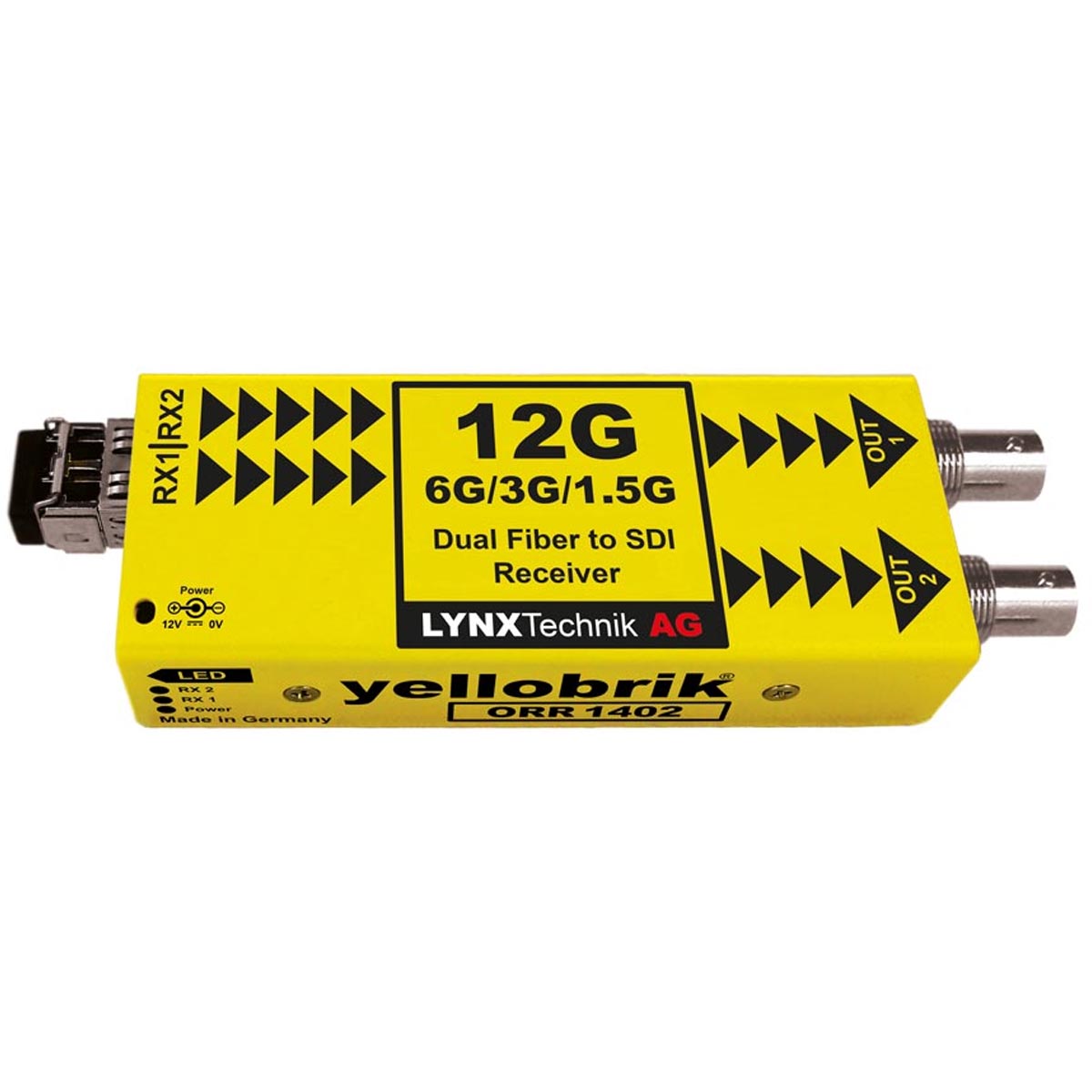

ORR 1402
Dual 12G SDI Fiber Optic Receiver
The ORR 1402 is a compact dual channel fiber optical to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with a SDI optical transmitter (e.g. yellobrik OTT 1412, OTX1410, OTX1440 etc), the user will have a very cost-effective optical transmission/receiver system for signals up to 12Gbit/s (4096×2160 @ 60Hz), while preserving full uncompressed quality.
The ORR1402 has two completely independent channels and each will autodetect and re-clock any 270Mbit, 1.5Gbit, 3Gbit, 6Gbit, or 12Gbit SDI fiber source prior to electrical conversion. The module is fully compatible with 3Gbit Level A and Level B formats.
Key Features
- Dual channel
- Supports 12G, 6G, 3G, 1.5G and 270M SDI video standards
- Supports SDI video inputs up to 12Gbit/s (4096×2160 @ 60Hz)
- Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
- 3Gbit Level A and Level B (support for all formats)
- Error free optical reception
- 1260nm to 1620nm wavelength input range
- 2x fiber optic inputs (LC Connector – singlemode)
- Supports hot swapping and hot plugging
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479326484 | ORR 1402 | Dual 12G Fiber to SDI Receiver SMF (LC Connector) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323384 | LC/FC DUP | Duplex LC/FC Fiber Adapter |
| 4250479318267 | LC/SC DUP | Duplex LC/SC Fiber Adapter |
| 4250479318168 | LC/ST DUP | Duplex LC/ST Fiber Adapter |
Optical Inputs:
2 x fiber optic Inputs:
- Duplex (Singlemode) LC/PC
- SMPTE 297M – 2006
RX Wavelength:
- 1260nm – 1620nm (Singlemode)
RX Sensitivity:
- 12Gbit = -9dBm (Singlemode)
- < 12Gbit = -10dBm (Singlemode)
- RX active LED on side of module
SDI Video Outputs:
- 2 x SDI outputs on 75 Ohm BNC connectors
- SMPTE 259, SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE
259M, DVB-ASI
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8, 10, 12-bit
- 3G-SDI Level A or B Dual Link
- Multi-standard operation 270M / 1.5G / 3G / 6G / 12G
- Format Agnostic
- Transparent: Supports the entire SDI payload including all embedded audio and any ancillary / metadata.
Electrical Return Loss:
- 5GHz: >15dB
- 3GHz: >10dB
- 6GHz: >7dB
- 12Ghz: >4dB
Power
- +12V DC @ 1.9W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
