OET 5501
OET 5501 - Image 2

OET 5501

1Gbit Ethernet Fiber Transceiver

Specialty

Data, Fiber

Documentation

Product Documentation

Features

  • Support for standard Ethernet inputs up to 1 Gbit
  • 3 port Ethernet switch (1 fiber, 2 electrical)
  • Support for Jumbo Frames
  • Auto (10/100/1000) electrical port speed detection
  • Manually force 10 Mbit electrical speed (if needed)
  • Fiber transceiver speed always 1 Gbit
  • Auto or manual electrical crossover selection
  • Remote control, status monitoring and error reporting possible when used with APPolo control system.
  • Hot Swappable
  • Variety of fiber SFP Transceiver options
    – Standard singlemode up to 10km (1310nm)
    – Standard multimode up to 550m (850nm)
    – CWDM 40km with 18 wavelength selections
    – CWDM 80km with 8 wavelength selections

Description

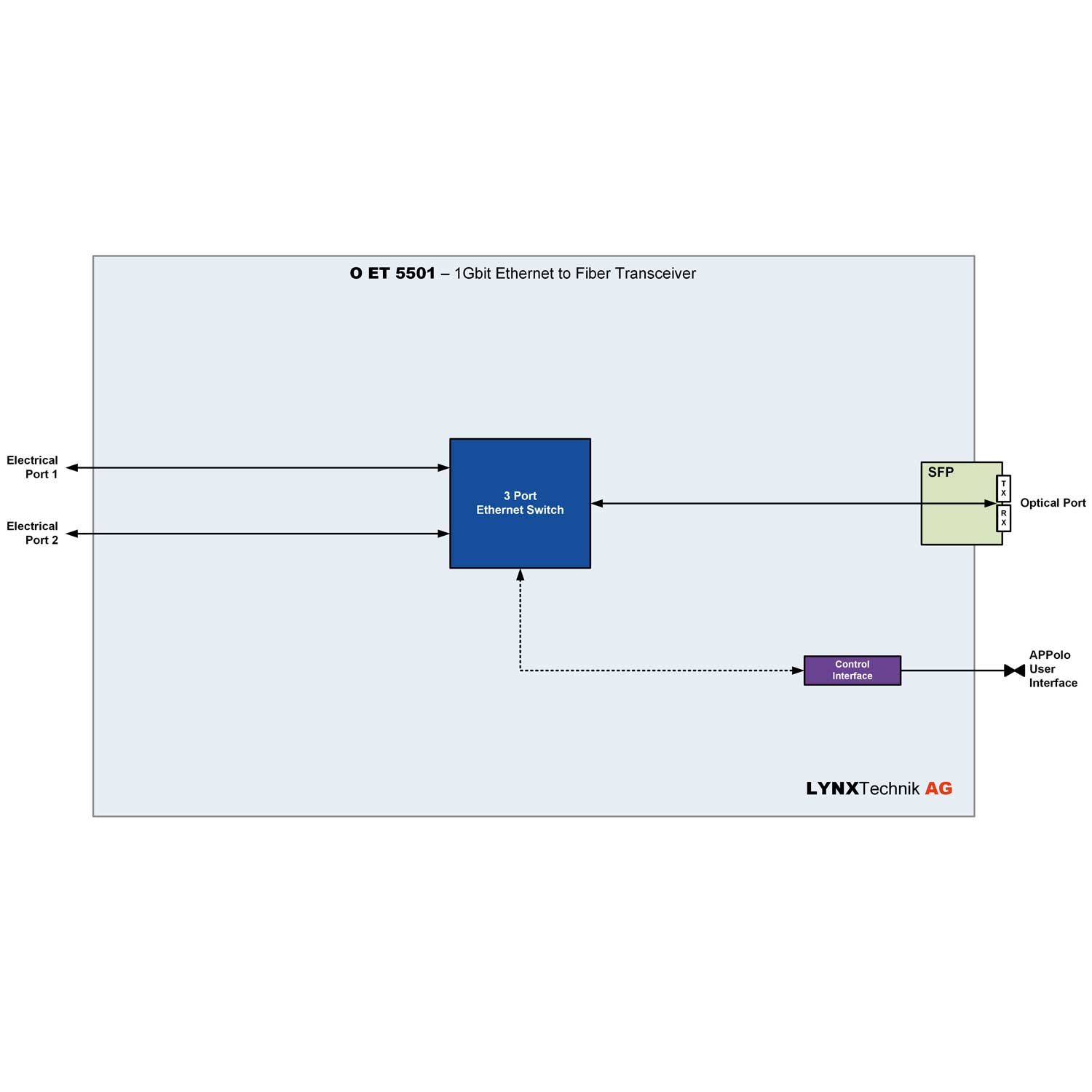

The OET 5501 is a 3 port Ethernet switch designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1Gbit optical connection.

The OET 5501 can be paired with another OET 5501, the yellobrik OET 1510 or any other IEEE compliant Ethernet switch with a fiber interface. When paired with one of these devices using two fiber cables, the OET 5501 will provide a stable, high speed 1Gbit error free optical connection between distant locations.

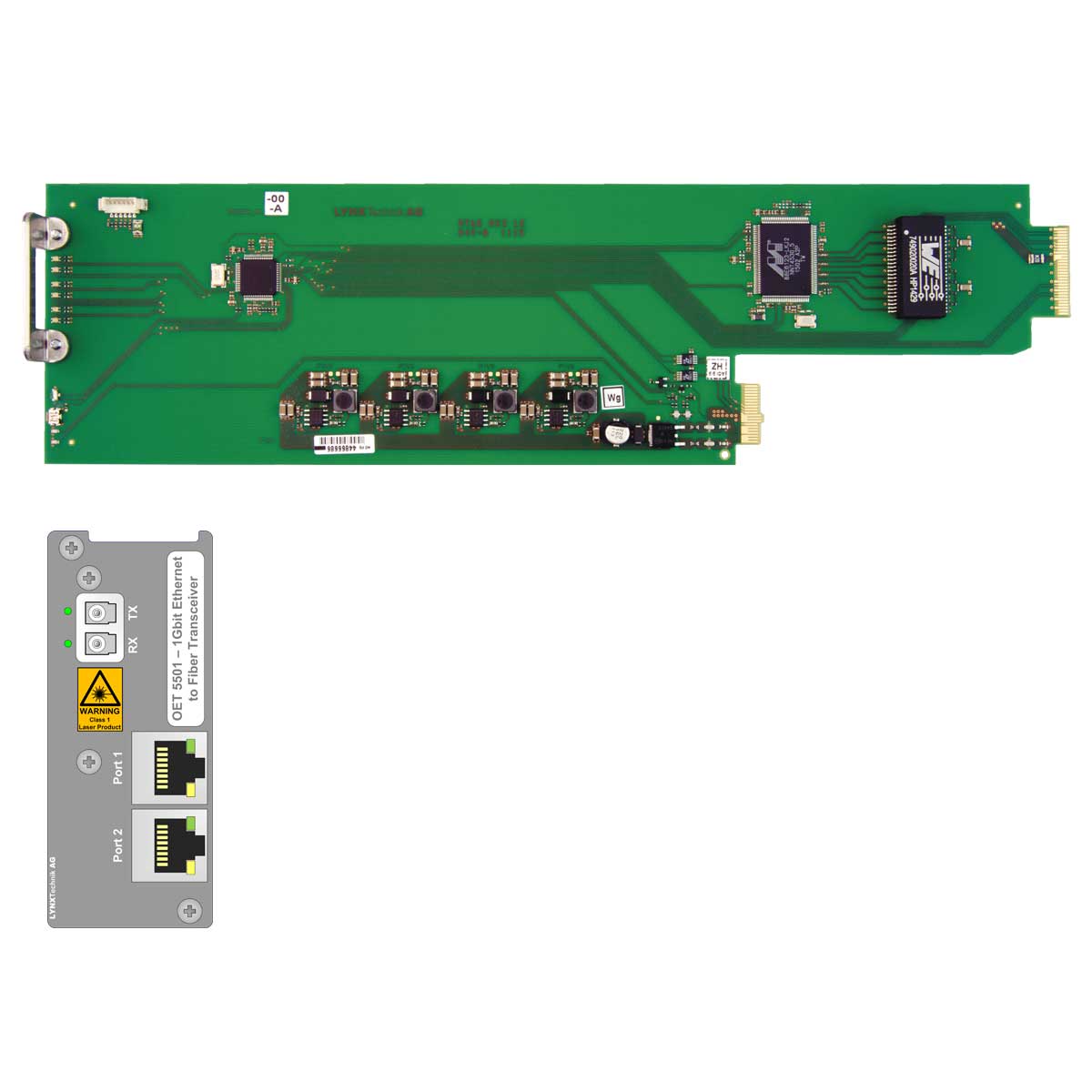

The OET 5501 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use; each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit, and each port can use automatic crossover detection, or be forced manually if needed. These functions are available via the APPolo control system.

A variety of optional SFP fiber sub modules are available (including singlemode and multimode fiber plus CWDM fiber with 18 wavelength selections) this allows the module to be used in multiple applications.

Full remote control and status monitoring, (including the available optical input budget) are possible when using the APPolo control system.

Accessories

Ordering Information

UPC / EAN Model Description
4250479323490 OET 5501 1Gbit Ethernet to Fiber Transceiver
Options
4250479324411 RFR 5018 US 2RU 19" Rack Frame + PSU for up to 10 Modules
4250479321410 RFR 5014 US 1RU 19" Rack Frame + PSU for up to 4 Modules
Fiber SFP
4250479324190 OH-TR-51 Data Transceiver SFP singlemode (10km)
4250479324206 OH-TR-50-850-MM Data Transceiver SFP multimode (550m)
CWDM Fiber SFPs (40km)
4250479312753 OH-TR-54-1270 Data Transceiver SFP 1270nm (CWDM)
4250479312951 OH-TR-54-1290 Data Transceiver SFP 1290nm (CWDM)
4250479313156 OH-TR-54-1310 Data Transceiver SFP 1310nm (CWDM)
4250479313354 OH-TR-54-1330 Data Transceiver SFP 1330nm (CWDM)
4250479313552 OH-TR-54-1350 Data Transceiver SFP 1350nm (CWDM)
4250479313750 OH-TR-54-1370 Data Transceiver SFP 1370nm (CWDM)
4250479313958 OH-TR-54-1390 Data Transceiver SFP 1390nm (CWDM)
4250479314153 OH-TR-54-1410 Data Transceiver SFP 1410nm (CWDM)
4250479314351 OH-TR-54-1430 Data Transceiver SFP 1430nm (CWDM)
4250479314559 OH-TR-54-1450 Data Transceiver SFP 1450nm (CWDM)
4250479314757 OH-TR-54-1470 Data Transceiver SFP 1470nm (CWDM)
4250479314955 OH-TR-54-1490 Data Transceiver SFP 1490nm (CWDM)
4250479315150 OH-TR-54-1510 Data Transceiver SFP 1510nm (CWDM)
4250479315358 OH-TR-54-1530 Data Transceiver SFP 1530nm (CWDM)
4250479315556 OH-TR-54-1550 Data Transceiver SFP 1550nm (CWDM)
4250479315754 OH-TR-54-1570 Data Transceiver SFP 1570nm (CWDM)
4250479315952 OH-TR-54-1590 Data Transceiver SFP 1590nm (CWDM)
4250479316157 OH-TR-54-1610 Data Transceiver SFP 1610nm (CWDM)
Fiber CWDM (80km)
4250479321052 OH-TR-58-1470 Data Transceiver SFP 1470nm (CWDM)
4250479321069 OH-TR-58-1490 Data Transceiver SFP 1490nm (CWDM)
4250479321076 OH-TR-58-1510 Data Transceiver SFP 1510nm (CWDM)
4250479321083 OH-TR-58-1530 Data Transceiver SFP 1530nm (CWDM)
4250479321090 OH-TR-58-1550 Data Transceiver SFP 1550nm (CWDM)
4250479321106 OH-TR-58-1570 Data Transceiver SFP 1570nm (CWDM)
4250479321113 OH-TR-58-1590 Data Transceiver SFP 1590nm (CWDM)
4250479321120 OH-TR-58-1610 Data Transceiver SFP 1610nm (CWDM)
