OET 1514
1GbE Ethernet to Fiber Optic Transceiver

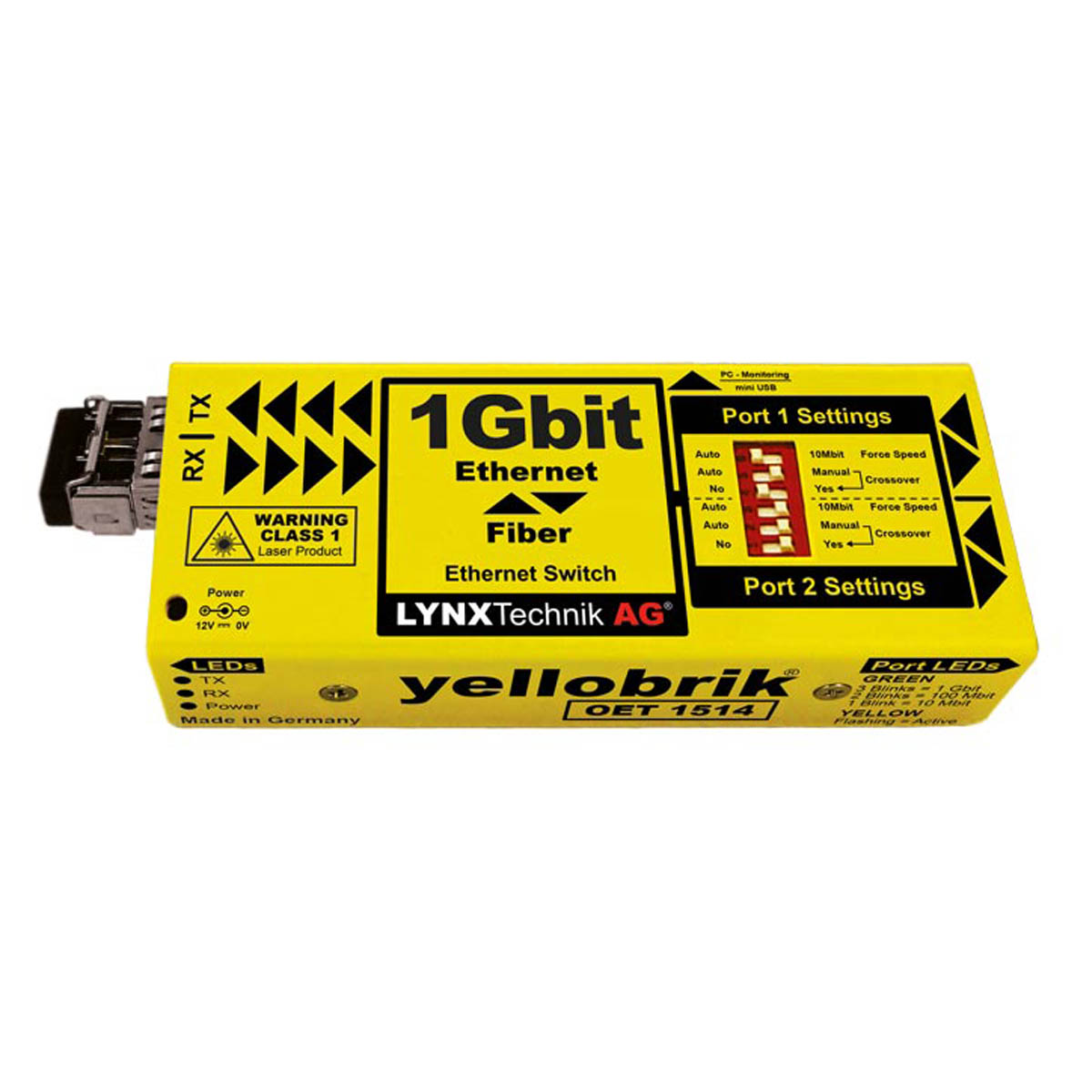

The OET 1514 is a compact three-port Ethernet switch featuring two standard RJ45 ports and one duplex fiber connection. It is designed to extend 10/100/1000 Ethernet signals over long distances via a constant 1 Gbit/s optical link.
For compatibility with legacy systems, each Ethernet port supports either auto-negotiation (10/100/1000) or a fixed 10 Mbit/s setting. Auto MDI/MDI-X (crossover detection) is available on all ports. These configuration options are easily managed via the onboard DIP switch.
This module includes a mini USB port for real-time monitoring (using yelloGUI or LYNX Centraal software) and firmware updates.
Two versions are available:
- OET 1514 for Singlemode fiber
- OET 1514 MM for Multimode fiber
For CWDM applications please refer to the OET 1544
Note: These modules require two fiber interconnections, one for RX data and the other for TX data. For applications using a single fiber connection please use the OBD 1514 E kit which uses a single WDM bidirectional fiber link up to 10km*
Key Features
- Supports standard Ethernet inputs up to 1 Gbit/s
- 3 port Ethernet switch (1 fiber, 2 electrical)
- ODT 1514 for Singlemode fiber up to 10km*
- ODT 1514 MM for Multimoide fiber up to 300m*
- Auto (10/100/1000) port speed detection
- Manually force 10Mbit/s electrical speed (if needed)
- Fiber transceiver speed always 1 Gbit/s
- Auto or manual electrical crossover selection
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation.
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329447 | OET 1514 | Ethernet to Fiber Transceiver SMF (LC Connector) |
| 4250479329454 | OET 1514 MM | Ethernet to Fiber Transceiver MMF (LC Connector) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323384 | LC/FC DUP | Duplex LC/FC Fiber Adapter (SMF only) |
| 4250479318267 | LC/SC DUP | Duplex LC/SC Fiber Adapter (SMF only) |
| 4250479318168 | LC/ST DUP | Duplex LC/ST Fiber Adapter (SMF only) |
Ethernet (electrical):
- 2 x Ethernet ports, RJ 45 Connectors.
- 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
- 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
- 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs
- Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
- Automatic crossover detection or force manually for each port (selectable)
- Port speed / activity LED indication (next to Ethernet port)
Ethernet Optical I/O:
- EEE 802.3z
- (1000BASE-X Gbit/s Ethernet over Fiber at 1Gbit/s (125 MB/s
1 x fiber optic output:
- OET 1514 = Duplex (Singlemode) LC/PC connection
- OET 1514 MM = Duplex (Multimode) LC/PC connection
TX Wavelength:
- OET 1514 = 1310nm
- OET 1514 MM = 850nm
TX Optical power:
- OET 1514 = -6dBm
- OET 1514 MM = -6dBm
1 x fiber optic input
RX Wavelength:
- OET 1514 = 1260nm – 1580nm
- OET 1514 MM = 850nm
RX Sensitivity:
- OET 1514 = -23dBm
- OET 1514 MM = -16dBm
Max. distance*
- OET 1514 = 10km* (6.2miles)*
- OET 1514 MM = 300m* (1000 feet)*
Power
- +12V DC @ 1.7W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
