OET 1940

10G Ethernet Fiber Transceiver (CWDM)

Specialty

CWDM, Data, Fiber

Documentation

Product Documentation

Features

  • Supports standard Ethernet/Optical signals of 10Gbit/s or 1Gbit/s
  • Solutions provided for:
    Electrical to CWDM fiber conversion
    Multimode Fiber to Singlemode Fiber conversion
    Multimode to CWDM Fiber conversion
  • 2x 10Gbit/s transceiver ports (Electrical/Optical)
  • Maximum throughput of 20Gbit/s (full duplex)
  • Supports distances up to 10km (6.2 miles) over Singlemode fiber*
  • Power and signal present LED indication
  • Supports hot swapping and hot plugging

Description

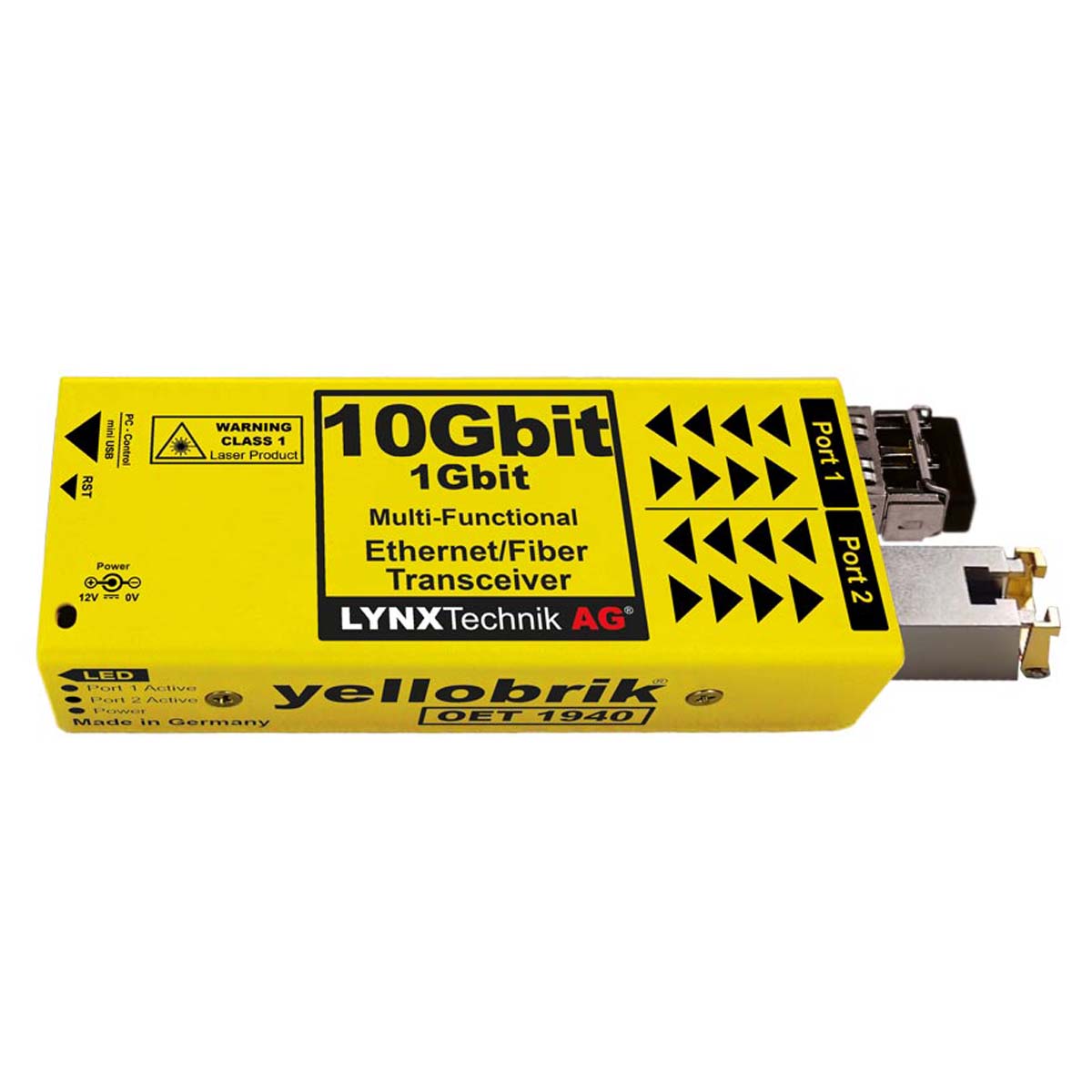

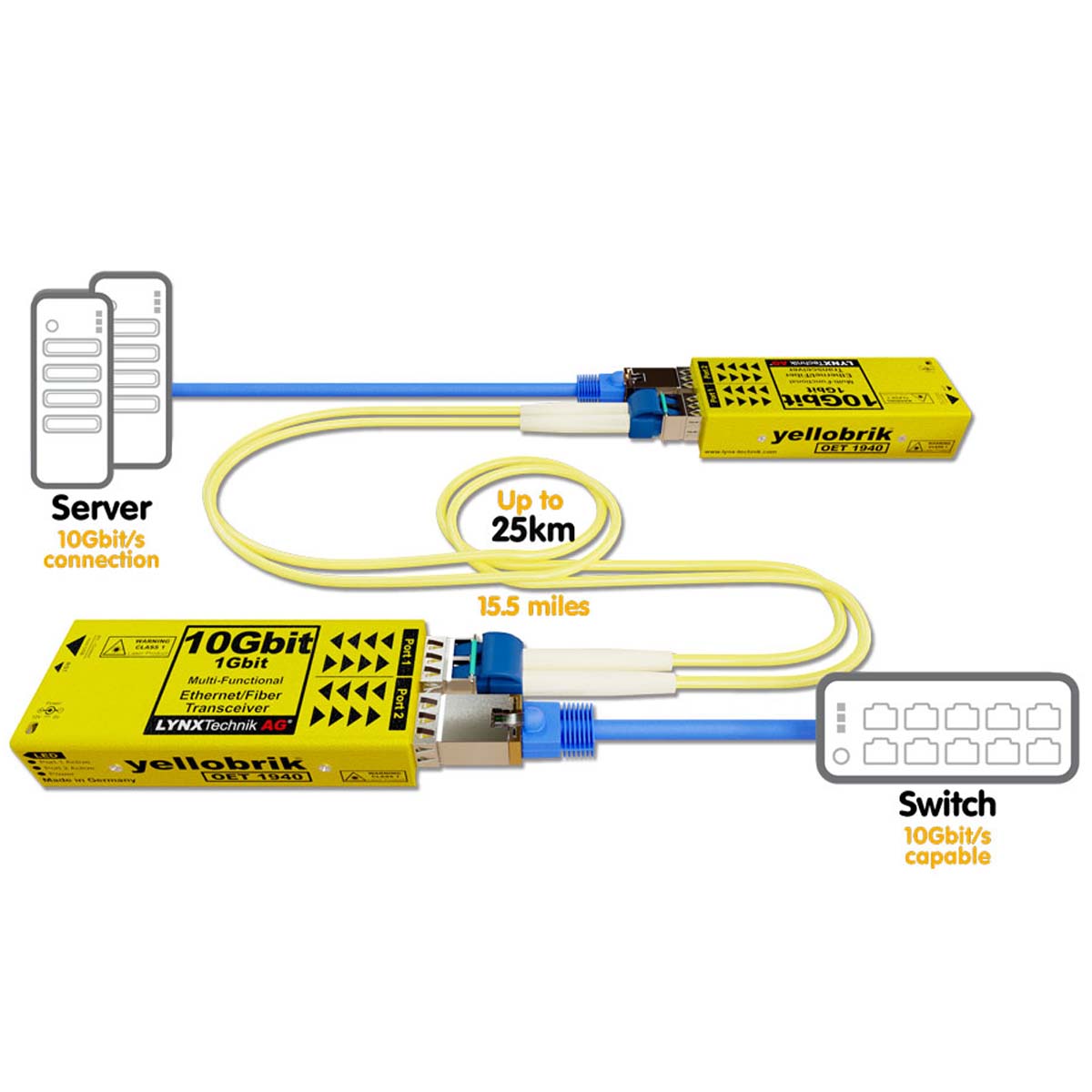

The OET 1940 is a compact Ethernet to Fiber Optic converter designed to extend the reach of 1Gbit/s or 10Gbit/s electrical ethernet signals over long distances. The following versions are available:

OET 1940 (CWDM)
This version is an electrical to fiber optic converter designed for CWDM multiplexed fiber systems. The module has a single 10Gbit/s RJ45 electrical connection included, and an optional CWDM SFP has to be specified for the required wavelength. (this is a required option). Note: Two fiber links are required, one for TX and one for RX (LC Connections).

OET 1940 MS
This version is an optical to optical converter designed for situations were a conversion between multimode fiber and singlemode fiber is required. The module includes the multimode and singlemode SFPs, and each has two fiber connections, one for TX and one for RX (LC connections).

OET 1940 MC (CWDM)
This version is an optical to optical converter designed for situations where conversion from multimode fiber into a singlemode CWDM fiber is required. The module includes the multimode SFP and an optional CWDM SFP has to be specified for the required wavelength. (this is a required option). Note: Two fiber links are required, one for TX and one for RX (LC Connections).

*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.

Note: The OET 1940 and OET 1940 MC DOES NOT INCLUDE the fiber SFP, When ordering please specify an SFP option in the wavelength required

Accessories

LC/FC Dup

LC to FC Duplex Fiber Adapter Kit

LC/SC Dup

LC to SC Duplex Fiber Adapter Kit

LC/ST Dup

LC to ST Duplex Fiber Adapter Kit

RFR 1000 yellobrik central power connectors

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 yellobrik XLR power adapter cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

Ordering Information

UPC / EANModelDescription
4250479328372OET 194010G Ethernet to Fiber Transceiver (CWDM)
4250479328389OET 1940 MS10G Ethernet to MMF to SMF Converter
4250479328396OET 1940 MC10G Ethernet to MMF to SMF Converter (CWDM)
Options
4250479329041RFR 12001RU 19" Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-10004 Pin XLR Battery Power Adapter Cable
4250479323384LC/FC DUPDuplex LC/FC Fiber Adapter
4250479318267LC/SC DUP Duplex LC/SC Fiber Adapter
4250479318168LC/ST DUP Duplex LC/ST Fiber Adapter

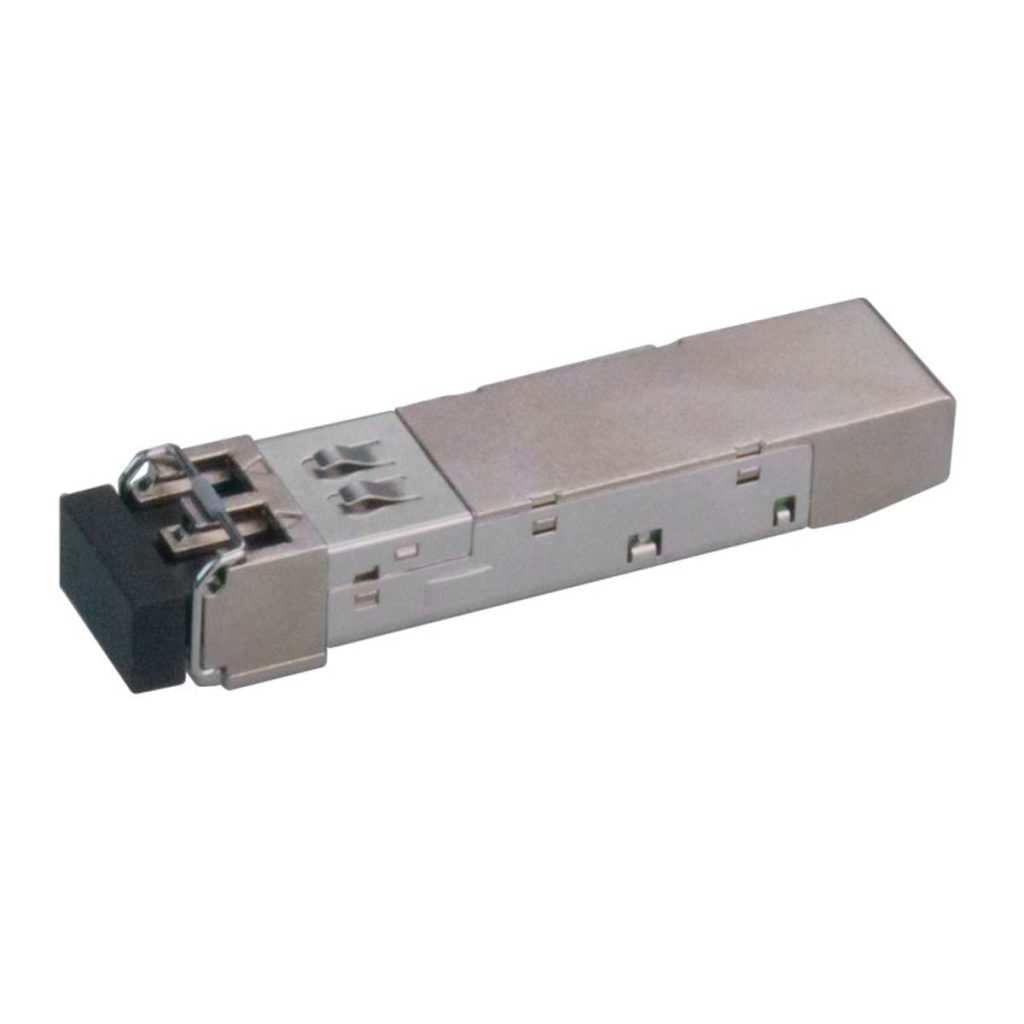

CWDM SFP Options
4250479328938OH-TR-10G-1270-LC10G Ethernet CWDM Transceiver 1270nm
4250479328945OH-TR-10G-1290-LC10G Ethernet CWDM Transceiver 1290nm
4250479328952OH-TR-10G-1310-LC10G Ethernet CWDM Transceiver 1310nm
4250479328969OH-TR-10G-1330-LC10G Ethernet CWDM Transceiver 1330nm
4250479328976OH-TR-10G-1350-LC10G Ethernet CWDM Transceiver 1350nm
4250479328983OH-TR-10G-1370-LC10G Ethernet CWDM Transceiver 1370nm
4250479328990OH-TR-10G-1390-LC10G Ethernet CWDM Transceiver 1390nm
4250479329003OH-TR-10G-1410-LC10G Ethernet CWDM Transceiver 1410nm
4250479329010OH-TR-10G-1430-LC10G Ethernet CWDM Transceiver 1430nm
4250479329027OH-TR-10G-1450-LC10G Ethernet CWDM Transceiver 1450nm
4250479328242OH-TR-10G-1470-LC10G Ethernet CWDM Transceiver 1470nm
4250479328259OH-TR-10G-1490-LC10G Ethernet CWDM Transceiver 1490nm
4250479328266OH-TR-10G-1510-LC10G Ethernet CWDM Transceiver 1510nm
4250479328273OH-TR-10G-1530-LC10G Ethernet CWDM Transceiver 1530nm
4250479328280OH-TR-10G-1550-LC10G Ethernet CWDM Transceiver 1550nm
4250479328297OH-TR-10G-1570-LC10G Ethernet CWDM Transceiver 1570nm
4250479328303OH-TR-10G-1590-LC10G Ethernet CWDM Transceiver 1590nm
4250479328310OH-TR-10G-1610-LC10G Ethernet CWDM Transceiver 1610nm
