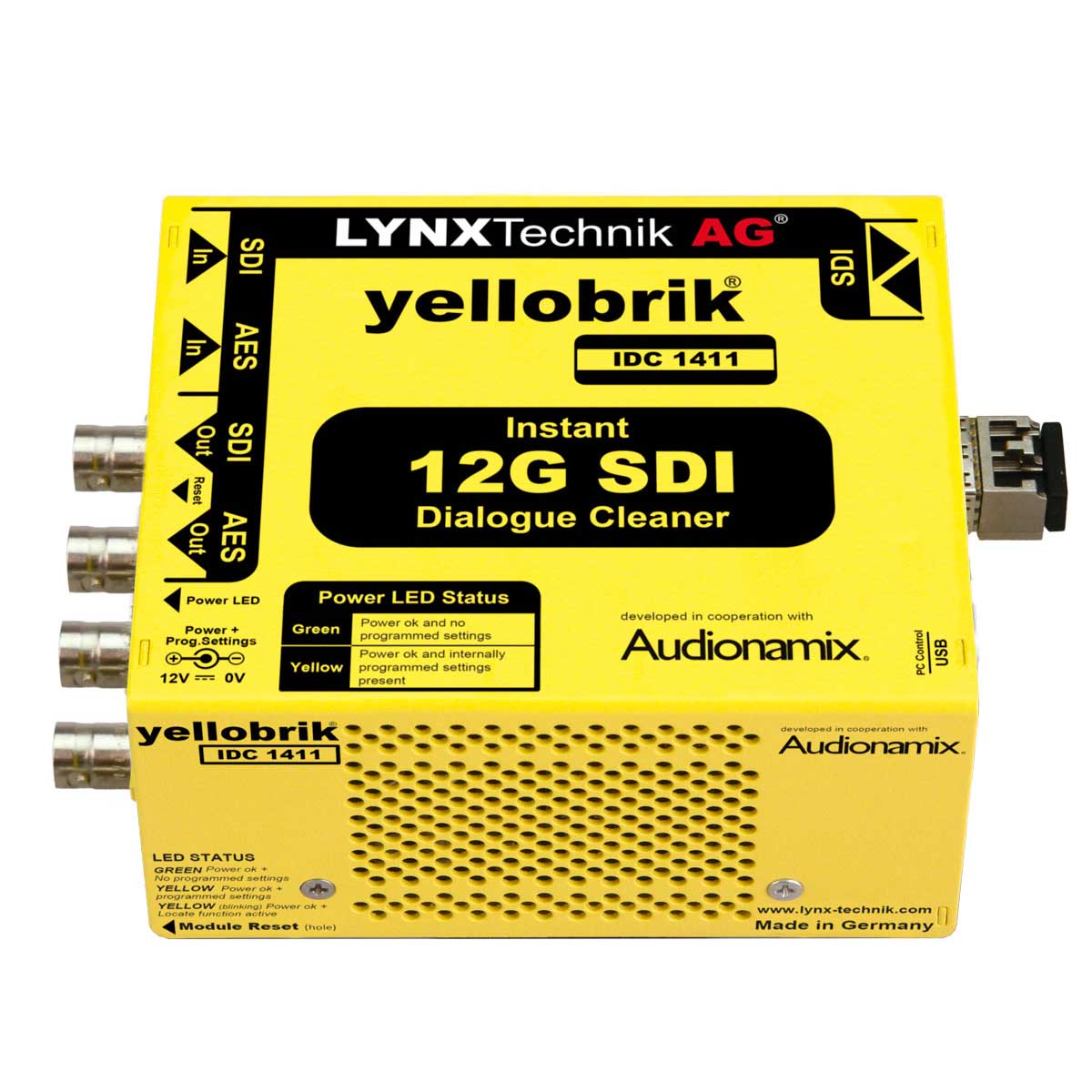

IDC 1411
AI Based Instant Dialog Cleaner
The IDC 1411 is the hardware solution for enhancing speech based on the Audionamix® Instant Dialog Cleaner Software Plug in. Application examples include parallel production of content for hearing impaired viewers, improved production of automated closed captions with clearer audio, and reducing background noise and enhancing dialog for event sports / news / studio commentary
The module is designed to process uncompressed SDI video formats with embedded audio up to 12G via BNC or fiber, and also direct AES audio input via a BNC connection. SDI Output can be routed to fiber or BNC (electrical) via the LynxCentraal or yelloGUI control software.

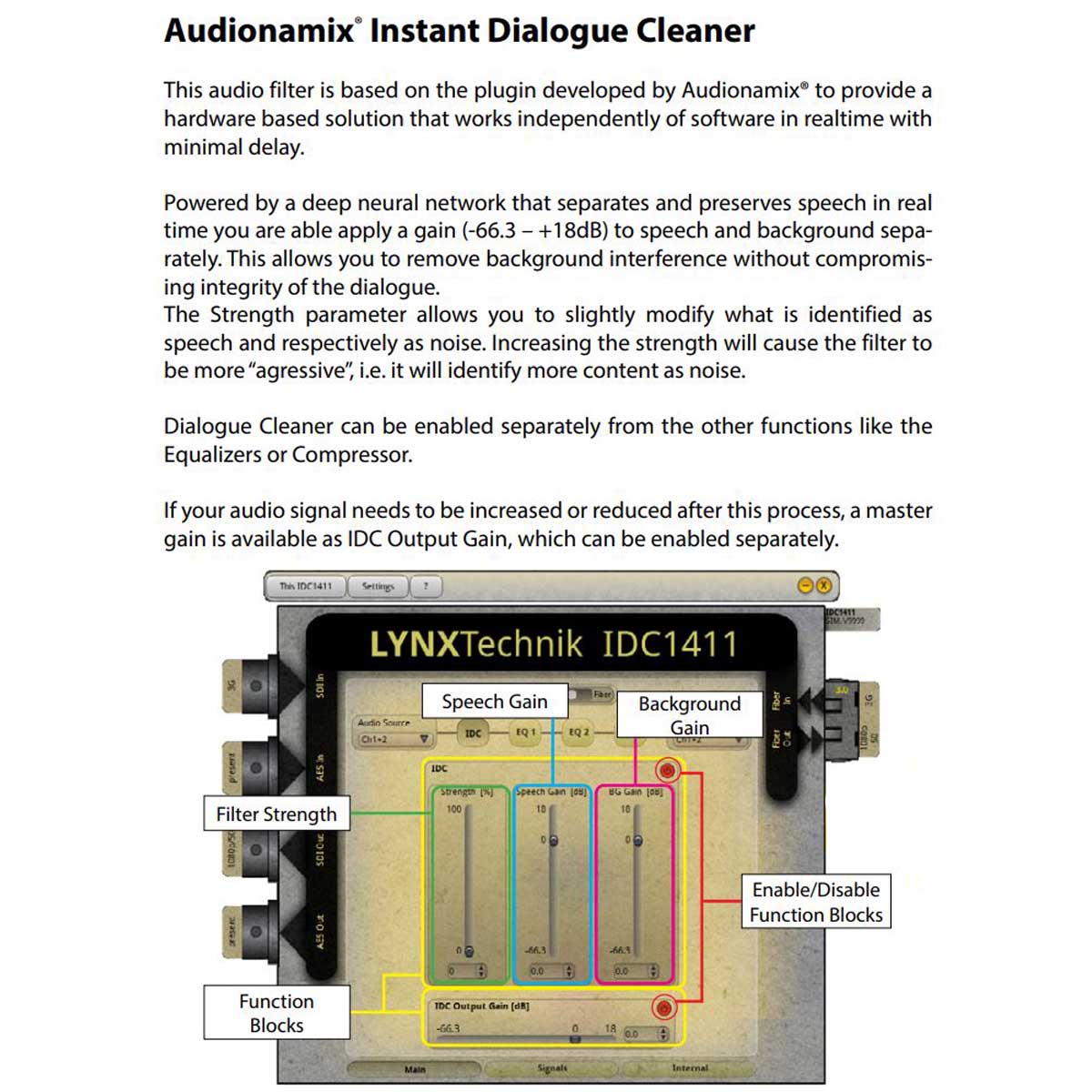

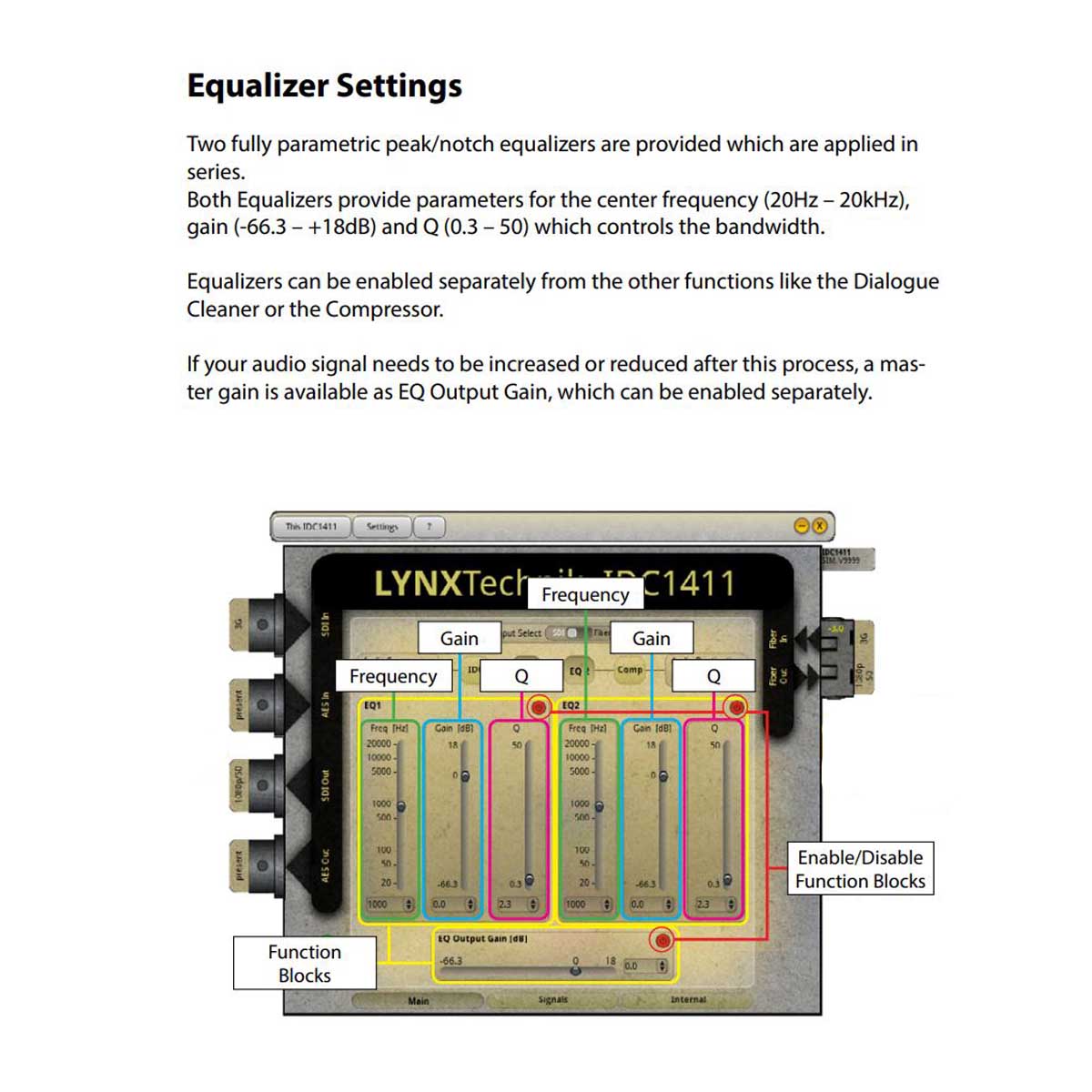

When connected to a PC or MAC via LynxCentraal or yelloGUI control software the user has access to the IDC basic settings, two sequential equalizers, and a compressor. Additionally, each filter section has its own gain settings.
Powered by a deep neural network that separates and preserves speech in real time gain can be applied to speech (dialog) and background sounds separately. This allows the removal of background interference without compromising integrity of the dialog.
The module is suitable for all SMPTE standard signals conforming to SMPTE 292M, 424M, and 2082 (1.5Gbit/s, 3Gbit/s, and 12Gbit/s)
Below see some examples of the IDC 1411 reducing background noise
No more pages to load
Key Features
- 1.5G, 3G, or 12G SDI video Input
- Select audio source from embedded audio or external AES Input (2 channels)
- Embedded or AES processed audio outputs (2 channels)
- Optional Fiber SFP for fiber SDI I/O
- Video is automatically delayed to match audio delay
- Settings for Speech Gain, Background Gain, Compressor and more.
- Module Settings and signal routing applied via LYNX Centraal or yelloGUI control software.
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479328914 | IDC 1411 | AI Instant Dialog Cleaner |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| Fiber Options | ||
| 4250479325036 | OH-TX-12G-LC | 12G SDI Fiber Transmitter (LC) |
| 4250479327528 | OH-TX-12G-ST | 12G SDI Fiber Transmitter (ST) |
| 4250479325043 | OH-RX-12G-LC | 12G SDI Fiber Receiver (LC) |
| 4250479327511 | OH-RX-12G-ST | 12G SDI Fiber Receiver (ST) |
| 4250479325029 | OH-TR-12G-LC | 12G SDI Transceiver |
| CWDM Fiber (TX) | ||
| 4250479325630 | OH-TX-12G-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479325647 | OH-TX-12G-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479325654 | OH-TX-12G-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479325661 | OH-TX-12G-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479327979 | OH-TX-12G-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479327986 | OH-TX-12G-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479327993 | OH-TX-12G-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479328006 | OH-TX-12G-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479328013 | OH-TX-12G-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479328020 | OH-TX-12G-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479328037 | OH-TX-12G-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479328044 | OH-TX-12G-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479328051 | OH-TX-12G-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479328068 | OH-TX-12G-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479325685 | OH-TX-12G-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479325692 | OH-TX-12G-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479325708 | OH-TX-12G-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479325715 | OH-TX-12G-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| CWDM Fiber (TR) | ||
| 4250479326552 | OH-TR-12G-1270 | SDI TR Fiber SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12G-1290 | SDI TR Fiber SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12G-1310 | SDI TR Fiber SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12G-1330 | SDI TR Fiber SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12G-1350 | SDI TR Fiber SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12G-1370 | SDI TR Fiber SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12G-1390 | SDI TR Fiber SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12G-1410 | SDI TR Fiber SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12G-1430 | SDI TR Fiber SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12G-1450 | SDI TR Fiber SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12G-1470 | SDI TR Fiber SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12G-1490 | SDI TR Fiber SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12G-1510 | SDI TR Fiber SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12G-1530 | SDI TR Fiber SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12G-1550 | SDI TR Fiber SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12G-1570 | SDI TR Fiber SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12G-1590 | SDI TR Fiber SFP (CWDM) 1590nm |
| 4250479326811 | OH-TR-12G-1610 | SDI TR Fiber SFP (CWDM) 1610nm |
SDI Video I/O:
- 1x 12G SDI input on 75 Ohm BNC connector
- 1x 12G SDI output on 75 Ohm BNC connector
- SMPTE ST 2082, SMPTE 424M, SMPTE 292M
- Multi-rate re-clocking: 1.5Gbit/s – 3Gbit/s -12Gbits/s
Automatic cable EQ:
- 5Gbit/s = 220m (Belden 1694A cable)
- 3Gbit/s = 140m (Belden 1694A cable)
- 12Gbit/s = 80m (Belden 4794R cable)
SDI Fiber I/O (optional)
- 1x 12G SDI fiber RX input, 1x 12G SDI fiber TX output
- Supports: Simplex Receiver (RX), Simplex Transmitter (TX), or Duplex Transceiver (TR)
- 12G CWDM options available
- SMPTE ST297-1:2015 , ST297-2:2017
Color Precision
- YCbCr 4:2:2 10-bit
Supported Video Formats:
- UHD 3840x2160p 50 / 59.94 / 60
- HD 1920x1080p 23. 98 / 24 / 25 / 30 / 50 / 59.94 / 60
- HD 1920x1080PsF 25 / 29.97 / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Processing Delay
- 720P 23.98 / 24 / 25 / 29.97 / 30 = 2 Frames
- 720P 50 = 3 Frames
- 720P 59.94 / 60 = 4 Frames
- 1080i 50 / 59.94 / 60 = 2 Frames
- 1080psf 25 / 29.97 / 30 = 2 Frames
- 1080p 23.98 / 24 / 25 / 29.97 / 30 = 2 Frames
- 1080p 59.94 / 60 = 3 Frames
- 2160p 50 = 3 Frames
- 2160p 59.94 / 60 = 4 Frames
AES Audio Input
- AES3-id on 75Ohm BNC Connector – (2 channels)
AES Audio Output
- AES3-id on 75Ohm BNC Connector – (2 channels)
Power
- +12V DC @ 13W nominal – (supports 10 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:138mm x 90mm x 50mm
- Inches: 5.43” x 3.54” x 1.96”
Weight:
- 380g (13.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
