GMPC 2CUPXD

Dual 3G/HD/SD SDI Frame Synchronizer and UP/DOWN/CROSS converter

Specialty

Analog Audio, Digital Audio, Fiber, HDMI, SDI 1.5G, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • Two independent 3G channels (2x3G)
  • Spatial converter with a powerful region of interest (ROI) selection and scaling.
  • Deinterlacers with Motion adaptive filtering on channel 1 and channel 2
  • Automatic detection of 3G level A/B
  • Automatically match the video processing delay with embedded audio
  • Adjust saturation, black gain and hue, blanking interval deletion, aperture correction and much more
  • Adjust gain, offset, lift, and gamma for RGB and CMYK.
  • Multi-format audio embedder and de-embedder
  • Provides audio gain adjustment, mute, inversion, stereo to mono-mix and much more
  • Two Dolby E® decoders can be used to decode all 8 channels contained in a Dolby E® stream.
  • The Dolby® metadata can be mapped to VANC acc. to SMPTE 2020-3 and SMPTE 2020-2.
  • Full MADI in/out support if the greenMachine is equipped with an optionally available MADI SFP.
  • Each video and AES or MADI audio channel can be individually delayed

Description

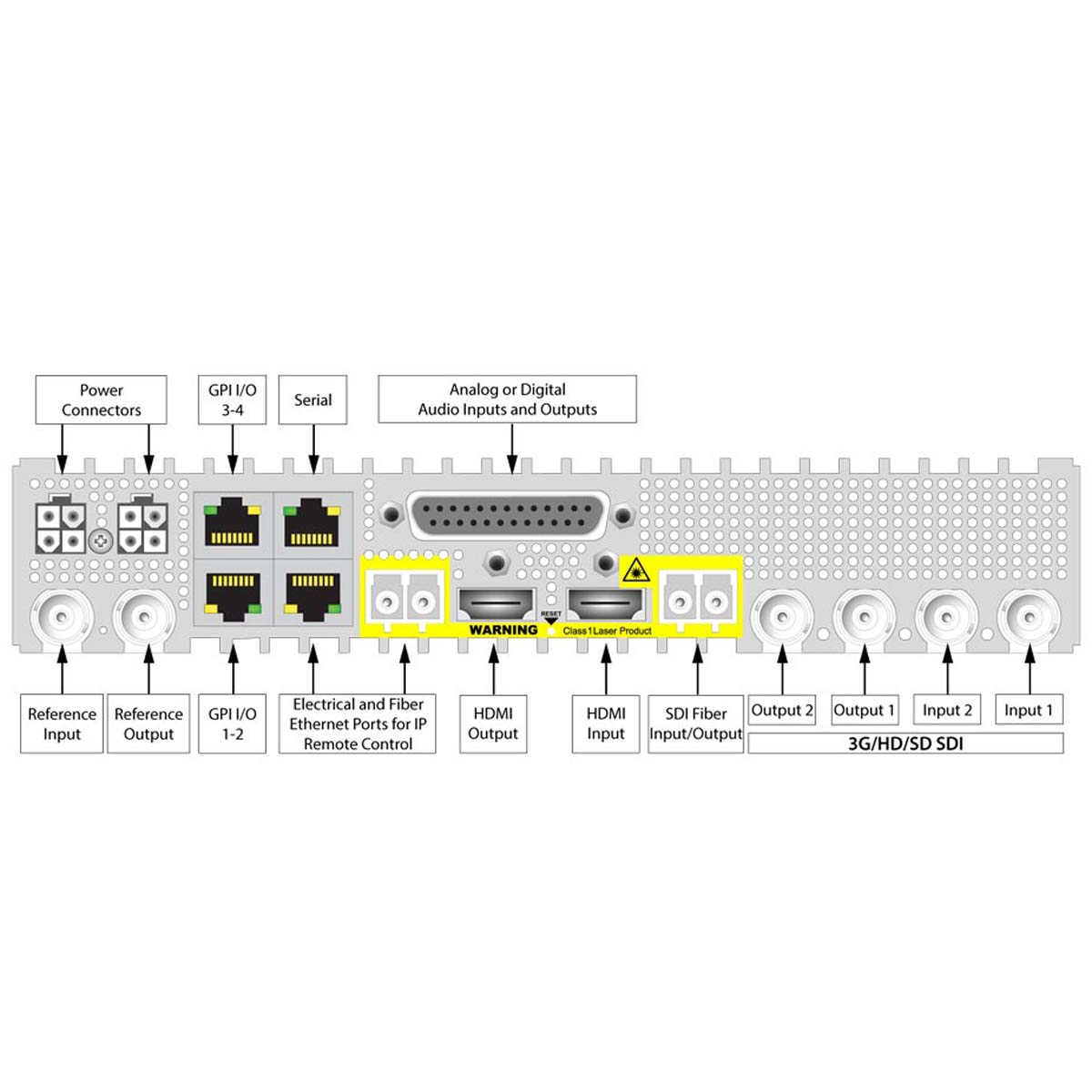

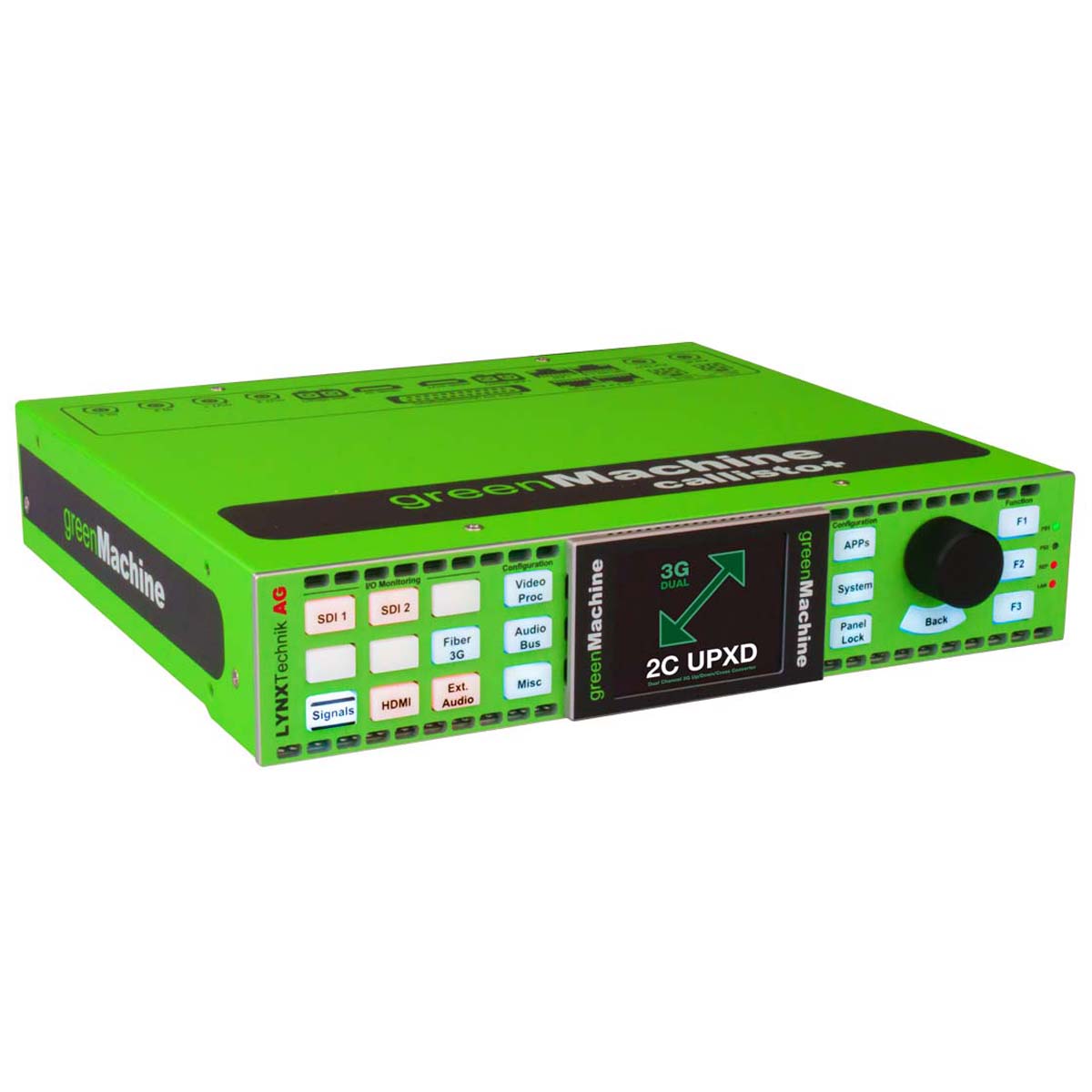

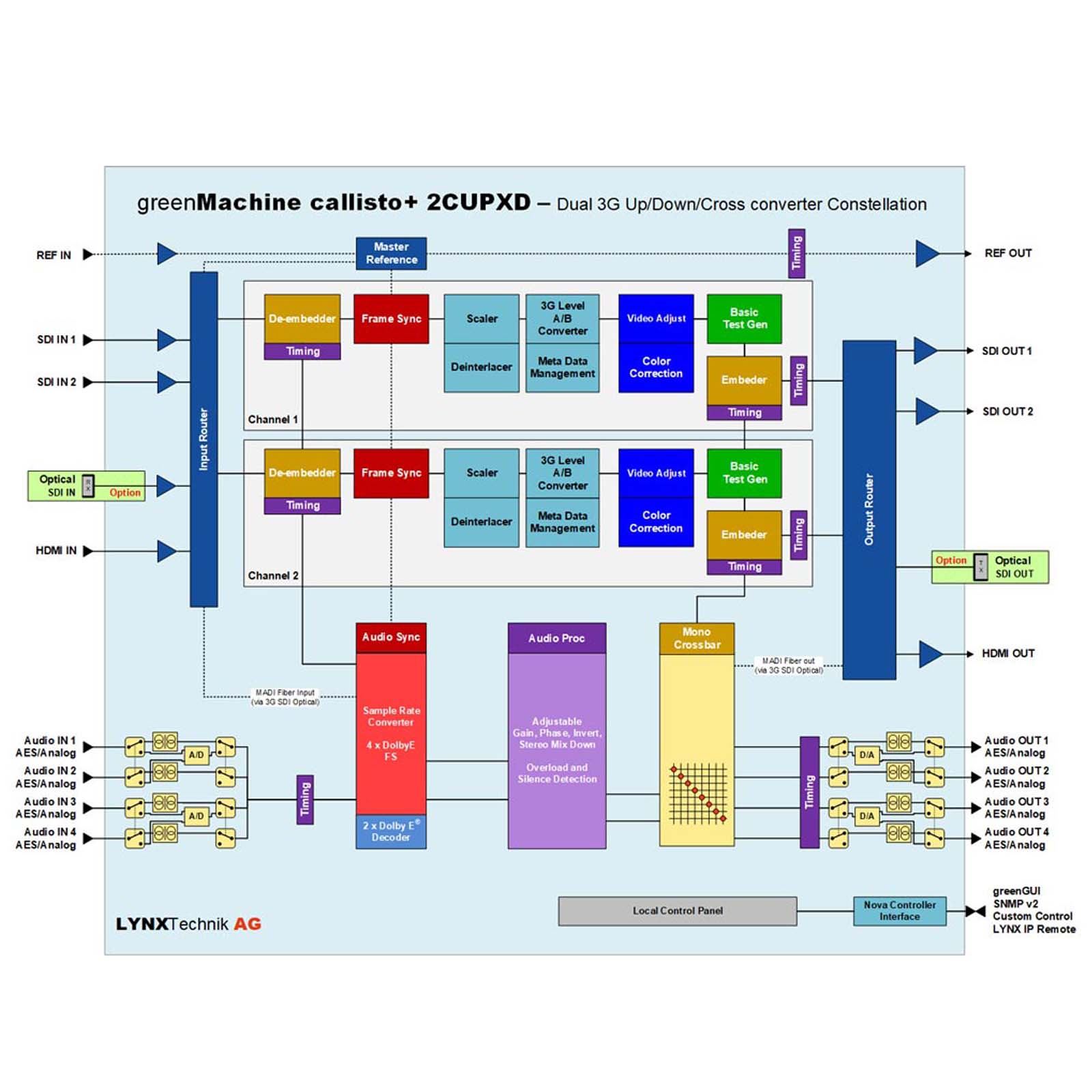

The greenMachine 2CUPXD package is a broadcast-quality video processing unit that has a dual-channel up/down/cross converter with frame synchronizer supporting formats up to 3G-SDI (1920 x 1080) per channel. It includes full audio processing capabilities, scalars for the spatial conversion of the video signals including a versatile region of interest (ROI) selection and high-performance deinterlacers on the two processing channels.

A greenMachine callisto+ with the 2CUPXD constellation deployed also provides two processing channels with independent audio embedder & de-embedder, audio processing, Dolby E® decoding, color correction and many more features. It comes with a fully-featured local control interface with LCD which displays image previews and audio level meters of the processed video paths in addition to the graphical user interface called greenGUI. It is also supported by the Nova controller which enables the module to be remotely controlled and monitored via third party master control software.

To learn more about the unique capability of the greenMachine “constellations” concept, please click here

This package includes:

  • 1 x GM 6825 greenMachine Calisto+ Hardware Platform
  • 1 x GMC-2CUPXD Constellation (licensed and installed)
  • 1 x RPS A100 US Primary Power Supply (redundant optional)



Accessories



OH-BD-1-1310

3Gbit SDI Bidirectional transceiver (single fiber)

OH-BD-1-1550

3Gbit SDI Bidirectional transceiver (single fiber)

OH-RX-1

3Gbit SDI Fiber Optic Receiver

OH-TR-1

3Gbit SDI Fiber Optic Transceiver

OH-TR-4-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (40km)

OH-TR-8-XXXX

3Gbit SDI Fiber Optic Transceiver – CWDM (80km)

OH-TX-1

3Gbit SDI Fiber Optic Transmitter

RFR 6000

19″ 1RU Rack Frame for Green Machine

RXT 6001

19″ Rack Frame Extension for RFR 6000

Ordering Information
UPC / EAN Model Description
4250479328556 GMPC-2CUPXD Calisto+ SD/HD/3G Frame Sync and UP/DOWN/CROSS Converter
Options
4250479324466 RFR 6000 1RU 19" Chassis for 1 or 2 Green Machines
4250479324367 RPS 6120 US Redundant power Supply
4250479326507 RXT 6001 PSU Extension Chassis
4250479327573 GM HARDCASE ABS Transport case for greenMachine
3G SDI Fiber
4250479318137 OH-TR-1 3G SDI Transceiver SFP (non CWDM)
4250479318205 OH-TX-1 3G SDI Transmitter SFP (non CWDM)
4250479318243 OH-RX-1 3G SDI Receiver SFP (non CWDM)
4250479318281 OH-TR-0-850 MM 3G SDI Transceiver SFP (Multimode)
Ethernet Fiber
4250479324190 OH-TR-51 Ethernet / Data SFP (non CWDM)
4250479324206 OH-TR-50-850 MM Ethernet / Data SFP (Multimode)
3G SDI WDM Fiber
4250479318298 OH-BD-1-1310 SDI Bidirectional (WDM) SFP 1310nm
4250479318304 OH-BD-1-1550 SDI Bidirectional (WDM) SFP 1550nm
CWDM 3G SDI Fiber
4250479312906 OH-TR-4-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479313101 OH-TR-4-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479313309 OH-TR-4-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479313507 OH-TR-4-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479313705 OH-TR-4-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479313903 OH-TR-4-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479314108 OH-TR-4-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479314306 OH-TR-4-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479314504 OH-TR-4-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479314702 OH-TR-4-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479314900 OH-TR-4-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479315105 OH-TR-4-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479315303 OH-TR-4-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479315501 OH-TR-4-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479315709 OH-TR-4-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479315907 OH-TR-4-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479316102 OH-TR-4-1610 SDI Transceiver SFP (CWDM) 1610nm
Long Haul CWDM 3G SDI Fiber
4250479320772 OH-TR-8-1270 SDI Transceiver SFP (CWDM) 1270nm
4250479320789 OH-TR-8-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479320796 OH-TR-8-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479320802 OH-TR-8-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479320819 OH-TR-8-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479320826 OH-TR-8-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479320833 OH-TR-8-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479320840 OH-TR-8-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479320857 OH-TR-8-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479320864 OH-TR-8-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479320871 OH-TR-8-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479320888 OH-TR-8-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479320895 OH-TR-8-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479320901 OH-TR-8-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479320918 OH-TR-8-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479320925 OH-TR-8-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479320932 OH-TR-8-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479320949 OH-TR-8-1610 SDI Transceiver SFP (CWDM) 1610nm
CWDM Data Fiber
4250479312753 OH-TR-54-1270 Data Transceiver SFP 1270nm (CWDM)
4250479312951 OH-TR-54-1290 Data Transceiver SFP 1290nm (CWDM)
4250479313156 OH-TR-54-1310 Data Transceiver SFP 1310nm (CWDM)
4250479313354 OH-TR-54-1330 Data Transceiver SFP 1330nm (CWDM)
4250479313552 OH-TR-54-1350 Data Transceiver SFP 1350nm (CWDM)
4250479313750 OH-TR-54-1370 Data Transceiver SFP 1370nm (CWDM)
4250479313958 OH-TR-54-1390 Data Transceiver SFP 1390nm (CWDM)
4250479314153 OH-TR-54-1410 Data Transceiver SFP 1410nm (CWDM)
4250479314351 OH-TR-54-1430 Data Transceiver SFP 1430nm (CWDM)
4250479314559 OH-TR-54-1450 Data Transceiver SFP 1450nm (CWDM)
4250479314757 OH-TR-54-1470 Data Transceiver SFP 1470nm (CWDM)
4250479314955 OH-TR-54-1490 Data Transceiver SFP 1490nm (CWDM)
4250479315150 OH-TR-54-1510 Data Transceiver SFP 1510nm (CWDM)
4250479315358 OH-TR-54-1530 Data Transceiver SFP 1530nm (CWDM)
4250479315556 OH-TR-54-1550 Data Transceiver SFP 1550nm (CWDM)
4250479315754 OH-TR-54-1570 Data Transceiver SFP 1570nm (CWDM)
4250479315952 OH-TR-54-1590 Data Transceiver SFP 1590nm (CWDM)
4250479316157 OH-TR-54-1610 Data Transceiver SFP 1610nm (CWDM)
Long Haul CWDM Data Fiber
4250479320956 OH-TR-58-1270 Data Transceiver SFP 1270nm (CWDM)
4250479320963 OH-TR-58-1290 Data Transceiver SFP 1290nm (CWDM)
4250479320970 OH-TR-58-1310 Data Transceiver SFP 1310nm (CWDM)
4250479320987 OH-TR-58-1330 Data Transceiver SFP 1330nm (CWDM)
4250479320994 OH-TR-58-1350 Data Transceiver SFP 1350nm (CWDM)
4250479321007 OH-TR-58-1370 Data Transceiver SFP 1370nm (CWDM)
4250479321014 OH-TR-58-1390 Data Transceiver SFP 1390nm (CWDM)
4250479321021 OH-TR-58-1410 Data Transceiver SFP 1410nm (CWDM)
4250479321038 OH-TR-58-1430 Data Transceiver SFP 1430nm (CWDM)
4250479321045 OH-TR-58-1450 Data Transceiver SFP 1450nm (CWDM)
4250479321052 OH-TR-58-1470 Data Transceiver SFP 1470nm (CWDM)
4250479321069 OH-TR-58-1490 Data Transceiver SFP 1490nm (CWDM)
4250479321076 OH-TR-58-1510 Data Transceiver SFP 1510nm (CWDM)
4250479321083 OH-TR-58-1530 Data Transceiver SFP 1530nm (CWDM)
4250479321090 OH-TR-58-1550 Data Transceiver SFP 1550nm (CWDM)
4250479321106 OH-TR-58-1570 Data Transceiver SFP 1570nm (CWDM)
4250479321113 OH-TR-58-1590 Data Transceiver SFP 1590nm (CWDM)
4250479321120 OH-TR-58-1610 Data Transceiver SFP 1610nm (CWDM)
