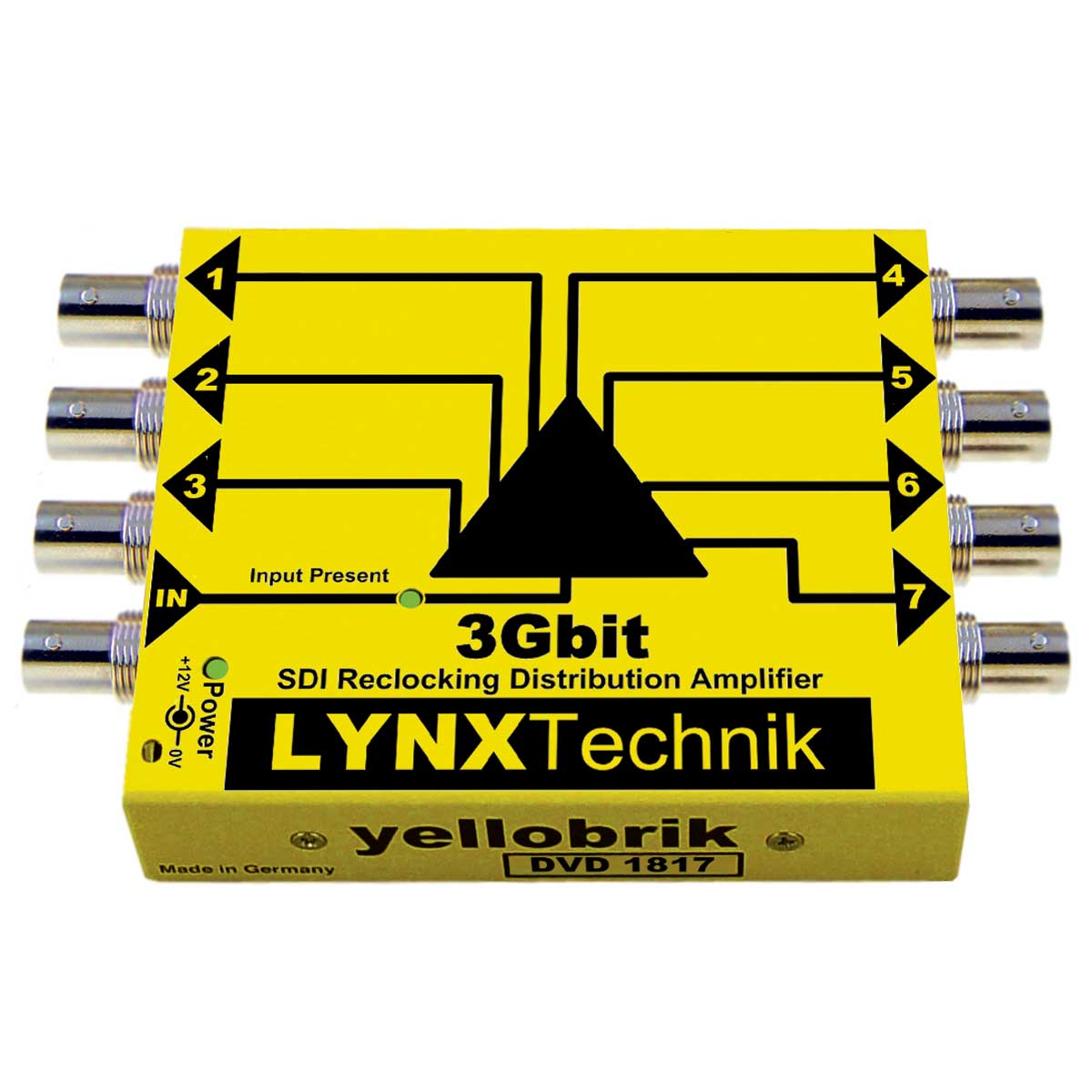

DVD 1817

1>7 Reclocking SDI Distribution Amplifier (SD/HD/3G)

Specialty

Distribution, SDI 1.5G, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • 1 input and 7 outputs
  • Suitable for SDI video up to 3Gbit/s (1080p60)
  • Level A and Level B support (all formats) and DVB-ASI
  • Reclocking
  • Auto-detect input format
  • Input present LED indication

Description

The DVD 1817 is a compact general purpose reclocking SDI distribution amplifier suitable for any level A or Level B SDI video signal up to 3Gbit (1080p60) including DVB-ASI signals.

SMPTE 424M (3Gbit/s), SMPTE 292M (1.5Gbit/s) and SMPTE 259M (270Mbit/s) standards are supported.

Accessories

RFR 1000 yellobrik central power connectors

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 yellobrik XLR power adapter cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

Ordering Information

UPC / EANModelDescription
4250479359628DVD 18171>7 SDI Distribution Amplifier (SD/HD/3G)
Options
4250479329041RFR 12001RU 19" Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-1000 4 Pin XLR Battery Power Adapter Cable
