• CDH 1411 - 12G SDI to HDMI Converter

CDH 1411

12G SDI to HDMI Converter

Datasheet
Quick Reference

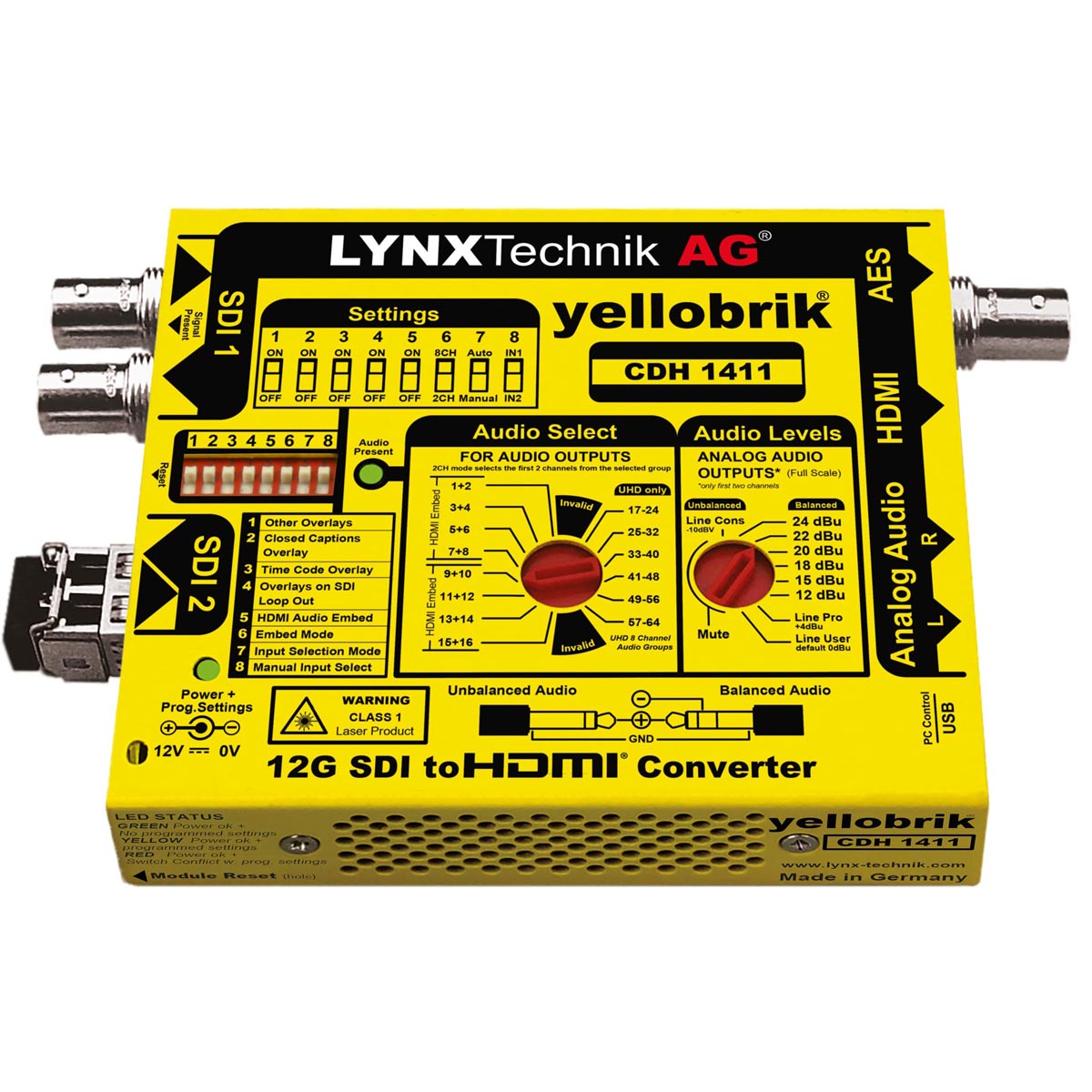

The CDH 1411 is a versatile, compact 12G-SDI to HDMI converter designed to aid monitoring and displaying uncompressed video signals in broadcast, post production and pro AV markets. Easily convert any compatible 12G-SDI video signal into the equivalent HDMI signal. Monitor Closed Captions, audio levels of embedded channels, and much more. Fiber connectivity options add SDI fiber transmission and/or SDI fiber reception using the integrated fiber SFP socket.

AES audio can be de-embedded from the 12G-SDI input onto the digital and analog audio outputs with full range presets. Any pair of selected audio channels can also be embedded into the HDMI output. Alternatively 8 channels selected from the input signal (8 audio groups in 64 channels) can be embedded into the HDMI output.

Various burn in features make the CDH 1411 a versatile monitoring tool. Individually selectable Timecode Burn-in, Closed Caption Burn-in, 16 channel Audio Metering, Safe Area Markers, and Metadata Display are just a few of the on-screen monitoring features. Burn in can be applied to the HDMI output only, or the HDMI and SDI outputs.

The module is fully compatible with yelloGUI and LynxCentraal. It can be configured, controlled and updated using Windows or MacOS.

Loading...

Accessories

RFR 1200 - 19" 1RU rck frame for up to 14 yellobriks

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 - 4 pin XLR Power Adapter Cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

No more pages to load

Key Features

  • Support for 1.5G / 3G / 6G / 12G SDI video inputs
  • Automatic Input Detection
  • Supports HDR and WCG indication at HDMI output
  • Support HMDI EOTF for HDR and WCG
  • Up to 4K YCbCr/RGB 4:4:4
  • Auto Color Range Detection via VPID
  • Analog and AES Audio Outputs
  • Embedded Audio on HDMI
  • Timecode, Metadata and Closed Caption burn-in
  • 16 Channel on-screen audio level meter
  • H/V delay & H flip with Safe Area markers
  • yelloGUI / LYNX Centraal compatible

Ordering Information

UPC / EANModelDescription
4250479327436CDH 141112G SDI to HDMI Converter
Options
42504793129401RFR 12001RU 19″ Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-1000 4 Pin XLR Battery Power Adapter Cable
Fiber Options
4250479325036OH-TX-12G-LC12G SDI Fiber Transmitter (LC)
4250479327528OH-TX-12G-ST12G SDI Fiber Transmitter (ST)
4250479325043OH-RX-12G-LC12G SDI Fiber Receiver (LC)
4250479327511OH-RX-12G-ST12G SDI Fiber Receiver (ST)
4250479325029OH-TR-12G-LC12G SDI Transceiver
CWDM Fiber (TX)
4250479325630OH-TX-12G-1270SDI TX Fiber SFP (CWDM) 1270nm
4250479325647OH-TX-12G-1290SDI TX Fiber SFP (CWDM) 1290nm
4250479325654OH-TX-12G-1310SDI TX Fiber SFP (CWDM) 1310nm
4250479325661OH-TX-12G-1330SDI TX Fiber SFP (CWDM) 1330nm
4250479327979OH-TX-12G-1350SDI TX Fiber SFP (CWDM) 1350nm
4250479327986OH-TX-12G-1370SDI TX Fiber SFP (CWDM) 1370nm
4250479327993OH-TX-12G-1390SDI TX Fiber SFP (CWDM) 1390nm
4250479328006OH-TX-12G-1410SDI TX Fiber SFP (CWDM) 1410nm
4250479328013OH-TX-12G-1430SDI TX Fiber SFP (CWDM) 1430nm
4250479328020OH-TX-12G-1450SDI TX Fiber SFP (CWDM) 1450nm
4250479328037OH-TX-12G-1470SDI TX Fiber SFP (CWDM) 1470nm
4250479328044OH-TX-12G-1490SDI TX Fiber SFP (CWDM) 1490nm
4250479328051OH-TX-12G-1510SDI TX Fiber SFP (CWDM) 1510nm
4250479328068OH-TX-12G-1530SDI TX Fiber SFP (CWDM) 1530nm
4250479325685OH-TX-12G-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479325692OH-TX-12G-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479325708OH-TX-12G-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479325715OH-TX-12G-1610SDI TX Fiber SFP (CWDM) 1610nm
CWDM Fiber (TR)
4250479326552OH-TR-12G-1270SDI TR Fiber SFP (CWDM) 1270nm
4250479326569OH-TR-12G-1290SDI TR Fiber SFP (CWDM) 1290nm
4250479326576OH-TR-12G-1310SDI TR Fiber SFP (CWDM) 1310nm
4250479326583OH-TR-12G-1330SDI TR Fiber SFP (CWDM) 1330nm
4250479326682OH-TR-12G-1350SDI TR Fiber SFP (CWDM) 1350nm
4250479326699OH-TR-12G-1370SDI TR Fiber SFP (CWDM) 1370nm
4250479326705OH-TR-12G-1390SDI TR Fiber SFP (CWDM) 1390nm
4250479326712OH-TR-12G-1410SDI TR Fiber SFP (CWDM) 1410nm
4250479326729OH-TR-12G-1430SDI TR Fiber SFP (CWDM) 1430nm
4250479326736OH-TR-12G-1450SDI TR Fiber SFP (CWDM) 1450nm
4250479326743OH-TR-12G-1470SDI TR Fiber SFP (CWDM) 1470nm
4250479326750OH-TR-12G-1490SDI TR Fiber SFP (CWDM) 1490nm
4250479326767OH-TR-12G-1510SDI TR Fiber SFP (CWDM) 1510nm
4250479326774OH-TR-12G-1530SDI TR Fiber SFP (CWDM) 1530nm
4250479326781OH-TR-12G-1550 SDI TR Fiber SFP (CWDM) 1550nm
4250479326798OH-TR-12G-1570 SDI TR Fiber SFP (CWDM) 1570nm
4250479326804OH-TR-12G-1590 SDI TR Fiber SFP (CWDM) 1590nm
4250479326811OH-TR-12G-1610SDI TR Fiber SFP (CWDM) 1610nm

SDI Video I/O:

  • 1x 12G SDI input on 75 Ohm BNC connector
  • 1x 12G SDI output on 75 Ohm BNC connector
  • 3G-SDI Level A & B-DL & B-DS according to SMPTE ST 425-1
  • SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
  • Multi-rate re-clocking: 1.5Gbit/s – 3Gbit/s – 6Gbits/s -12Gbits/s

Automatic cable EQ:

  • 5Gbit/s = 190m (Belden 1694A cable)
  • 3Gbit/s = 150m (Belden 1694A cable)
  • 12Gbit/s = 85m (Belden 4794R cable)

SDI Fiber I/O (optional)

  • 1x SDI fiber RX input, 1x SDI fiber TX output
  • Simplex Receiver (RX), Simplex Transmitter (TX), or Duplex Transceiver (TR)
  • 12G/3G and CWDM available options
  • SMPTE 297M – 2006

Color Precision

  • YCbCr 4:2:0 8, 10-bit (HDMI only)
  • YCbCr 4:2:2 10-bit
  • YCbCr/RGB 4:4:4 10, 12-bit (SDI)
  • YCbCr/RGB 4:4:4 8-bit (HDMI)

Supported Video Formats:

  • 4K        4096x2160p        23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
  • UHD     3840x2160p        23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 2K       1920x1080p         23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 /50 / 59.94 / 60
  • HD      1920x1080p         23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • HD      1920x1080PsF     23.98 / 24 /25 / 29.97 / 30
  • HD      1920x1080i           50 / 59.94 / 60
  • HD      1280x720p            23.98 / 24 /25 / 29.97 / 30 / 50 / 59.94 / 60

HDMI Output

  • HDMI 2.0b Type A connector
  • 2 or 8 channel audio embedding (selectable)

AES Audio Output

  • AES3-id on 75 Ohm BNC, 2 channels (selectable channels)

Analog Audio Output

  • Left and right analog audio using 3.5mm jack sockets
  • Balanced mode with 24, 22, 20, 18, 15, 12dBu, Line Level Pro (4dBu) and Line Use
  • Unbalanced mode with Line Level Cons (-10 dBV)

5.1 Downmix

  • 1 to Stereo Downmix (selectable)
  • For AES and Analog Audio outputs only

Power

  • +12V DC @ 3.7W nominal – (supports 7 – 24V DC input range)
  • Power Present LED on side of module

Physical Size: (including connectors)

  • Metric:140mm x 90mm x 22mm
  • Inches: 5.51” x 3.54” x 0.86”

Weight:

  • 230g (8.11oz)

Operational Temperature Range:

  • Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
