CDE 1922
3G-SDI to ST 2110 Bi-Directional Converter

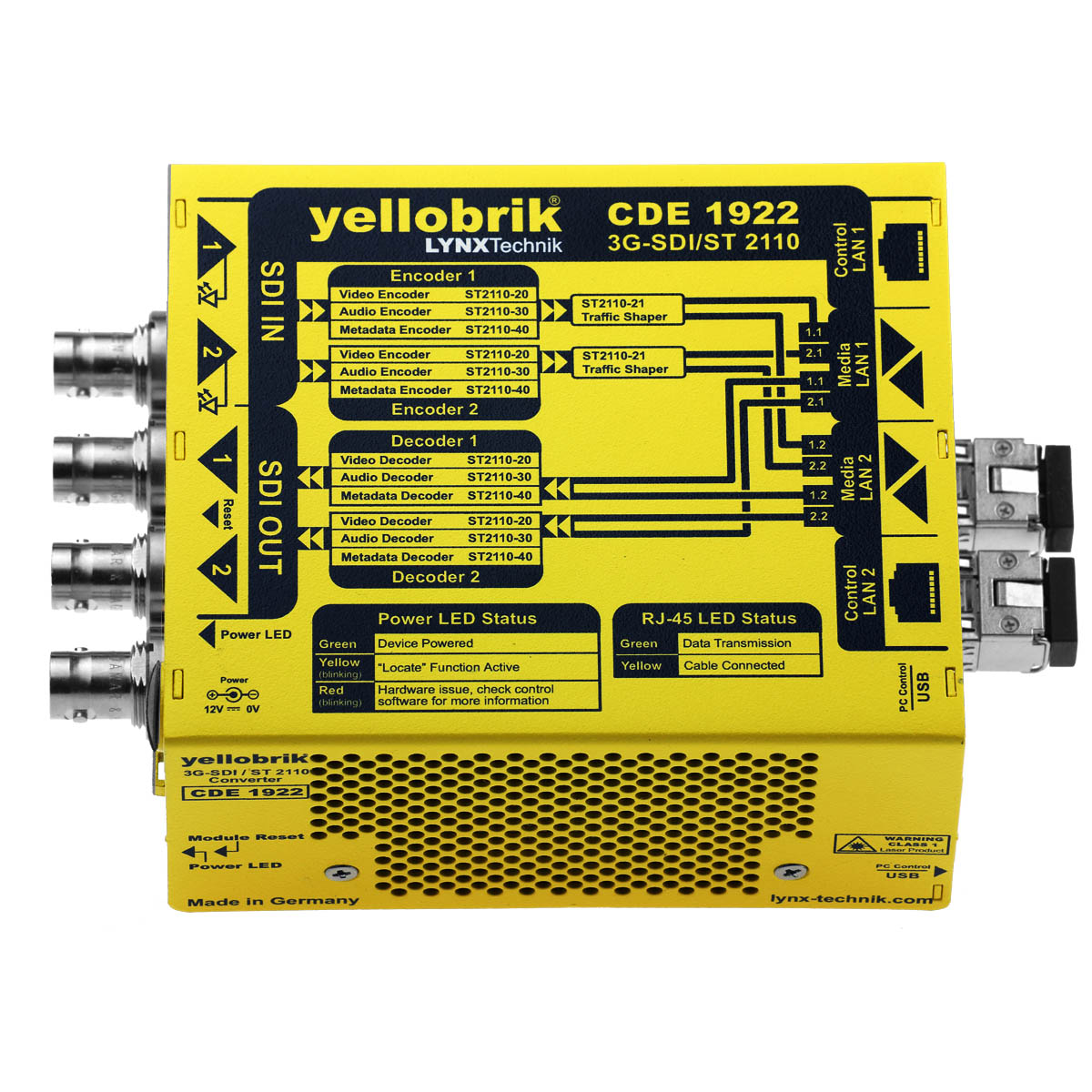

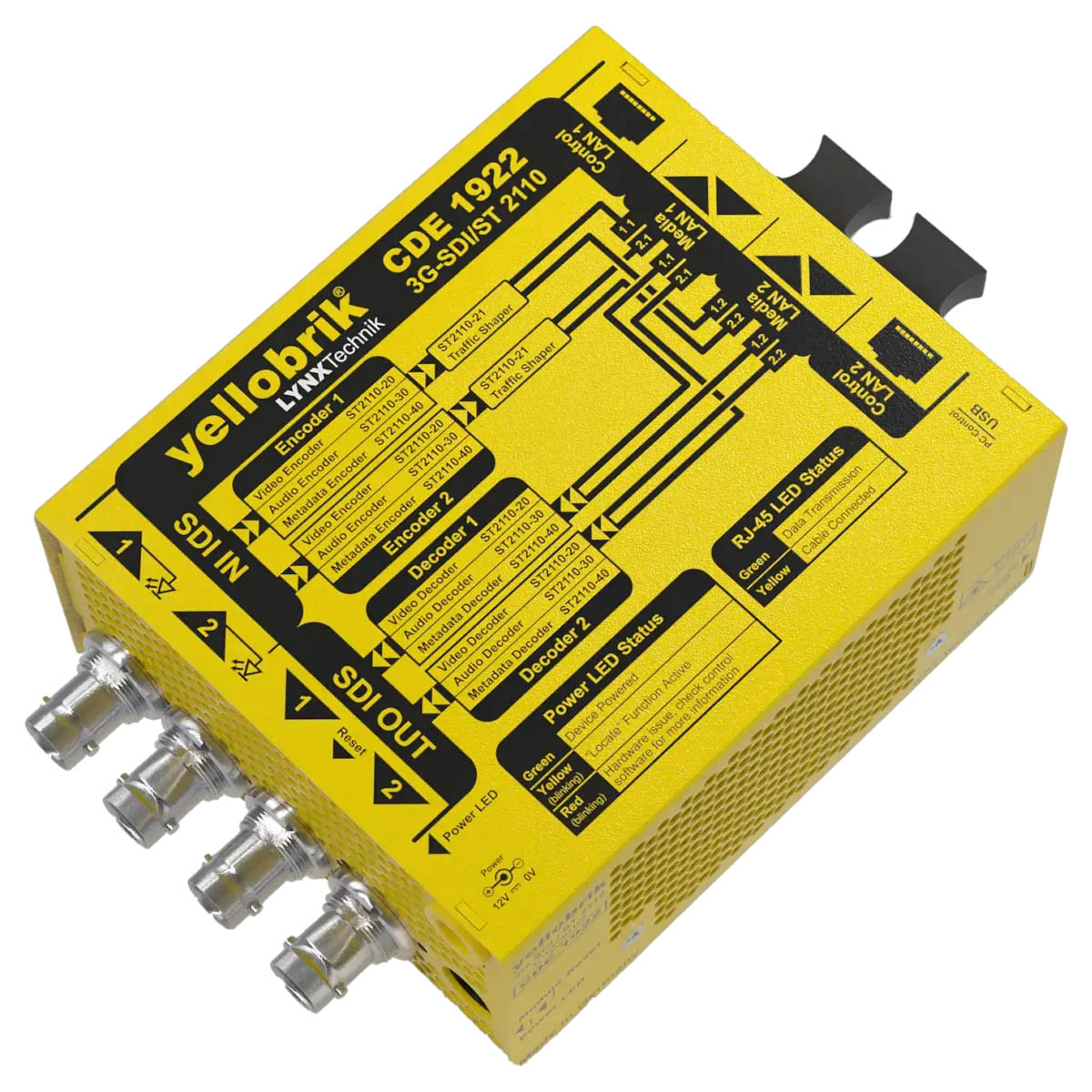

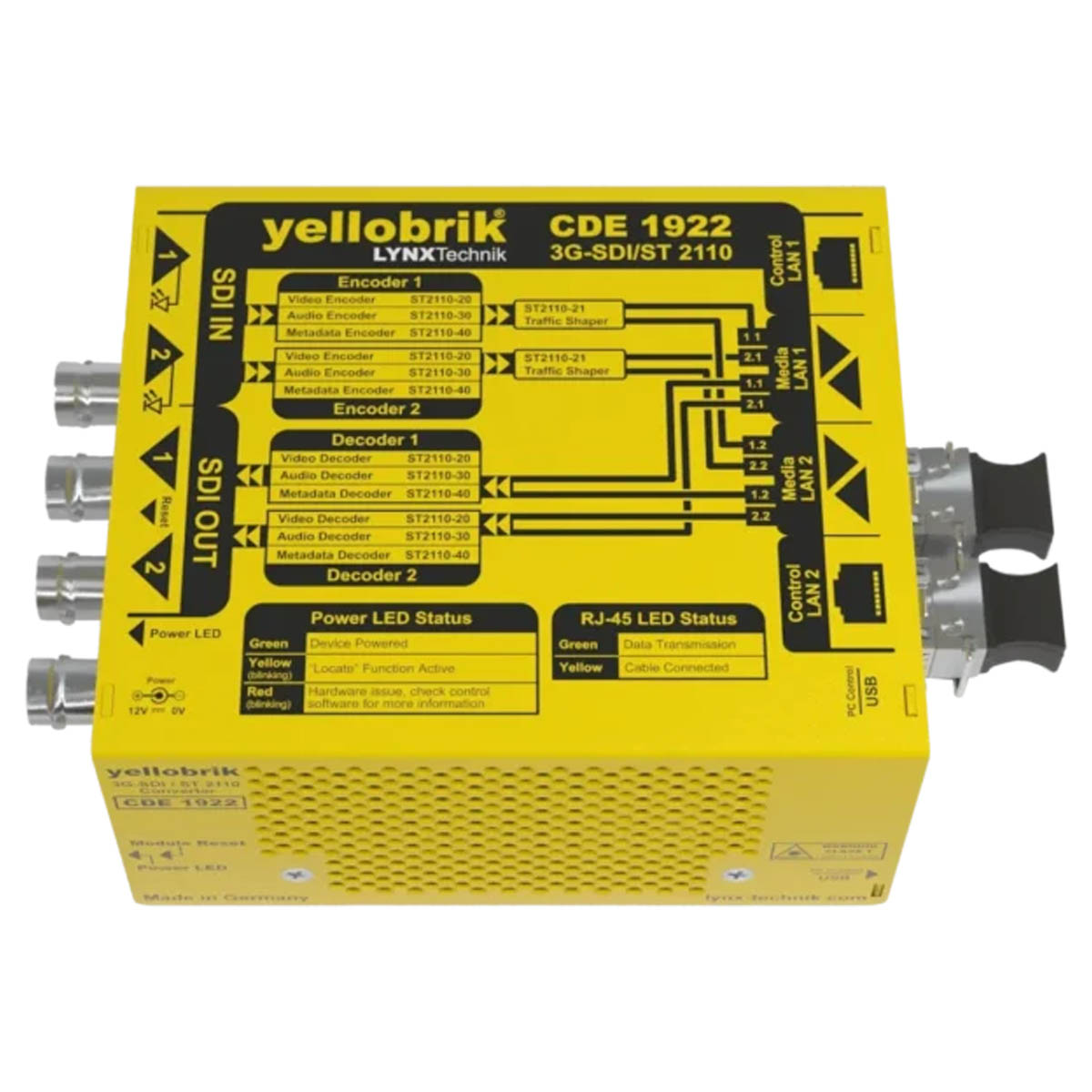

The CDE 1922 is a high performance 3G-SDI to/from IP ST 2110 bridge capable of handling up to four HD video streams simultaneously: 2x 3G-SDI to IP and 2x IP to 3G-SDI. The converter has 2x ST2110-30 audio encoders and 2x ST2110-30 audio decoders working simultaneously. Each encoder/decoder has a maximum of 8 audio channels (L24, 48kHz, 4 groups) . The CDE 1922 can be equipped with a pair of 10GbE Multi-mode or Single-mode or RJ45 (electrical) SFPs.
The module is suitable for all SMPTE standard signals from 1.5G-SDI to 3G-SDI (SMPTE 292M, 424M) and 10GbE SMPTE 2110. It works with SMPTE ST 2110 uncompressed video, audio, and ancillary data, and provides full link redundancy through ST 2022-7 seamless protection switching.
The CDE 1922 can be managed via its dedicated 1GbE RJ45 control ports, each with a unique MAC address, or via in-band management over the 10GbE Media LAN connections
Built-in NMOS support for IS-04, IS-05, and IS-08 makes device discovery, registration, and connection management straightforward in IP-based workflows.
The CDE 1922 features a new web-based user interface for streamlined monitoring, along with full compatibility with yelloGUI and LynxCentraal for advanced remote control, monitoring, and error reporting.
Key Features
- Supports 3G / 1.5G SDI Standards
- ST 2110-20 Uncompressed Active Video
- SMPTE ST 291-1 Ancillary Data Support
- Frame Sync to align SDI inputs to ST 2059
- Full redundancy for IP links
- NMOS Capability for Discovery, Registration, Management and Mapping
- Seamless Protection Switching ST 2022-7
- 2x 10GbE Media LAN Transceiver SFP cage
- CDE 1922 MM = Multimode Fiber SFPs
- CDE 1922 SM = Singlemode Fiber SFPs
- CDE 1922 RJ45 = Electrical RJ45 SFPs
- 2x 1GbE RJ45 Management LAN ports
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250480129821 | CDE 1922 MM | ST 2110 Bi-Directional Converter Multimode Fiber |
| 4250480229835 | CDE 1922 SM | ST 2110 Bi-Directional Converter Singlemode Fiber |
| 4250480329849 | CDE 1922 RJ45 | ST 2110 Bi-Directional Converter RJ45 Electrical |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
SDI Video I/O:
- 2 x 3G SDI inputs on 75 Ohm BNC connectors
- 2 x 3G SDI outputs on 75 Ohm BNC connectors
- SMPTE 424M, SMPTE 292M
- Multi-rate re-clocking: 1.5Gbit/s, 3Gbit/s
Automatic cable EQ: (Belden 1694A cable)
- 5Gbit/s = 200m
- 3Gbit/s = 150m
Return Loss
- From 5MHz to 1.5GHz = >15dB
- From 1.5GHz to 3 GHz = >10dB
Color Precision
- YCbCr 4:2:2 10-bit
Supported Video Formats:
- 2K 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080PsF 23.98 / 24 /25 / 29.97 / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 23.98 / 24 /25 / 29.97 / 30 / 50 / 59.94 / 60
IP Inputs / output
- 2x 10GbE Media LAN SFP Cages
- SMPTE ST 2110-20 : Uncompressed Active Video
- SMPTE ST 2022-7: Seamless Protection Switching
- SMPTE ST2110-30: 1-8 Channel PCM Digital Audio
- SMPTE ST2110-31 Raw AES Audio
- SMPTE ST 2110-40: Ancillary Data acc. SMPTE ST 29-1
- SMPTE ST 2110-10: RTP System Timing
- SMPTE ST 2059: Precision Timing
- CDE 1922 MM = Includes 2 x 10GbE Multimode Fiber SFPs
- CDE 1922 SM = Includes 2 x 10GbE Singlemode Fiber SFPs
- CDE 1922 RJ45 = Includes 2 x 10GbE RJ45 (electrical) SFPs
IP Management
- 2x 1GbE RJ-45 built-in connectors for LAN Management. Each port is completely independent with its own MAC address.
- Supports in-band management via the 10GbE Media LAN connections.
- NMOS Capability for:
- IS-04 Discovery and Registration Specification
- IS-05 NMOS Device Connection Management Specification
- IS-08 Audio Channel Mapping
Power
- +12V DC @ 16W nominal – (supports 7 – 24V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 50mm
- Inches: 5.51” x 3.54” x 1.96”
Weight:
- 200g (7.05oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
