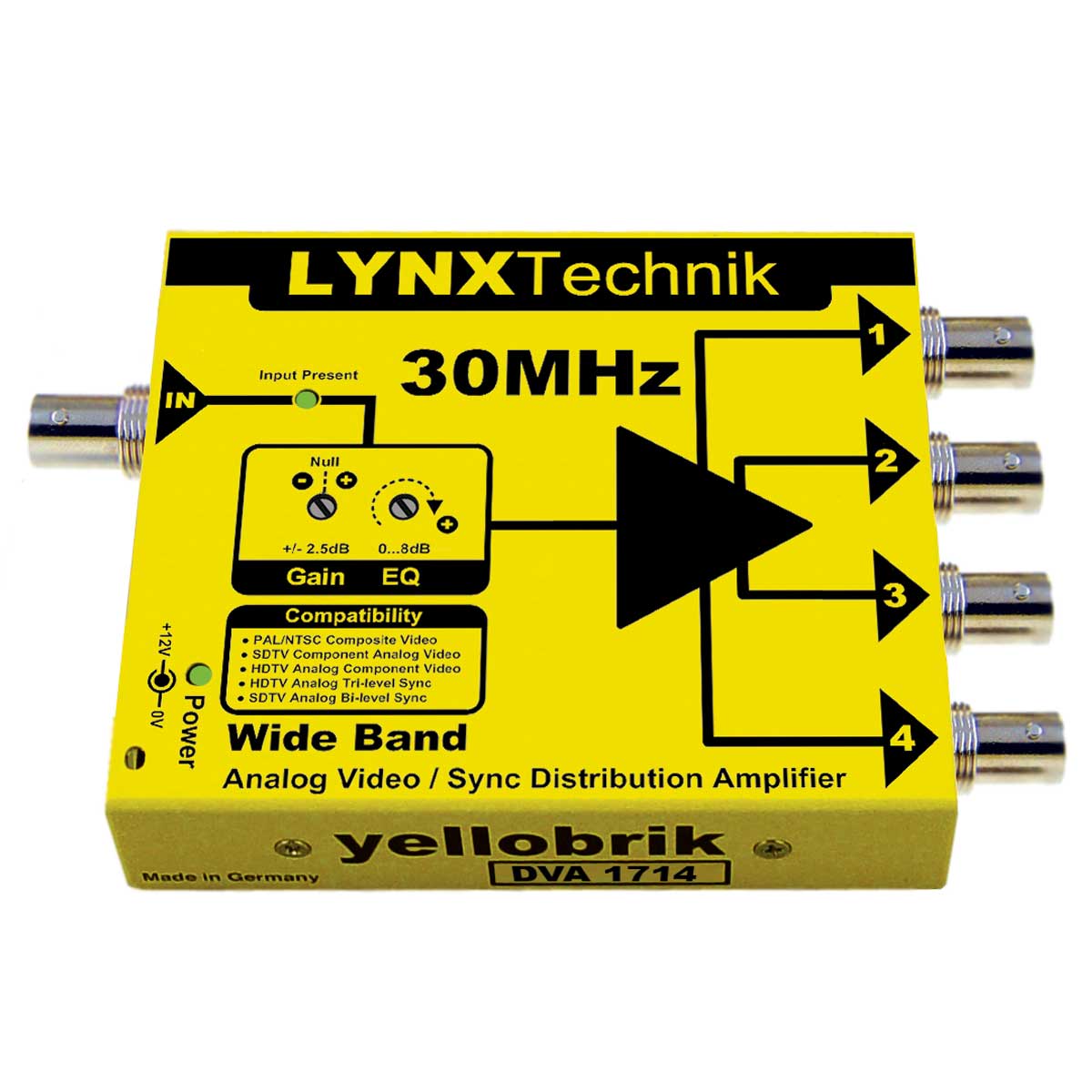

DVA 1714
1 into 4 Analog Video / Sync Distribution Amplifier
The DVA 1714 is a compact general purpose wide band analog distribution amplifier suitable for analog SDTV and HDTV video signals.
The module can also be used for analog SDTV Bi-level sync pulses, black reference and analog HDTV Tri-level sync pulses.
Features include an Input clamp with user adjustable gain and cable equalization.
LED indications are provided for signal presence and power.
Key Features
- 1 input and 4 outputs
- Wide band – 30MHz
- Adjustable gain and EQ
- Input Clamp
- Input present LED indication
- Suitable for analog SDTV/HDTV video or Sync signals
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321182 | DVA 1714 | 1>4 Analog Video/Sync Distributrion Amplifier |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
Input
- 1 x 75 Ohm BNC connection
- Compatible Analog Sources
- SDTV Composite Video (NTSC/PAL)
- SDTV Component Analog Video
- HDTV Component Analog Video
- SDTV Bi-Level Analog SYNC or Black Burst (BB)
- HDTV Tri-Level Analog SYNC
- Input clamped
- Input present LED
Return Loss
- Up to 30MHz = > 31dB
Adjustments
- Adjustable input gain range: +/- 2.5dB
- Adjustable cable EQ: 0dB to 8dB
Frequency Response
- -3dB @ 30MHz (EQ min)
- -3dB @ 37MHz (EQ max)
- +/- 0.1dB to 10MHz
Signal to Noise Ratio (SNR)
- >60dB (RMS)
Outputs
- 4 x Analog Video / Sunc outputs
- 75 Ohm BNC Connection
- Return loss: >22dB to 30MHz
Power
- +12V DC @ 1.3W nominal – (supports 7 – 24V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 220g (8.11oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
