SPG 1708
HDTV / SDTV Analog Sync Pulse Generator

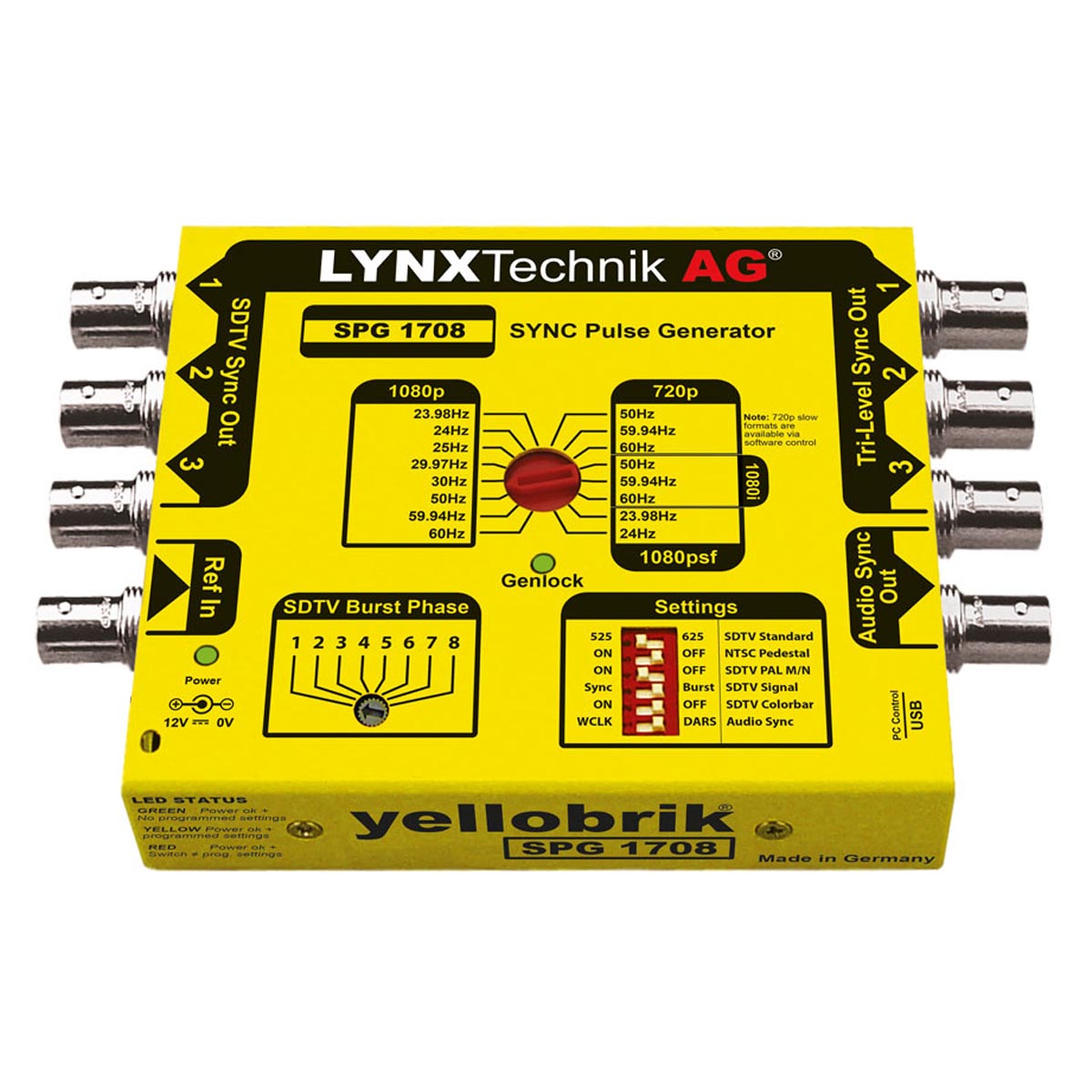

The SPG 1708 is a compact, versatile analog sync pulse generator with genlock providing Tri-/ Bi-Level video sync and audio signals. The module offers three Tri-Level sync outputs, three Bi-Level sync outputs, and a separate Audio Sync output, with 48kHz Word Clock or Digital Audio Sync Signal (DARS) capabilities.

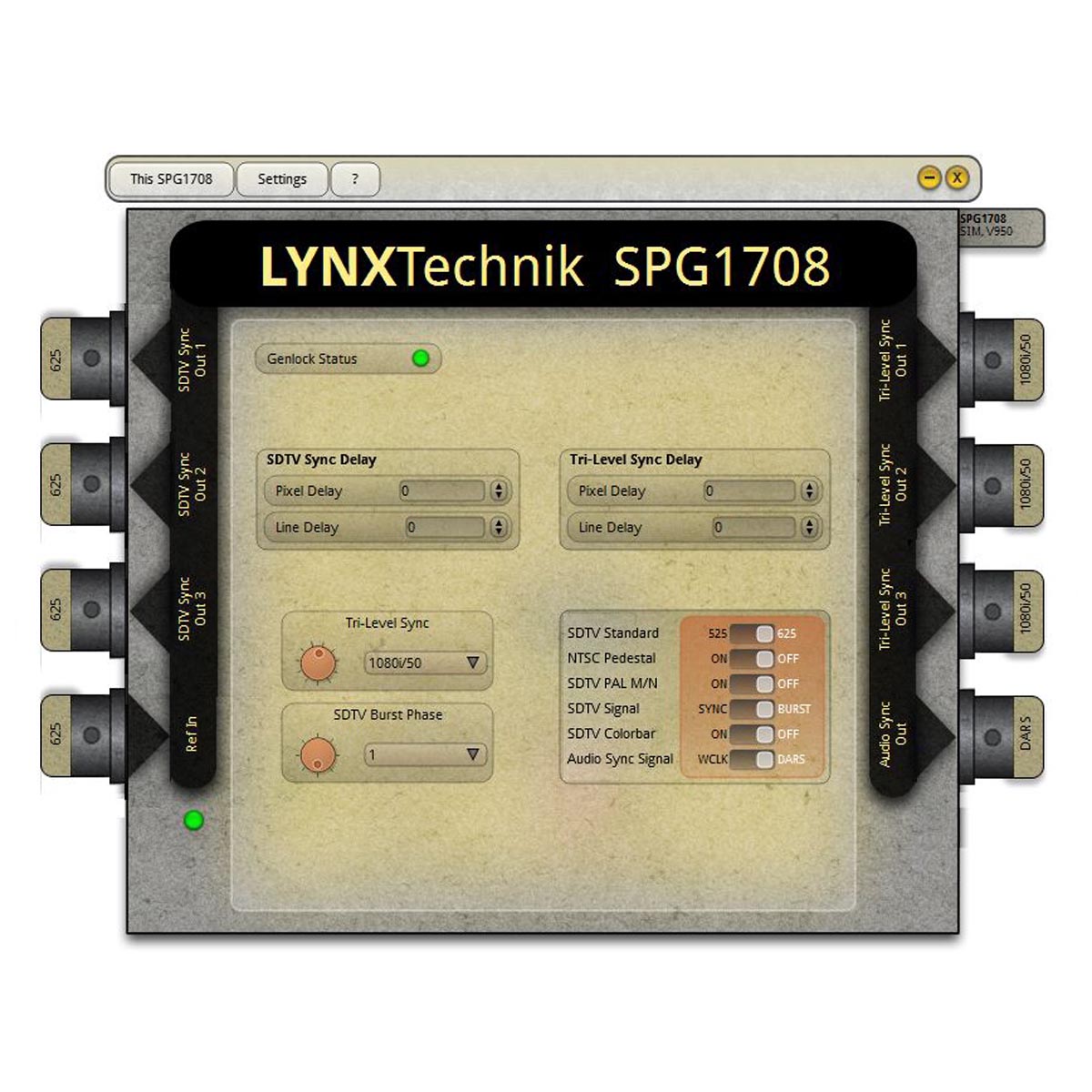

The sync generator has an accuracy of 2ppm, is robust and temperature stabilized. The flexible genlock capability allows the module to lock to any HD or SD Sync input, with full cross-lock functionality, even across unmatched standards. Bi-Level and Tri-Level sync outputs and audio sync signals are all frequency locked to the reference, regardless of the selected sync standard for the outputs. Output signals are timing locked if they are in the same frame rate group as the reference. Additionally, a delay in units of output line and pixel can be applied when remote controlling the SPG 1708 via yelloGUI.
Tri-Level Sync output Selections
- 1080i: 50Hz / 59.94Hz / 60Hz
- 1080p: 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz / 50Hz / 59.94Hz / 60Hz
- 720p: 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz / 50Hz / 59.94Hz / 60Hz
- 1080psf: 23.98Hz / 24Hz
Available sync formats for Bi-Level Sync are NTSC, PAL, or PAL M/N. In addition it can output Color Bars, Black Burst, or just the Sync signal with selectable 7.5 IRE pedestal for NTSC standards with adjustable burst phase in 8 increments. The Tri-level sync outputs can be set to any of the available HD/3G standards.
User controls are located on the top side of the module, clearly labeled, and easily accessible. When remote controlling the device via USB, more options and settings are available with the LYNX Centraal or yelloGUI software.
Key Features
- Supports all regular analog Tri- and Bi-Level sync standards
- Simultaneous HD/Tri-Level and SD/Bi-Level sync outputs
- 3 x HDTV/Tri-Level and 3 x SDTV/Bi-Level sync outputs
- Genlock with cross lock to any sync standard
- “Color Bars”, “Black Burst” or “Sync Only” for SD
- NTSC, PAL or PAL M/N for Bi-Level sync outputs
- Adjustable sync delay output relative to reference
- Burst phase adjustment for NTSC and PAL syncL
- Audio Sync output 48kHz Word Clock or DARS
- LYNX Centraal and yelloGUI compatible to access additional internal settings
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479328655 | SPG 1708 | SD/HD Analog Sync Pulse Generator with Genlock |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
HDTV Sync Outputs
- 3 x Tri-Level Analog Sync Outputs on 75 Ohm BNC Connectors
- SMPTE 274M, SMPTE 296M
- Return loss >40dB up to 5MHz
- SNR > 75dB
- HD Sync formats (selectable)
- HD 1920x1080p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080psF 98 / 24
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
SDTV Sync Outputs
- 3 x Bi-Level Analog Sync Outputs
- NTSC, PAL, PAL M/N
- SMPTE 170M, ITU-R BT470.6
- Selectable modes:
- 75% Colorbars
- Black Burst
- Bi-Level sync only
- Adjustable bust phase in 8 increments
- Return loss >40dB to 5MHz
- Signal to noise ratio >75dB
Audio Sync Output
- 1 x Audio output on 75 Ohm BNC Connector
- Selectable”
- 48KHz Word Clock: 0 -5.0v
- DARS: SMPTE276M unbalanced AES (24 bit) – Grade 2
Reference (Genlock) Input
- 1 x 75 Ohm BNC Input
- Analog Bi-Level or HD Tri-Level Sync
- SMPTE 274M, SMPTE 296M
- Cross lock compatible
Accuracy
- 2ppm (temperature controlled)
Power
- +12V DC @ 2.4W nominal – (supports 7 – 17V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.34” x 0.86”
Weight:
- 300g (10.6oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
