RCT 1012
yellobrik Rack Controller

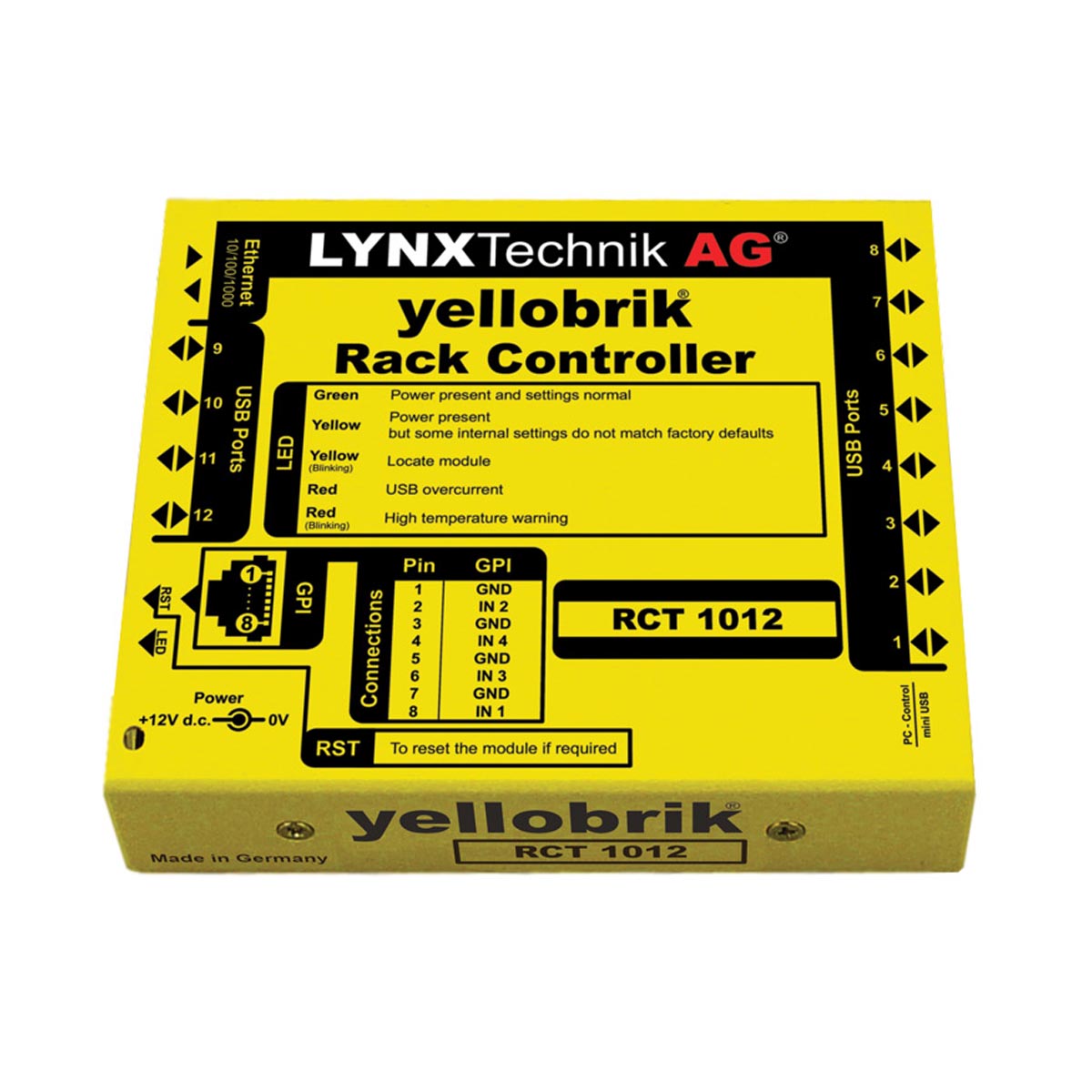

The RCT 1012 is a compact yellobrik module designed to combine the USB control of up to 12 yellobrik modules from a single ethernet port. It is a one-stop solution for the management and control of multiple yellobriks in an easy, fast, and efficient manner to set parameters and update firmware.

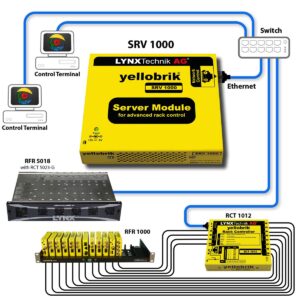

RCT 1012 automatically discovers connected devices and displays them in the device tree list below the controller node. It allows bulk firmware updates and facilitates the configuration of all connected yellobriks via the IP.

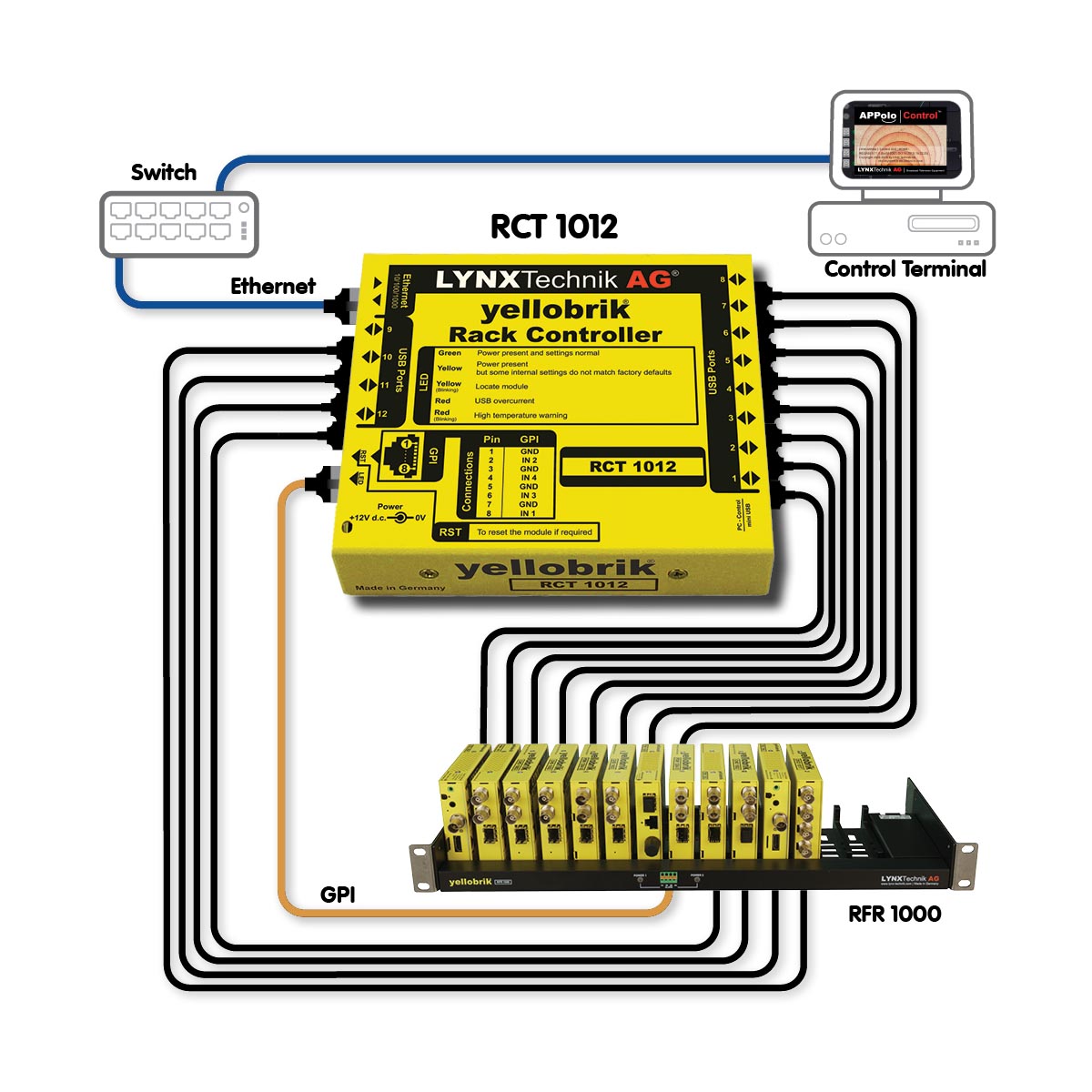

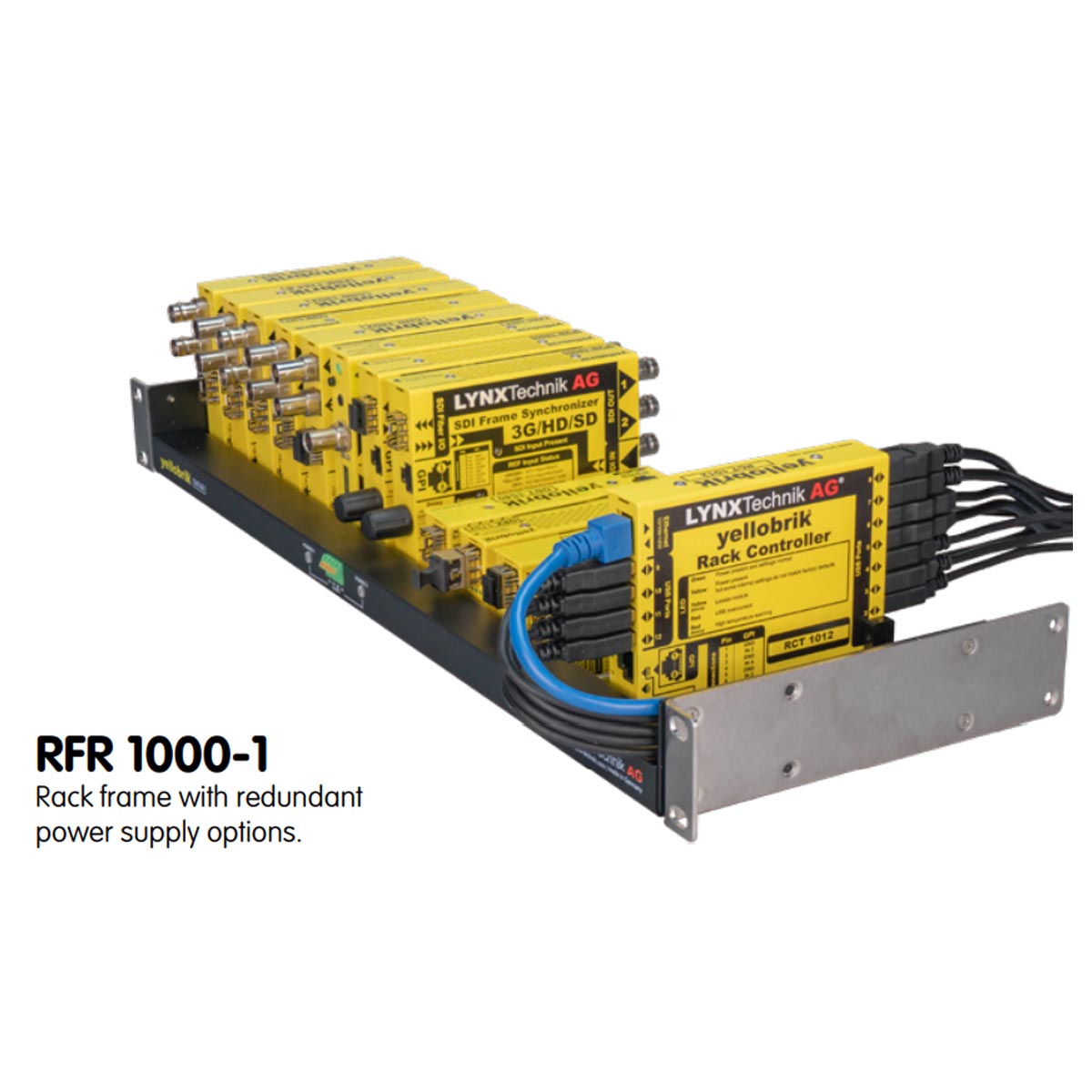

RCT 1012, when mounted on an RFR 1200 rack frame, will provide status information of the primary and redundant power supply using 4 GPI contacts.
To manage and control yellobrik modules via RCT 1012, download and install Lynx Centraal.
No more pages to load
Key Features
- Controller takes up one slot in RFR 1200 frame
- Supports up to 12 yellobriks
- Provides 12 USB A ports for connection to yellobriks
- 4 x GPI connections for monitoring power supply status of RFR 1200
- 1 x Ethernet 10/100/1000 port
- 1 x Reset button [for factory reset]
- 1 x mini USB for maintenance
- LED Status for power, USB over current, and high temperature warning
- LYNX Centraal / Server compatible to access module settings
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479326675 | RCT 1012 | yellobrik Rack Controller |
Network Connection
- RJ45 Connector
- 10/100/1000 Ethernet
USB Connections
- 12 x USB Type A ports for connection to yellobriks
- 1 x USB Type B port for maintenance
GPI Connections
- 4 x external GPI inputs
- Used to connect to RFR 1200 to monitor primary and redundant PSU status
Power
- +12V DC @ 4W nominal – (supports 7 – 24V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
