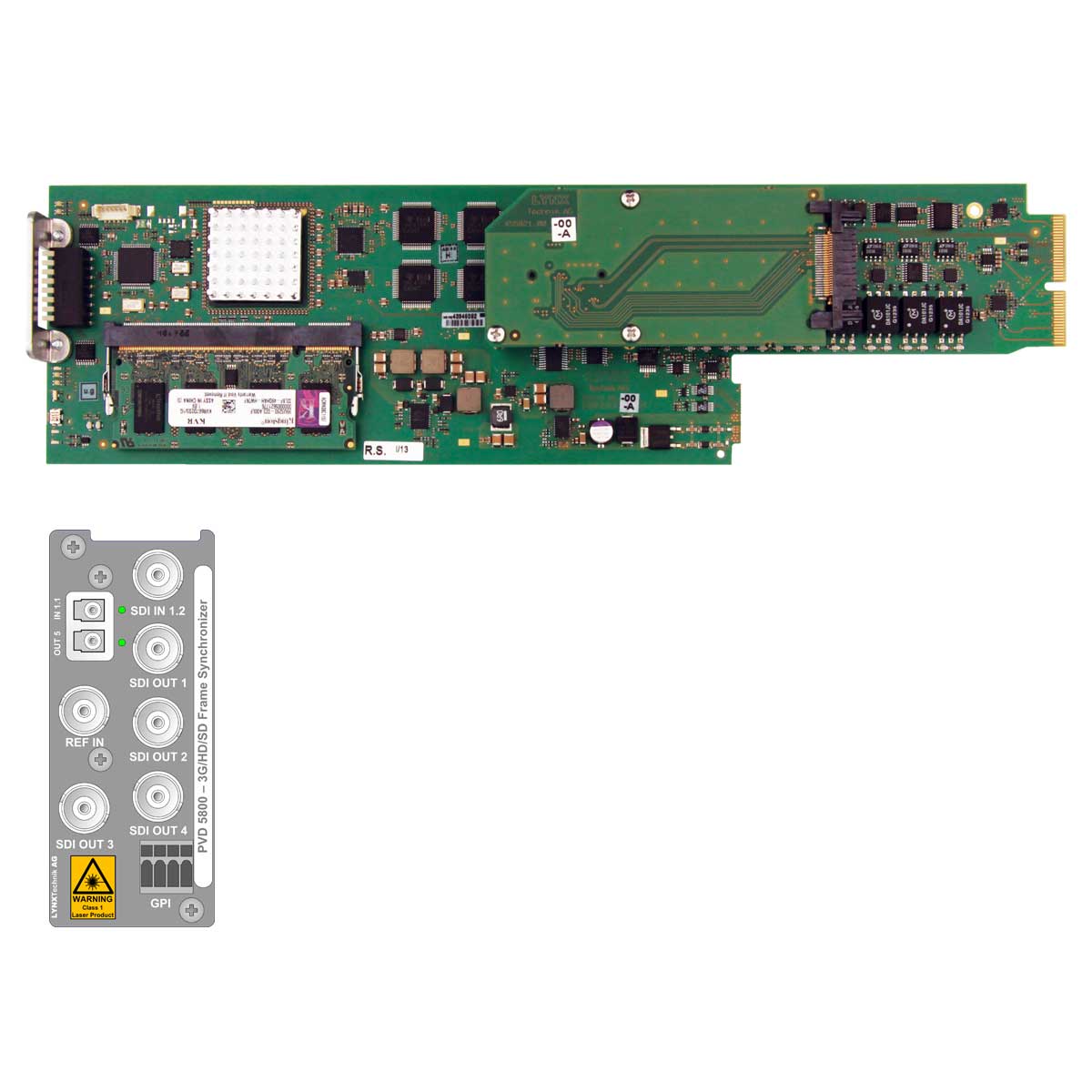

PVD 5800 O

3G SDI Frame Synchronizer with Fiber I/O

Datasheet
Reference Manual

The PVD 5800 O is a low cost utility SDI frame synchronizer which can be used for basic SDI synchronization issues in broadcast. The module offers multiformat support for SDI formats up to 3Gbit/s (auto-detect). The PVD 5800 O also features optional fiber optic SDI I/O.

The module utilizes robust “flywheel” synchronization that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. Audio is free from disturbances even when dropping and adding frames.

The module also provides up to 62 frames of programmable output delay, adjustable in frames, lines and pixels.

Microprocessor control and on-board Flash RAM enable configurations and settings to be stored within the module.

Remote control, status monitoring and error reporting is possible when using the LynxCentraal Control System.

Loading...

Accessories

No more pages to load

Key Features

  • Supports SDI formats up to 3Gbit (auto-detect)
  • Optional Fiber I/O
  • Robust “flywheel” synchronization for a wide variety of problematic sources
  • “Cross lock” compatible reference input
  • All 16 channels of audio de-embedded from SDI input, delayed to match video processing delay and re-embedded
  • 4 x SDI outputs provided
  • Integrated test pattern generator
  • Auto-tracking audio delay with no “pops” or “clicks” in audio even when dropping and adding frames
  • Up to 62 frames of programmable delay
  • Remote control and status monitoring with LynxCentraal control system
  • Hot swappable

Ordering Information

UPC / EAN Model Description
4250479322080 PVD 5800 O 3G SDI Frame Synchronizer with Fiber I/O
Options
4250479321335 RFR 5018 US 2RU Rack Frame + Primary PSU
Fiber Options
4250479320321 OH-TX-1-LC SDI TX Fiber SFP LC Connection (1310nm)
4250479320215 OH-TX-1-SC SDI TX Fiber SFP SC Connection (1310nm)
4250479320222 OH-TX-1-ST SDI TX Fiber SFP ST connection (1310nm)
4250479318236 OH-TX-0-850-MM SDI TX SFP Multimode (850nm) LC
4250479318243 OH-RX-1-LC Fiber SDI Receiver SFP LC Connection
4250479320253 OH-RX-1-Y-SC Fiber SDI Receiver SFP SC Connection
4250479320260 OH-RX-1-Y-ST Fiber SDI Receiver SFP ST Connection
4250479318274 OH-RX-0-MM Fiber SDI Receiver SFP Multimode LC
4250479318137 OH-TR-1 Fiber SDI Transceiver SFP (RX/TX) 1310nm
CWDM Fiber (TX)
4250479312715 OH-TX-4-1270 SDI TX Fiber SFP (CWDM) 1270nm
4250479312913 OH-TX-4-1290 SDI TX Fiber SFP (CWDM) 1290nm
4250479313118 OH-TX-4-1310 SDI TX Fiber SFP (CWDM) 1310nm
4250479313316 OH-TX-4-1330 SDI TX Fiber SFP (CWDM) 1330nm
4250479313514 OH-TX-4-1350 SDI TX Fiber SFP (CWDM) 1350nm
4250479313712 OH-TX-4-1370 SDI TX Fiber SFP (CWDM) 1370nm
4250479313910 OH-TX-4-1390 SDI TX Fiber SFP (CWDM) 1390nm
4250479314115 OH-TX-4-1410 SDI TX Fiber SFP (CWDM) 1410nm
4250479314313 OH-TX-4-1430 SDI TX Fiber SFP (CWDM) 1430nm
4250479314511 OH-TX-4-1450 SDI TX Fiber SFP (CWDM) 1450nm
4250479314719 OH-TX-4-1470 SDI TX Fiber SFP (CWDM) 1470nm
4250479314917 OH-TX-4-1490 SDI TX Fiber SFP (CWDM) 1490nm
4250479315112 OH-TX-4-1510 SDI TX Fiber SFP (CWDM) 1510nm
4250479315310 OH-TX-4-1530 SDI TX Fiber SFP (CWDM) 1530nm
4250479315518 OH-TX-4-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479315716 OH-TX-4-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479315914 OH-TX-4-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479316119 OH-TX-4-1610 SDI TX Fiber SFP (CWDM) 1610nm
CWDM Fiber (TR)
4250479312708 OH-TR-4-1270 SDI Transceiver SFP (CWDM) 1270nm
4250479312906 OH-TR-4-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479313101 OH-TR-4-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479313309 OH-TR-4-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479313507 OH-TR-4-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479313705 OH-TR-4-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479313903 OH-TR-4-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479314108 OH-TR-4-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479314306 OH-TR-4-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479314504 OH-TR-4-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479314702 OH-TR-4-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479314900 OH-TR-4-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479315105 OH-TR-4-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479315303 OH-TR-4-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479315501 OH-TR-4-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479315709 OH-TR-4-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479315907 OH-TR-4-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479316102 OH-TR-4-1610 SDI Transceiver SFP (CWDM) 1610nm

Supported Video Formats

  • 2K 1920x1080p        23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • HD 1920x1080p       23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • HD 1920x1080PsF  23.98, 24, 25, 29.97, 30
  • HD 1920x1080i        50, 59.94, 60
  • HD 1280x720p         23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • SD 720x625i            50
  • SD 720x525i            59.94

SDI Video Input

  • SMPTE, 292M, 424M, 259M with automatic video format and standard detection
  • YCbCr 4:2:2
  • 10-bit
  • 3G-SDI Level A or B Dual Link
  • One Input 75 Ohm BNC connector
  • 1 Fiber Input (optional) various SFP options available
  • Return loss
    • > 15dB (270Mbit)
    • > 10dB (2.97Gbit)

SDI Video Outputs

  • Four outputs 75 Ohm BNC connectors
  • 1 Fiber Output (optional) various SFP options available
  • SMPTE, 292M, 424M, 259M
  • Output format Follows input format
  • Timing jitter
    • < 0.2UI (270Mbit)
    • < 1.0UI (1.48Gbit)
    • < 2.0UI (2.97GBit)
  • Alignment jitter
    • < 0.2UI (270Mbit)
    • < 0.2UI (1.48Gbit)
    • < 0.3UI (2.97GBit)
  • Return loss
    • > 15dB (270Mbit),
    • >10dB (2.97Gbit)

Reference Input

  • Signal type Analog bi-level (SDTV) or tri-level (HDTV)
  • Auto-detect and cross lock compatible
  • 1 external input or 1 internal input (rack frame reference)
  • Connection, 75 Ohm BNC

Audio Processing

  • De-embedder
    • All 16 audio channels are de-embedded from SDI input
  • Embedder
    • All 16 audio channels re-embedded into output (1 to 1)
  • Audio delay Auto track video processing delay

Video Delay

  • Fixed delay Frame sync mode = 1 frame
  • Line sync mode = 0.5 frame
  • Adjustable delay Up to 62 frames of delay manually adjustable in frame / line / pixel increments

Electrical Specifications

  • Operating voltage 12 VDC
  • Power consumption < 10W
  • Safety IEC 60950/ EN 60950/VDE 0805

Mechanical

  • Size 283mm x 78mm
  • Weight CardModule 120g (4.2oz), connector plate 50g (1.8oz)

Ambient

  • Temperature 5°C to 40°C (41°F – 104°F) maintaining specifications
  • Humidity 90% maximum, non-condensing
