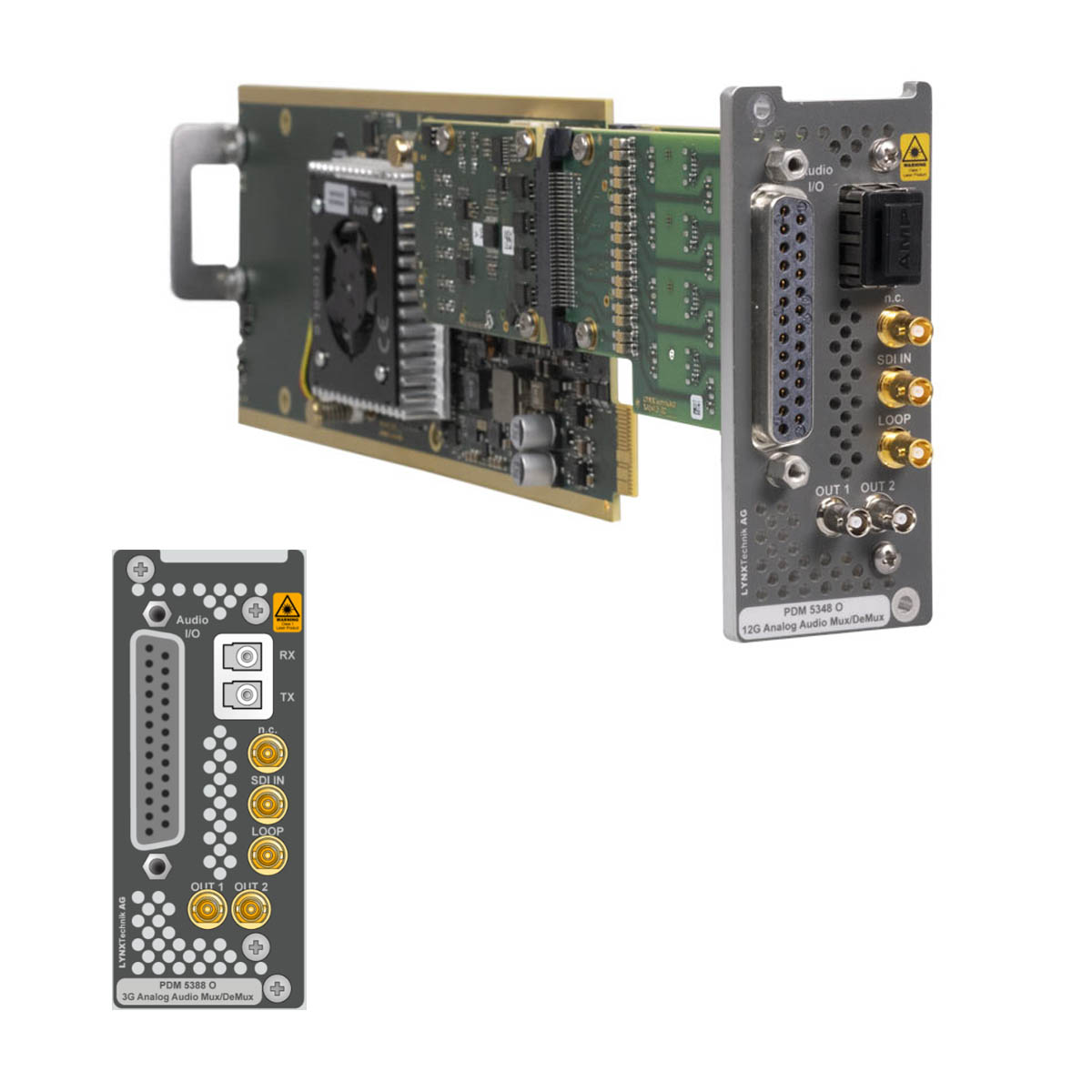

PDM 5388 O
3G-SDI Analog Audio Embedder / De-Embedder
The PDM 5388 O is a versatile 8-Channel analog audio embedder/de-embedder which can be used to address a variety of audio issues in broadcast. The module support 3G-SDI formats up to 1080p60 with an optional fiber I/O.

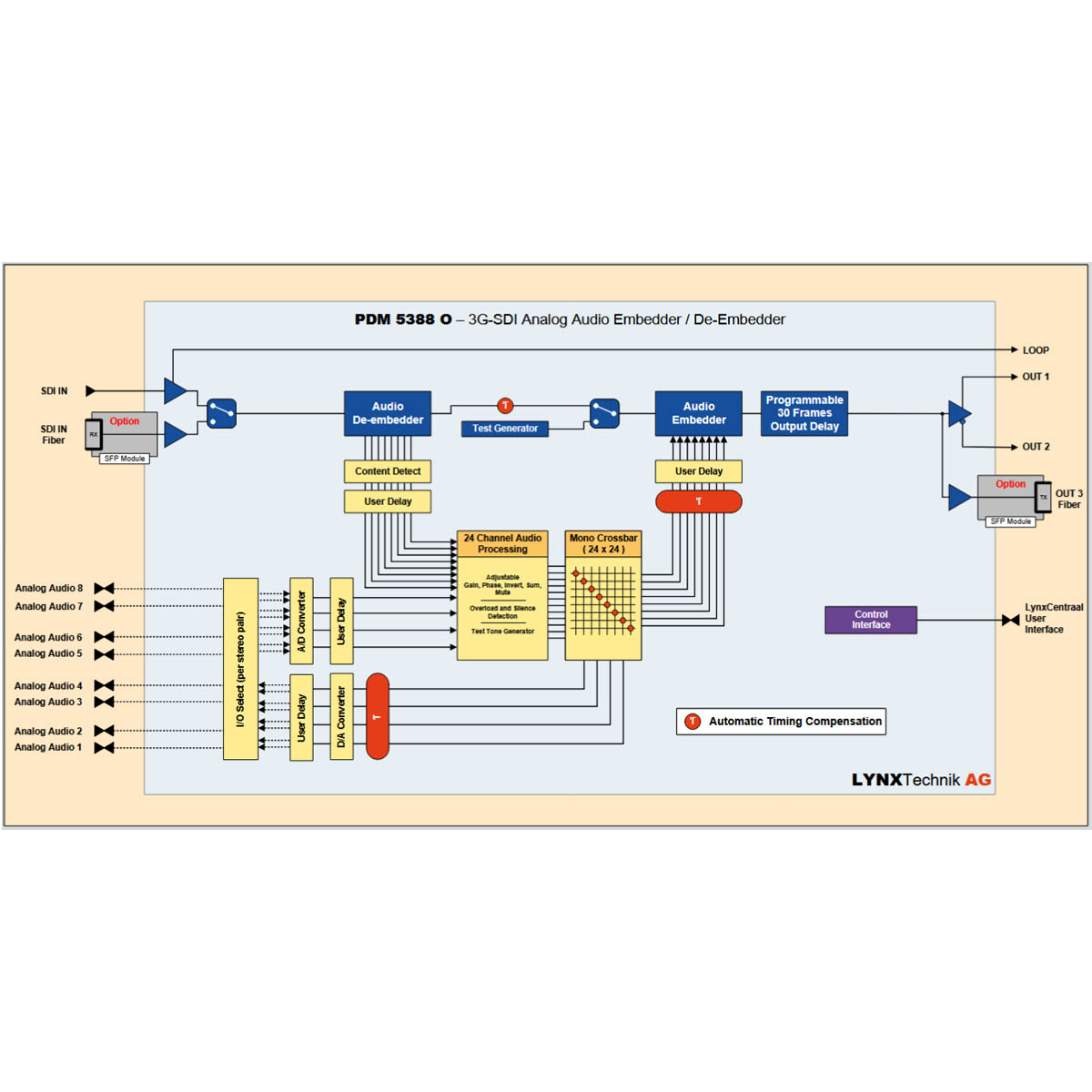

The module can be switched between an 8-Channel embedder or an 8-Channel de-embedder, or a combination of both. 16 channels of audio are always de-embedded from the SDI input and passed into a audio processing stage. In embedder mode, 8 channels of external audio are passed into the audio processing stage. Audio processing includes adjustable gain, phase invert, and mute for all 24 channels as well as a selectable mono mix-down function for each left and right pair.
The processed audio is passed onto a 24 x 24 output crossbar where the audio for the embedder, and external outputs can be mapped.
The card module handles up to 30 frames of programmable output delay.
It is fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
NOTE: If installed in a RFR 5018 chassis please make sure a rack controller (RCT 5023 G) is installed in the rack.
No more pages to load
Key Features
- Supports 3G/1.5G/SD-SDI Formats
- Optional fiber I/O
- Switch between 8 Channel Embedder or De-Embedder
- 24-Channel audio processing: Gain, Phase, Invert, Mute, Mono mix down and Silence detection
- 24×24 Mono Output Crossbar for Embedded and External Audio
- Video Test Patterns for transmission fallback when SDI input is missing
- Dolby E synchronizer for guard band alignment
- Up to 30 frames of programmable delay
- Up to 10 seconds of audio delay
- Monitor and Control using the powerful and intuitive LynxCentraal control system
- Full SNMP support when used with master controller option.
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479429710 | PDM 5388 O | 3G SDI analog Audio Embedder / De-Embedder |
| 4250479327689 | RFR 5018 U | 19″ 2RU Rack frame with Primary Power Supply |
| 4250479328860 | RBO A025 | D-Sub 25 Audio Adapter PCB screw terminal |
| Fiber Options | ||
| 4250479328075 | OH-TX-1-LC | 3G SDI Transmitter 1310nm LC Singlemode |
| 4250479320222 | OH-TX-1-ST | 3G SDI Transmitter 1310nm ST Singlemode |
| 4250479320215 | OH-TX-1-SC | 3G SDI Transmitter 1310nm SC Singlemode |
| 4250479318236 | OH-TX-0-850 MM | 3G SDI Transmitter 850nm SC Multimode |
| 4250479318243 | OH-RX-1-LC | 3G SDI Receiver LC Singlemode |
| 4250479320260 | OH-RX-1-ST | 3G SDI Receiver ST Singlemode |
| 4250479320253 | OH-RX-1-SC | 3G SDI Receiver SC Singlemode |
| 4250479318274 | OH-RX-0-850 MM | 3G SDI Receiver LC Multimode |
| 4250479318137 | OH-TR-1-LC | 3G SDI Transceiver 1310nm LC Singlemode |
| 4250479318281 | OH-TR-0-850-MM | 3G SDI Transceiver 850nm LC Multimode |
| 3G CWDM Transmitter | ||
| 4250479312715 | OH-TX-4-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479312913 | OH-TX-4-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479313118 | OH-TX-4-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479313316 | OH-TX-4-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479313514 | OH-TX-4-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479313712 | OH-TX-4-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479313910 | OH-TX-4-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479314115 | OH-TX-4-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479314313 | OH-TX-4-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479314511 | OH-TX-4-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479314719 | OH-TX-4-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479314917 | OH-TX-4-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479315112 | OH-TX-4-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479315310 | OH-TX-4-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479315518 | OH-TX-4-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479315716 | OH-TX-4-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479315914 | OH-TX-4-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479316119 | OH-TX-4-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| 3G CWDM Transceiver | ||
| 4250479312708 | OH-TR-4-1270 | SDI Transceiver SFP (CWDM) 1270nm |
| 4250479312906 | OH-TR-4-1290 | SDI Transceiver SFP (CWDM) 1290nm |
| 4250479313101 | OH-TR-4-1310 | SDI Transceiver SFP (CWDM) 1310nm |
| 4250479313309 | OH-TR-4-1330 | SDI Transceiver SFP (CWDM) 1330nm |
| 4250479313507 | OH-TR-4-1350 | SDI Transceiver SFP (CWDM) 1350nm |
| 4250479313705 | OH-TR-4-1370 | SDI Transceiver SFP (CWDM) 1370nm |
| 4250479313903 | OH-TR-4-1390 | SDI Transceiver SFP (CWDM) 1390nm |
| 4250479314108 | OH-TR-4-1410 | SDI Transceiver SFP (CWDM) 1410nm |
| 4250479314306 | OH-TR-4-1430 | SDI Transceiver SFP (CWDM) 1430nm |
| 4250479314504 | OH-TR-4-1450 | SDI Transceiver SFP (CWDM) 1450nm |
| 4250479314702 | OH-TR-4-1470 | SDI Transceiver SFP (CWDM) 1470nm |
| 4250479314900 | OH-TR-4-1490 | SDI Transceiver SFP (CWDM) 1490nm |
| 4250479315105 | OH-TR-4-1510 | SDI Transceiver SFP (CWDM) 1510nm |
| 4250479315303 | OH-TR-4-1530 | SDI Transceiver SFP (CWDM) 1530nm |
| 4250479315501 | OH-TR-4-1550 | SDI Transceiver SFP (CWDM) 1550nm |
| 4250479315709 | OH-TR-4-1570 | SDI Transceiver SFP (CWDM) 1570nm |
| 4250479315907 | OH-TR-4-1590 | SDI Transceiver SFP (CWDM) 1590nm |
| 4250479316102 | OH-TR-4-1610 | SDI Transceiver SFP (CWDM) 1610nm |
SDI Video Input
- Supported Formats
- 2K 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
- 1x 3G-SDI BNC (3G/1.5G/SD-SDI)
- YCbCr 4:2:2
- 10-bit
- 3G-SDI Level A or B Dual Link
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- No.of inputs 1x microBNC input or 1x fiber input
- Input connector (electrical) micro BNC, 75 Ohms
- Input connector (optical) LC / single-mode (optional)
SDI Video Outputs
- No.of outputs 2x micro BNC outputs and 1x fiber output
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- Output format Follows input format
- Connector (electrical) micro BNC, 75 Ohm
- Connector (optical) LC / singlemode (optional)
- Timing jitter
- SD (270Mbit) < 0.2UI
- 5G (1.48Gbit) < 1.0UI
- 3G (2.97Gbit) < 2.0UI
- Alignment jitter
- SD (270Mbit) < 0.2UI
- 5G (1.48Gbit) < 0.2UI
- 3G (2.97Gbit) < 0.3UI
- Return loss
- SD (270Mbit) + 1.5G (1.48Gbit) > 15dB
- 3G (2.97Gbit) >10dB
- Cable equalization
- SD (270Mbit) 320m
- 5G (1.48Gbit) 150m
- 3G (2.97Gbit) 120m
Analog Audio I/O
- No.of Inputs / outputs
- 8x analog audio inputs or
- 8x analog audio outputs
- Balanced Analog Audio
- Connector Female 25pin D-Sub
- Output impedance 150 Ohms
- Input impedance >10K Ohm
- 0 dB full scale range Selectable: 12, 15, 18, 20, 22, 24 dBU full Scale Level
Audio Processing
- De-embedder All 16 audio channels are de-embedded form input SDI
- Processing functions 32 channel adjustable:
- Gain
- Phase
- Invert
- Mute
- Sum
- Overload and silence detection.
- 24 x 24 channel (mono) output select crossbar
- I/O selection matrix to configure analog inputs and outputs
- A/D quantization 24 bit
- Sampling rate 48 kHz
Video / Audio Delay
- Automatic AV timing compensation
- Output delay Up to 30 frames of delay manually adjustable in frame / line / pixel increments
- Audio delay Up to 1334 ms total latency
- Adjustable for each incoming and outgoing audio channel
- Settings Available via LynxCentraal
Electrical Specifications
- Operating voltage 12 V DC
- Power consumption 10W
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 289mm x 85mm
- Weight CardModule 180g, (6.35oz) connector plate 85g (3oz)
Ambient
- Temperature 5°C to 40°C (41°F – 104°F) Maintaining specifications
- Humidity 90% Max non condensing
