OTX 1842 yellobrik SDI Fiber Transmitter (CWDM)

OTX 1842

SDI Fiber Transmitter (CWDM) SD/HD/3G

Specialty

CWDM, Fiber, SDI 1.5G, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
  • Reclocked SDI loop output
  • 18 wavelength selections (ITU-T G.694.2)
  • Error free optical transmission
  • Up to 40km** (24.85 miles) @ 3Gbit with 40km SFP
  • Up to 80km** (49.70 miles) @ 3Gbit with 80km SFP
  • Simplex LC singlemode optical connection
  • Supports hot swapping and hot plugging

** Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.



Description

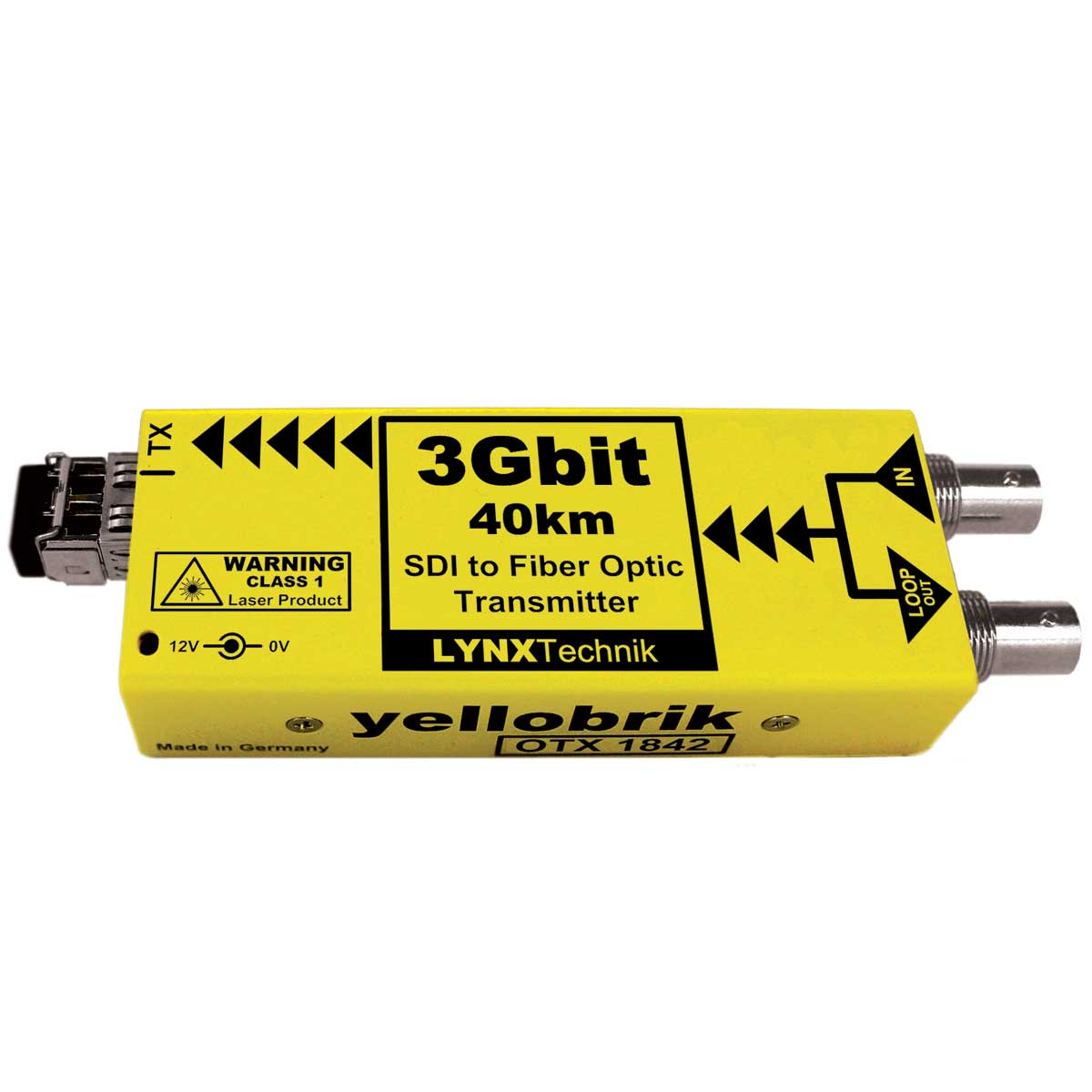

The OTX 1842 is a compact CWDM SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

When paired with the fiber optic to SDI receiver (e.g. yellobrik ORX 1802) you have a very cost effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality. Select from 18 wavelengths for full CWDM compatibility.

The OTX 1842 will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.

Note: The module DOES NOT INCLUDE the fiber SFP, When ordering please specify an SFP option in the wavelength required
