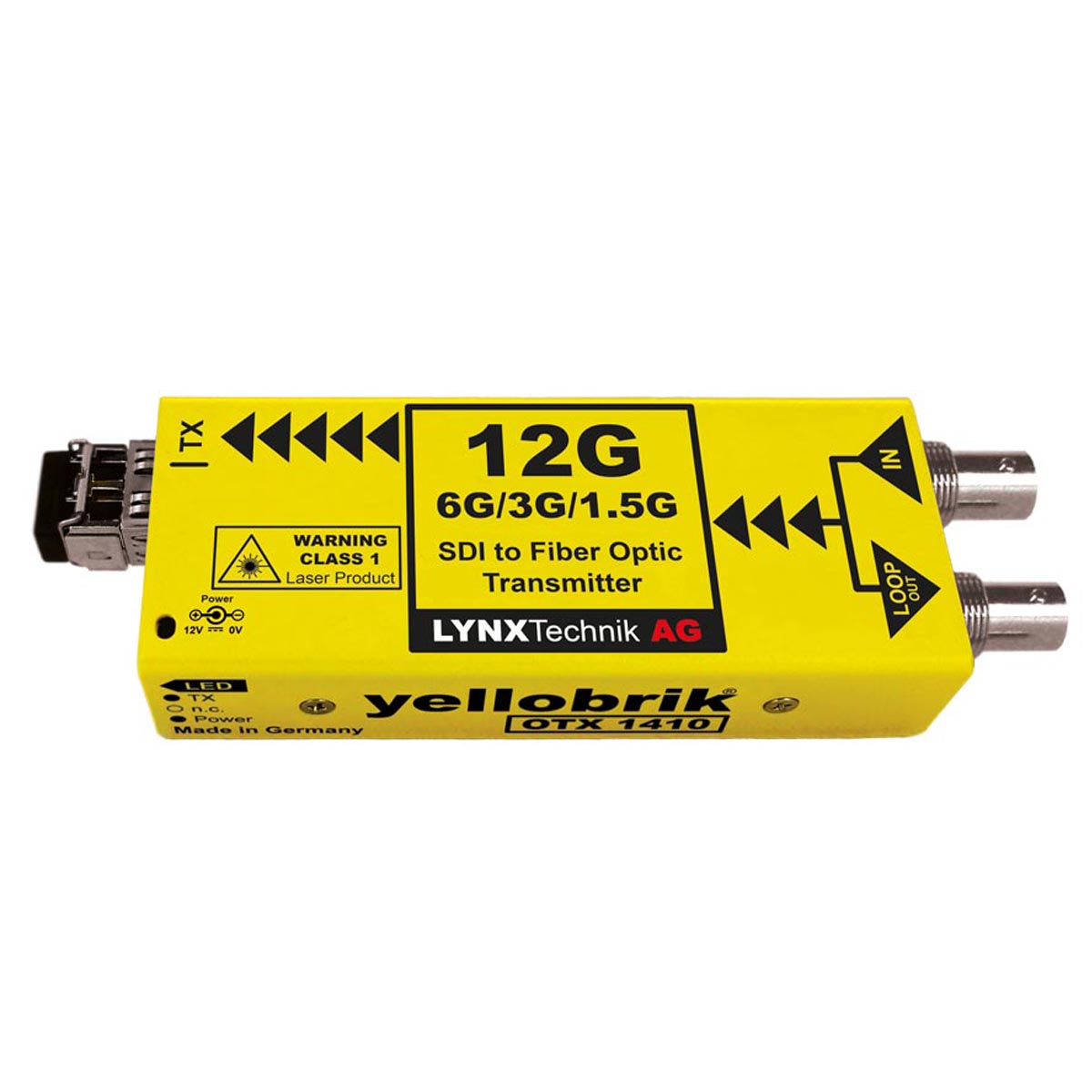

OTX 1410
12G SDI to Fiber Optic Transmitter
The OTX 1410 is a compact SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances.
When paired with the fiber optic to SDI receiver (example, yellobrik ORX 1400) you have a very cost-effective optical transmission / receiver system for signals up to 12Gbit/s (4096×2160 @ 60Hz), while preserving full uncompressed quality.
Operation of the OTX 1410 is fully automatic. The SDI video format is automatically detected, re-clocked and then transmitted over the fiber optic connection. A re-clocked electrical SDI output is also provided.
The OTX 1410 supports 12G, 6G, 3G and 1.5G SDI video standards and is available in LC, LC-40 and ST variants.
No more pages to load
Key Features
- Supports 12G, 6G, 3G and 1.5G SDI video inputs
- 3G Level A and Level B (support for all formats)
- Auto reclocking 1.5G / 3G / 6G / 12G
- Error free optical transmission
- Reclocked SDI loop out connection
- LC and ST connection variants
- Singlemode fiber connection
- Up to 10km (6.2 miles) @ 12Gbit/s (singlemode) with OTX 1410 LC and ST variant
- Up to 40km (24.8 miles) @ 12Gbit/s (singlemode) with OTX 1410 LC-40 variant
- Hot swappable and hot pluggable
** Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479324756 | OTX 1410 LC | 12G SDI Fiber Transmitter (LC) |
| 4250479327641 | OTX 1410 ST | 12G SDI Fiber Transmitter (ST) |
| 4250479328495 | OTX 1410 LC-40 | 12G SDI Fiber Transmitter LC-40 (40km) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323278 | LC/FC SIM | Simplex LC/FC Fiber Adapter |
| 4250479318250 | LC/SC SIM | Simplex LC/SC Fiber Adapter |
SDI Video Input:
- 1x SDI input on 75 Ohm BNC connector
- 1x SDI output reclocked loop on 75 Ohm BNC connector
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE 259
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8, 10, 12-bit
- 3G-SDI Level A or B Dual Link
- Multi-standard operation 270M / 1.5G / 3G / 6G / 12G
- Format Agnostic
- Transparent: Transports entire SDI payload including all embedded audio and any ancillary / metadata.
Electrical Return Loss:
- 5GHz: >15dB
- 3GHz: >10dB
- 6GHz: > 7dB
- 12Ghz: >4dB
Automatic cable EQ:
- 270Mbit/s = 250m (Belden 1694A cable)
- 5Gbit/s = 220m (Belden 1694A cable)
- 3Gbit/s = 150m (Belden 1694A cable)
- 6Gbit/s = 90m (Belden 4794R cable)
- 12Gbit/s = 80m (Belden 4794R cable)
Optical Output:
1 x fiber optic output:
- OTX 1410 LC = Simplex (Singlemode) LC/PC
- OTX 1410 LC-40 = Simplex (Singlemode) LC/PC
- OTX 1410 ST = Simplex (Singlemode) ST/PC
- SMPTE 297M – 2006
Wavelength:
- 1310nm (Singlemode)
Optical power:
- OTX 1410 LC = -5dBm
- OTX 1410 LC-40 = +3dBm
- OTX 1410 ST = -5dBm
- TX active LED on side of module
Max. distance*
- OTX 1410 LC/ST 10km* (6.2 miles*) @ 12Gbit/s (Singlemode)
- OTX 1410 LC-40 40km* (24.8 miles*) @ 12Gbit/s (Singlemode)
Power
- +12V DC @ 2.0W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
