OTT 1842-1

Dual Channel SDI Fiber Transmitter (CWDM) SD/HD/3G

Specialty

CWDM, Fiber, SDI 1.5G, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • Dual Channel
  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
  • Error free optical transmission
  • 18 Wavelength selections (ITU-T G.694.2)
  • Up to 40km** (24.8 miles) @ 3Gbit/s with 40km SFP
  • Up to 80km** (49.7 miles) @ 3Gbit/s with 80km SFP
  • Duplex LC/PC single mode optical connections
  • Supports hot swapping and hot plugging

** Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.

Description

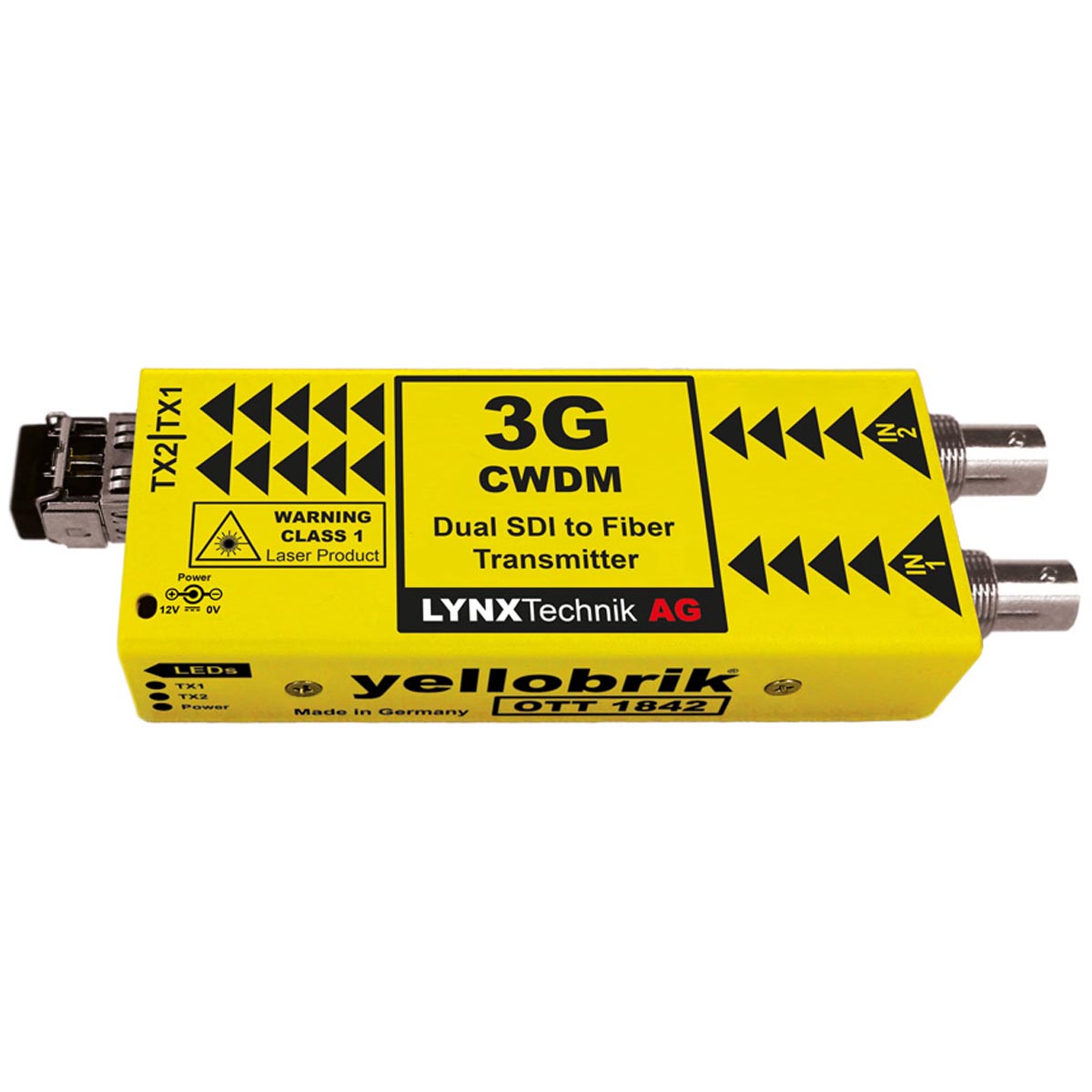

The OTT 1842 is a compact CWDM dual channel SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. 18 wavelength choices are provided.

When combined with the dual channel fiber optic to SDI receiver module ORR 1802, and the OCM 1891/1892 CWDM multiplexers you have a very cost effective CWDM fiber system for up to 18 signals in a single fiber link.

The OTT 1842 has two completely independent channels and each will auto-detect and re-clock any 270Mbit / 1.48Gbit and 2.97Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.

Note: The module DOES NOT INCLUDE the fiber SFP, When ordering please specify an SFP option in the wavelengths required
