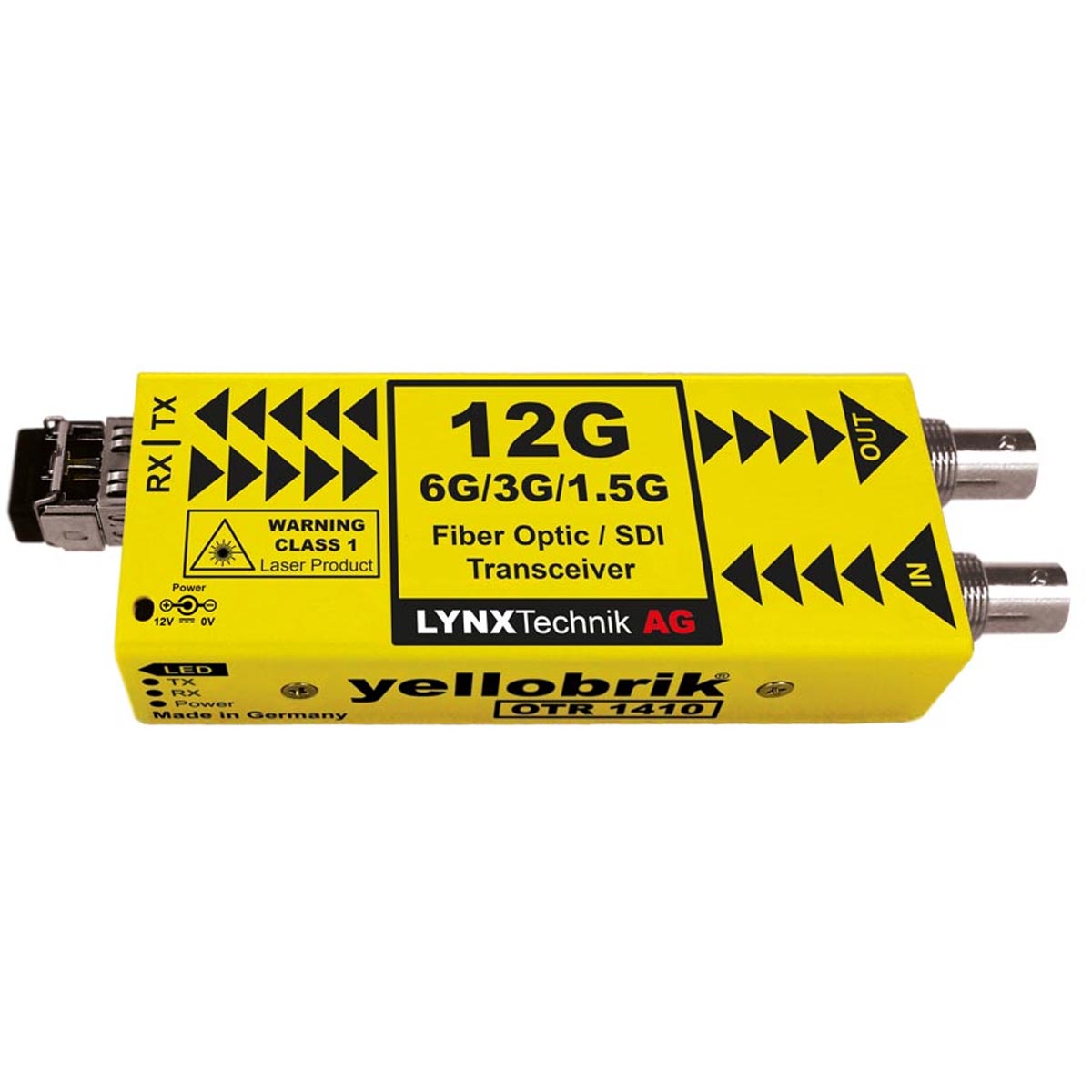

OTR 1410
12G SDI Fiber Transceiver
The OTR 1410 is a Fiber / SDI transmitter and receiver combined in a single self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances.
Each OTR 1410 transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 12Gbit/s (4096×2160 @ 60Hz), while preserving full uncompressed quality.
Operation of the receiver and transmitter is automatic. For transmission, the SDI video format is automatically detected, re-clocked and then transmitted over the fiber optic TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, re-clocked and provided on the SDI output connection.
The OTX1410 supports 12G / 6G / 3G / 1.5G / 270 M video standards.
Key Features
- SDI fiber receiver and transmitter in single package
- Supports 12G, 6G, 3G,1.5G and 270Mbit SDI video standards
- 3Gbit Level A and Level B (support for all formats)
- Auto re-clocking: 270M / 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
- Error free optical transmission
- LC/PC duplex connection
- Singlemode fiber connection
- Up to 10km* (6.2 miles*) @ 3Gbit/s (singlemode)
- Hot swappable and hot pluggable
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479324749 | OTR 1410 | 12G / 6G / 3G / 1.5G SDI Fiber Transceiver |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323384 | LC/FC DUP | Duplex LC/FC Fiber Adapter |
| 4250479318267 | LC/SC DUP | Duplex LC/SC Fiber Adapter |
| 4250479318168 | LC/ST DUP | Duplex LC/ST Fiber Adapter |
SDI Video I/O:
- 1x SDI input on 75 Ohm BNC connector
- 1x SDI output on 75 Ohm BNC connector
- SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE 259M
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8, 10, 12-bit
- Multi-standard operation from 270Mbit/s to 12Gbit/s/s
- Multi-rate reclocking: 270Mbit/s / 1.5Gbit/s / 3Gbit/s / 6Gbit/s / 12Gbit/s
- Transparent: Transports entire SDI payload including all embedded audio and any ancillary / metadata.
Electrical Return Loss:
- 5GHz: >15dB
- 3GHz: >10dB
- 6GHz: >7dB
- 12GHz: >4dB
Automatic cable EQ: (Belden 1694A cable)
- 270Mbit/s = 250m (Belden 1694A cable)
- 5Gbit/s = 190m (Belden 1694A cable)
- 3Gbit/s = 140m (Belden 1694A cable)
- 6Gbit/s = 90m (Belden 4794R cable)
- 12Gbit/s = 80m (Belden 4794R cable)
Optical I/O:
1 x fiber optic output, and 1 x fiber optic Input
- Duplex LC/PC (Singlemode)
- SMPTE 297M – 2006
Optical TX Wavelength:
- 1310nm (Singlemode)
Optical TX power:
- -3dBm (Singlemode)
- TX active LED on side of module
Optical RX Sensitivity
- -2dBm to -10dBm (Singlemode)
- RX active LED on side of module
Optical RX Wavelength
- 1260nm – 1620nm (Singlemode)
Max. distance*
- 10km* (6.2 miles*) @ 3Gbit/s (Singlemode)
Power
- +12V DC @ 2.0W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
