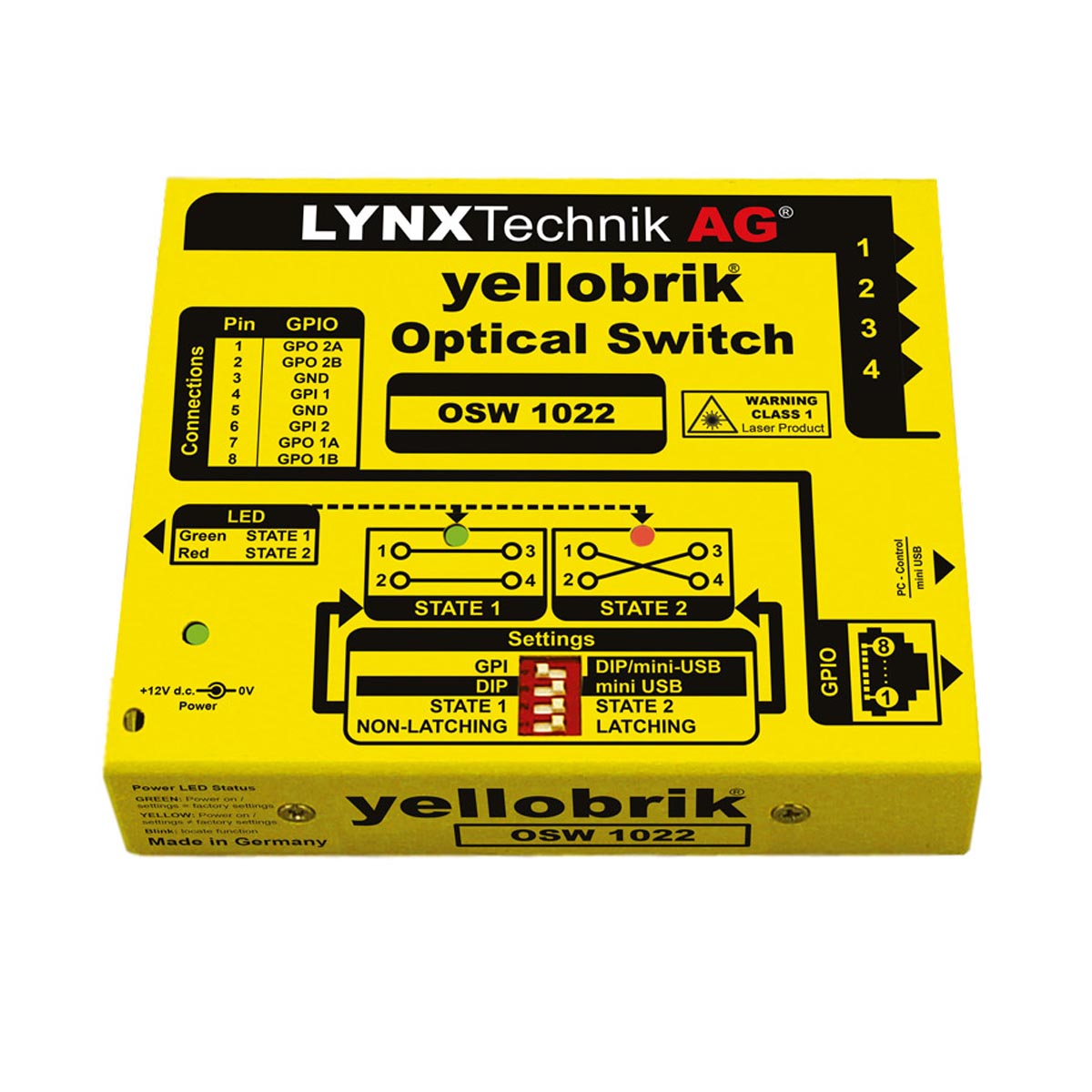

OSW 1022
2 x 2 Fiber Optic Switch
The OSW 1022 is an optical 2×2 switch that provides connection paths between two pairs of fiber optic. The compact OSW 1022 switch is suitable for a wide range of applications such as fiber line emergency switchover, route diversity, optical networking system protection, and reconfiguration.
It allows the selection of passive optical paths via GPI control, or local dip switches, or PC/Mac. The GPIs and GPOs provide selection and monitoring of connection paths State 1 & State 2.
It also provides latching and non-latching mode. In the latching mode, the optical switch maintains the current optical connection path (state) and does not change on power failure. In the non-latching mode, the optical switch switches to State 1 connection path upon power failure. When the power is restored, the switch will revert to the connection path set by the dip switch or to the state set by the GUI.
Key Features
- Compact 1 slot yellobrik module
- Two optical connection paths: State 1 and State 2
- Non-latching and latching mode
- 2 x GPI for path selections
- 2 x GPO for connection path monitoring
- 4 x dip switches for local control
- 2 x LEDs to display connection path status
- 1 x LED to display power status
- 1 x mini USB for PC control and configuration via yelloGUI or LynxCentraal
- Singlemode fiber connections with LC connectors
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479327443 | OSW 1022 | 2 x 2 Fiber Optic Switch |
| Options | ||

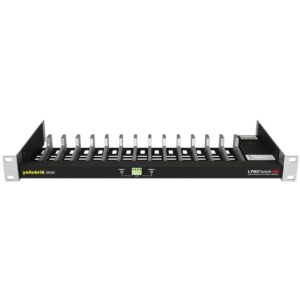

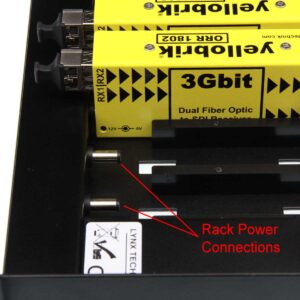

| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |

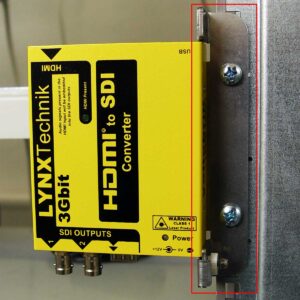

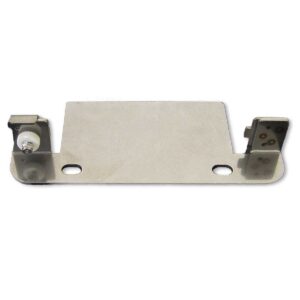

| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |

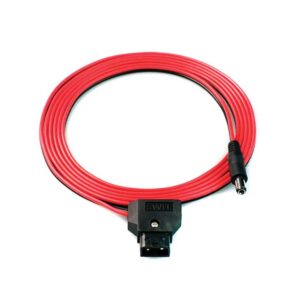

| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |

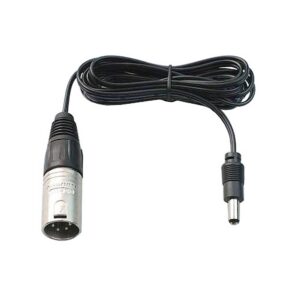

| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
Fiber I/O
- 4 x Fiber Connections (2 paths)
- LC/PC Singlemode
- Wavelength 1240nm to1640nm
- CWDM and DWDM compatible
Performance
- Insertion loss <1dB (typically 0.4dB)
- Return loss = > 50dB (typical 55dB)
- Switch Speed = < 1ms (typically 0.5ms)
- Repeatability < 0.002dB
GPI
- For remote switch activation
- Connector = RJ 45
- 2 x GPI inputs
- 2 x GPO outputs
Power
- 12V DC – 1W nominal (supports 7-24V DC)
Physical Size:
- Metric:108mm x 90mm x 22mm
- Inches: 4.25” x 3054” x 0.986
Weight:
- 125g (4.4oz)
Ambient
- 5 – 40ºC (41 – 104ºF) 90% Humidity (non condensing)
