The ORX 1802 provides 2x 3G-SDI outputs and support for LC, ST or SC single-mode fiber connections as well as an LC version suitable for multi-mode fiber. The ORX 1802 will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s and 3Gbit/s SDI fiber source and convert to an electrical signal. The module is fully compatible with 3G Level A and Level B formats.

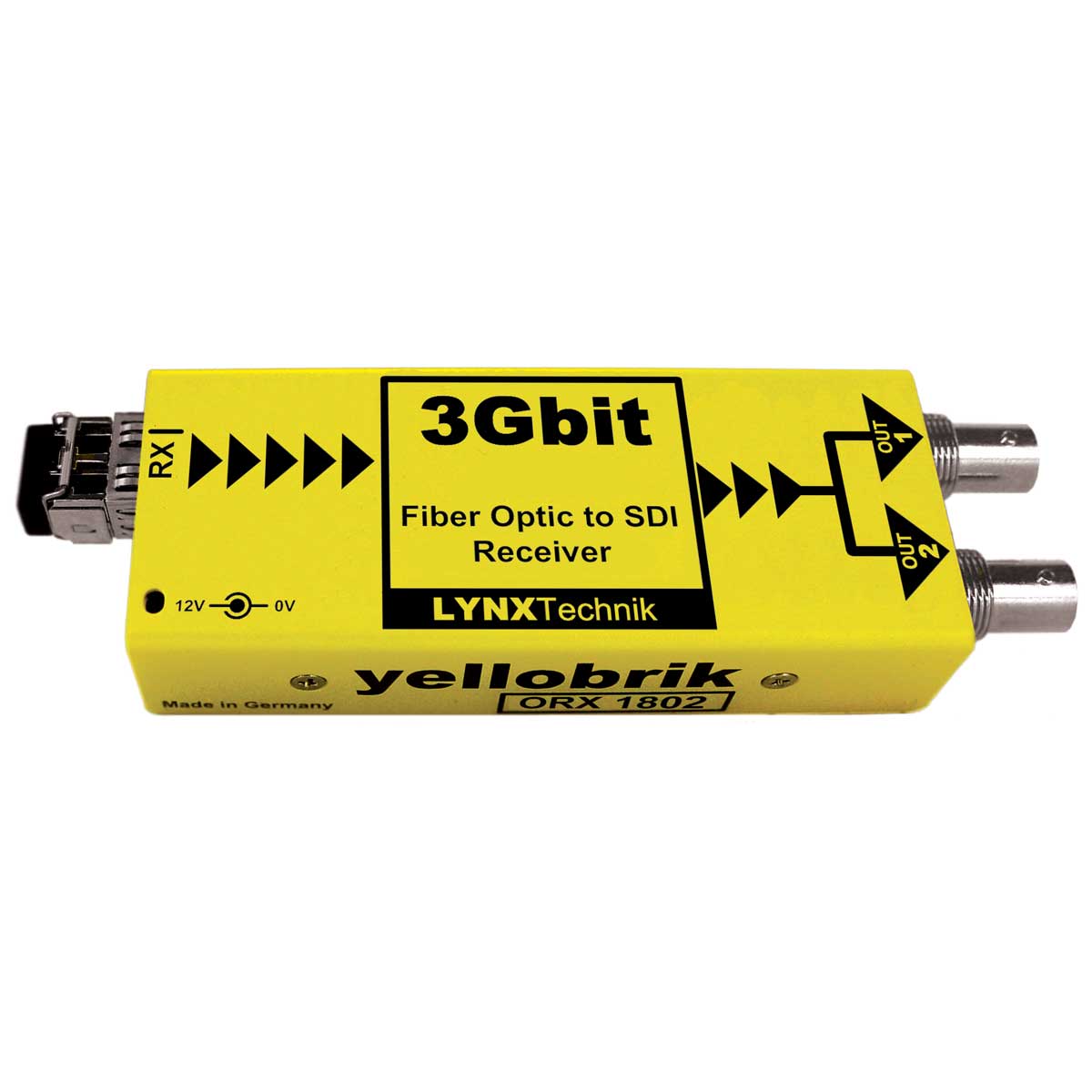

ORX 1802
3G SDI to Fiber Optic Receiver
The ORX 1802 is a compact fiber to 3G-SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. When paired with a Fiber to 3G-SDI transmitters (e.g. yellobrik OTX 1812 or OTX 1842) it becomes a cost effective optical transmission / receiver system for 3G-SDI signals up to 1080p60 while preserving full uncompressed quality.
.
Key Features
- Supports SDI video inputs up to 3Gbit/s (1080p60)
- 3Gbit Level A and Level B support (all formats)
- Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
- 2 x SDI outputs

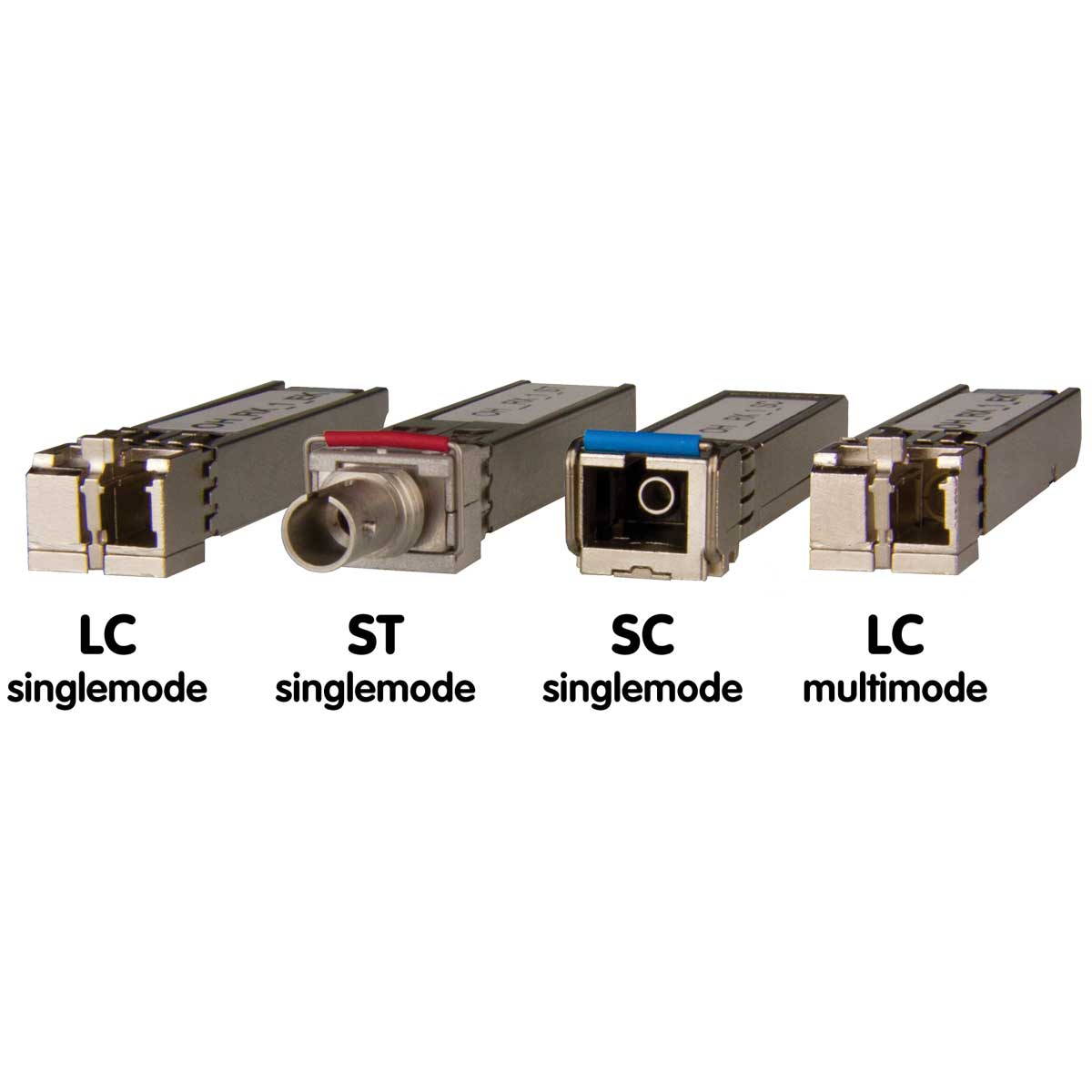

- Versions for LC, ST or SC fiber connections
- Multimode version available
- Input range 1260nm to 1620nm (singlemode)
- Input range 780nm to 880nm (multimode)
- Supports hot swapping and hot plugging
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479359697 | ORX 1802 LC | SDI to Fiber Receiver SMF (LC Connector) |
| 4250479359703 | ORX 1802 SC | SDI to Fiber Receiver SMF (SC Connector) |
| 4250479359710 | ORX 1802 ST | SDI to Fiber Receiver SMF (ST Connector) |
| 4250479359727 | ORX 1802 MM | SDI to Fiber Receiver MMF (LC Connector) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
Optical Input:
1 x fiber optic Input:
- Simplex (Singlemode) LC/PC, ST/PC, or SC/PC connection or
- Simplex (Multimode) LC/PC connection
- SMPTE 297M – 2006
RX Wavelength:
- ORX 1802 LC/ST/SC = 1260nm – 1620nm (Singlemode)
- ORX 1802 MM = 780nm – 880nm (Multimode)
RX Sensitivity:
- ORX 1802 LC/ST/SC = 18dBm (Singlemode)
- ORX 1802 MM = 0dBm to –15dBm (multimode)
- RX active LED on side of module
SDI Video Outputs:
- 2x SDI outputs on 75 Ohm BNC connectors
- SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- YCbCr 4:4:4/4:2:2/4:2:0
- 8, 10, 12-bit
- 3G-SDI Level A or B Dual Link
- Multi-standard operation from 270Mbit/s to 3Gbit/s
- Multi-rate reclocking: 270Mbit/s – 1.5Gbit/s – 3Gbit/s
- Transparent: Supports the entire SDI payload including all embedded audio and any ancillary / metadata.
Electrical Return Loss:
- 5GHz: >15dB
- 3GHz: >10dB
Power
- +12V DC @ 1.9W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
