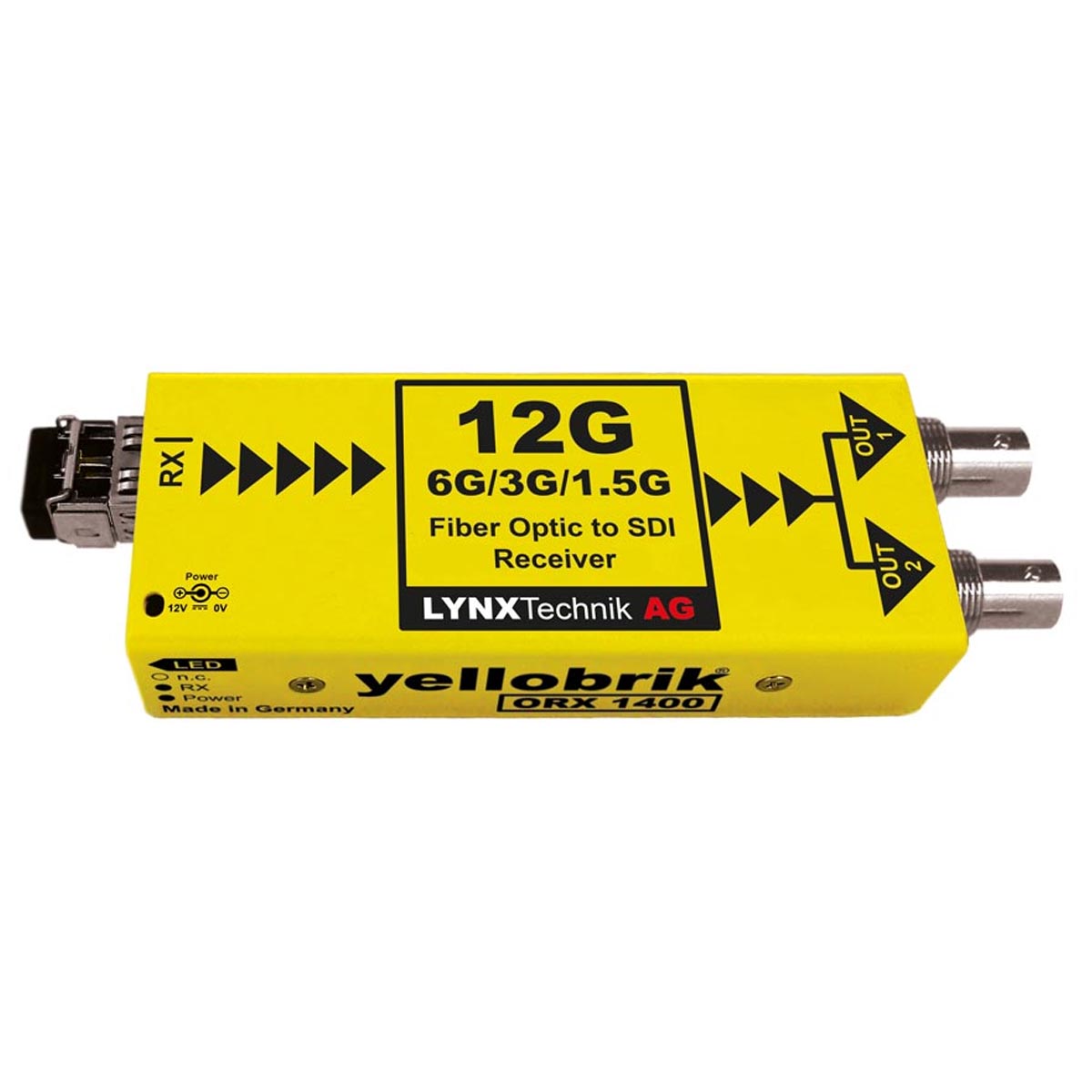

ORX 1400
12G Fiber Optic to SDI Receiver
The ORX 1400 is a compact SDI to fiber optic Receiver designed to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. When paired with the fiber optic to SDI transmitter (e.g. yellobrik OTX 1410) you have a very cost-effective optical transmission / receiver system for signals up to 12Gbit/s (4096×2160 @ 60Hz), while preserving full uncompressed quality.
Operation of the ORX 1400 is fully automatic. The SDI video format is automatically detected, re-clocked and provided on two SDI output connections.
The ORX 1400 supports 12G, 6G, 3G and 1.5G SDI video standards, and is available with a LC or ST fiber connection
No more pages to load
Key Features
- Supports 12G, 6G, 3G and 1.5G SDI video standards
- 3Gbit Level A and Level B (support for all formats)
- Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
- Error free optical transmission
- Two reclocked SDI outputs
- LC/PC and ST connection variants
- Singlemode fiber connection
- Input range 1260nm to 1620nm
- Hot swappable and hot pluggable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479324732 | ORX 1400 LC | 12G SDI Fiber Receiver (LC) |
| 4250479327658 | ORX 1400 ST | 12G SDI Fiber Receiver (ST) |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323278 | LC/FC SIM | Simplex LC/FC Fiber Adapter |
| 4250479318250 | LC/SC SIM | Simplex LC/SC Fiber Adapter |
Optical Input:
1 x fiber optic Input:
- Simplex (Singlemode) LC/PC, ST/PC
- SMPTE 297M – 2006
RX Wavelength:
- 1260nm – 1620nm (Singlemode)
RX Sensitivity:
- 5Gbit = -16dBm (Singlemode)
- 3Gbit = -14dBm (Singlemode)
- 6Gbit = -14dBm (Singlemode)
- 12Gbit = -10dBm (Singlemode)
- RX active LED on side of module
SDI Video Outputs:
- 2 x SDI outputs on 75 Ohm BNC connectors
- SMPTE 259, SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, SMPTE
259M, DVB-ASI
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8, 10, 12-bit
- 3G-SDI Level A or B Dual Link
- Multi-standard operation 270M / 1.5G / 3G / 6G / 12G
- Format Agnostic
- Transparent: Supports the entire SDI payload including all embedded audio and any ancillary / metadata.
Electrical Return Loss:
- 5GHz: >15dB
- 3GHz: >10dB
- 6GHz: >10dB
- 12Ghz: >4dB
Power
- +12V DC @ 2W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (including connectors)
- Metric:140mm x 42mm x 22mm
- Inches: 5.51” x 1.65” x 0.86”
Weight:
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
