• ODT 1510 - Serial RS232/422/485 Fiber Optic transceiver

ODT 1510

Serial RS232 + GPI Fiber Optic Transceiver

Datasheet
Quick Reference

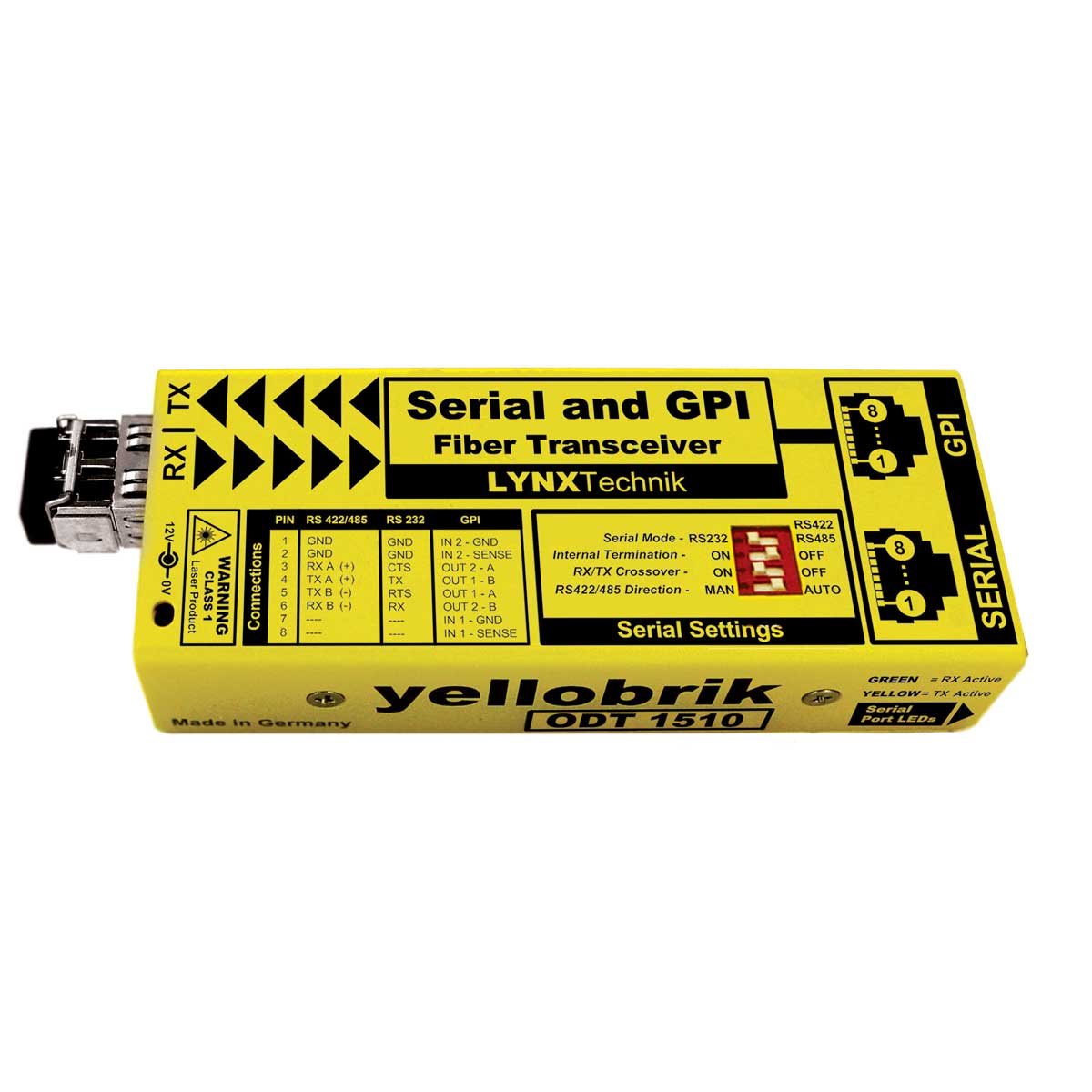

The ODT 1510 is a multi-function module which (when used with another ODT 1510 in the remote location) will extend the reach of serial RS232, RS422 or RS485 as well as two GPI (general purpose I/O) up to 10km (6.2 miles) over fiber.

A single RJ45 connection can be configured for RS232, RS422 or RS485 serial standards. A separate RJ45 connector is provided for two electrical GPI inputs and outputs. Serial communications and GPI are transmitted and extended over the same fiber link.

The ODT 1510 is protocol agnostic. It supports all standard and proprietary protocols at data rates ranging from 300 to 460K Baud (auto sensing and auto adjusting).

The integrated dip switch located on the device provides precise control over the serial mode of operation with selections for the serial standard, serial termination, RX/TX crossover and RS422/485 data direction (automatic or manual). Data activity LEDs are provided for the serial port and the GPI port under the respective RJ45 connectors.

The ODT 1510 supports mixing and matching of serial standards. For example: the transmitting module can have a RS232 input, and the receiving module can be set for RS422 output.

Loading...

Accessories

LC/FC Dup

LC to FC Duplex Fiber Adapter Kit

LC/SC Dup

LC to SC Duplex Fiber Adapter Kit

LC/ST Dup

LC to ST Duplex Fiber Adapter Kit

RFR 1200 - 19" 1RU rck frame for up to 14 yellobriks

RFR 1200

yellobrik 19″ 1RU Rack Frame

XLR 1000 - 4 pin XLR Power Adapter Cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

No more pages to load

Key Features

  • Extend serial and GPI connections up to 10km
  • Supports serial RS232 or RS422 or RS485
  • 2 x GPI connections
  • Singlemode fiber 1310nm up to 10km (6.2 miles)
  • LC/PC duplex fiber connections
  • Switchable RX/TX crossover
  • Automatic or manual data direction
  • Switchable end of line termination
  • ‘Plug and Play’ – No PC software drivers needed
  • Supports all serial protocols (standard or proprietary)
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation

Ordering Information

UPC / EANModelDescription
4250479315136ODT 1510Serial + GPI Fiber Transceiver (Singlemode)
Options
425047932901RFR 12001RU 19″ Chassis for 14 yellobriks
4250479315013RFR 1001 Single Module Mounting Bracket
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-1000 4 Pin XLR Battery Power Adapter Cable
4250479323384LC/FC DUPDuplex LC/FC Fiber Adapter
4250479318267LC/SC DUPDuplex LC/SC Fiber Adapter
4250479318168LC/ST DUP Duplex LC/ST Fiber Adapter

Electrical Serial I/O:

  • IA/ETA RS232C / RS422 / RS485 (selectable)
  • Connector – RJ45
  • Baud rate – Auto sense and auto adjust from 300 to 460K
  • LED status indicators (under RJ45 connector) Serial TX activity + Serial RX activity
  • RS422/485 Max number of electrical nodes = 25
  • ESD protection for up to 26k

Electrical GPI I/O:

  • 2 general purpose inputs + 2 general purpose output
  • Connector – RJ45
  • GPI Inputs:
    • External passive closure between pins (short) to trigger
    • Max input switching frequency 25Hz (50 operations / second)
    • Output insulation 3.75kV
  • GPI Outputs:
    • Internal contact closure (relay)
    • Max switching frequency 25Hz (50 operations / second)
    • Max switching power 220V DC / 0.25A or 250V AC / 0.25A
    • Output insulation 3.75kV
  • LED status indicators (under RJ45 connector):
    • GPI Input 1 activity / GPI Input 2 activity
    • GPI Output 1 activity / GPI Output 2 activity

Optical I/O:

1 x fiber optic output:

  • Duplex (Singlemode) LC/PC,

TX Wavelength:

  • 1310nm (Singlemode)

TX Optical power:

  • -3dBm (Singlemode)

1 x fiber optic Input:

RX Wavelength:

  • 1260nm to 1620nm (Singlemode)

RX Sensitivity:

  • -21dBm (Singlemode)

Max. distance*

  • 10km* (6.2 miles*) Singlemode

Power

  • +12V DC @ 2.0W nominal – (supports 7 – 15V DC input range)
  • Power Present LED on side of module

Physical Size: (including connectors)

  • Metric:140mm x 42mm x 22mm
  • Inches: 5.51” x 1.65” x 0.86”

Weight:

  • 125g (4.4oz)

Operational Temperature Range:

  • Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)

—-

*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
