OBD 1910 E
10G/1G Ethernet Fiber Bidirectional Transceiver

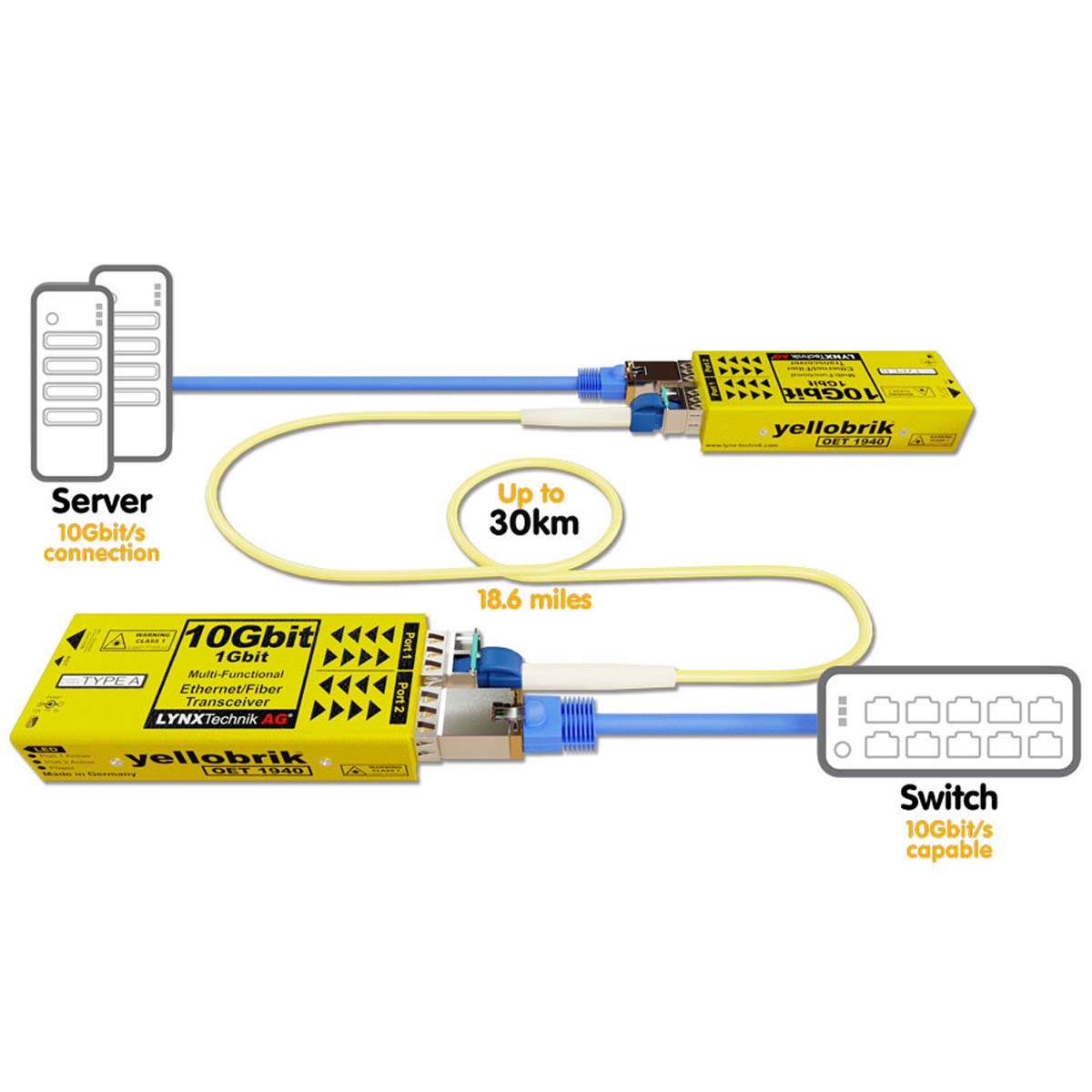

The OBD 1910 is a simple, plug-and-play solution that can extend a 1GE or 10GbE signal up to 30km* over a single fiber link. The OBD 1910 uses WDM multiplexing to send and receive the signal over a single fiber link (Simplex) instead of the more traditional Duplex fiber links. It is a straight forward pass-through and does not provide bitrate conversion from 1GbE to 10GbE.
The kit includes 2 modules with power supplies. No advanced configuration is required; simply connect the Ethernet and Fiber to get started. The modules support 1GbE and 10GbE networks with a maximum throughput of 20Gbit/s.
To increase distances on multi-mode installations the OBD 1910 MM version converts the duplex multi-mode RX and TX into a simplex bi-directional single-mode fiber to achieve longer reach.
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on fiber type and optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.
Key Features
- Bi-Directional 10GbE over a Single WDM Fiber Link
- Supports standard 1GbE and 10GbE incl. Dante Audio and ST 2110
- Distance of up to 30km (18.6 miles)
- Includes 2 modules and 2 power supplies
- Power and signal status LED
- Simple plug-and-play operation
- Supports hot swapping and hot plugging
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479328334 | OBD 1910 E | 10G Ethernet Bidirectional Transceiver SMF (LC Connector) |
| 4250479328341 | OBD 1910 MM | 10G Ethernet Bidirectional Transceiver SMF (LC Connector) |
| Options | ||
| 425047932904 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323278 | LC/FC SIM | Simplex LC/FC Fiber Adapter |
| 4250479318250 | LC/SC SIM | Simplex LC/SC Fiber Adapter |
| 4250479318151 | LC/ST SIM | Simplex LC/ST Fiber Adapter |
- OBD 1910 E
- Electrical Ethernet I/O
- RJ 45 Connector
- 10G or 1G network speed
- Max distance 30m* (98.4feet*)
- OBD 1910 MM
- Multimode Ethernet Fiber I/O
- Duplex (Multimode) LC/PC
- 50/125µ (OM3)
- TX Optical Power: -6dBm to -1dBm
- RX Optical Sensitivity: -11dBm
- Max Distance 300m* (984 feet*)
- Multimode Ethernet Fiber I/O
- Electrical Ethernet I/O
Bidirectional Optical I/O (WDM)
- Simplex (Singlemode) LC/PC
- TX WDM wavelengths 1270nm and 1330nm
- TX Optical power: 0dBm to +5dBm
- RX Optical Sensitivity -15dBm
- Max Distance 30km* (18.6 miles*)
Power (each module)
- +12V DC @ 4.W nominal – (supports 7 – 15 VDC input range)
- Power Present LED on side of module
Physical Size: (each module including connectors)
- Metric:120mm x 42mm x 22mm
- Inches: 4.73” x 1.65” x 0.86”
Weight: (each module)
- 125g (4.4oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
