GM 6840

Titan 12G-SDI A/V Processing Platform

Data Sheet
Manual

THIS IS THE HARDWARE PLATFORM ONLY – AT LEAST ONE SOFTWARE LICENSE IS REQUIRED

The greenMachine Titan is a general-purpose hardware platform which requires at least one license (a license enables a pre-defined set of features).

The greenMachine titan can process either four 3G-SDI inputs or a single 12G-SDI input. It supports up to UHD 3840Ă—2160 @60 Hz and converts between single-link 12G-SDI to/from quad-link 3G-SDI (2SI). Loaded with the appropriate license it will handle color correction, routing, up down cross conversions, dynamic and static HDR conversions, frame sync and generate a myriad of test signals.

Its intuitive control interface and LCD display allows on-device access to custom settings and monitoring features. Video inputs and outputs can be monitored on its mini display.

The greenMachine titan and its license packs offer a future-proof solution for real world applications from industrial pro AV use cases to high end live TV broadcast.

Licenses (also referred to as “constellations”) can be purchased separately and added at any time to any greenMachine.

The titan is fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.

Lynx Centraal is available for Windows and MacOS.

.

Loading...

Key Features

  • 4-Channel 3G-SDI or 1-Channel 12G-SDI general purpose A/V processing
  • Internal I/O signal router
  • 3x 3G-SDI inputs and 3x 3G-SDI outputs
  • 1x 12G-SDI Input and 1x 12G-SDI output
  • 2SI Quad-Link to/from Single-Link Conversion
  • 1x UHD HDMI input and 1x UHD HDMI output
  • 4x AES/Analog Audio inputs
  • 4x AES/Analog Audio outputs
  • 4x GPI and 4x GPO
  • Optional 3G-SDI fiber I/O
  • Optional 12G-SDI fiber I/O
  • Optional 1GbE fiber connection

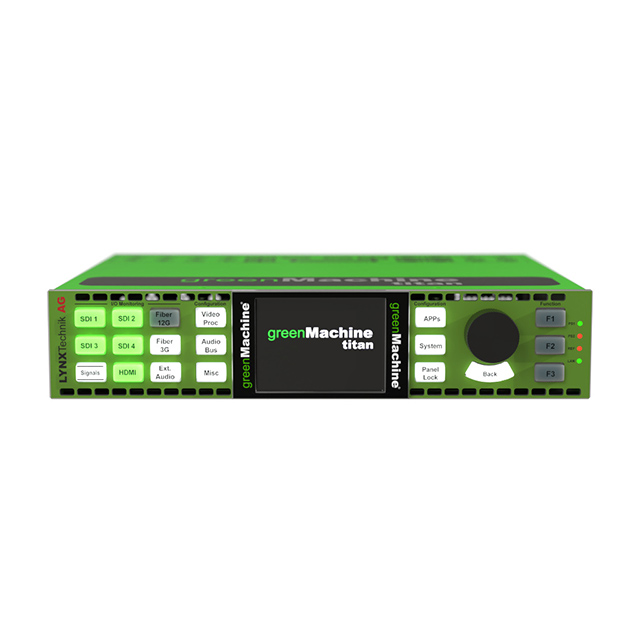

  • Integrated control panel with color display
  • Small footprint: 1RU by half 19″ rack width
  • Nova controller with custom control included
  • Full SNMP V2 support and compatibility with LynxCentraal
 • UHD 3840x2160p  -- --  --  --  -- --  --  50, 59.94, 60
 • HD 1920x1080p   23.98, 24, 25, 29.97, 30, 50, 59.94, 60
 • HD 1920x1080PsF 23.98, 24, 25, 29.97, 30  --  -- --  --
 • HD 1920x1080i   -- --  --  --  -- --  --  50, 59.94, 60
 • HD 1280x720p    23.98, 24, 25, 29.97, 30  50, 59.94, 60
 • SD 720x625i     -- --  --  --  -- --  --  50  -- --  --
 • SD 720x525i     -- --  --  --  -- --  --  --  59.94  --

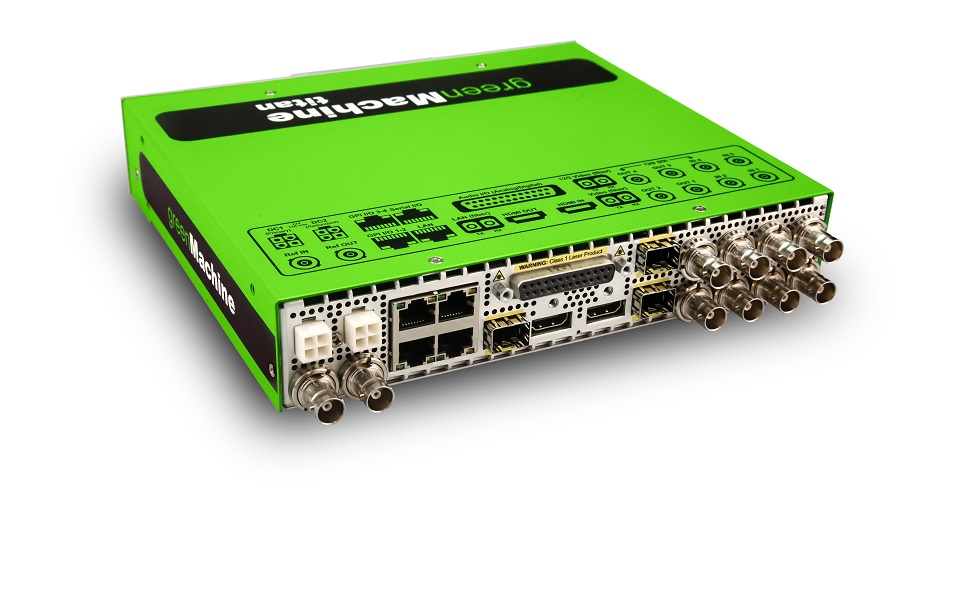

Video Input Digital
  • 1x 12G-SDI BNC (12G/3G/1.5G-SDI)
  • YCbCr 4:2:2
  • 10-bit
  • 3x 3G-SDI BNC (3G/1.5G-SDI)
  • Level A or B Dual Link
  • YCbCr 4:2:2
  • 10-bit
  • 1x HDMI Type A connector*, HDMI v1.4b
  • YCbCr 4:2:2
  • 10-bit
Video Output Digital
  • 1x 12G-SDI BNC (12G/3G/1.5G-SDI)
  • YCbCr 4:2:2
  • 10-bit
  • 3x 3G-SDI BNC (3G/1.5G-SDI)
  • YCbCr 4:2:2
  • 10-bit
  • Level A or B Dual Link
  • 1x HDMI Type A connector*, HDMI v1.4b
  • YCbCr 4:2:2
  • 10-bit
Reference Input/Ouput
  • 1x BNC Black Burst/Bi-Level or Tri-level sync Input
  • 1x BNC Black Burst/Bi-Level or Tri-level sync Output
Audio I/O
  • 4x AES3/analog inputs on female 25pin D-Sub connector
  • 4x AES3/Analog outputs on female 25pin D-Sub connector
  • 64 channel MADI supported on selected constellations (requires additional MADI SFP)
Data I/O
  • 1x RJ45 for Serial Connection: RS232, RS422 or RS485
  • 2x RJ45 for GPI inputs
  • 1x RJ45 1GbE for Remote Control
Fiber I/O
  • 1x Optional 12G-SDI Transceiver SFP (Single-mode)
  • 1x Optional 3G-SDI Transceiver SFP (Single-mode, MADI Support)
  • 1x Optional 1GbE SFP for Remote Control
