GM 6825
Callisto 3G-SDI A/V Processing Platform
THIS IS THE HARDWARE PLATFORM ONLY – AT LEAST ONE SOFTWARE LICENSE IS REQUIRED

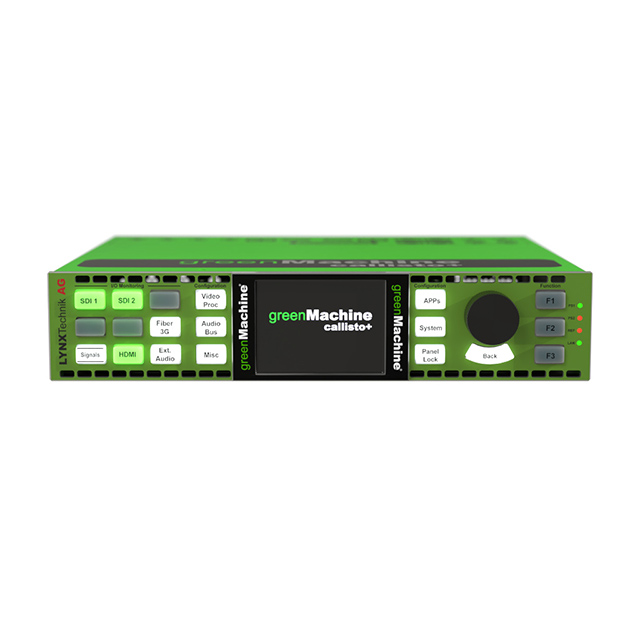

The greenMachine Callisto+ is a powerful 2-Channel 3G-SDI general-purpose audio and video processing device.
The greenMachine Callisto+ has a dual-channel 3G-SDI up/down/cross converter with frame synchronizer supporting formats up to 1920x1080p60 per channel. It includes full audio processing capabilities with independent audio embedder & de-Embedder.
Its intuitive control interface and LCD display allows on-device access to custom settings and monitoring features. Video inputs and outputs can be monitored on its mini display.
Callisto+ is fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
Lynx Centraal is available for Windows and MacOS.
Key Features
- 2-Channel 3G-SDI general purpose A/V processing
- Internal I/O signal router
- 2x 3G-SDI inputs and 2x 3G-SDI outputs
- 1x HDMI input and 1x HDMI output
- 4x AES/Analog Audio inputs
- 4x AES/Analog Audio outputs
- 4x GPI and 4x GPO
- Optional 3G-SDI fiber
- Optional 1GbE fiber
- Integrated control panel with color display
- 1RU by half 19” rack width
- Full SNMP V2 support and Lynx Centraal compatibility
• HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • HD 1920x1080PsF 23.98, 24, 25, 29.97, 30 -- -- -- -- • HD 1920x1080i -- -- -- -- -- -- -- 50, 59.94, 60 • HD 1280x720p 23.98, 24, 25, 29.97, 30 50, 59.94, 60 • SD 720x625i -- -- -- -- -- -- -- 50 -- -- -- • SD 720x525i -- -- -- -- -- -- -- -- 59.94 --
Video Input Digital
- 2x 3G-SDI BNC (3G/1.5G-SDI)
- YCbCr 4:2:2
- 10-bit
- 3G-SDI Level A or B Dual Link
- 1x HDMI Type A connector*, HDMI v1.4b
- YCbCr 4:2:2
- 10-bit
Video Output Digital
- 2x 3G-SDI BNC (3G/1.5G-SDI)
- YCbCr 4:2:2
- 10-bit
- 3G-SDI Level A or B Dual Link
- 1x HDMI Type A connector*, HDMI v1.4b
- YCbCr 4:2:2
- 10-bit
Reference Input/Ouput
- 1x BNC Black Burst/Bi-Level or Tri-level sync Input
- 1x BNC Black Burst/Bi-Level or Tri-level sync Output
Audio I/O
- 4x AES3/analog inputs on female 25pin D-Sub connector
- 4x AES3/Analog outputs on female 25pin D-Sub connector
- 64 channel MADI supported on selected constellations (requires additional MADI SFP)
Data I/O
- 1x RJ45 for Serial Connection: RS232, RS422 or RS485
- 2x RJ45 for GPI inputs
- 1x RJ45 1GbE for Remote Control
Fiber I/O
- 1x Optional 3G-SDI Transceiver SFP (Single-mode)
- 1x Optional 1GbE SFP for Remote Control
