DVO 5810

3G-SDI Distribution Amplifier with Fiber I/O

Datasheet
Manual

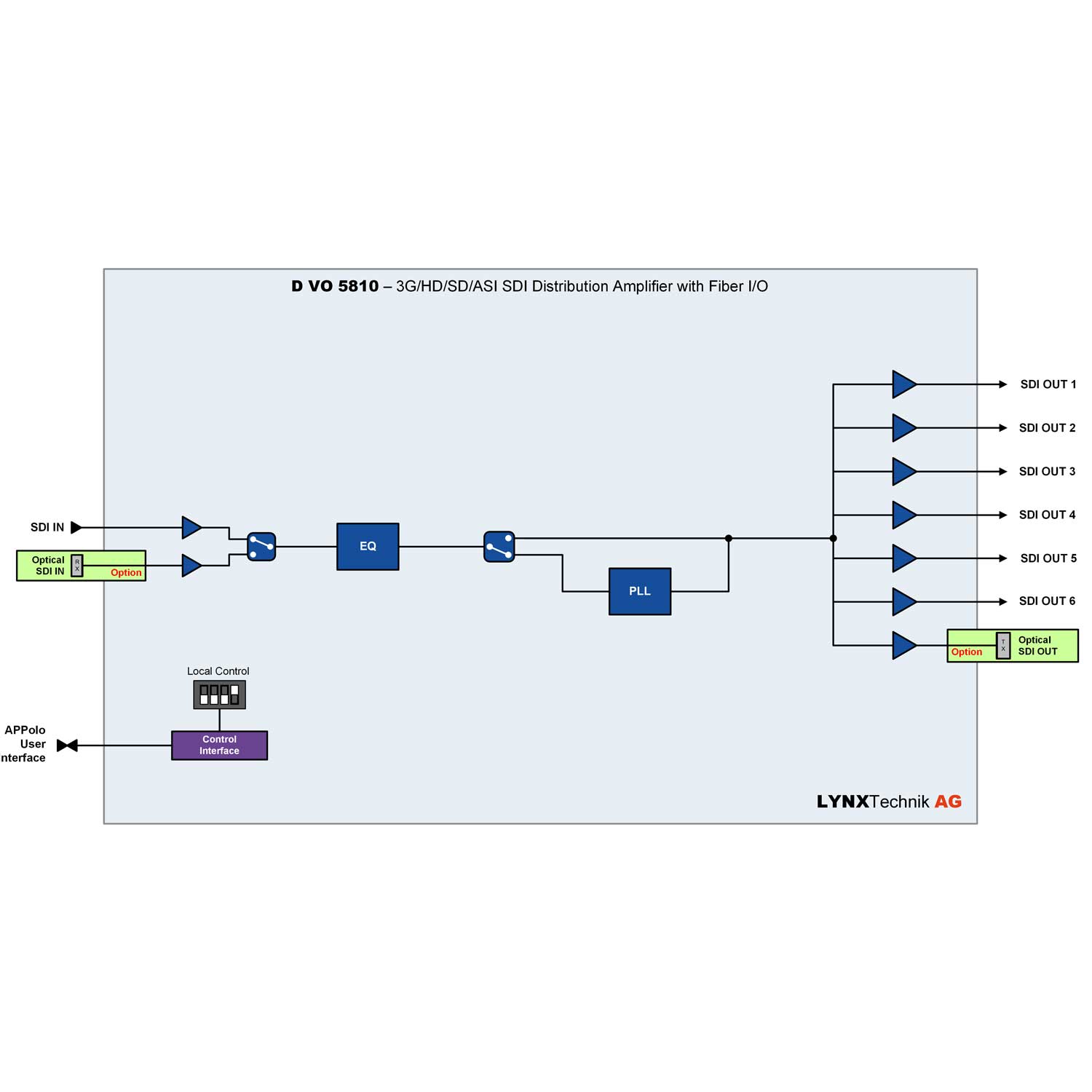

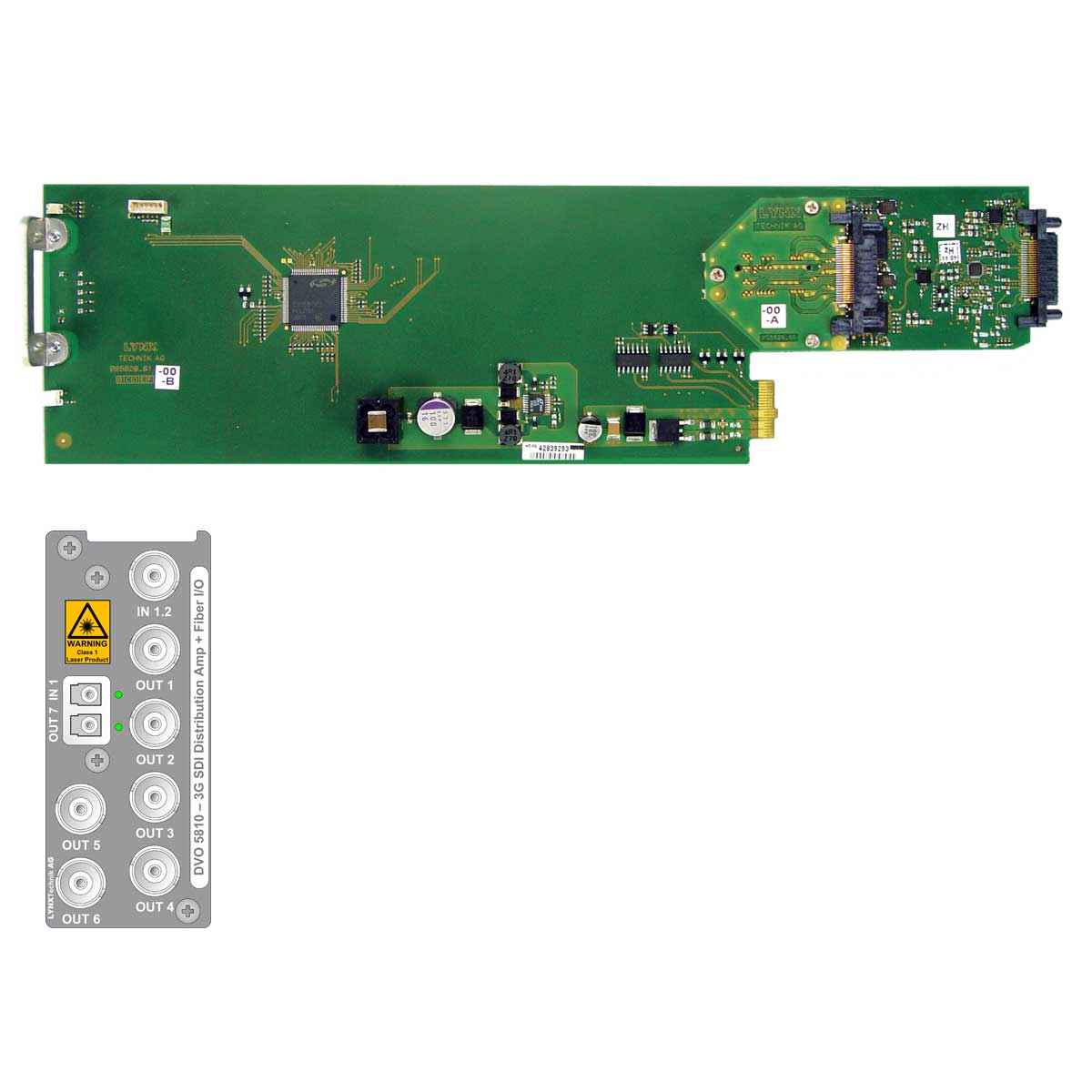

The DVO 5810 is a SDI distribution amplifier with support for electrical or optical SDI inputs. The Module provides six electrical SDI outputs and a single optical output. Reclocking or non-reclocking mode is selectable for the input. This module is ideally suited for demanding digital multi-format broadcast and professional applications.

The optical output is CWDM compatible with 18 selectable wavelengths, (non CWDM support is also available)

The module auto-detects the input video standard with support for all SDI video formats up to 3Gbit/s. In non re-clocked mode the module will transparently pass any data between 15Mbit/s and 3Gbit/s. Support for ASI/DVB and SMPTE 310 signals is also provided.

The Fiber SFP sub-module is secured on the backplane allowing for module removal and hot swapping without removing any rear I/O fiber connections.

Local settings are provided via an integrated dip switch on the card edge

Loading...

Accessories

No more pages to load

Key Features

  • Supports SDI ASI/DVB and SMPTE 310 up to 3Gbit/s
  • Electrical or optical (fiber) SDI inputs (selectable)
  • 6 x electrical and 1 x optical SDI output
  • Reclocking or non-reclocking of input (selectable)
  • Auto-detect input video standard.
  • CWDM support with 18 selectable optical wavelengths
  • Transparently pass data between 15Mbit/s and 3Gbit/s in non re-clocked mode.
  • Microprocessor controlled with internal flash ram for storing configuration
  • Input presence detection with LED indication
  • LC fiber connections
  • Fiber SFP module secured in backplane. Module can be freely removed or replaced without disconnection of fiber cables
  • Remote control, status monitoring when using the LynxCentraal control system
  • Hot Swappable

Ordering Information

UPC / EANModelDescription
4250479321366DVO 5810SDI Distribution Amplifier with Fiber I/O
Options
4250479321335RFR 5018 US19″ 2RU Rack Frame + Power Supply
Fiber Options
4250479318281OH-TR-9-850-MMFiber SDI Transceiver SFP (RX/TX) Multimode
4250479318137OH-TR-1 Fiber SDI Transceiver SFP (RX/TX) 1310nm
CWDM Fiber (40km)
4250479312708OH-TR-4-1270 SDI Transceiver SFP (CWDM) 1270nm
4250479312906OH-TR-4-1290 SDI Transceiver SFP (CWDM) 1290nm
4250479313101OH-TR-4-1310 SDI Transceiver SFP (CWDM) 1310nm
4250479313309OH-TR-4-1330 SDI Transceiver SFP (CWDM) 1330nm
4250479313507OH-TR-4-1350 SDI Transceiver SFP (CWDM) 1350nm
4250479313705OH-TR-4-1370 SDI Transceiver SFP (CWDM) 1370nm
4250479313903OH-TR-4-1390 SDI Transceiver SFP (CWDM) 1390nm
4250479314108OH-TR-4-1410 SDI Transceiver SFP (CWDM) 1410nm
4250479314306OH-TR-4-1430 SDI Transceiver SFP (CWDM) 1430nm
4250479314504OH-TR-4-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479314702OH-TR-4-1470 SDI Transceiver SFP (CWDM) 1470nm
4250479314900OH-TR-4-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479315105OH-TR-4-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479315303OH-TR-4-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479315501OH-TR-4-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479315709OH-TR-4-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479315907OH-TR-4-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479316102OH-TR-4-1610 SDI Transceiver SFP (CWDM) 11610nm
Long Haul Fiber (80km)
4250479320772OH-TR-8-1270SDI Transceiver SFP (CWDM) 1270nm
4250479320789OH-TR-8-1290SDI Transceiver SFP (CWDM) 1290nm
4250479320796OH-TR-8-1310SDI Transceiver SFP (CWDM) 1310nm
4250479320802OH-TR-8-1330SDI Transceiver SFP (CWDM) 1330nm
4250479320819OH-TR-8-1350SDI Transceiver SFP (CWDM) 1350nm
4250479320826OH-TR-8-1370SDI Transceiver SFP (CWDM) 1370nm
4250479320833OH-TR-8-1390SDI Transceiver SFP (CWDM) 1390nm
4250479320840OH-TR-8-1410SDI Transceiver SFP (CWDM) 1410nm
4250479320857OH-TR-8-1430SDI Transceiver SFP (CWDM) 1430nm
4250479320864OH-TR-8-1450 SDI Transceiver SFP (CWDM) 1450nm
4250479320871OH-TR-8-1470SDI Transceiver SFP (CWDM) 1470nm
4250479320888OH-TR-8-1490 SDI Transceiver SFP (CWDM) 1490nm
4250479320895OH-TR-8-1510 SDI Transceiver SFP (CWDM) 1510nm
4250479320901OH-TR-8-1530 SDI Transceiver SFP (CWDM) 1530nm
4250479320918OH-TR-8-1550 SDI Transceiver SFP (CWDM) 1550nm
4250479320925OH-TR-8-1570 SDI Transceiver SFP (CWDM) 1570nm
4250479320932OH-TR-8-1590 SDI Transceiver SFP (CWDM) 1590nm
4250479320949OH-TR-8-1610 SDI Transceiver SFP (CWDM) 1610nm

Supported Video Formats

  • 2K  2048x1080p      23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • HD 1920x1080p      23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • HD 1920x1080PsF  23.98, 24, 25, 29.97, 30
  • HD 1920x1080i       50, 59.94, 60
  • HD 1280x720p        23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • SD 720x625i           50
  • SD 720x525i           59.94



  • YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • 8, 10, 12-bit

Video Input (Electrical)

  • Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
  • DVB-ASI and SMPTE 310
  • Video Standard All formats ( 270Mbits/s through 2.97Gbit/s)
  • Input level 0.8 v peak to peak
  • Input Impedance 75 Ohms
  • No.Of inputs 1 (selectable)
  • Connector BNC
  • Return loss
    • > 15dB (1.485Gbit)
    • > 10dB (2.97Gbit)

Video Input (Fiber  – Optional)

  • Signal type SMPTE 297M – 2006
  • Connector LC/UPC
  • No. Of inputs 1 (selectable)

Video Output (Electrical)

  • Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
  • DVB-ASI and SMPTE 310
  • Video standard Follows input
  • Output level 0.8 v peak to peak
  • Output impedance 75 Ohm
  • No.Of Outputs 6
  • Connector BNC
  • Return loss
    • > 15dB (1.485Gbit)
    • > 10dB (2.97Gbit)
  • Jitter
    • < 0.20 UI (270Mbit)
    • < 1.0 UI – Timing Jitter – (1.485Gbit – 2.97Gbit)
    • < 0.2 UI – Alignment Jitter – (1.485Gbit – 2.97Gbit)

Video Output (Fiber-Optional)

  • Signal Type SMPTE 297M – 2006
  • Connector LC/UPC (Singlemode receive / transmit – duplex connection)
  • No.Of outputs 1

Performance

  • Cable equalization
    • Up to 250M using Belden 8281 (270Mbit)
    • Up to 140m using Belden 1694A (1.485Gbit)
    • Up to 80m using Belden 1694A (2.97Gbit)
  • Status monitoring (LED) Signal presence plus general alarm

Operation modes

  • Copper Input mode 1 x copper SDI in > 6 x copper SDI out plus 1 x Fiber out
  • Fiber Input mode 1 x Fiber in > 6 x copper SDI out plus 1 x Fiber out
  • Re-clocking Clocked or non re-clocked operation

Electrical Specifications

  • Operating Voltage 12 VDC
  • Power Consumption < 4W
  • Safety IEC 60950/ EN 60950/ VDE 0805

Mechanical

  • Size 283mm x 78mm
  • Weight CardModule 120g, connector plate 50g
