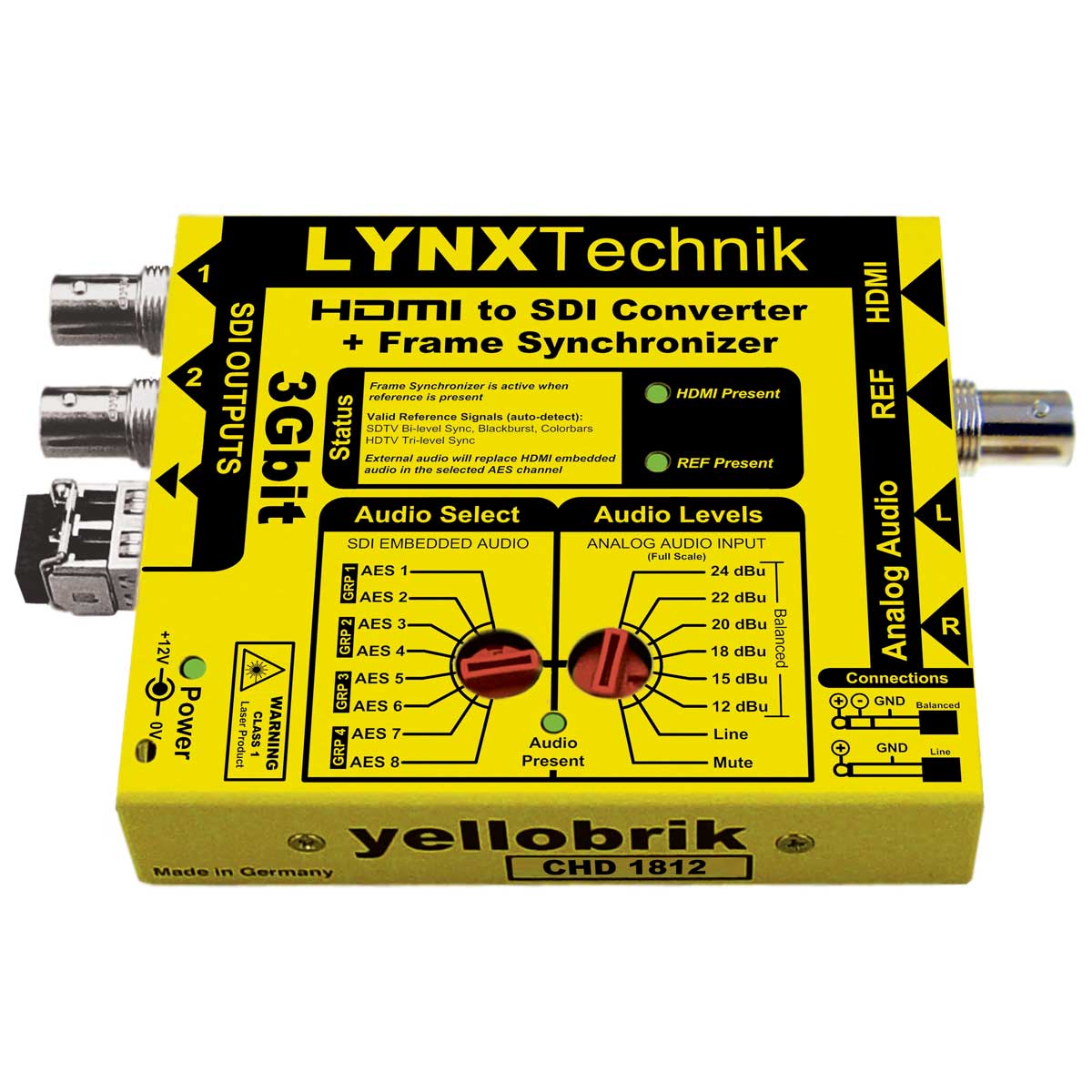

CHD 1812
HDMI to 3G SDI Converter with Frame Synchronizer
The CHD 1812 is a versatile and compact HDMI to SDI converter with integrated frame synchronizer. It is an ideal solution for any application which requires a fully synchronized SDI input from an external asynchronous HDMI source.
The flexible reference sync input will accept any analog video sync format including SD bi-level sync, black burst, colorbars and tri-level HD sync. The sync input is auto detecting and fully cross lock compatible. For example: An SDTV reference can be used to frequency lock an HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion. A pair of stereo analog inputs can be embedded into any AES channel. Audio inputs can be either professional balanced audio with selectable full scale level, or unbalanced consumer line level audio. By default any audio present in the HDMI stream will be embedded into the SDI output or it can be replaced with the external audio signals.
The module is also compatible with the yelloGUI software package, which provides access to a host of additional internal settings including adjustable video delay for timing purposes.
An SDI fiber output is also provided with a variety of plug in SFP options available.
Note: For legal reasons, HDMI conversion products from LYNX Technik AG are designed not to capture, convert or transmit video or audio from HDCP copy-protected sources (e.g. Satellite receivers, Cable receivers, Blu Ray Players etc.)
No more pages to load
Key Features
- SDI video output formats up to 3Gbit (1080p60)
- 3G SDI Level A and Level B support
- Support for single link 3D formats
- Integrated Frame Synchronizer
- Multi-format sync reference input – cross lock compatible
- 2 x SDI outputs with optional SDI fiber output
- HDMI embedded audio passed transparently
- 2 x external analog audio inputs
- Selectable AES channel for embedding external audio
- HDMI, reference and audio present LED indication
- yelloGUI and LYNX Centraal compatible to access additional internal settings
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479318335 | CHD 1812 | HDMI to SDI Converter |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| Fiber Options | ||
| 4250479320321 | OH-TX-1-LC | SDI TX Fiber SFP LC Connection (1310nm) |
| 4250479320215 | OH-TX-1-SC | SDI TX Fiber SFP SC Connection (1310nm) |
| 4250479320222 | OH-TX-1-ST | SDI TX Fiber SFP ST connection (1310nm) |
| 4250479318236 | OH-TX-0-850-MM | SDI TX SFP Multimode (850nm) LC |
| CWDM Fiber (40km) | ||
| 4250479312715 | OH-TX-4-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479312913 | OH-TX-4-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479313118 | OH-TX-4-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479313316 | OH-TX-4-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479313514 | OH-TX-4-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479313712 | OH-TX-4-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479313910 | OH-TX-4-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479314115 | OH-TX-4-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479314313 | OH-TX-4-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479314511 | OH-TX-4-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479314719 | OH-TX-4-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479314917 | OH-TX-4-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479315112 | OH-TX-4-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479315310 | OH-TX-4-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479315518 | OH-TX-4-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479315716 | OH-TX-4-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479315914 | OH-TX-4-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479316119 | OH-TX-4-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| Long Haul Fiber (80km) | ||
| 4250479320567 | OH-TX-8-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479320574 | OH-TX-8-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479320581 | OH-TX-8-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479320598 | OH-TX-8-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479320604 | OH-TX-8-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479320611 | OH-TX-8-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479320628 | OH-TX-8-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479320635 | OH-TX-8-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
HDMI Input
- 1x HDMI Type A connector, HDMI v1.4b
- 3D modes supported: “side by side” + “top and bottom” + “frame packing”
Supported Video Formats
- HD 1920x1080p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080PsF 98 / 24 / 25 / 29.97 / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- SD 720x625i 50
- SD 720x525i 94
- 3D 1920x1080p 98 / 24 / 25 / 29.97 / 30
- 3D 1920x1080PsF 98 / 24 / 25 / 29.97 / 30
- 3D 1920x1080i 50 / 59.94 / 60
- 3D 1280x720p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 3G-SDI Single-Link ST 425-2 Data Mapping for Stereoscopic Image Formats (3D)
- HDMI Single-Link “side by side” and “top-bottom” 3D modes
SDI Video Outputs:
- 2 x 3G SDI outputs on 75 Ohm BNC connector (identical outputs)
- YCbCr 4:2:2, 10 bit
- 3G Level A & B-DL & B-DS according to SMPTE ST 425-1
- 3D Support with image formats 1280 x 720 and 1920 x 1080 (ST 425-2)
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- Multi-rate output: 270Mbit/s / 1.5Gbit/s / 3Gbit/s
Return Loss
- 5Mhz to 1.5GHz = > 15dB
- 5Ghz to 3GHz = > 10dB
Audio Inputs
- Left and right analog audio inputs using 1/4 inch jack plugs (Jack Plug to RCA connection adapters supplied)
- 10k Ohm differential balanced input mode with 24, 22, 20, 18, 15, 12dBu full scale (selectable)
- Unbalanced mode with (line level) at -10 dBV
- Selectable AES channel for audio embedding (1 through 8) Overwrites any HDMI embedded audio present in selected channel
- Frequency response: <+/- 0.2dB 20Hz to 20KHz
- 48kHz A/D sample rate (free run or frequency locked to reference input)
Reference Input
- 75 Ohm BNC Connector
- SDTV: Analog 525 or 625 bi-level sync, black burst or colorbars
- HDTV: All tri-level sync standards (exceptions 1080p 50/59.94/60Hz)
- Cross lock compatible
- SMPTE 274M, SMPTE 296M
Frame Synchronizer
- Frame Sync is functional if valid reference input is detected, otherwise operates in free run (asynchronous) mode.
- External audio and HDMI input are frequency locked to reference input
- Fully cross lock compatible across standards.
- One frame of adjustable delay (in line and pixel increments) using LynxCentraal yelloGUI
SDI Fiber Output (optional)
- 1x SDI fiber TX output
- Simplex Transmitter (TX)
- CWDM options available
- SMPTE 297M – 2006
Power
- +12V DC @ 4.7W nominal – (supports 7 – 24V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 230g (8.11oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
