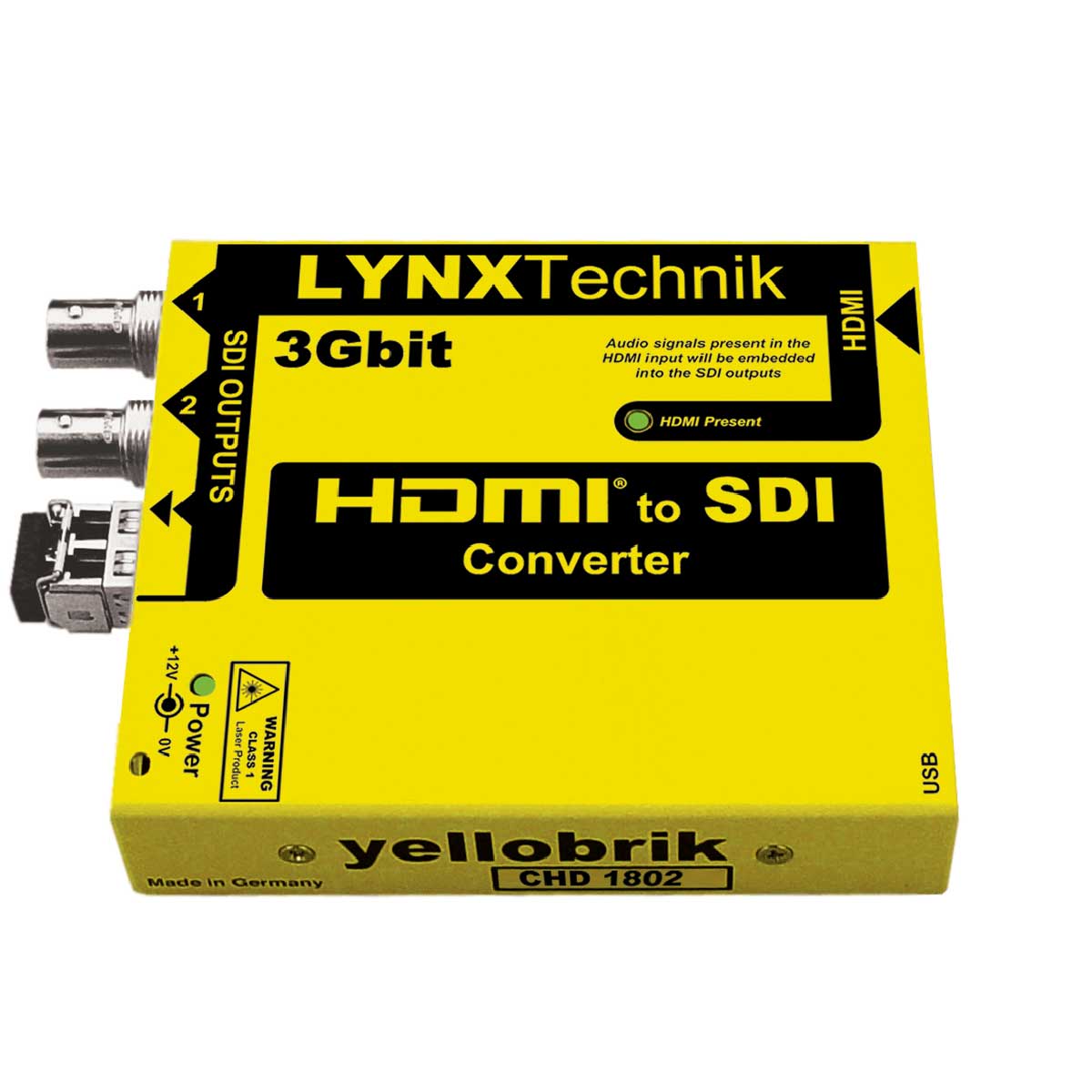

CHD 1802
HDMI to 3G-SDI Converter
The CHD 1802 is a compact HDMI to SDI converter It is an ideal solution for any application which requires a broadcast quality SDI signal derived from an external HDMI source. Any audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output.

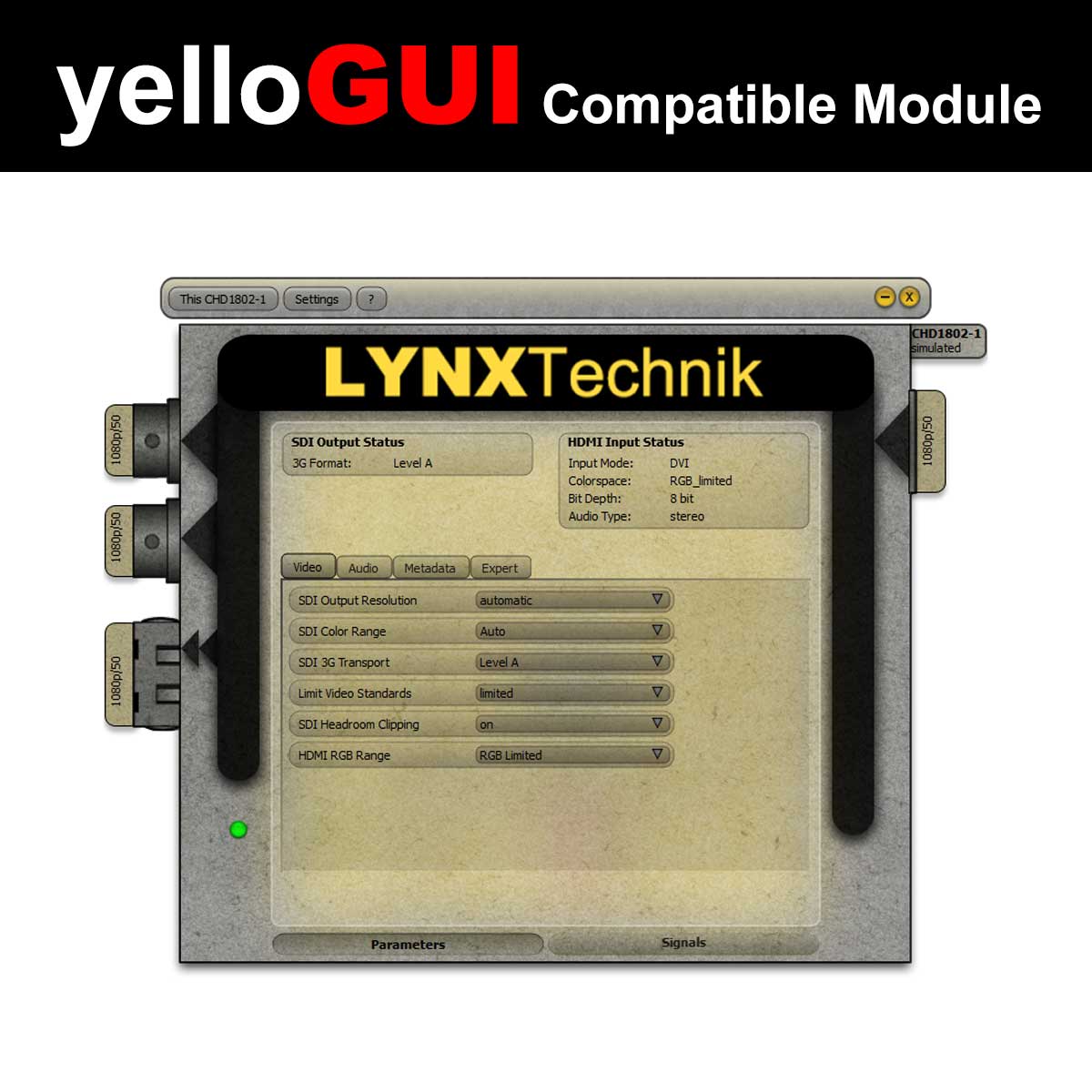

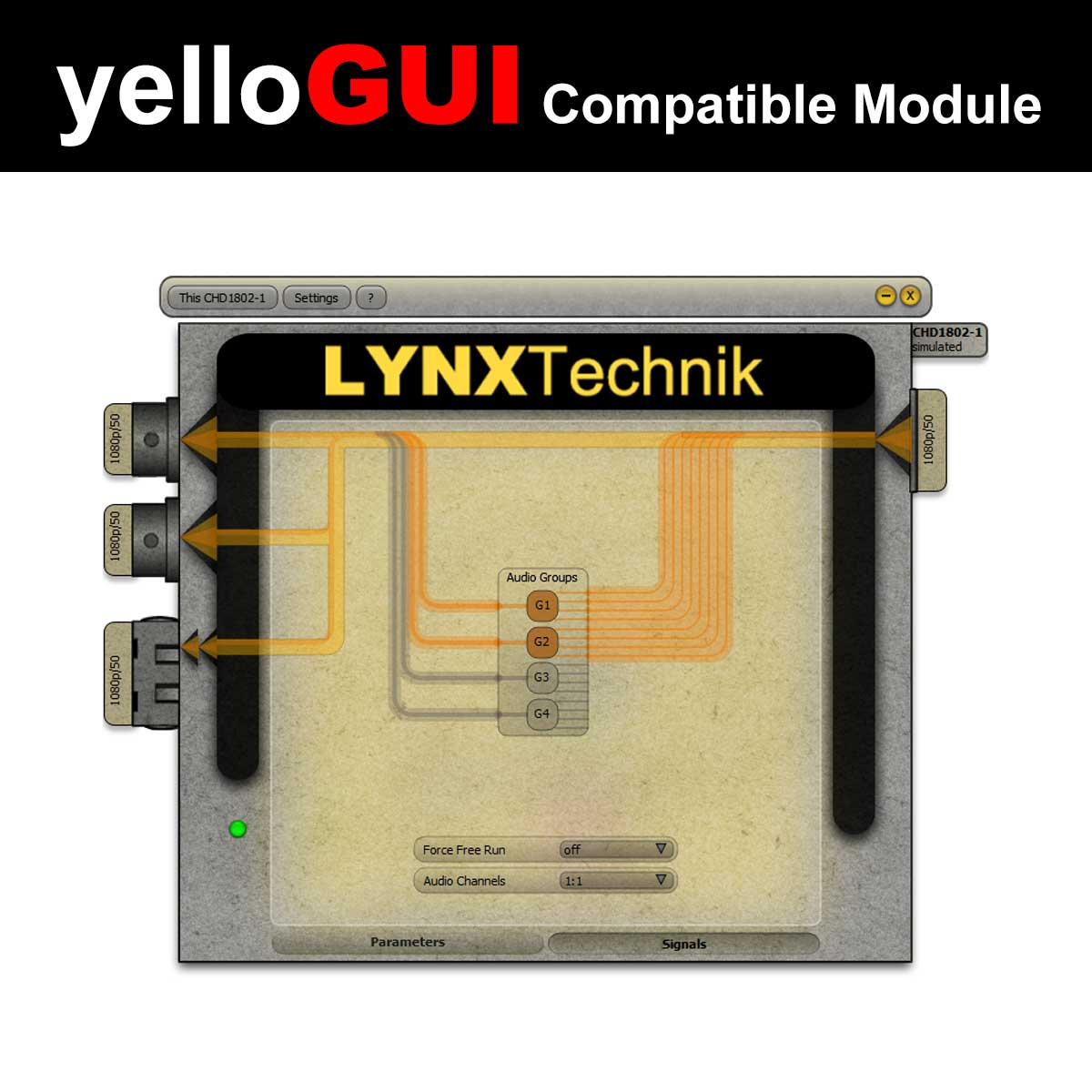

The module is also compatible with the yelloGUI software package, which provides access to a host of additional internal settings
An SDI fiber output is also provided with a variety of plug in SFP options available.
Note: For legal reasons, HDMI conversion products from LYNX Technik AG are designed not to capture, convert or transmit video or audio from HDCP copy-protected sources (e.g. Satellite receivers, Cable receivers, Blu Ray Players etc.)
No more pages to load
Key Features
- SDI video output formats up to 3Gbit (1080p60)
- 3G SDI Level A and Level B support
- Support for single link 3D formats
- 2 x SDI outputs
- Optional SDI fiber output
- HDMI embedded audio passed transparently
- HDMI present LED indication
- yelloGUI and LYNX Centraal compatible for access to additional internal settings
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479318328 | CHD 1802 | HDMI to SDI Converter |
| Options | ||
| 4250479329041 | RFR 1200 | 1RU 19″ Chassis for 14 yellobriks |
| 4250479315013 | RFR 1001 | Single Module Mounting Bracket |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| Fiber Options | ||
| 4250479320321 | OH-TX-1-LC | SDI TX Fiber SFP LC Connection (1310nm) |
| 4250479320215 | OH-TX-1-SC | SDI TX Fiber SFP SC Connection (1310nm) |
| 4250479320222 | OH-TX-1-ST | SDI TX Fiber SFP ST connection (1310nm) |
| 4250479318236 | OH-TX-0-850-MM | SDI TX SFP Multimode (850nm) LC |
| CWDM Fiber (40km) | ||
| 4250479312715 | OH-TX-4-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479312913 | OH-TX-4-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479313118 | OH-TX-4-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479313316 | OH-TX-4-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479313514 | OH-TX-4-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479313712 | OH-TX-4-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479313910 | OH-TX-4-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479314115 | OH-TX-4-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479314313 | OH-TX-4-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479314511 | OH-TX-4-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479314719 | OH-TX-4-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479314917 | OH-TX-4-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479315112 | OH-TX-4-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479315310 | OH-TX-4-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479315518 | OH-TX-4-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479315716 | OH-TX-4-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479315914 | OH-TX-4-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479316119 | OH-TX-4-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| Long Haul Fiber (80km) | ||
| 4250479320567 | OH-TX-8-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479320574 | OH-TX-8-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479320581 | OH-TX-8-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479320598 | OH-TX-8-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479320604 | OH-TX-8-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479320611 | OH-TX-8-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479320628 | OH-TX-8-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479320635 | OH-TX-8-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
HDMI Input
- 1x HDMI Type A connector, HDMI v1.4b
- 3D modes supported: “side by side” + “top and bottom” + “frame packing”
Supported Video Formats
- HD 1920x1080p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- HD 1920x1080PsF 98 / 24 / 25 / 29.97 / 30
- HD 1920x1080i 50 / 59.94 / 60
- HD 1280x720p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- SD 720x625i 50
- SD 720x525i 94
- 3D 1920x1080p 98 / 24 / 25 / 29.97 / 30
- 3D 1920x1080PsF 98 / 24 / 25 / 29.97 / 30
- 3D 1920x1080i 50 / 59.94 / 60
- 3D 1280x720p 98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 3G-SDI Single-Link ST 425-2 Data Mapping for Stereoscopic Image Formats (3D)
- HDMI Single-Link “side by side” and “top-bottom” 3D modes
SDI Video Outputs:
- 2 x 3G SDI outputs on 75 Ohm BNC connector (identical outputs)
- YCbCr 4:2:2, 10 bit
- 3G Level A & B-DL & B-DS according to SMPTE ST 425-1
- 3D Support with image formats 1280 x 720 and 1920 x 1080 (ST 425-2)
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- Multi-rate output: 270Mbit/s / 1.5Gbit/s / 3Gbit/s
Return Loss
- 5Mhz to 1.5GHz = > 15dB
- 5Ghz to 3GHz = > 10dB
SDI Fiber Output (optional)
- 1x SDI fiber TX output
- Simplex Transmitter (TX)
- CWDM options available
- SMPTE 297M – 2006
Power
- +12V DC @ 4.0W nominal – (supports 7 – 24V DC input range)
- Power Present LED
Physical Size: (including connectors)
- Metric:140mm x 90mm x 22mm
- Inches: 5.51” x 3.54” x 0.86”
Weight:
- 230g (8.11oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
